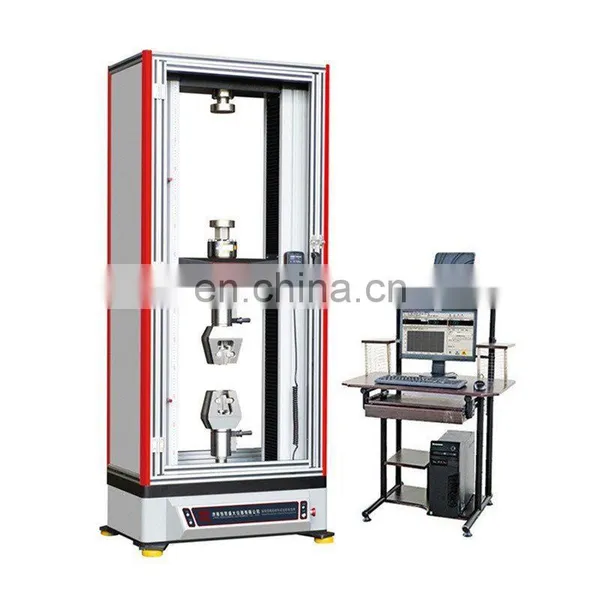

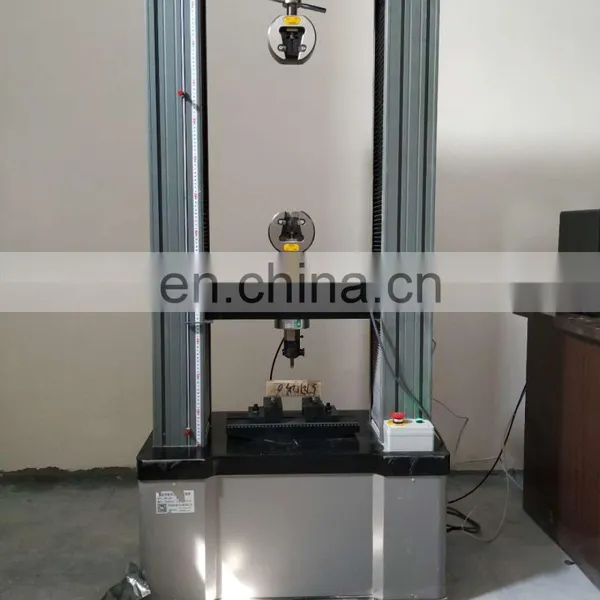

WDS-100 100kN Digital Display Plastic Electronic Universal Testing Machine
Product Description
Application
This series material testing machine product group was primarily developed for
standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test, include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
This series material testing machine product group was primarily developed for
standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test, include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
Specification
Items |
Model |
||||||||
WDS-10 |
WDS-20 |
WDS-30 |
WDS-50 |
WDS-100 |
|||||
Structure |
Column and 2 Ball Screw |
||||||||
Max. Load(kN) |
10 |
20 |
30 |
50 |
100 |
||||
Tensile space(mm) |
670 |
770 |
650 |
||||||
Compression space(mm) |
900 |
1000 |
|||||||
Effective test width |
450 |
550 |
|||||||
Size(mm) |
850 * 590 * 1750 |
840*570*1850 |
950*660*2000 |
||||||
Host Weight (kG) |
370 |
420 |
680 |
||||||
Power Supply |
220V/50-60Hz |
||||||||
