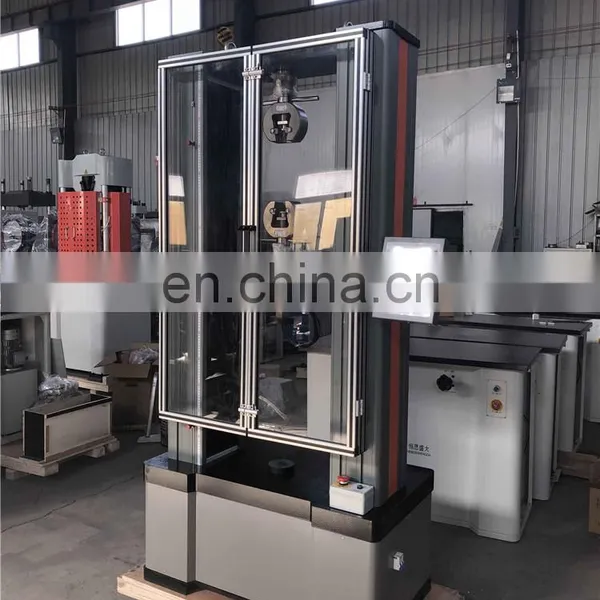

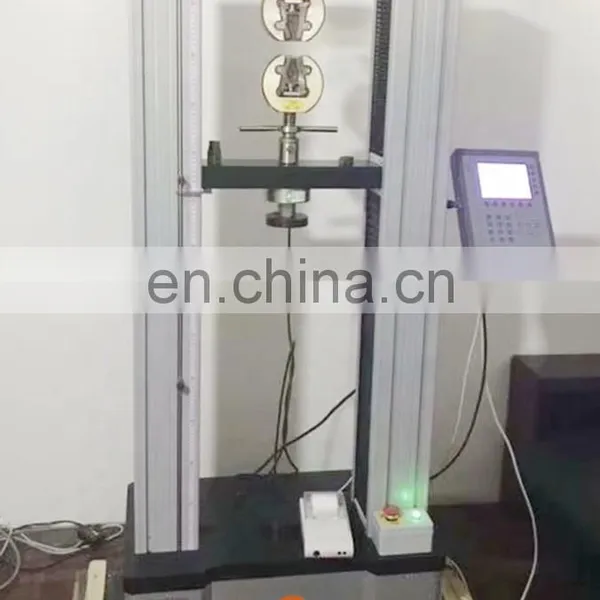

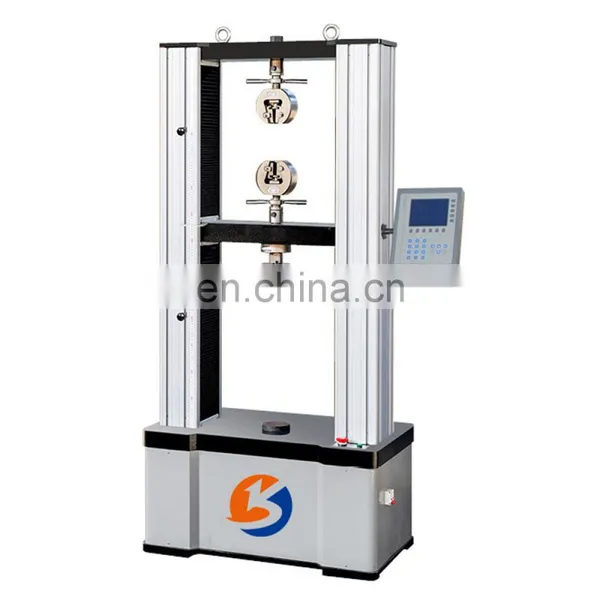

WDS-50 50kN Universal Testing Machine Supplier Tension Testing Equipment Ultimate Tensile Machine
1.Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test.
Suitable for metal, rubber, plastic, spring, textile, and components testing.
It is widely used in the corresponding industries, research and development, test institutes and training
centers etc.
2.Standard:
ASTM, ISO, DIN, GB and other international standards.
3.Main Technical Parameters:
Model |
WDS-10 |
WDS-20 |
WDS-30 |
WDS-50 |
Max. load |
10kN |
20kN |
30kN |
50kN |
Structure |
Four-column floor model (upper is tensile and lower is compression) |
|||
Control method |
Single chip control |
|||
Load accuracy |
1 class |
|||
Load range |
2%~100%F·S |
|||
Displacement Resolution |
0.04um |
|||
Power supply |
AC220V±10%,50Hz(can be customized) |
|||
Grips |
Wedge type, plate type and other grips as consumer's demand |
|||
Dimension |
800*490*1960mm |
|||
