Product Description

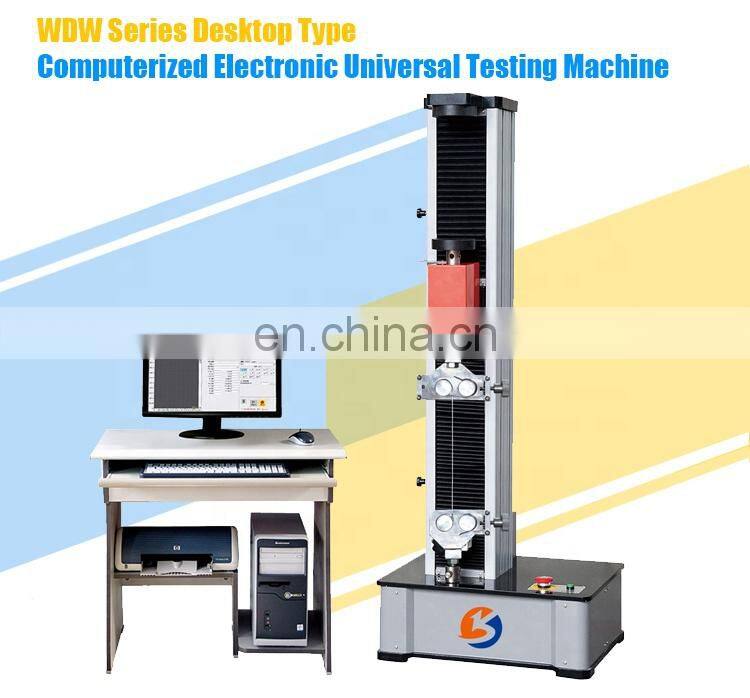

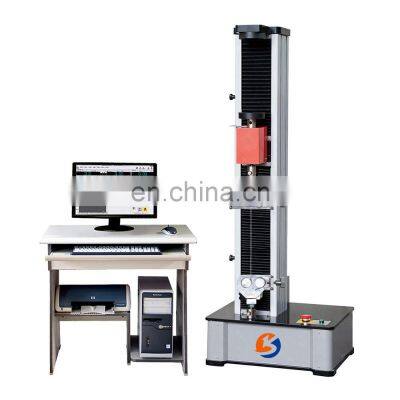

WDW Series Computerized Universal Tensile Testing Machine
Product Description
Introduction
WDW series electromechanical testing machines offer force, displacement or deformation closed loop testing in tension,
compression, flexure, shear, tear and peel etc.
The machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness.
0.2kn single column universal testing machine wdw-es0.2 100n universal tensile testing machine 1kn tensile testing machine 2kntensile testing machine 2kn utm tensile testing machine 500n electronic universal tester 500n paper tension strength tester 500ntensile compression tester 5kn servo universal tensile testing machine
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM, D3479, ASTM E517,ASTM, D695, ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008, GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
Specification
Model | WDW-01,02,03,05,1,2,5 |
Max. Load | 0.1,0.2,0.3,0.5,1,2,5 KN |
Structure | Single Column Double Spaces |
Control Method | Computer Control or Digtial Display |
Load Accuracy | 1 Class/0.5 Class |
Load Range | 2%~100% FS (0.02KN~1KN) |
Displacement Resolution | 0.01mm |
Test Speed | 0.05~500mm/min |
Tensile Space | 600mm or 1000mm |
Compression Space | 600mm |
Please contact KASON directly for best quotation
Application
Application
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test, include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
