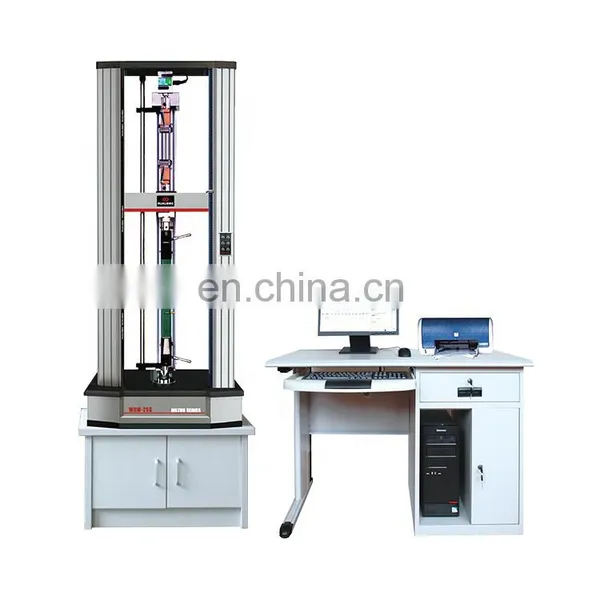

WDW-5G Computer Control High Temperature Electronic Tensile Creeping Testing Machine
Application
WDW-G series computerized electronic universal testing machines are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc. Configurated with high, low temperature box is able to finish temperature environment test.
Main Specifications
Model |
WDW-5 |
WDW-10 |
WDW-20 |
WDW-30 |
WDW-50 |
WDW-100 |
||
Max. Load |
5kN 500kgf 1120lbf |
10kN 1000kgf 2240lbf |
20kN 2000kgf 4480lbf |
30kN 3000kgf 6720lbf |
50kN 5000kgf 11200lbf |
100kN 10000kgf 22400lbf |
||
Load accuracy |
≤±1% |
|||||||
Load range |
2%-100% of full scale |
|||||||
Loadresolution |
1/200000 of full scale |
|||||||
Disp. resolution |
0.01mm |
|||||||
Test speed |
0.05-500mm/min |
0.05-300mm/min |
||||||
Tensile space |
750mm|30in |
650mm|25.6in |
650mm|25.6in |
|||||
Comp. space |
750mm|30in |
650mm|25.6in |
650mm|25.6in |
|||||
Test width |
375mm |
400mm |
420mm |
|||||

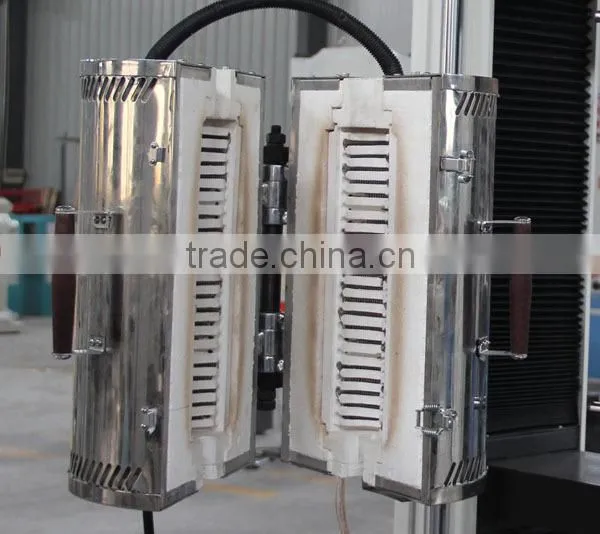

Temperature range |
50°C~300°C |
|||||||
|
Thermostat specifications |
High precision temperature control meter, multilevel PID adjust, interval1°C, accuracy: 0.5°C |
|||||||
Temperaturefluctuation |
±1°C |
|||||||
Temperature gradient |
Better than 3°C |
|||||||
Heating up time |
Room temperature to300°C, less than 50 minutes |
|||||||
|
Uniform temperature zone length |
More than 150mm |
|||||||
Size of oven body |
Hearth: depth 650mm×width 240mm×height400mm Overall size:1000mm×390mm×600mm |
|||||||
Material |
Stainless steel inner shell, long durability, good anti-corrosion performance |
|||||||
Structure |
Large observation window, easy operation, with guide rail |
|||||||
|
High temperature box power |
2kW/AC380V/50Hz |
|||||||
Dimension |
730×430×1700mm |
755×480×1780mm |
825×600×1950mm |
|||||
Power supply |
220V, 1ph, 0.5kW |
220V, 1ph, 0.75kW |
220V, 1ph, 1kW |
|||||
Weight (kg) |
250kg|550lb |
280kg|616lb |
350kg|770lb |
|||||
WDW-5G Computer Control High Temperature Electronic Tensile Creeping Testing Machine
