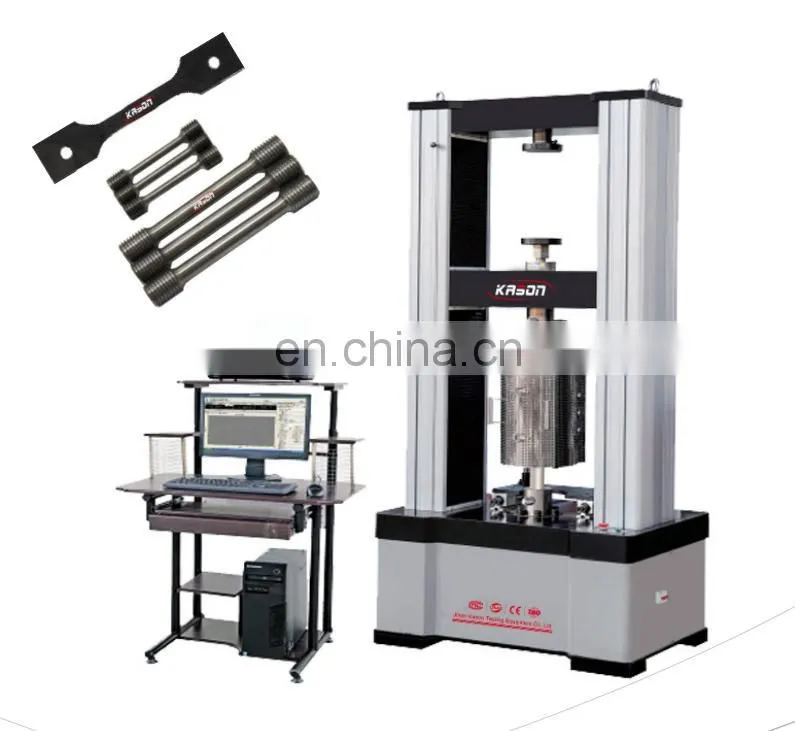

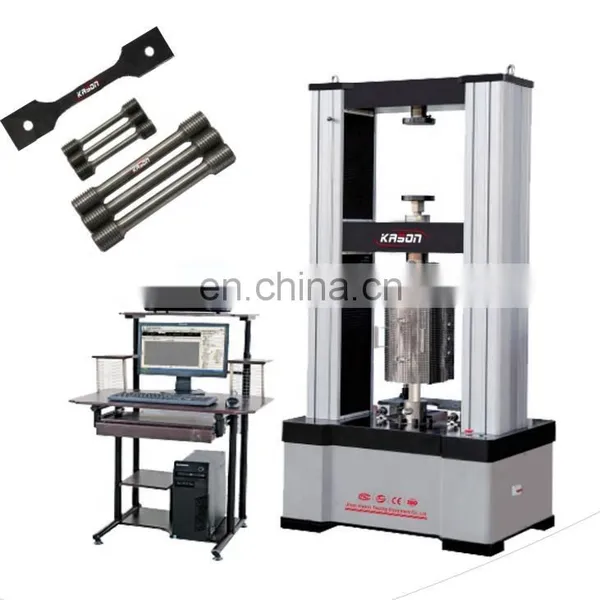

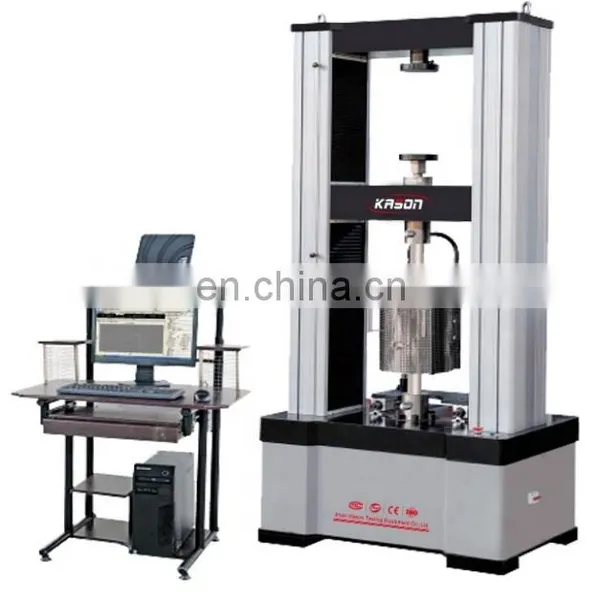

30kN 50kN 100kN 300kN Computer Control High Temperature Tensile Strength Tester Testing Machine Price
Application
WDW-G High Temperature Electronic Creeping Tensile Testing Machine are designed
and manufactured according to ASTM, ISO, DIN, GB and other international standards.
Applicable for wide range of material for tension, compression, bending, shearing and
low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.
Configurated with high temperature furnace is able to finish temperature environment test.
It is widely used in the corresponding industries, research and development, test institutes
and training centers etc.
Main Specifications
|
Model |
WDW-5G |
WDW-10G |
WDW-20G |
WDW-30G |
WDW-50G |
WDW-100G |
||
|
Max. Load |
5kN |
10kN |
20kN |
30kN |
50kN |
100kN |
||
|
Load Accuracy |
≤±1% |
|||||||
|
Load Range |
2%-100% of full scale |
|||||||
|
Test Speed |
0.05-1000mm/min |
0.05-500mm/min |
||||||
|
Tensile Space |
800mm |
700mm |
700mm |
700mm |
||||
|
Compression Space |
800mm |
700mm |
700mm |
700mm |
||||
|
Test Width |
400 |
500 |
500 |
550 |
||||
|
Travel distance(mm) |
1050 |
|||||||
|
Ambient temperature |
+10 ... +35 °C |
|||||||
|
Load resolution |
1/300000 |
|||||||
|
Motor |
AC servo-motor |
|||||||
|
Power supply |
AC220V±10%,50Hz/60Hz (can be customized) |
|||||||
|
Temperature range |
200~1100℃ |
|||||||
|
Soaking zone length |
150mm |
|||||||
|
Temperature gradient |
200-600℃, less than 2℃; 600-900℃, less than 3℃; 900-1100℃, less than 4℃ |
|||||||
|
Muff pipe size |
Φ90mm |
|||||||
