Belfone Newest Economic Dmr Digital Radio Walkie Talkie (BF-TD516)

Fujian BelFone Communications Technology Co., Ltd. Verified Business License
Belfone Newest Economic Dmr Digital Radio Walkie Talkie (BF-TD516) thumbnail-1
Belfone Newest Economic Dmr Digital Radio Walkie Talkie (BF-TD516) thumbnail-2
Belfone Newest Economic Dmr Digital Radio Walkie Talkie (BF-TD516) thumbnail-3
Belfone Newest Economic Dmr Digital Radio Walkie Talkie (BF-TD516) thumbnail-4
Belfone Newest Economic Dmr Digital Radio Walkie Talkie (BF-TD516) thumbnail-5
Belfone Newest Economic Dmr Digital Radio Walkie Talkie (BF-TD516) photo-1

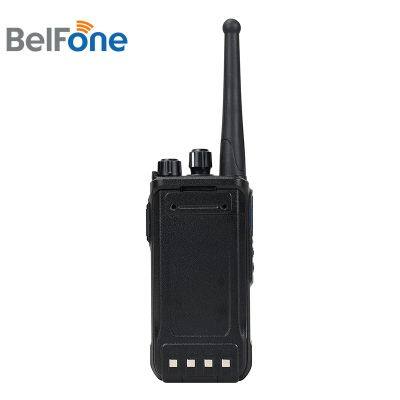

Belfone Newest Economic Dmr Digital Radio Walkie Talkie (BF-TD516) photo-2

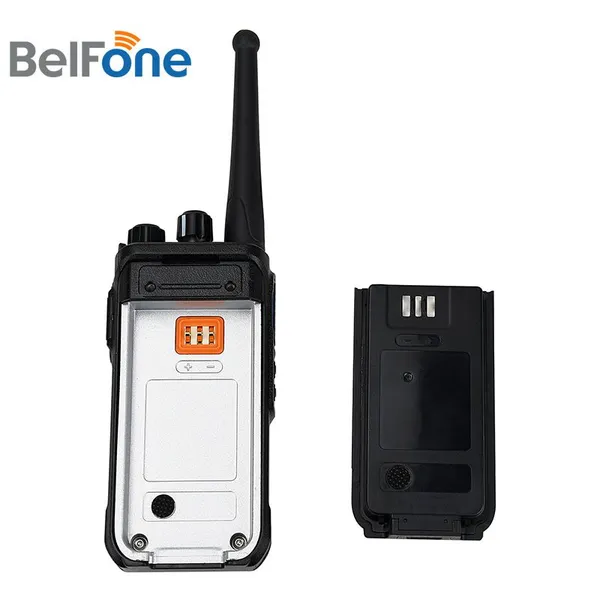

Belfone Newest Economic Dmr Digital Radio Walkie Talkie (BF-TD516) photo-3

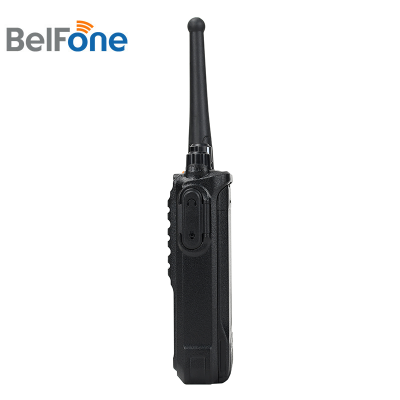

Belfone Newest Economic Dmr Digital Radio Walkie Talkie (BF-TD516) photo-4

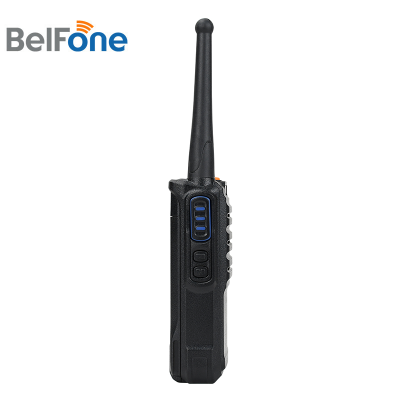

Belfone Newest Economic Dmr Digital Radio Walkie Talkie (BF-TD516) photo-5
US$ 58 - 67 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
1989
Product Certifications:
ISO9001
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us

BF-TD516 is a DMR entry-level portable designed to appeal to European citizens who want to enjoy radio communications without having to apply for licenses. With loud and crystal clear audio, a longer battery life, and of course a higher spectrum efficiency delivered by a 12.5KHz channel spacing, BF-TD516 gives you a whole package of basic digital features and promises a wonderful user experience.


Excellent Audio Quality
The FEC technology and AMBE+2TM vocoder deliver a clear and crisp audio.


Compatible with Motorola Audio Accessories
BF-TD516 is compatible with Motorola audio accessories. So, if you already have a Motorola analog earpiece or microphone, you can pair them with BelFone BF-TD516 and go hand-free.


Digital/Analog Mixed Mode
Receive both analog and digital signals on a single channel and can automatically switch into the needed mode for efficient communications.


Small Size and Light Weight
BF-TD516 is small and light enough to be held easily and comfortably in a single hand. It is also very easy to operate.


Private Call, Group Call And All Call (programmable)
The versatile calling functions bring more efficiency to your teamwork.


Scan/Monitor (programmable)
At a convenient push of a button you can monitor all the conversations on your channel or you can scan conversations on different channels.



Product Parameters



General
Frequency RangeUHF: 350-390/400-480/450-520MHz
Channel Capacity64
Zones4
Channel Spacing15KHz
Antenna impedance50Ω
Operating VoltageDC7.4V (±20%)
Battery Average Working Time(5/5/90)Digital.18 hours Analog 14 hours
Battery CapacityReal 1800 mAh (Polymer Battery)
Frequency Stability±1.5 ppm
Dimensions59(L)x35(W)x114(H)mm
Weight259g (including battery pack)
Transmitter
Power Output5W
4FSK Modulation12.5KHz data only: 7K60FXD
12.5KHz data and voice: 7K60FXE
FM Modulation12.5KHz 8K50FXD
Modulation Limitation+/-2.5KHz@ 12.5KHz
+/- 5KHz @ 25KHz
Spurious Emission-36 dBm ≤1GHz
-30 dBm ≥1GHz
Rated Audio Distortion≤3%
Adjacent Channel Power≤-60dB
Frequency Response+1/-3 dB
VocoderAMBE+2TM
Receiver
Digital Sensitivity5% BER: 0.25 μV
Analog Sensitivity0.25 μV (12 dB SINAD)
Adjacent Selectivity60dB
Intermodulation60dB
Spurious Suppression60dB
Conduction Radiation-57 dBm
Rated Audio Power1.5W
Rated Audio Distortion3% (typical)
Environmental
Dust&Water ProofIP54
Working Temperature-20ºC ~ +60ºC
Storage Temperature-30ºC ~ +85ºC
