BelFone Ad Hoc Dmr Trunking Two Way Radio Single Frequency Repeater With GPS (BP750)

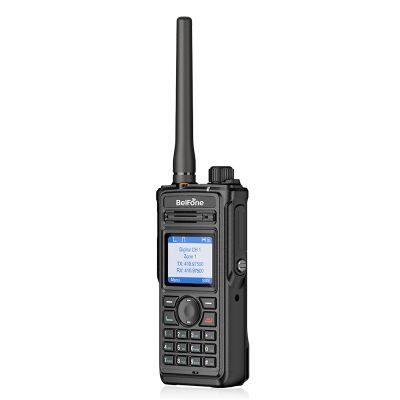

BelFone Ad Hoc Dmr Trunking Two Way Radio Single Frequency Repeater With GPS (BP750) photo-1

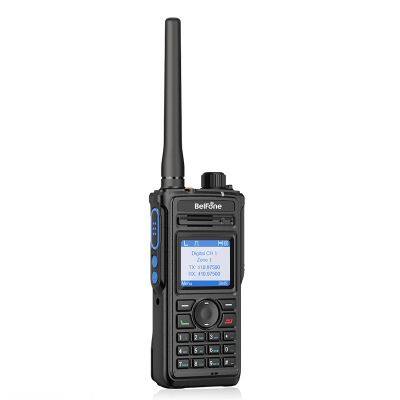

BelFone Ad Hoc Dmr Trunking Two Way Radio Single Frequency Repeater With GPS (BP750) photo-2
BelFone Ad Hoc Dmr Trunking Two Way Radio Single Frequency Repeater With GPS (BP750) photo-3

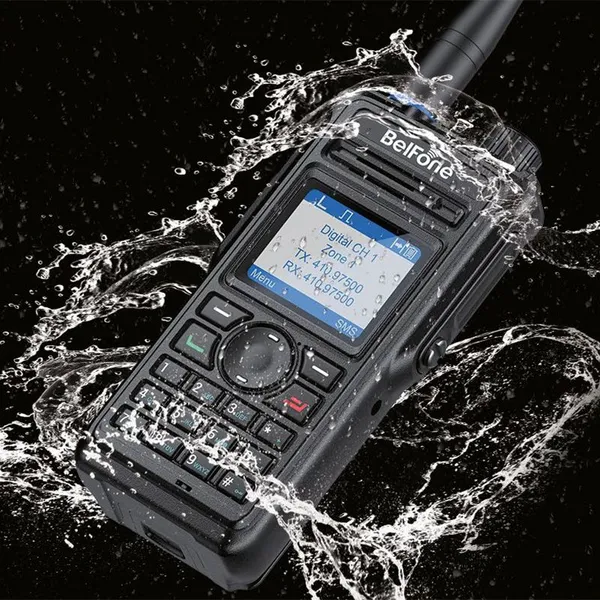

BelFone Ad Hoc Dmr Trunking Two Way Radio Single Frequency Repeater With GPS (BP750) photo-4
Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
CE
Display Type:
Other, With Display
Battery Type:
Lithium-ion
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
15 days
Certification CE
Display Type Other, With Display
Battery Type Lithium-ion
Communication Distance 5-9km
IP Rating IP68
Features Emergency Alarm, Encrypted Communication, GPS Positioning
Channels Other, 1024
Encryption AES Encryption
Transport Package Standard Carton Box Packaging
Specification 57(L)* 32.5(W)* 129(H)mm
Trademark BelFone
Origin China

BP750 is a new enhanced two-way radio with rich functions, full application scenarios, and different versions(Conventional /System / Trunking / Smart Virtual Trunking /Ad hoc)to meet the communication needs of different industries.

Ad Hoc Networking
BP750 used multi-hop network technology to turn each Ad hoc radio into a communication signal source and form a strong communication network. It is a powerful two-way radio with characteristics of frequency-saving, easy to use, easy to carry, rapid deployment, etc. Furthermore, it also extends the communication distance and realizes signal coverage in remote areas.

Superheterodyne Circuit
BP750 adopts the new superheterodyne circuit design to improve its RF performance, enhance reception sensitivity, and further extend communication range. Guarantee stable reception in cross-zone switching. Ensure timely and efficient communication across a wider range.

Stealth Mode
The stealth mode could meet different communication demands during the wartime. It can be switched into the vibration mode when the bell and light reminder is inconvenient. In addition, users can also send quick messages by the programming button.

Single Frequency Repeater
BP750 supports single frequency repeater services in conventional DMR mode. It can be used as a portable repeater to quickly establish a single frequency network, and expand the original communication range.

High-precision GPS Positioning
BP750 supports a variety of precision positioning which can report real-time information, check data sms, compress data, test speed, and realize visualized command and dispatching.

Full Duplex Calls
BP750 incorporates full duplex calling technology to allow both parties to talk at the same time, which greatly facilitates the exchange of crucial information and increases communication efficiency.

Advanced Encryption
BP750 uses ARC4& AES256 encryption, and dynamic key to secure communication privacy and optimize information safety.

Long Battery Life
BP750 utilizes the latest lithium polymer technology (optional 3350mAh battery) which can easily achieve 24 hours battery life.

IP68 Protection
IP68 certified BP750 is a tough radio designed to brave the challenges of harsh environments. So, environmental factors are one less thing to worry about.

TTS
BP750 supports TTS to convert text to speech, helping to receive messages without viewing them, free your hands and eyes.

Multiple alarm modes
BP750 supports 5 different alarm modes, and 3 kinds of emergency alarms (lone worker/mandown/emergency alarm), helping to locate people in emergencies and improve rescue efficiency.

Multi Versions & Functions
BP750 Provides multiple system versions to suit different communication systems: Conventional /Trunking /SFR /Ad hoc /BelFone Smart Virtual Trunking/BelFone Dispatching System.

Belfone Ad Hoc Dmr Trunking Two Way Radio Single Frequency Repeater with GPS (BP750)

General
Frequency RangeVHF:136-174MHz,UHF:400-480MHz,UHF2:450-520MHz,UHF3:350-400MHz
Channel Capacity1024
Zone128
Channel Spacing25 KHz/12.5KHz
Working VoltageDC 7.4V (±20%)
Battery Capacity2300mAh
Average Battery Life(5/5/90)DMR 21 h; Analog 15 h
Frequency Stability±0.5ppm
Antenna Impedance50Ω
Dimension57(L)* 32.5(W)* 129(H)mm
Weight315g(include battery)
Transmitter
Power OutputH:4.0W,L:1.0W
4FSK Modulation12.5kHz(data only):7K60FXD; 12.5kHz(data and voice):7K60FXE
FM Modulation12.5 kHz:8K50F3E; 25 kHz:16K0F3E;
Modulation Limitation±2.5kHz@12.5kHz; ±5.0kHz@25kHz
FM Noise40dB@12.5kHz/45dB@25kHz
Spurious Emission-36dBm<1GHz/-30dBm>1GHz
Adjacent Channel Power≤-60dB
Frequency Response+1/-3 dB
Audio Distortion≤5%
Digital VocoderAMBE or NVOC
Receiver
Digital Sensitivity0.25μV /BER5%
Analog Sensitive0.25uV (12dB SINAD)
Intermodulation65dB@12.5/25kHz
Adjacent Channel Selection60dB@12.5kHz/70dB@25kHz
Spurious Suppression70dB@12.5/25kHz
FM Noise40dB @ 12.5kHz;45dB @ 25kHz
Frequency Response+1/-3 dB
Rated Audio Power0.5W(8Ω load)
Maximum Audio Power1.5W
Rated Audio Distortion≤5%
Conduction Radiation-57dBm
GPS PrecisionHorizontal Accuracy≤10m(with good signal)
TTFF(first location)Cold Boot<1minutes(with good signal)
TTFF(first location)Hot Boot<10seconds(with good signal)
Environmental Specifications
Operational Temperature-30℃~+70
Storage Temperature-40—+85
Dust& Water ProofIP68
