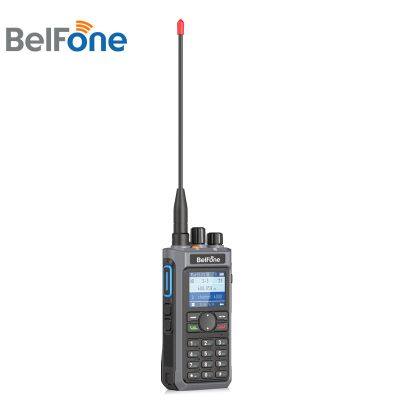

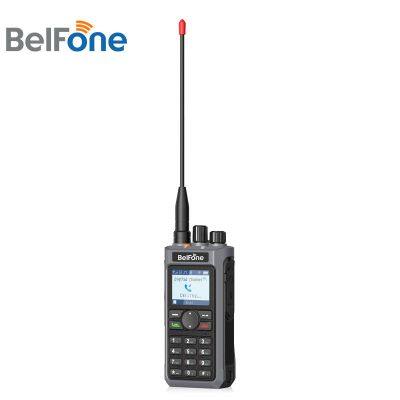

BelFone Amateur Walkie Talkie Equipment VHF UHF Transceiver Ham Radio (BF-TD588UV)

BelFone Amateur Walkie Talkie Equipment VHF UHF Transceiver Ham Radio (BF-TD588UV) photo-1
BelFone Amateur Walkie Talkie Equipment VHF UHF Transceiver Ham Radio (BF-TD588UV) photo-2
BelFone Amateur Walkie Talkie Equipment VHF UHF Transceiver Ham Radio (BF-TD588UV) photo-3
US$ 85 - 102 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Certification:
FCC
Display Type:
Other, TFT Display
Battery Type:
Lithium-ion
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
15 days
Certification FCC
Display Type Other, TFT Display
Battery Type Lithium-ion
Communication Distance 5-9km
IP Rating IP54
Features Bluetooth Connectivity, Emergency Alarm, Encrypted Communication, GPS Positioning, Noise Suppression
Channels Other, 4000
Encryption AES Encryption
Transport Package Standard Carton Box Packaging
Specification 58(L)*36(W)*121(H)mm
Trademark BelFone
Origin China

User Friendly Design
The BF-TD588UV is built with high-quality engineering material and features a non-slip textured design that ensures a firm grip even in slippery or harsh environments. Equipped with a 1.77-inch display, full numeric keypad, and clear UI this radio brings simpler and more intuitive operation, further enhancing user experience.

Dual Standby
BF-TD588 is a dual-band amateur radio that features good communication effect, supports UHF and VHF single and dual standby switching, featuring excellent communication effectiveness. The UHF band delivers clear audio in urban areas communication due to its strong penetration capability, while the VHF band brings an extended communication range for communications in wilderness areas.

Large Storage Capacity
BF-TD588 supports 400 channels and 64 zones, enhancing communication stability and reliability, allowing flexible channel switches, and avoiding busy channel/interference issues. The address books can store up to 2000 contacts, enabling group management and facilitating touch calling.

APRS (Automatic Position Reporting System)
BF-TD588UV incorporates analog APRS functionality, allowing it to automatically upload personal information and transmit information in real time without resorting to the network connection. Providing reliable guarantees for operations in mountainous and complex terrain areas lacking communication network coverage, ensuring real-time monitoring of personnel's location, and securing personal safety.

MIC Audio Noise Reduction
BF-TD588UV incorporates analog APRS functionality, allowing it to automatically upload personal information and transmit information in real time without resorting to the network connection. Providing reliable guarantees for operations in mountainous and complex terrain areas lacking communication network coverage, ensuring real-time monitoring of personnel's location, and securing personal safety.

Multiple Encryptions
BF-TD588UV features advanced AES256/ARC4 encryption to encrypt audio and data signals, ensuring communication privacy and information security.

Multiple Mode Positioning
BF-TD588UV supports GPS, Beidou, GLONASS, and Galileo positioning, enabling precise real-time outdoor satellite real-time positioning. Coupled with voice call location display technology, the recipient's call interface can show the direction information of the caller.

Safety Warning and Monitoring
BF-TD588UV enables multiple alarms and personal safety monitoring, including on-key alert, work alone, and man down. Allowing automatic emergency alarm uploading to secure personal safety at first time, and nip risks in the bud.

VFO/MR Mode
The BF-TD588UV supports VFO/MR mode switch. When in VFO mode, rotate the channel encoder or directly input frequencies in the numeric keypad to adjust frequencies, and rotate the channel encoder to switch channels when in MR mode, providing convenience for users to switch channels based on communication requirements flexibly.

NOAA Broadcast
BF-TD588 supports NOAA weather forecasting and warning, allowing it to scan hazardous weather channels nearby and transmit to your area even without mobile phone services. When the weather emergency alert function is on, the radio will automatically push warnings from designated NOAA broadcast stations. This is particularly useful for hikers, climbers, campers, and other outdoor users.

Rich Functionality
The BF-TD588UV dual-band amateur digital radio is designed with extensive features catering to outdoor users, supporting weather forecasting, FM radio, 15-hour recording, etc. In outdoor settings, it's suitable for receiving broadcasts and weather updates. Additionally, it supports optional Bluetooth peripherals for a more user-friendly experience, handling communication needs with ease, making it the ideal choice for both outdoor activities and commuting.


General
Frequency Range(Optional)136-174 MHz/400-480 MHz
ModeDMR
Channels4000
Zones64
Channel Spacing12.5KHz/25KHz
Working VoltageDC 7.4V (±20%)
Battery  Capacity2000 mAh
Average Battery Working Life(5/5/90)Digital 21 Hours; Analog 15 Hours
Frequency Stability±0.5ppm
Antenna Impedance50Ω
CurrentRX: 300mA; TX: 800mA
DisplayTFT128*160RGB1.77 inches
Keypad18 buttons on front
Dimensions58(L)*36(W)*121(H)mm
Weight288g(including battery)
Recording15 Hours
Bluetooth (Optional)BT5.0
Transmitter
Output Power5W
4FSK Modulation12.5kHz Only data:7K60FXD
12.5kHz Data and voice:7K60FXE
FM Modulation12.5 kHz:8K50F3E;
Modulation Limitation±2.5kHz @ 12.5kHz;
FM Noise-40dB
Emission Spurious-36 dBm≤1GHz/-30 dBm≥1GHz
Adjacent Channel Power≥60dB
Frequency Response+1/-3 dB
Free time slot power≤-57dBm
Digital VocoderAMBE
Receiver
Digital Sensitivity5% BER:0.22uV
Analog Sensitivity0.165uV (12dB SINAD)
Intermodulation≥65dB
Adjacent Channel Selectivity≥60dB
Spurious Suppression≥65 dB
FM Noise-40dB
Frequency Response+1/-3 dB
Rated audio-frequency output power0.5W
Maximum audio-frequency output power2W
Rated Audio-frequency Distortion3% (Typical)
Harmonic suppression≤-57dBm
If Rejection≤70dBm
Co-Channel Rejection≤70dBm
Image Rejection≤70dBm
Conducted Radiation≤-57dBm
Spurious radiation≤-57dBm
Blocking≤90dBm
Satellite PositioningHorizontal Accuracy≤-2.5m(With good signal)
TTFF(First Locate) Cold Boot<1 Minute
TTFF(First Locate)Hot Boot<10 Seconds
TTFF Recapture<10 Seconds
Environmental Specifications
Working Temperature-20—+60
Storage Temperature-30—+85
ESD Protection±5kV(Contact Discharge); ±8kV (Air Discharge)
Waterproof& DustproofIP54
