Belfone Dmo Pseudo Trunk Digital/Analog Two Way Radio Communication (BF-TD510)

Belfone Dmo Pseudo Trunk Digital/Analog Two Way Radio Communication (BF-TD510) thumbnail-1
Belfone Dmo Pseudo Trunk Digital/Analog Two Way Radio Communication (BF-TD510) thumbnail-2
Belfone Dmo Pseudo Trunk Digital/Analog Two Way Radio Communication (BF-TD510) thumbnail-3
Belfone Dmo Pseudo Trunk Digital/Analog Two Way Radio Communication (BF-TD510) thumbnail-4
Belfone Dmo Pseudo Trunk Digital/Analog Two Way Radio Communication (BF-TD510) thumbnail-5
Belfone Dmo Pseudo Trunk Digital/Analog Two Way Radio Communication (BF-TD510) photo-1

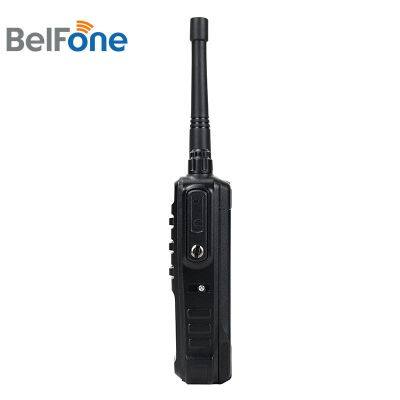

Belfone Dmo Pseudo Trunk Digital/Analog Two Way Radio Communication (BF-TD510) photo-2

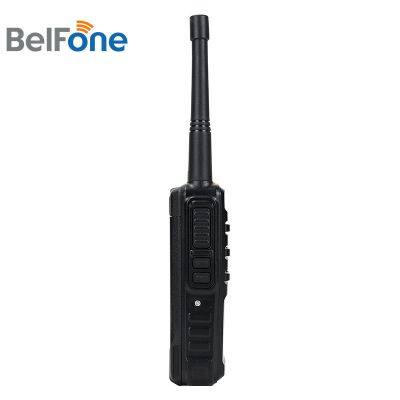

Belfone Dmo Pseudo Trunk Digital/Analog Two Way Radio Communication (BF-TD510) photo-3

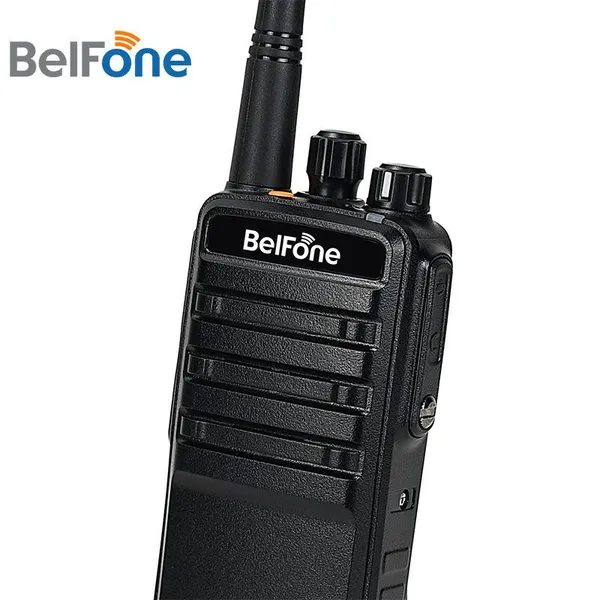

Belfone Dmo Pseudo Trunk Digital/Analog Two Way Radio Communication (BF-TD510) photo-4

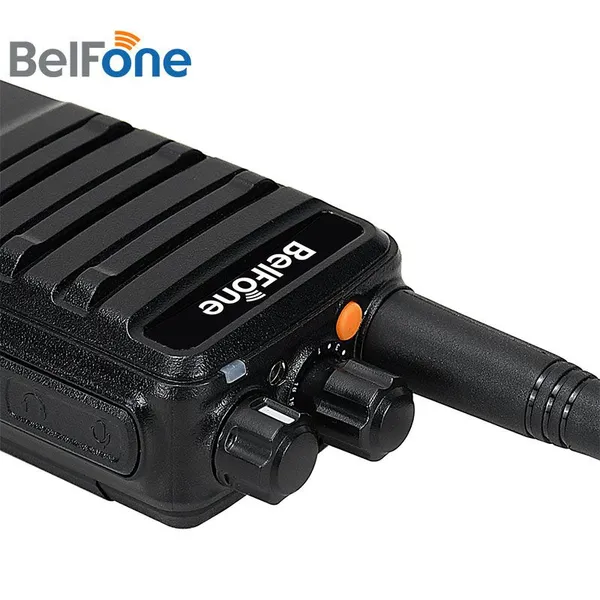

Belfone Dmo Pseudo Trunk Digital/Analog Two Way Radio Communication (BF-TD510) photo-5
US$ 145 - 167 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
1989
Product Certifications:
ISO9001
Contact Supplier Request Quote Chat Now
Fujian BelFone Communications Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us

DMO Pseudo Trunk

The user can choose slot 1 or slot 2 for communications. When one slot is occupied the radio will automatically switch into the free slot. Frequency efficiency is greatly increased.


DMO True 2-Slot
In direct mode, this radio supports two voice calls simultaneously due to DMR two timeslots, which means two communication paths on 1 frequency at no extra costs or frequency license.


Digital/analog Dual Modes
BF-TD510 gives you a smooth transition from analog to digital.


Long Battery Standard Time
BF-TD510 is a powerful radio with long battery life.(digital 22h & analog 16h).


Excellent Audio Quality
The AMBE3000 vocoder and FEC technology give BF-TD510 loud and clear digital audio.


Transmit Interrupt
This function enables a supervisor to interrupt a radio conversation in order to clear a channel for more important communication.


Remote Kill/Revive
Such functions enable you to kill or revive a radio over the air. This greatly facilitates dispatching work and can be especially useful should a radio happen to be lost. You can easily remote kill the lost radio and confidential information can be kept from leaking out.


Private Call, Group Call And All Call (programmable)
The versatile calling functions bring more efficiency to your teamwork.


Radio Priority-based Interruption
This function enables a radio with a higher level to interrupt communications between radios with lower levels, giving higher priority to radios with higher levels. This means better dispatching efficiency.


Product Parameters


General
Frequency range VHF:136-174 MHz; UHF:350-390 MHz, 400-480 MHz, 450-520 MHz
Channel Capacity 160
Zones 32
Channel Spacing 12.5KHz/25KHz
Operating Voltage DC 7.4V (±20%)
Battery Capacity 2000 mAh
Battery Life(5/5/90) Digital 22 Hours, Analog 16 Hours
Recording Time 400 Hours
Frequency Stability ±1.5ppm
Antenna Impedance 50Ω
Dimensions (L×W×H) 57(L)* 32(W)* 119 (H)mm
Weight 239g(Including Battery)
Transmitter
RF Output Power High Power: 5W; Low Power:1W
4FSK Modulation 12.5kHz Only data:7K60FXD; 12.5kHz data and audio:7K60FXE
FM Modulation 12.5 kHz:8K50F3E; 25 kHz:16KΦF3E;
Modulation Limiting +/- 2.5kHz @ 12.5kHz; +/- 5kHz @ 25kHz
FM Noise -40dB
Conducted Emission -36 dBm≤1GHz/-30 dBm≥1GHz
Adjacent Channel Power ≤-60dB
Audio Response +1/-3 dB
Audio Distortion 3%
Digital Voice coder Type AMBE3000
Receiver
Digital Sensitivity 5% BER:0.25 uV
Analog Sensitivity 0.25 uV (12 dB SINAD)
Intermodulation 60dB
Adjacent Channel Selectivity 60 dB
Spurious Response Rejection 60 dB
FM Noise -40dB
Audio Response +1/-3 dB
Audio output power 1.5W
Audio Distortion 3% (Typical)
Conducted Spurious Emission -57dBm
GPS Accuracy Horizontal Accuracy≤-10m(with well signal)
TTFF (Time To First Fix) Cold Start (with well signal)
TTFF (Time To First Fix) Hot Start (with well signal)
Environmental Specifications
Working Temperature -20ºC-+60ºC
Storage Temperature -30ºC-+85ºC
Humidity MIL-STD-810C/D/E/F Standard
Vibration & Shock MIL-STD-810C/D/E/F Standard
Dustproof & waterproof IP67
