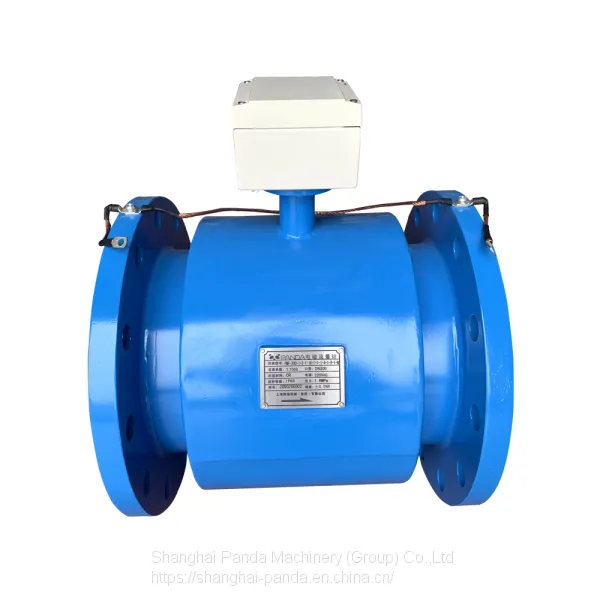

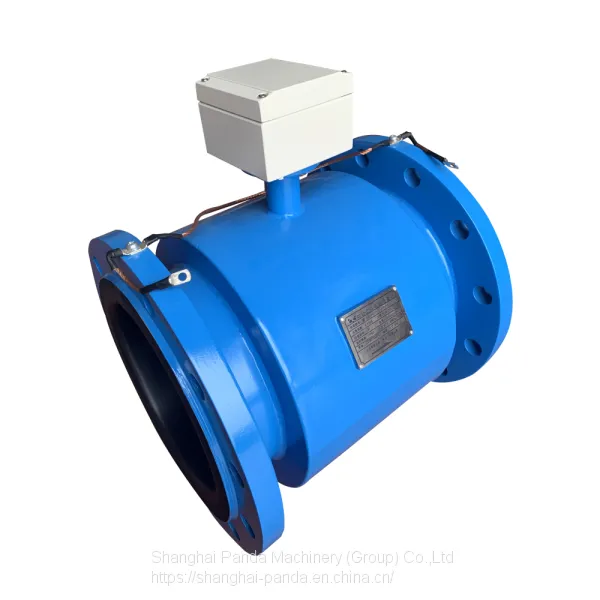

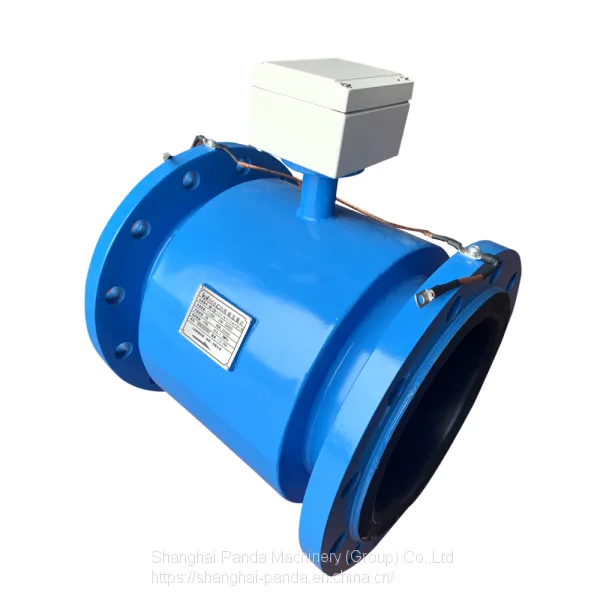

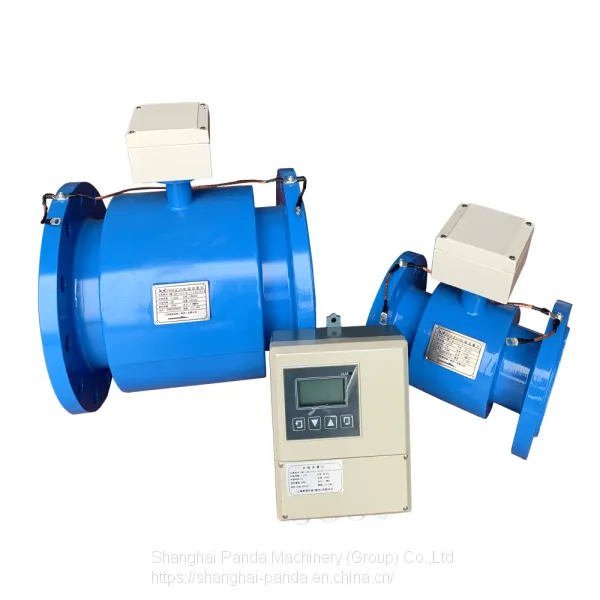

Help CenterRS485 Electromagnetic Flow Meter Sewage Water
Related Products
-
Ultrasonic Clamp-on Flow Meter Price FlowmeterUS$ 320 - 980MOQ: 1 Piece -
Ultrasonic Clamp-on Flow Meter ManufacturerUS$ 200 - 980MOQ: 1 Piece
-
Handheld Portable Ultrasonic Clamp on Flow MeterUS$ 220 - 800MOQ: 1 Piece
-
Ultrasonic Flow Meter Price Clamp onUS$ 260 - 800MOQ: 1 Piece
-
Portable Ultrasonic Flow Meter Clamp on PriceUS$ 300 - 900MOQ: 1 Piece
Summary
PMF series is highly accurate and stable electromagnetic flow meter. It’s widely applied in petrochemical, metallurgy, mining, water supply and drainage, paper-making, food, textile, irrigation, agriculture, municipal environmental protection and other fields.
Features
lHigh Accuracy ±0.5%, Satisfied For Billing System
lIP68 Protection Class, Sealed Sensor Ensures Long Term Under Water Working
lChinese and English menu, convenient and easy to operate.
lAdvanced Ground Electrode Structure Eliminates The Influence Of Electrical Noise
Specification
Nominal Diameter |
DN15~DN2000 |
Electrode Material |
316L,Hb,Hc,Ti,Ta,Pt |
Power Supply |
AC:90 VAC~260 VAC/47 Hz~63 Hz, power consumption≤20VA; DC:16 VDC~36 VDC, power consumption≤16VA±0.5%R,±1.0%R |
Lining Material |
CR, PU, FVMQ, F4/PTFE, F46/PFA |
Electrical Conductivity |
≥5μS/cm |
Accuracy Class |
±0.5%R, ±1.0%R |
Velocity |
0.05m/s~15m/s |
Fluid Temperature |
-40℃~70℃ |
Pressure |
0.6MPa~1.6MPa(depend on pipe size) |
Type |
Integrated or Separated (flange connection) |
Enclosure Material |
Carbon steel, Stainless steel 304 or 316 |
Installation |
Flange connection |
