Water chiller 500 liters machine / Water chiller 20KW
Machine description:

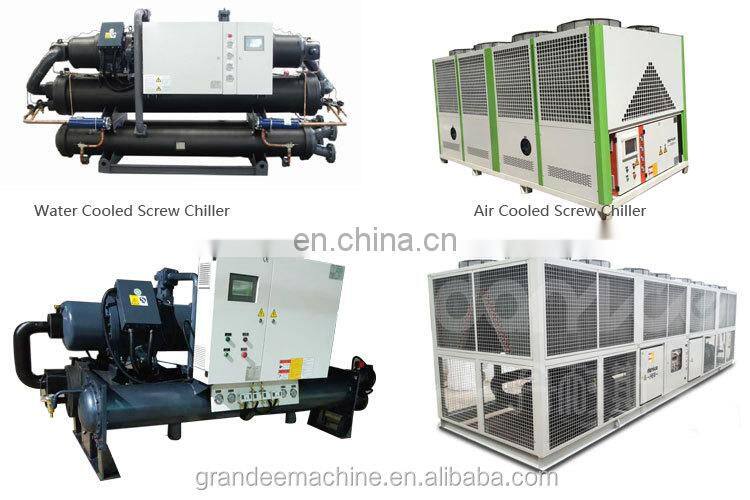

Low temperature chiller /Air-cooled low temperature chiller/water-cooled low temperature chiller/Screw low temperature chiller/
Low temperature industrial chiller features:KFJ-DW series low temperature chiller is specially designed,which is widely used in carbonated drinks,building,pharmaceutical,chemical,food,electronics and so on.This product introduces the foreign advanced technology,well-designed the new generation of the low temperature chiller.The temperature can be any regulated in the range of -30℃ to 25℃.Unit adopts Taiwan HANBELL,Germany BITZER, French Maneurop,USA Copeland compressor,energy efficiency is about the 10% to 20% higher than the ordinary compressor.Electronic circuit control is used the international well-known,PLC touch-screen operator panel,operation simple and quick.It can be seed the health of everything at one glance.
KDA every machine has to pass the 10% performance test before they go out℃ ensure the reliability.It is realized the promises for customer about the cooling capacity,input power,performance parameter,sample and contract requirements,the machines add the refrigerant and lubricating oil before they go out,easy installation,it would save money on the installation and debugging.We can custom the all kinds of the nonstandard equipment based on customer demand.

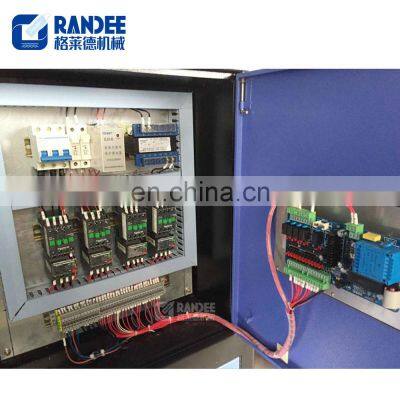

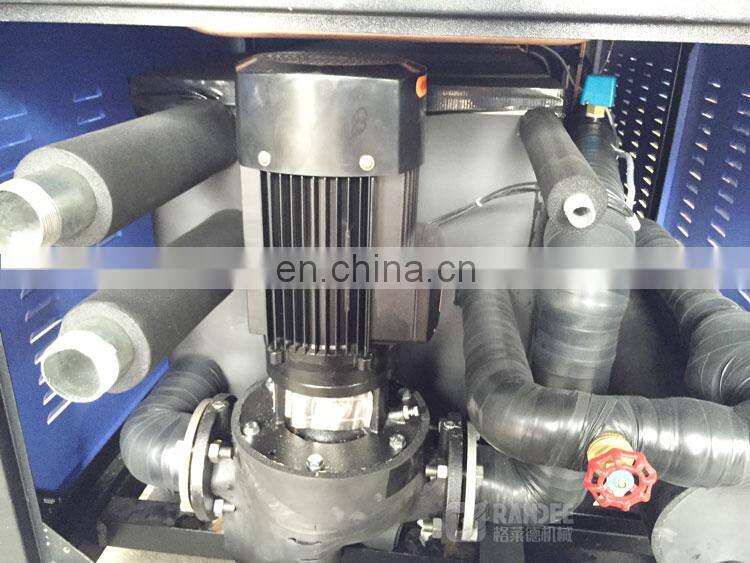

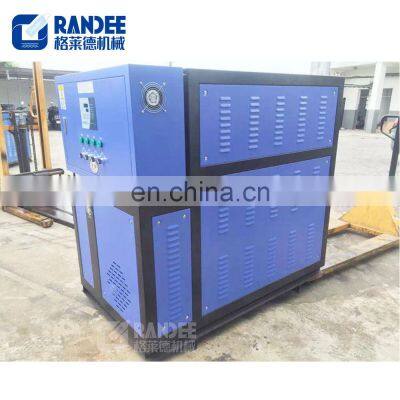

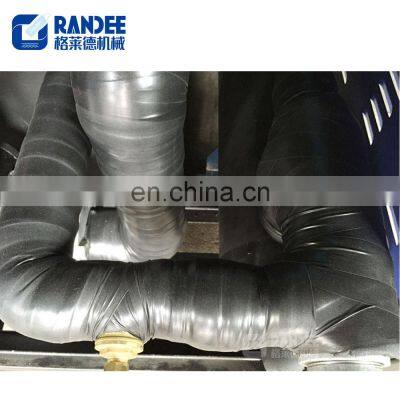

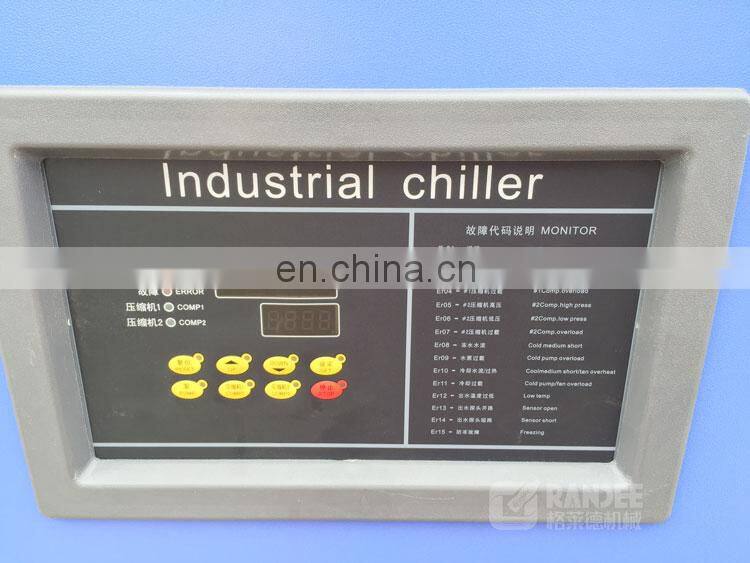

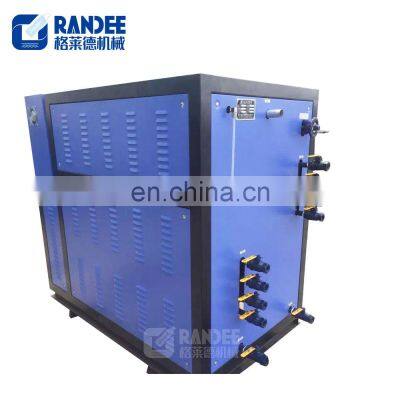

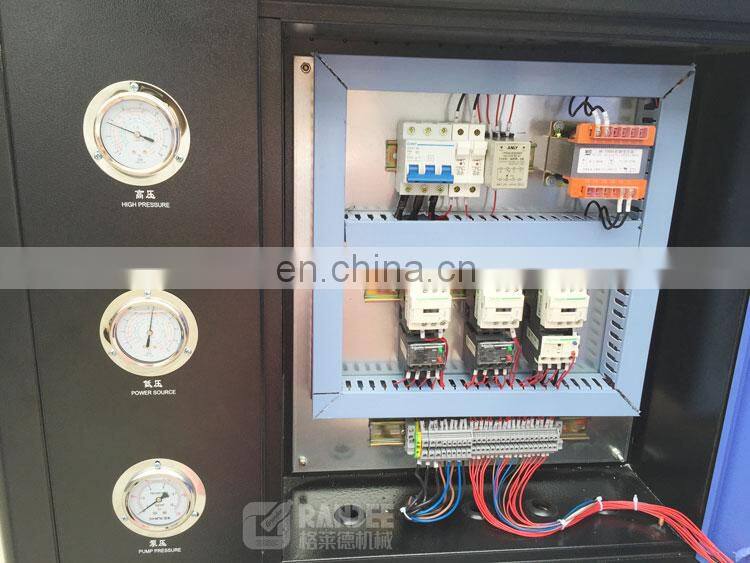

Pictures of Air Cooled Water Chiller :
Working with carbonation mixer
Technical Data:
|
Model |
YDL-8F |
|||
|
Rated cooling capacity |
21.6kw |
|||
|
23220Kcal/hr |
||||
|
Voltage |
3P/415V/50Hz |
|||
|
input power |
Kw |
8 |
||
|
Compressor |
type |
All closed vortex compressor |
||
|
Quantity |
set |
2 |
||
|
input power |
KW |
10 |
||
|
|
feeding water temperature |
℃ |
3 |
|
|
water outlet temperature |
℃ |
-2 |
||
|
Flow rate |
m3/h |
4.7 |
||
|
connecting pipes specifications |
mm |
DN40 |
||
|
|
Type |
Imported high efficiency copper and aluminum foil tightness expanding type finned heat exchanger |
||
|
Air fan |
input power |
Kw |
1.0 |
|
|
|
A |
3 |
||
|
chilled water pump |
Type |
Horizontal vortex pump |
||
|
Input power |
Kw |
2.2 |
||
|
flow rate |
m3/h |
20 |
||
|
Head |
Mh2O |
24 |
||
|
Dimension |
length |
mm |
1600 |
|
|
Width |
mm |
800 |
||
|
Height |
mm |
1550 |
||
|
Water tank volume |
L |
250 |
||
|
Machine weight |
kg |
400 |
||
Q1: How to find suitable soda water or carbonated drink filling machine or complete production line?
A1: Looking for carbonated beverage filling machine in www.grandeemachine.en.china.cn
Q2: How to start a soda water factory business ? What's my budget?
A2: First confirm the source water, send the water samples to your local department and get an water analysis report, then tell us how many tons or liters per your you want to make, like 2000liters/hr, 4000liters/hr, 10000liters/hr,etc.
Q3: How to confirm the bottle shapes that is very attractive for your customer ?
A3: Confirm the plastic bottle size is 355ml, 500ml, 1000ml,1500ml or 2000ml, then our engineer can design the bottle shapes for you.
Q4: Which kinds of machines included in one complete soda water production line?
A4: PE Resin, injection molding machine, automatic or semi auto plastic blowing molding machine, RO water treatment plant, beverage processing machine, carbonation mixer, water chiller carbonated filling machine, bottle warming machine, sleeve shrink labeling machine or self adhesive labeling machine or OPP labeling machine or rotary labeling machine, semiautomatic or full automatic L type shrink packing machine, high speed shrink packing machine, laser or ink printer, palletizer, pallet wrapping machine.
Q5: Are you a trading company or a manufacturer?
A5: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q6: Do you have technical support after we purchased your machines?
A6: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q7: If you buy our machines, can you offer us wear-out spare pats?
A7: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
If you are interested in our machines, please send your inquiry.
