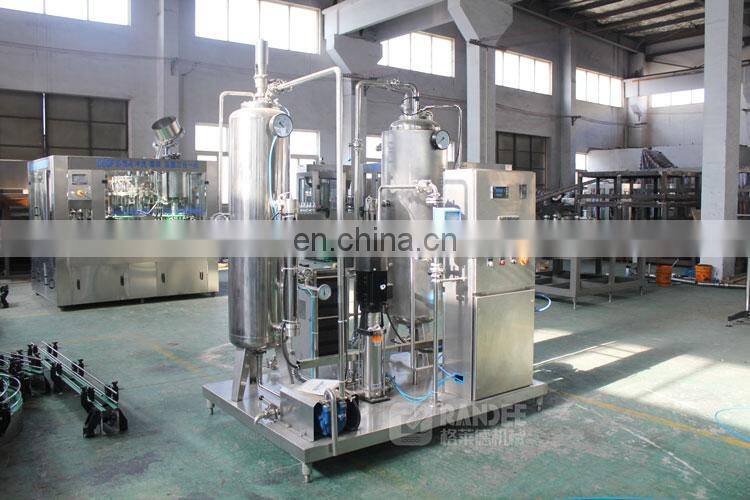

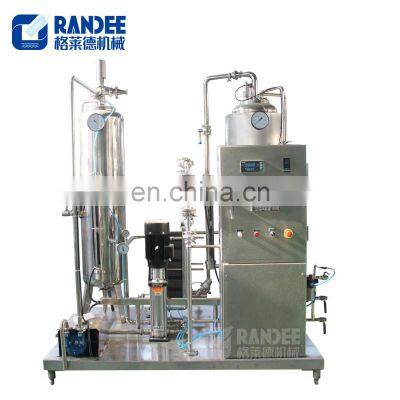

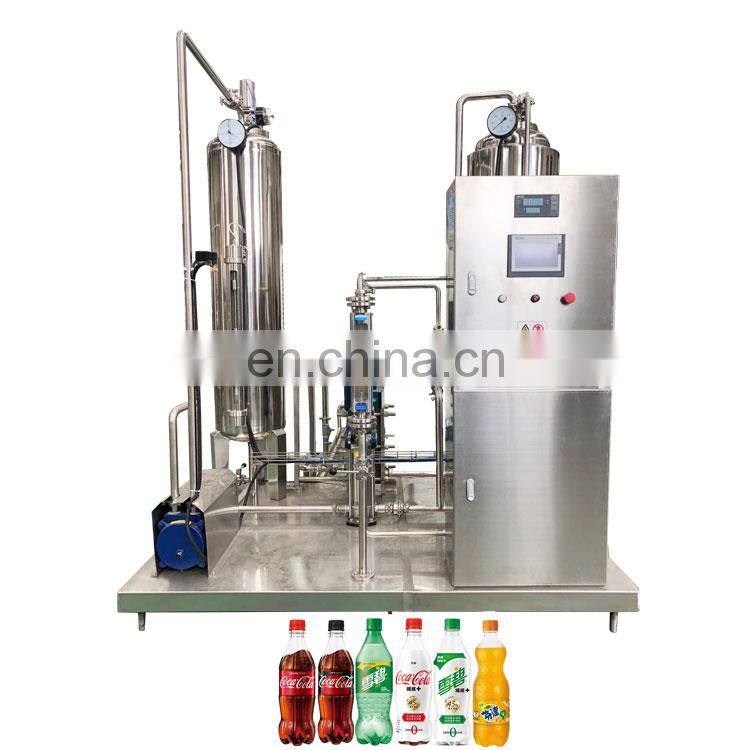

Beverage mixing machine carbonation mixer/ carbonated drink maker for soda soft water

Model

QHS-2000

Capacity (kg/h)

2000

Mixing ratio range

(water and suger:)

3:1—6:1

Mixing precision

≤2%

CO2 content

4-5mg co2 in 1L water

Supply CO2 pressure (MPa)

0.8—1

Exchange heat area(m²)

6.5

CO2 Consumption(m³/h)

2.0-2.5

CO2 purity

≥99.9%

Compressed air consumption

(m³/h)

5

For compressed air pressure (MPa)

0.6—1

Refrigerant medium

Glycol solution

Refrigerant temperature(℃)

-2

Mixing temperature(℃)

<4

Clean water inlet pressure(MPa)

0.1—0.15

Syrup inlet pressure(MPa)

0.1—0.15

Syrup inlet temperature(℃)

≤10

Drink outlet temperature(℃)

1—2

Drink outlet pressure(MPa)

≤0.65

Power (kw)

2.97

Machine size (L×W×H)(mm)

2100×1500×2200

Weight (kg)

500

Carbonated drink washing filling capping machine

Capacity: 2000BPH to 20000BPH for 500ml bottle

Filling temperature: 3℃ to 8℃

Bottle range: 200ml-2250ml

Bottle dimater: ≤340mm

Bottle height: ≤110mm

Bottle material: PET bottle

Bottle shape: round / flat / square bottle

Carbonation mixer and air cooled type water chiller

Capacity: 1500liters-20000liters/hr

Co2 content: ≥3.5

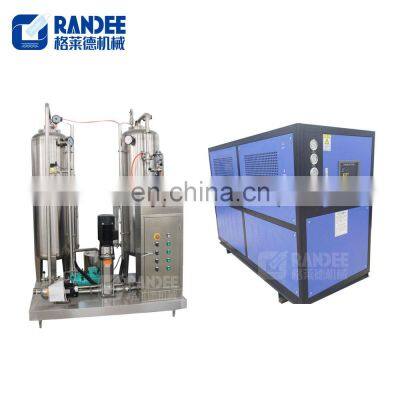

Carbonation mixer and Water chiller

Process: Water, syrup, CO2 mixing system

Carbonation mixer: 1500L/Hr, 2000L/Hr,3000L/Hr,5000L/Hr,etc. Co2 content is from 2.0-3.8

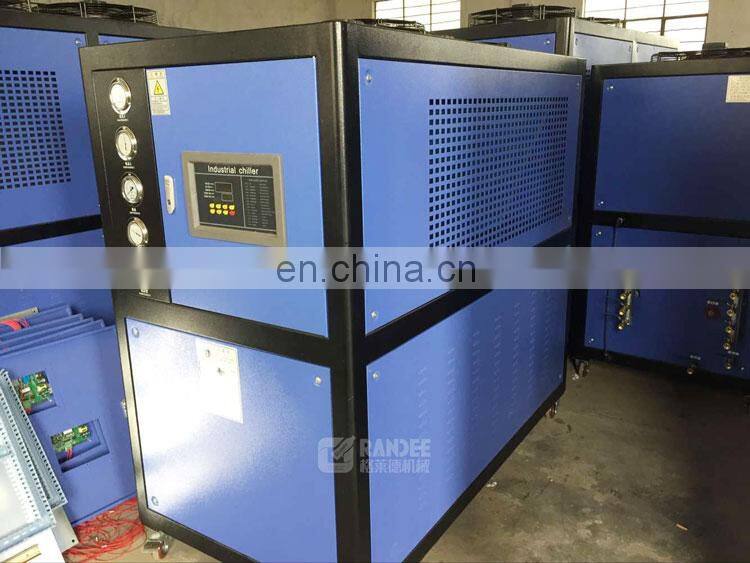

Water chiller: working with carbonation mixer, the cooling medium of water chiller going to heat plate exchanger of carbonation mixer to cooling carbonation drink to 3 degree to 8 degree (filling temperature)

Soda Water Mixing System

Process: Sugar melting boiler or High level cutting tank, double filters, syrup pump, blending tank, stroage tank

The output of beverage processing system depending on how many liters per hour for carbonated drink, soda water or juice,etc.

Syrup melting boiler: 300L/Hr, 500L/Hr, 1000L/Hr,etc, steam heating or electrical heating type, steam heating boiler will matched fuel oil boiler, but save electricity, eletrical heating type boiler will power-consuming.

Blending tank: 1000L/Hr, 2000L/Hr, 3000L/Hr, etc,  double layer with warming jacket, motor with blending system

Storage tank: 1000L/Hr, 2000L/Hr, 3000L/Hr,etc.  double layer with warming jacket

Blowing Machine with different options:

1. Semiautomatic Blowing Machine for 800BPH-2000bph from  0.2-2.5L bottle  with 2 or 4 cavities.

2. Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle.

Full automatic sleeve labeling machine

Capacity: 100-350bottles/min can be choosed

Label material: PVC PET OPS,etc

Bottle material: PET PE PP Glass

Bottle Diameter: 28 ~ 120mm

Bottle Height: 15~320mm

Bottle shape: round, square, ellipse, rectangular

Label length: 30~250mm(max)

Label thickness: 0.03~0.13mm
