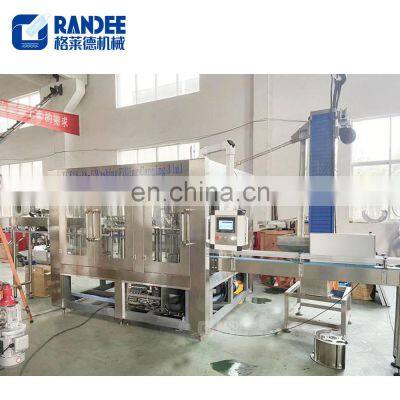

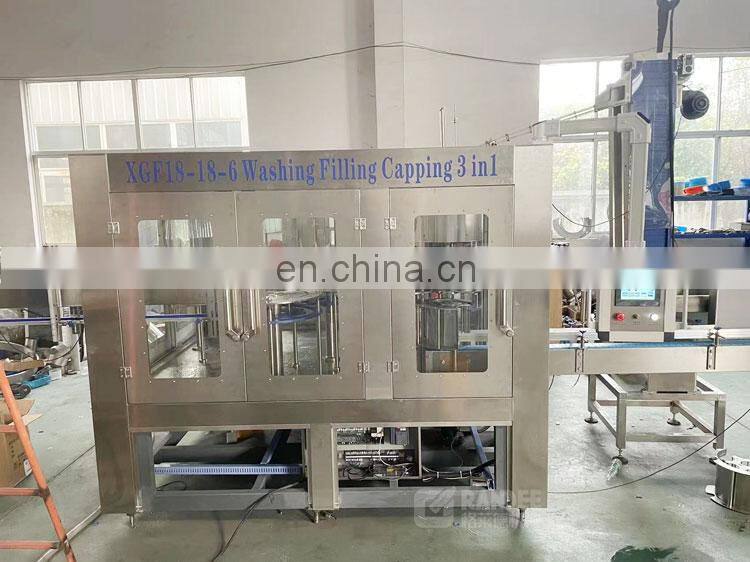

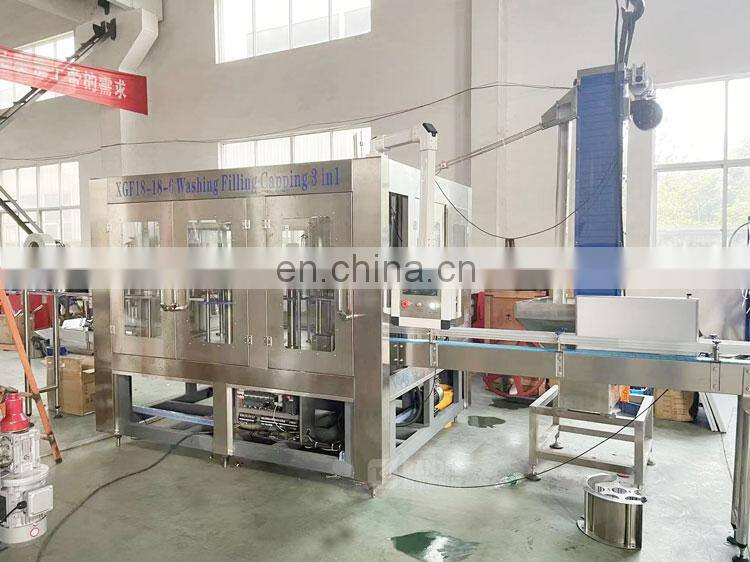

Factory Price Automatic 3 in 1 Bottling Liquid Water Filling Sealing Packing Machine

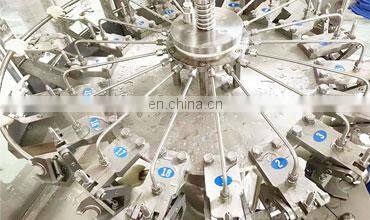

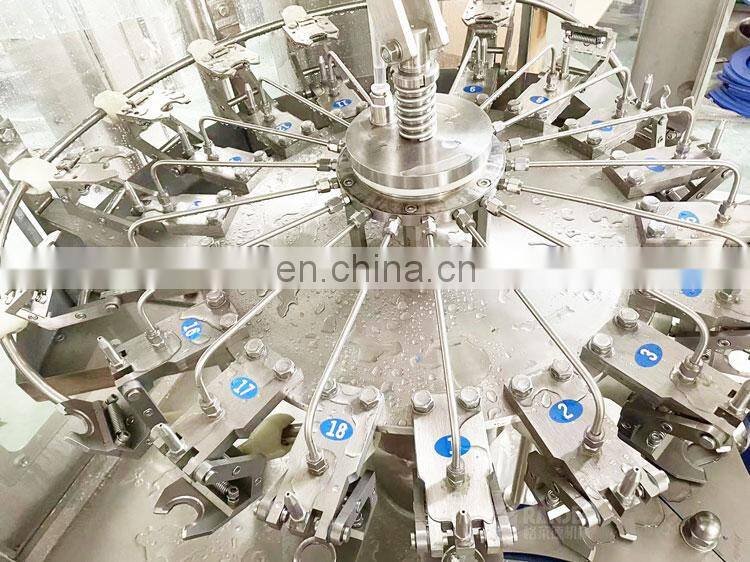

Washing Part:

The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again

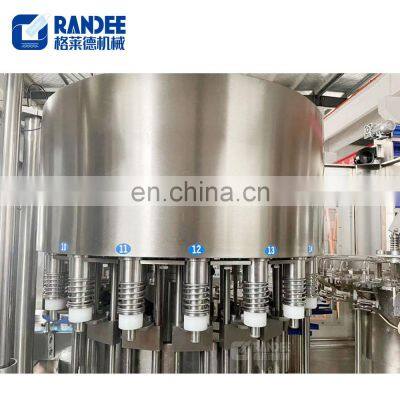

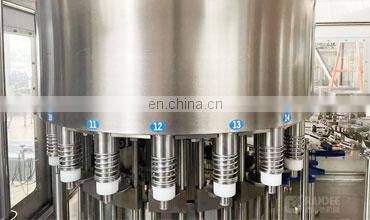

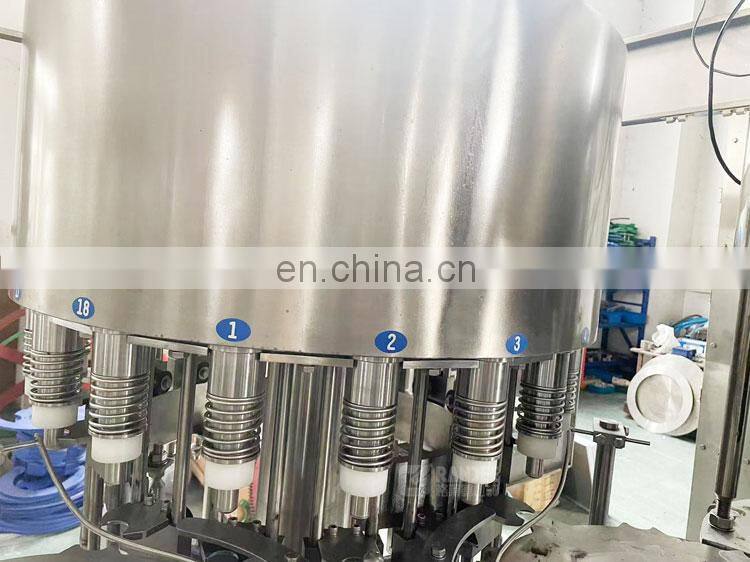

Filling part:

Long tube filling type with 2 times filling process to make sure perfect filling level

Liquid tank, filling valves, controlling rings, upgrading cylinder.
High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.

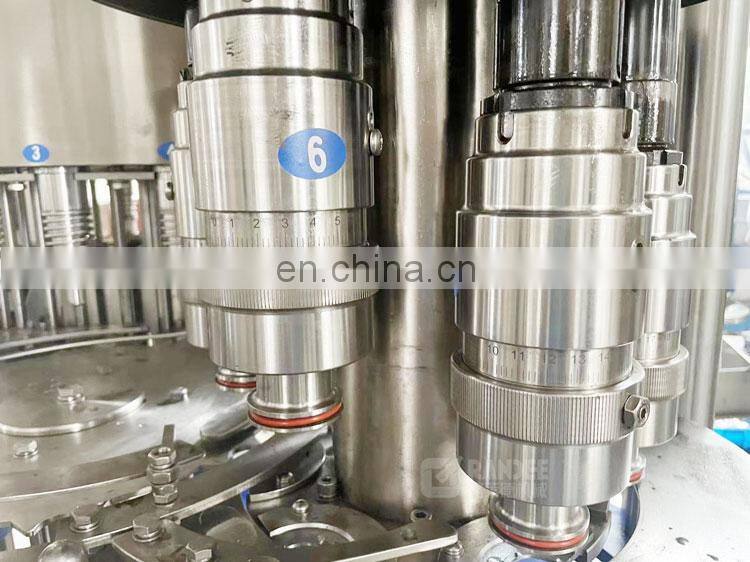

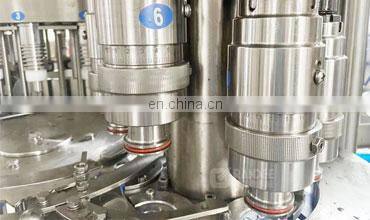

Capping Part:

Rotative capping turret, suitable to the application of screw plastic caps on PET bottles
The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
The heads are raised and lowered by the action of a follower that is riding on a shaped cam.

Air conveyor

Air Conveyor is mainly used in the automatic filling production line of PET bottle beverage or water. It is the intermediate transportation of connecting blowing machine, unstacking machine, bottle storage conveying table and filling machine.

Conveyor system

Conveying path support on the ground by tripod, driving motor adopt frequency control, it connects with washing filling and capping 3 in 1 machine and keeps pace with it. The filled bottles are conveyed by the conveyor system. Driving system is running by a main motor that adopts gear drive mode.

XGF

8-8-3

XGF

14-12-5

XGF

16-16-6

XGF

18-18-6

XGF

24-24-8

XGF

32-32-10

XGF

40-40-12

2000*1600

*2300

2200*1800

*2300

2400*1900

*2300

2500*2000

*2300

2700*2100

*2300

2970*2260

*2700

3780*2800

*2700

RO System

This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.

This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank.

This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised.

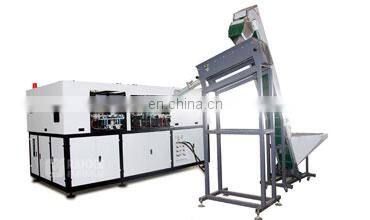

Blowing Machine with different options

1. Semiautomatic Blowing Machine for 800BPH-2000bph from  0.2-2.5L bottle  with 2 or 4 cavities.

2.Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle.

Automatic PVC sleeve labeling machine

Capacity: 100-350bottles/min can be chosen

Label material: PVC PET OPS, etc

Bottle material: PET PE PP Glass

Bottle Diameter: 28 ~ 120mm

Bottle Height: 15~320mm

Bottle shape: round, square, ellipse, rectangular

Label length: 30~250mm(max)

Automatic PE film shrink packing machine

Flow: Feeding→ pushing bottles→ film covering and sealing→ shrinking→ cooling

Speed: 8-12packages/min

Power (rated/real): 26kw / 16kw

Max. packing size: 420*300*350mm(LxWxH)

Max. sealing size: 650mm
