Product Description

good price water treatment industry molded FRP grating platform

Fiberglass reinforced plastic grating (also known as FRP grating, glass reinforced plastic grating or fiberglass grating) is a
composite material manufactured by combining a matrix of resin and fiberglass. Fiberglass grating does not corrode like steel grating and is therefore used in corrosive environments to reduce maintenance costs.

---Strong, Lightweight and Corrosion-Resistant Molded FRP Grating has the strength of steel, but it won’t corrode like steel can. ---Safer Walking Surface for Trench Covers and Fiberglass Walkways A coarse, gritted epoxy coating enhances traction. ---Support and Stability Molded Fiberglass Grating Panels are equally strong in both directions ---Easy Fabrication FRP Flooring Panels are lightweight, easy to transport, and can be cut and fabricated using standard hand tools. ---Extended Life The coated resin surface increases resistance to chemical corrosion and continuous UV exposure.

Material advantages:

Strong bearing capacity	Stretch-proof	High-temperature resistance	Anti-corrosion	Non-flammable	Good insulation
No rust	Non-slip	Mildewproof	Anti-shrinkage	Easy to cut	Environmental protection

Specification

Fiberglass Grating has many sizes for you to choose.

Thickness mm	Mesh Size mm	Panel Size mm	Open Area %	Unit Weight kg
40	40*40	1007*3007	64	60
25	38*38	1220*3660	69	52
38	38*38	1220*3660	69	85
50	50*50	1220*3660	72	100
30	38*38	1000*040	69	75
38	25*152	1145*2900	60	76
30	25*25	1220*3660	64	84
30		1220*3660	64	84	50*50
38	19*19	1007*4007	72	92
38		1007*4007	72	92	38*38

Production steps for FRP grating:

1. Stirring raw materials

Resin, fiberglass fiber yarn, calcium powder filling, color paste, reagents, etc. are arranged in proportion, stirring for 20 minutes.

2 . Draw yarn

Lay the alkali-free yarn layer by layer to improve the strength of the FRP grating.

3 . Compression mold

The stirred raw materials are poured into the mold and compacted mechanically or manually.

4 . Heat curing

After the grating is heated for 20 minutes, the raw materials and yarn are fused together.

5 . Cooling demoulding, mold lifting

After the above process is completed, cooling for 10 minutes demolding, mold lifting, semi-finished grating finished.

6 . Grinding, painting and washing

The FRP grating is polished and washed with a layer of varnish or water.

Packing

Construction	Guardrails, stairs, ladders, wall gratings, platforms, etc.
Drainage treatment	Drainage ditch, drain grating, platform, structure, etc.
Civil Engineering	Floors, sidewalks, bridges, tree protection, car washes, parking lots, Protect grating, etc.
Chemical Industry	Work platform etc.
Food processing and aquaculture	The platform, engineering guardrail, etc.
Ocean industry	Platforms, fencing, sidewalks, etc.

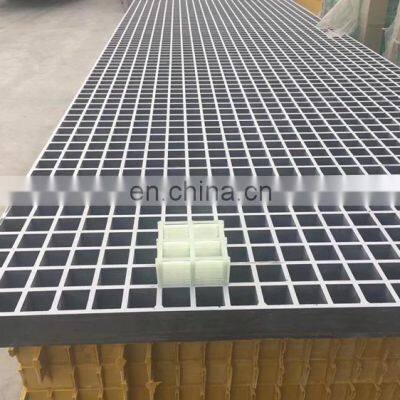

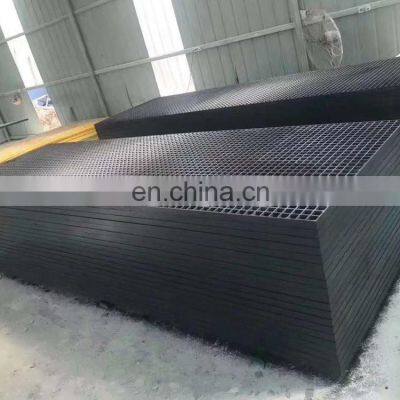

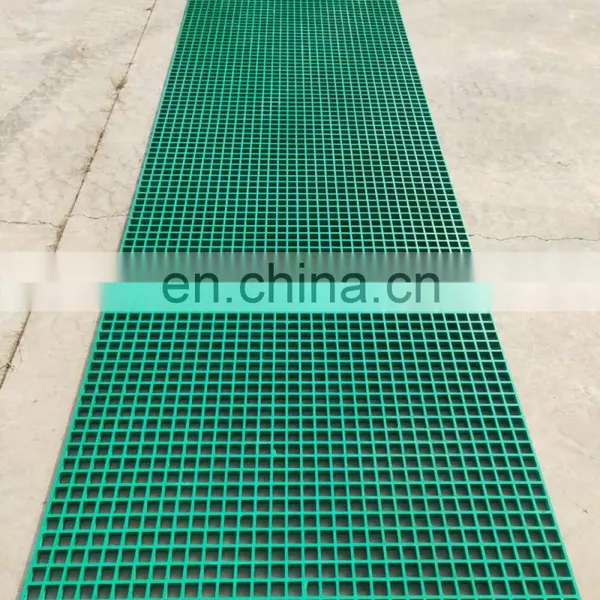

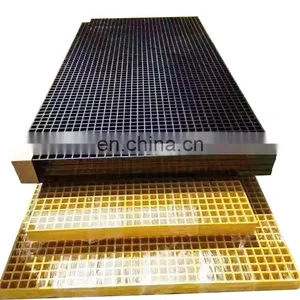

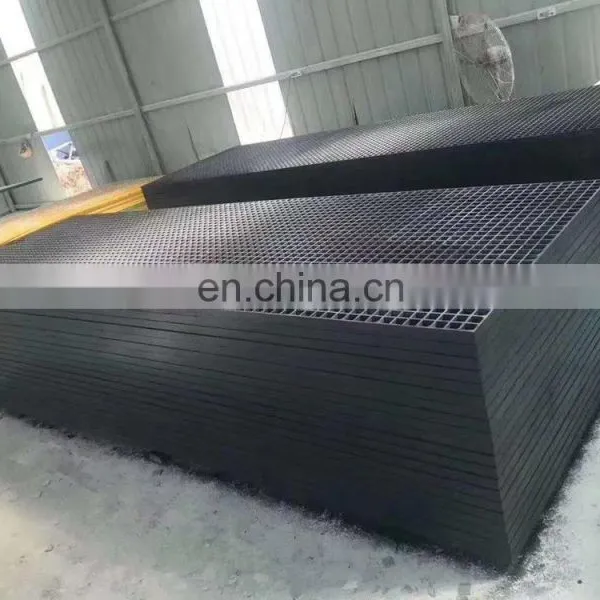

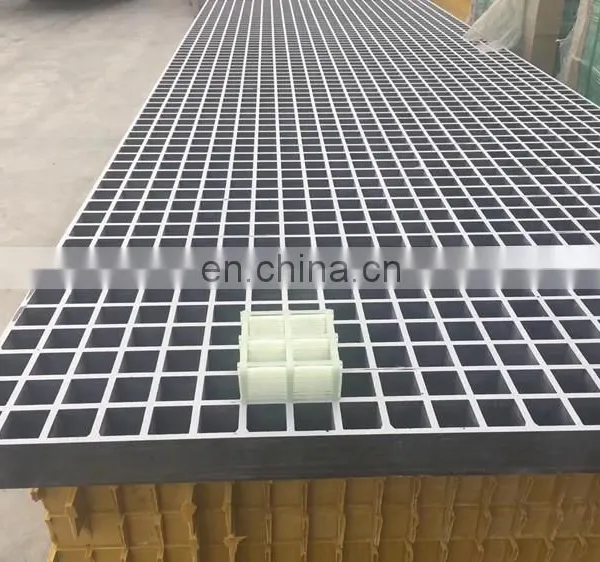

Details Images

Molded FRP grating is composed of alternating directional layers of continuous glass fiber for strength, with resin to consolidate the fibers and provide the shape and corrosion-resistance. Molded grating has very high impact tolerance, as well as the highest chemical resistance of any fiberglass grating. It can be made slip-resistant by adding grit to the surface.

Fiberglass grating accessories: M-type,S-type,C-type.

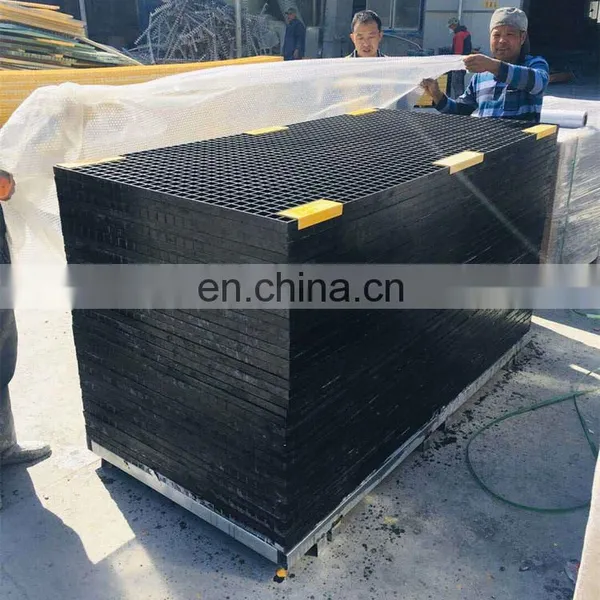

Product packaging

Fiberglass Grating is usually packed by the pallet.

To protect the FRP grating in good Condition, We must pack them on pallets, with Corner Guard protect, and film wrap.

FAQ

Q: How can you guarantee your product quality? A: 100% of our products will be tested before delivery. To control quality, we are using high quality material from high quality supplier. Q: Are you a trading company or a manufacturing factory? A:We are a manufacturing factory with export qualifications. Our factory is one of the Best FRP products manufacturer in China since 2010.We have FRP products of high quality and various kinds. Q: I am interested in your products, could I get sample for free? A: We could supply a few pieces of FREE samples if we have some in stock. All you need to do is kindly offering your shipping account. Q: Can you do the design for us? A: Yes. With experienced teams in fiberglass product design and manufacturing, we can provide customized shape,dimension, colors service.

For more details, no hesitant to contact me.
