Product Description

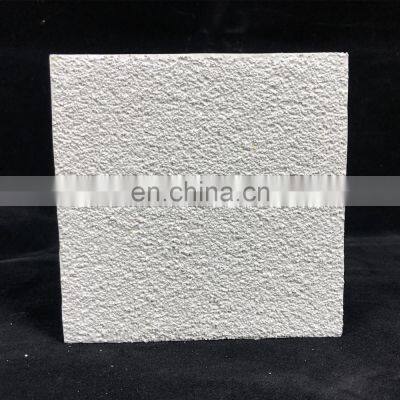

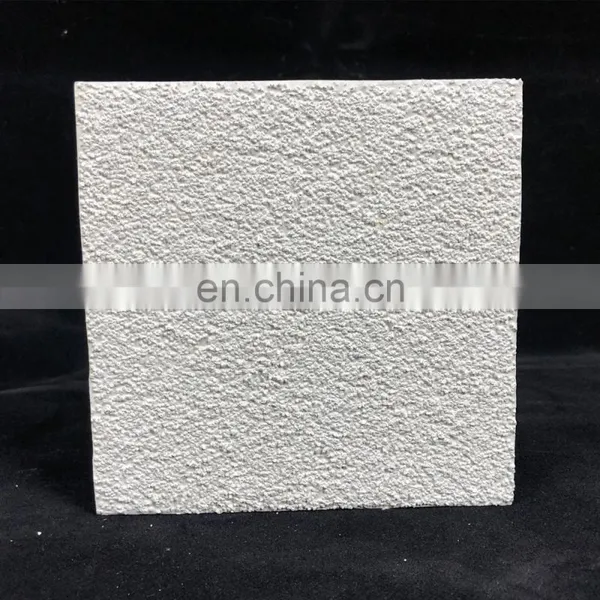

Fiberglass FRP Plastic Grating FRP fiberglass Checker Plate
Fibregrate grating is made with an integral anti-slip and draw. It has a high strength-to-weight ratio and is virtually
maintenance free . Fiberglass's interwoven construction gives it tremendous strength. Also, the interweaving procedure of cross bars with bearing bars serves to transfer part of load to other portions of the panel. This load carrying capability coupled with its other features, assures you of the finest quality grating on the market today.
maintenance free . Fiberglass's interwoven construction gives it tremendous strength. Also, the interweaving procedure of cross bars with bearing bars serves to transfer part of load to other portions of the panel. This load carrying capability coupled with its other features, assures you of the finest quality grating on the market today.

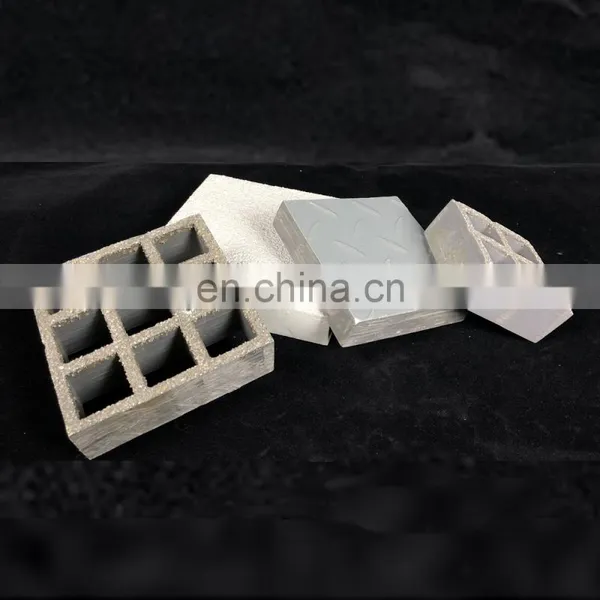

*According to the technology:
*Moldered FRP grating.
*Pultruded FRP grating.
*According to the surface:
*Common surface: Concave surface, Polished smooth surface, Sanding surface.

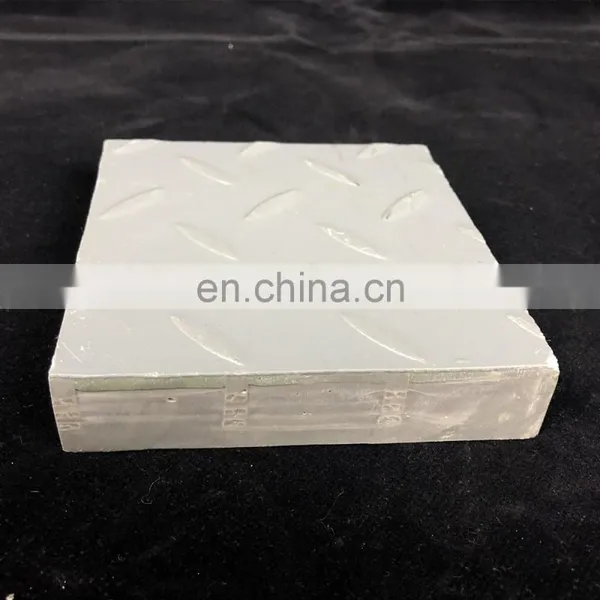

*Covered surface: Smooth cover surface, Gritted cover surface, Checker plate cover surface.
Specification |
Bar Size (Top/Below)
|
Panel Size (mm) |
Mesh size 38mm*38mm, 25mm thickness |
6.5/5.0mm |
1220x3660,1226x4010,1524x4000,1530x4010,1997x3012 |
Mesh size 38mm*38mm, 30mm thickness |
6.5/5.0mm |
1220x3660,1220x4010,1524x4010,921x3055 |
Mesh size 38mm*38mm, 38mm thickness |
7.0/5.0mm |
1220x3660,1220x4010,2100x4240,998x4010,1220x2440 |
Mesh size 38mm*38mm, 50mm thickness |
9.5/7.5mm |
1220x4010,1220x3666,1230x4010,1220x2440,921x3055 |
Mesh size 38mm*38mm, 60mm thickness
|
10.5/8.5mm |
1230x4010 |
Mesh size 38mm*38mm, 70mm thickness |
11.0/9.0mm |
1230x4010 |
Mesh size 40mm*40mm, 25mm thickness |
6.5/5.0mm |
1007x3007,1007x4007,1247x4047,1527x4047 |
Mesh size 40mm*40mm, 38mm thickness |
7.0/5.0mm |
1527x4047,1247x4047,1007x3007,1007x4047 |
Mesh size 40mm*40mm, 38mm thickness |
7.0/5.0mm |
1527x4047,1007x3007,1007x4047,1247x4047 |
Mesh size 50mm*50mm, 15mm thickness |
6.0/5.0mm |
1228x4020,1220x3660,1220x2440 |
Mesh size 50mm*50mm, 50mm thickness |
8.0/6.0mm |
1524x4000,1220x3660,1220x2440,1220x4000 |
13x13/40x40 micro mesh 38mm thickness
|
6.5/4.5/5.0mm |
1527x4047,1247x4047,1007x3007,1007x4047 |
19x19/38x38 mini mesh 38mm thickness
|
6.5/5.0mm |
1220x3660,1220x2440,921x3055,1220x4000,1226x4010 |
25x25/50x50 mini mesh 50mm thickness
|
8.0/6.0mm |
1532x4020 |
Our Lanyu company is very professional FRP grating manufacturer in China.
The process for the FRP grating production is as following:
Application
Fiberglass FRP Plastic Grating FRP fiberglass Checker Plate
Product Application:
Fiberglass is light weight,height strength,Non-Conductive,Corrosion Resistant,Slip Resistant and No Welding required.Widely used by:
Chemical Plants ------ Having excellent resistant to corrosion, FRP grating is extensively used in Chemical Plants.It is mainly used operation platform,walkways,oil storage tanks,power distribution boards and rooms.etc.
Manufacture ------ FRP grating can be used as Walkways,Fencing,Racks and shelving,Wash racks,Scaffolding,Drainage pit covers Stairs,etc.
Transportaion ------ FRP grating can be used as access ways,Platforms(static resistant),docks,trenches,tanker,Stairs,Freight car flooring fill areas as well as walking surfaces and in work areas,etc.
Water and Sewage Water ------ FRP grating are environmentally safe and can be used extensively as filter media support,access walkways,trench Scaffolding,manhole cover,walkovers Scaffolding and Fencing,Stairs,etc.
