High Oxygen Transfer Efficiency 12 Inch High Oxygen Aerator EPDM Membrane Fine Bubble Tube Diffuser
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2000
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EPDM Membrane Bio-reactor System Aerator Fine Tube Bubble DiffuserNegotiableMOQ: 1 -
Wholesale Philippines Mareket EPDM Membrane 215mm Bubble DiffuserNegotiableMOQ: 1
-
Good Quality EPDM Fine Bubble Disc Diffuser 12.5\" Air Diffuser Aerator for Water TreatmentNegotiableMOQ: 1
-
Water Treatment High Oxygen Pipe Aerator Aquaculture Micro Bubble Aeration Diffuser 500/750/1000mm Fine Bubble Tube DiffuserNegotiableMOQ: 1
-
Water Treatment Bio-reactor System EPDM Membrane Aeration Tube DiffuserNegotiableMOQ: 1
Products Description

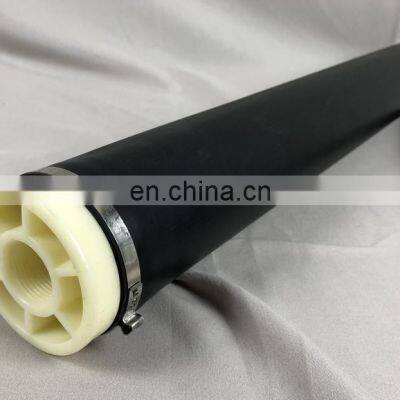

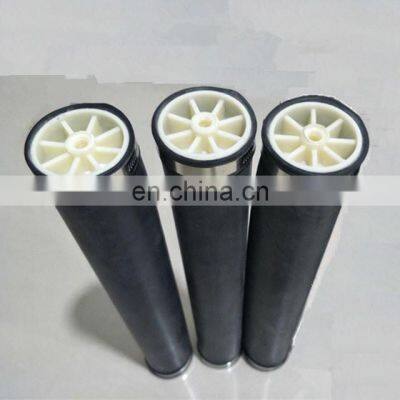

High Oxygen Transfer Efficiency 12 Inch High Oxygen Aerator EPDM Membrane Fine Bubble Tube Diffuser
EPDM air bubble diffuser, which is used to transfer air and with that oxygen into sewage or industrial wastewater. Oxygen is required by microorganisms in the water to break down the pollutants. Fine bubble diffusers produce a plethora of very small air bubbles which rise slowly from the floor of a wastewater treatment plant or sewage treatment plant aeration tank and provide substantial and efficient mass transfer of oxygen to the water. The oxygen, combined with the food source, sewage, allows the bacteria to produce enzymes which help break down the waste so that it can settle in the secondary clarifiers or be filtered by membranes.
Bubble Tube Diffuser can be connected on one side or in pairs to different rectangular and round tubes (ABS material) with the appropriate adapter. The membranes are manufactured with premium quality EPDM material and are available with fine or coarse-bubble perforation.The support tubes(ABS or PVC material)can be reused when membranes are replaced. The units offer maximum performance at minimum cost and require minimum maintenance.
Item |
EPDM Membrane Fine Bubble Tube Diffuser |
Diameter |
65mm |
Length |
300mm, 500mm, 650mm, 750mm, 1000mm or customized |
Material |
EPDM membrane |
Inner tube |
ABS |
Bubble size |
0.7-1.9mm |
EPDM Membrane Fine Bubble Tube Diffuser Feature:
*High oxygen transfer efficiency*Low cost of total ownership
*Anti-clogging, corrosion resistant
*Ease of installation,2 minutes for one diffuser
*Maintenance-free design, 8 years service life
*EPDM/SILICONE membrane with excellent performance
High Oxygen Transfer Efficiency 12 Inch High Oxygen Aerator EPDM Membrane Fine Bubble Tube Diffuser
Standard Membrane Materials
We provide tube diffusers that are specially designed for a plethora of applications. The special low plasticizer EPDM is aimed at beverage production, and food and animal processing. The silicone membrane diffuser is specifically created for refining processes, petrochemicals, and the paper industry.
Anti-fouling Surface for Membrane Materials
Relatively based on the latest nano technology, the surface of the membrane materials are meant to prevent the accumulation of both biological and solid encrustations.
Municipal wastewater treatment
Industrial wastewater treatment
Clean water treatment
Sludge stabilization
Wastewater ozone diffusion
Aeration of fish ponds
Aeration of streams and lakes
Industrial wastewater treatment
Clean water treatment
Sludge stabilization
Wastewater ozone diffusion
Aeration of fish ponds
Aeration of streams and lakes
Product packaging
EPDM Membrane Fine Bubble Tube Diffuser
1. Carton: 68*29*36CM
2. As your request
Delivery:
1. Port: Shanghai sea port
2. Lead Time: 15days after payment
2. As your request
Delivery:
1. Port: Shanghai sea port
2. Lead Time: 15days after payment
Disc bubble diffuser
We can supply disc air diffuser.
Size: 215mm, 260mm, 300mm
Blowers for bubble diffuser:
We can supply 2.2kw and 4kw blowers for you.
