Product Description

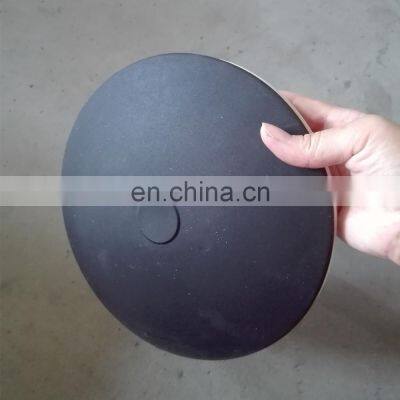

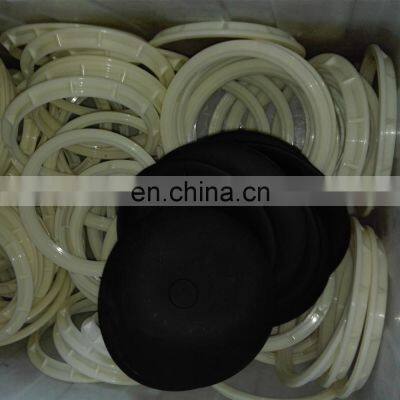

High oxygen bubble diffuser EPDM membrane waste water bubble diffuser
Bubble diffuser, which is used to transfer air into sewage or industrial wastewater. Oxygen is required by microorganisms in the water to break down the pollutants. Bubble diffuser series combines effective design, low installation costs, reliability and high performance in intermittent and continuous aeration processes. Special designed for high oxygen transfer and long time operation.
Item |
215mm Diameter |
260mm Diameter |
300mm Diameter |
Service area |
0.15-0.6m2 |
0.25-0.8m2 |
0.4-1.3m2 |
Air flow |
1-3.8 m³/h |
1.5-5.5 m³/h |
2.6-8.5 m³/h |
Oxygen utilization |
27%-38% |
27%-38% |
27%-38% |
Resistance loss |
1700-2500 pa |
1600-2700 pa |
1500-3000 pa |
Temperature |
0-80℃ |
0-80℃ |
0-80℃ |
Membrane thickness |
2±0.1mm |
2±0.1mm |
2±0.1mm |
Perforation quantity |
4400 |
6600 |
11000 |
Perforation size |
1mm |
1mm |
1mm |
Bubble size |
1-2mm |
1-2mm |
1-2mm |
Bubble diffuser feature:
High oxygen transfer efficiency. High resistance to clogging.
High resistance to corrosion.
Wide air flow range.
Low pressure loss.
Low energy cost.
Easy installation.
Uniform fine bubble
Back flow prevention.
Self cleaning operation.
Intermittent operation capability
Slide-off prevention designed.
We have 3types bubble diffusers for your choose.
Any question about them, I will be happy to give you offer.
Bubble diffuser features
1.High aeration effectiveness
The aeration process involves bringing together water and oxygen for oxidation and dissolutions of metals and dissolution of gases. With our fine bubble disc diffuser and fine bubble tube diffuser, it makes the process more effective.
2.High oxygen transfer efficiency (OTE)
Fine bubble diffusers generally work to treat water waste through OTE. However, with our products, it helps for a more enhanced process considering its specifications.
3.Energy efficient
Fine bubble diffusers have long been introduced opposite the coarse diffusers. One of the feature of our product is its energy saving mechanism.That is, it needs lesser energy for it to work. In effect, you will benefit from energy conservation.
4.System versatility
We have fine bubble diffusers that suit to different water waste management systems. These diffusers are manufactured to ensure that it can adapt to different kinds of systems and basins that it yet to be made or are already existing.
Thus, if you are replacing or upgrading, you can be catered.
5.Material efficiency
Our diffusers are made from various material from ethylene propylene diene monomer rubber (EPDM rubber), which conventional material. We also have fEPDM that has high chemical resistance.
Some are also of polytetrafluoroethylene or (PTFE) to reduce fouling.
