Cooling System Honeycomb Heat Exchangers Cooling Tower PVC Fill
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2000
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Marley Cooling Tower Cross Flow PVC Fill Pack Sheets Cooling Tower Media FillerNegotiableMOQ: 1 -
Hanging Type Cooling Tower Fill New Material Cooling Tower PVC FillerNegotiableMOQ: 1
-
800mm*375mm 800mm*750mm 1600mm*750mm PP PVC LC Cooling Tower Filling MaterialNegotiableMOQ: 1
-
LC Cooling Tower Plastic Fill Media 750mm*800mm Pvc Cooling Tower Fill PackNegotiableMOQ: 1
-
CF1900 Plastic PP/PVC Fillers Cooling Tower Media Honeycomb FillNegotiableMOQ: 1
Product Details

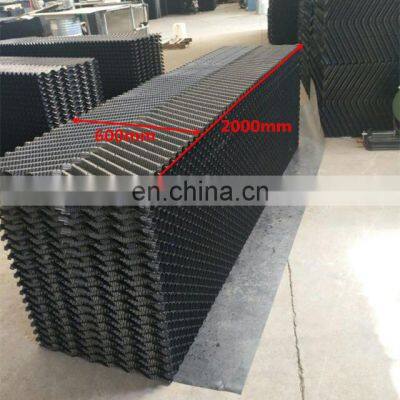

cooling system honeycomb Heat exchangers cooling tower PVC fill
Cooling tower fill is made of PVC or PP plain plate.
They are hot pressed in the certain mould, and then be produced according to different design and be used in different cooling towers, especially in the industrial cooling tower. As we all know, the main usage of the cooling tower fill is a media located in the bottom or middle of the industrial cooling tower.
Material | Sheet Spacing | Flute Angle | Media Pack Sizes: Depth(D), Width(W), Length(L) | Pitch | Sample | ||
PVC/PP | 0.75 in (19 mm) | 31° | Minimum | Maximum | Standard | ||
PVC/PP | D: 6 in (153 mm) W: 6 in (153 mm) L: 1 ft (305 mm) | D: 24 in (610 mm) W: 24 in (610 mm) L: 12 ft (3658 mm) | D: 12 in (305mm) or 24 in (610mm) W: 12 in (305mm) or 24 in (610 mm) L: 4 ft (1220 mm), 6 ft (1829 mm), 8 ft (2439 mm) or 10 ft (3048 mm) | ||||

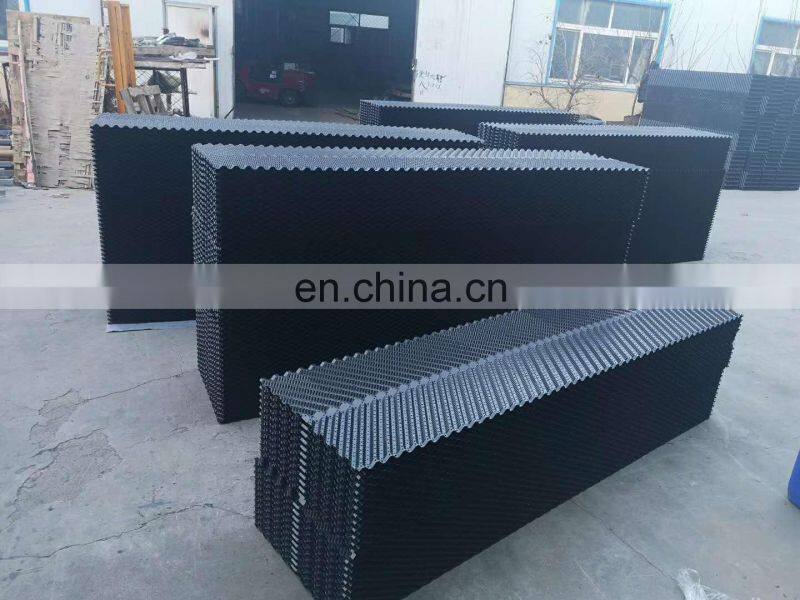

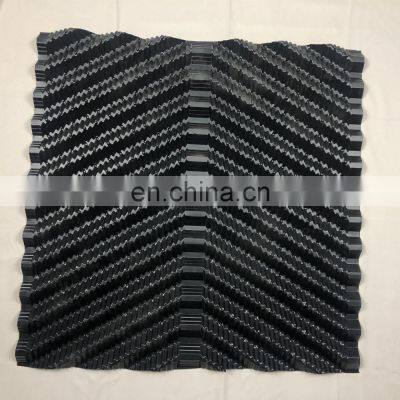

Block PVC cooling tower fill

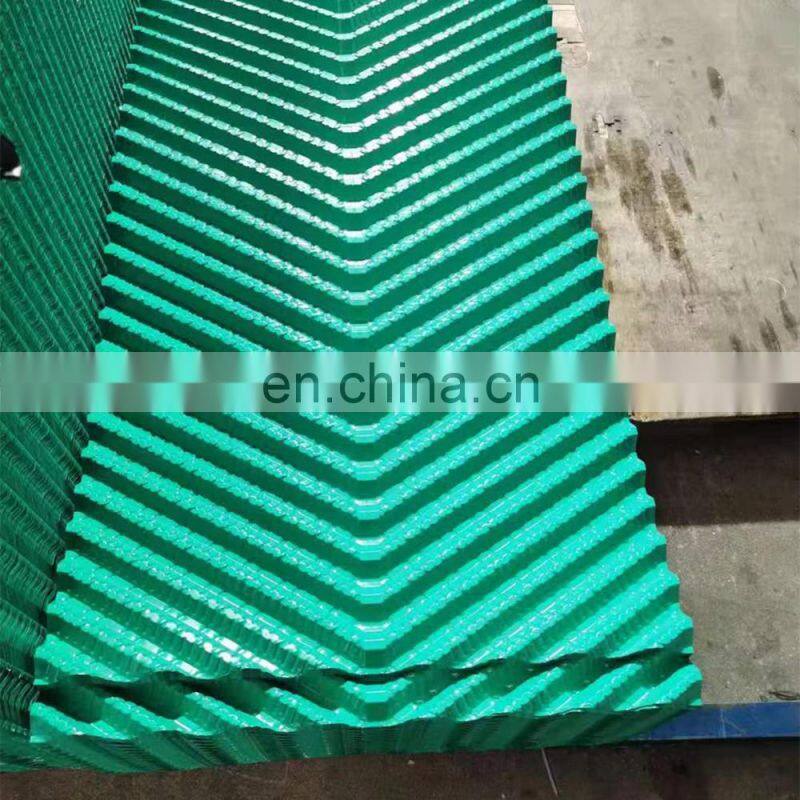

Green PVC cooling tower fill

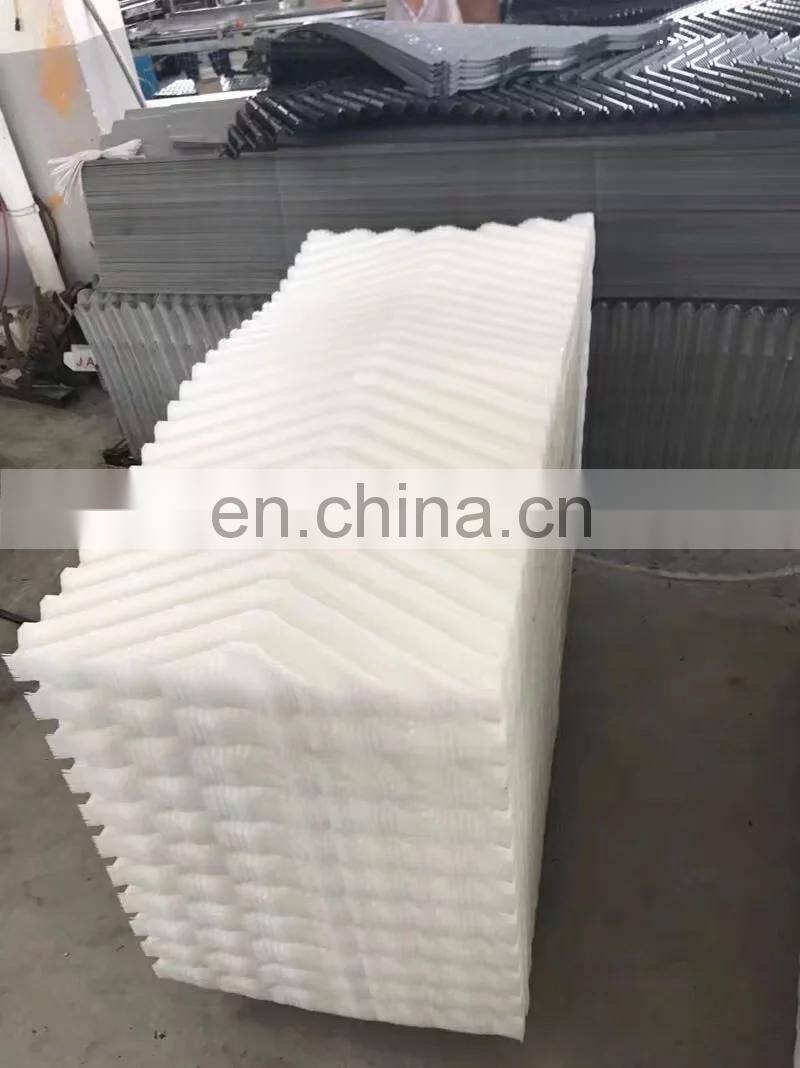

White PP cooling tower fills
Product Introduction
cooling system honeycomb Heat exchangers cooling tower PVC fill
• Bevel Tips promotes drainage at fill pack interfaces. Note: Packs are always installed with Bevel Tips at bottom of pack.
• Patented "MA"(Mechanical Assembly) Technology for glue-free packs.
• Engineered microstructure for improved water distribution and thermal mixing
• High thermal performance
• Improved water distribution
• Proprietary edge trim that directs water to both sides of sheet
• Material meets Cooling Tower Institute (CTI) Standard 136
• Available in PVC

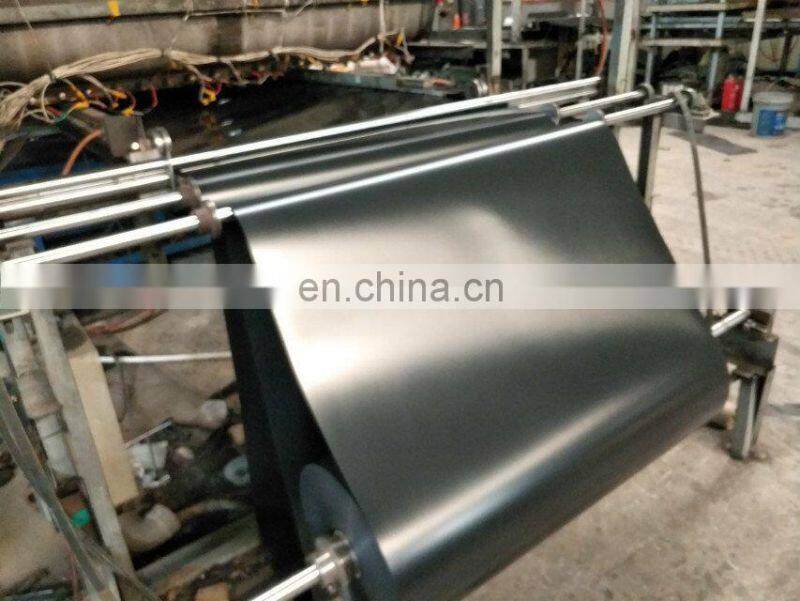

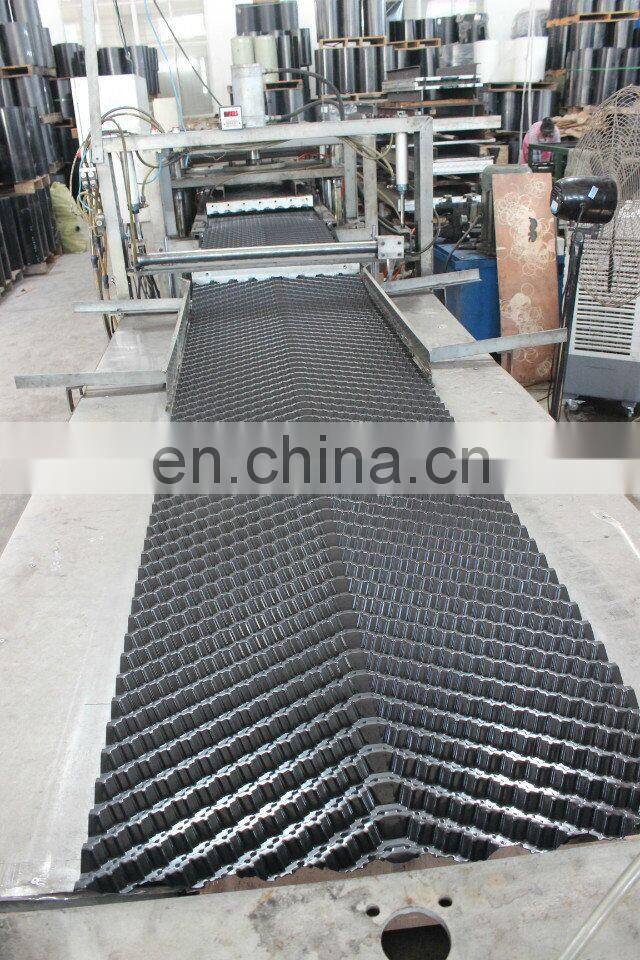

Product Processing

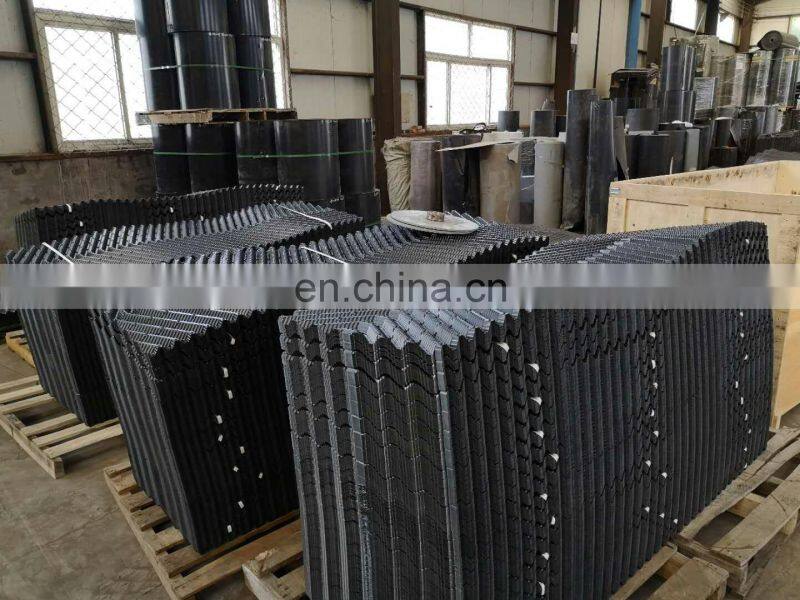

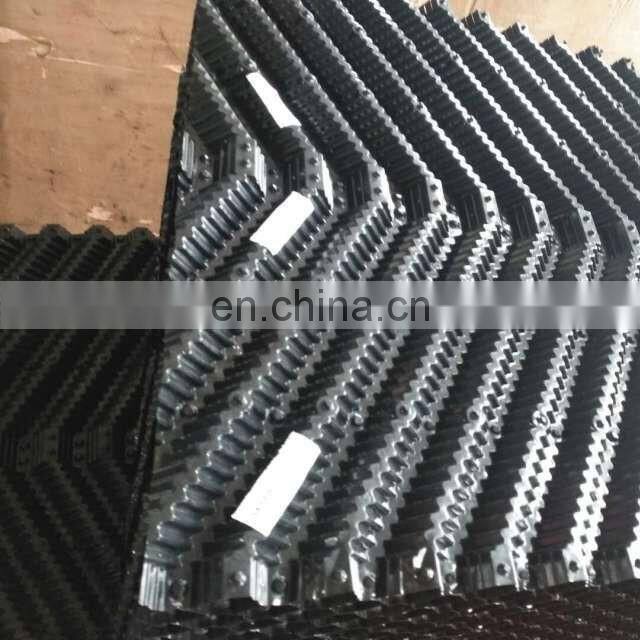

Product Packing
cooling system honeycomb Heat exchangers cooling tower PVC fill
For LYOW fills, loose sheets or glued blocks are both ok.
If loose sheets, it will save so much shipping space,
If glued blocks, you can directly fill your cooling tower when you receive your order.
How shall we choose the PVC fill for the cooling tower?
The cooling tower size and shape will decide which kinds of fills will be used. Round cooling towers use the fill media with a round shape, square cooling towers use the square or rectangle shape. There is another special shape of the fill, such as the trapezoid shape fill,it can be used in square cooling tower too. About the cooling tower fill thickness, It ranges from 0.27mm to 0.5mm. Some people thought the thicker, the better. Considering the tower’s size and installation
method,we advise to use the suitable thickness. If the width is less than 1.22meter, we advise to use the thickness less than 0.38mm; if the thickness is more than 1.22meter, such as 1.52meter, we advise the thickness should be more than 0.38mm. It is like apaper. If the width is very large, the thickness should be thick enough to bear the weight and strength.
method,we advise to use the suitable thickness. If the width is less than 1.22meter, we advise to use the thickness less than 0.38mm; if the thickness is more than 1.22meter, such as 1.52meter, we advise the thickness should be more than 0.38mm. It is like apaper. If the width is very large, the thickness should be thick enough to bear the weight and strength.
