CF1900 Plastic PP/PVC Fillers Cooling Tower Media Honeycomb Fill
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
PVC PP Hanging Film Type CrossFlow ML MX75 Cooling Tower Filler
-
750mm Blue Black Color PVC Filler Cooling Tower Film Fill Packing Cooling Tower Fill Media
-
Manufacturer Supply Water Cooling PVC Filler Sheets Media Black Cooling Tower Filling
-
High Temperature Resistance 1520mm Marley PVC Cooling Tower Fill Packing Marley Cooling Tower Film
-
100% Virgin PVC Material Cooling Tower Fill MC75 Counterflow Film Fill
-
Square Crossflow Cooling Tower Liangchi Pvc Sheet Filler Packing
Product Description
Specification
COOLING TOWER FILL is also named cooling tower filler, cooling tower infill, cooling tower fill packing, cooling tower fill media, etc. Cooling tower fill is made of PVC or PP plain plate. They are hot pressed in the certain mould, and then be produced according to different design and be used in different cooling towers, especially in the industrial cooling tower.
The raw materials of fills are very important. A good quality will assure you the cooling tower fill without any deformed in the process of using it. How to choose the good raw material? We Sara cooling tower fill will help you to resolve the important point. We make the raw material PVC plate ourselves with 100% new polyvinyl chloride particle, the features are fast forming without deformed easily. We also import the PVC plate from Taiwan to produce the cooling tower fill according to every customer’s requests. The imported raw material PVC plate is very suitable for large width fill media, but the life time is the same as our PVC plate. The only difference is the different price. Imported raw material PVC plate price is a little higher.

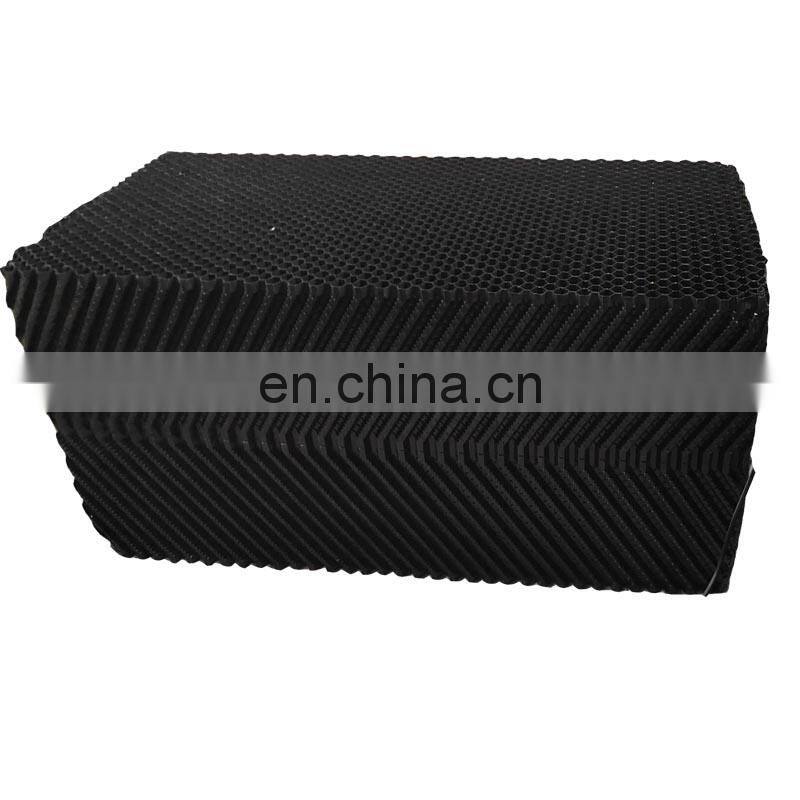

CF1900 plastic PP/PVC fillers cooling tower media honeycomb fill
OW cooling tower fill belong to counter flow cooling tower fill, it is glued together to be a block which is full of the middle bottom in tower.
The thickness: 0.25mm-0.35mm;

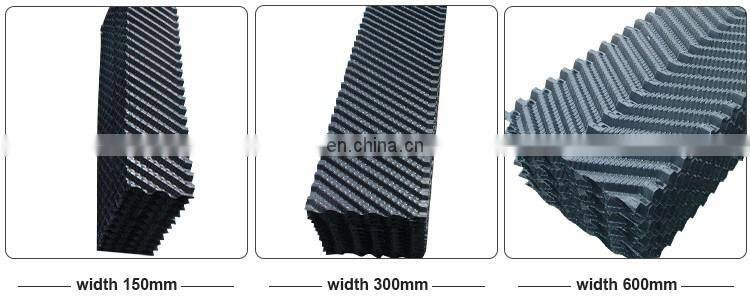

the width :150mm,300mm,305mm; 600mm; 610mm；
length :1200mm,1800mm,2000mm,2400mm;
length :1200mm,1800mm,2000mm,2400mm;
the pitch distance : 12mm,15mm,19mm and 25mm.
The 19mm is normal size. It is also called CF1900,CF1200.
It means the fill will be glue to be a block which size is 305mmx305mmx1200mm. The honeycomb is in the vertical
direction to make sure the cool air meet the hot water directly. Usually there are 2 or 3 layers in the bottom of the cooling
tower. There are PVC air inlet louver match the CF1900 fill to make sure the water- treatment surface area proportion arrive to 248m2/m3, and the typical face velocity arrive to 2.0-3.5m/s.
direction to make sure the cool air meet the hot water directly. Usually there are 2 or 3 layers in the bottom of the cooling
tower. There are PVC air inlet louver match the CF1900 fill to make sure the water- treatment surface area proportion arrive to 248m2/m3, and the typical face velocity arrive to 2.0-3.5m/s.
Cooling Tower Fill Size (mm) | Fluted size(mm) | Fill material | Fill thickness (mm) | Feed Water Temperature |
305*1830 | 12,15,19 | PVC,PP,CPVC | 0.3-0.5mm | PVC can reach the highest 68℃; If the water temperature is higher than 70℃, it needs PP material |
305*1220 | any length. such as 1200mm, 1800mm, 2000mm | |||
150*1830 | 0.25-0.5mm | |||
150*1220 | YES |
Details Images

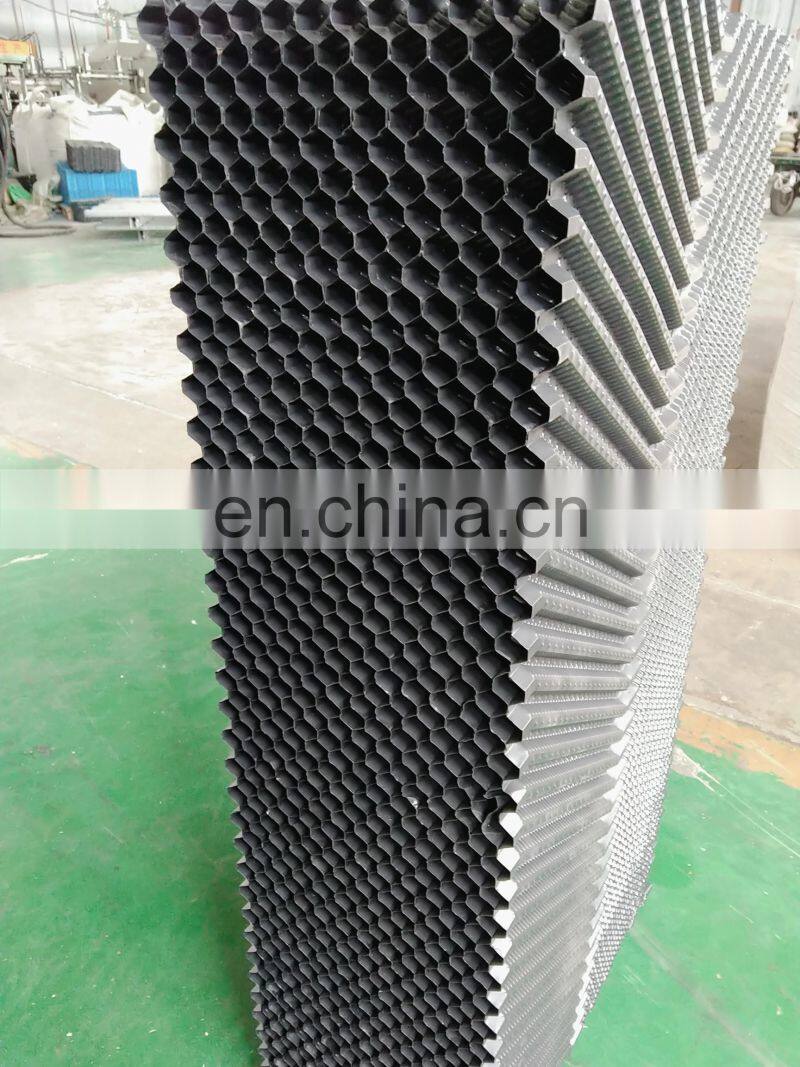

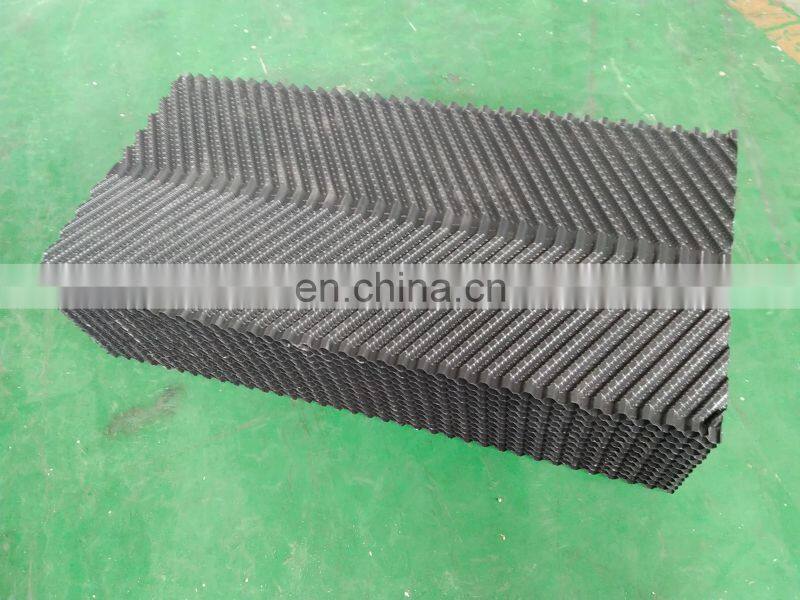

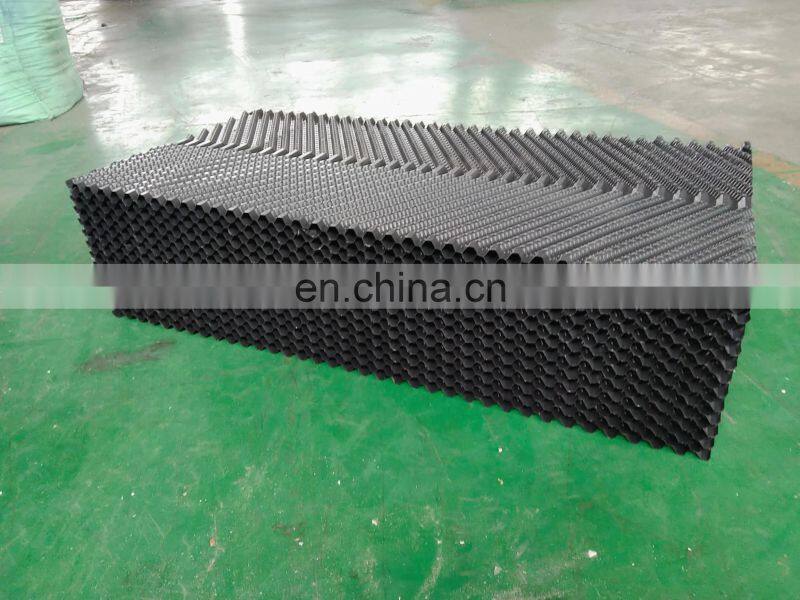

CF1900 plastic PP/PVC fillers cooling tower media honeycomb fill picture details

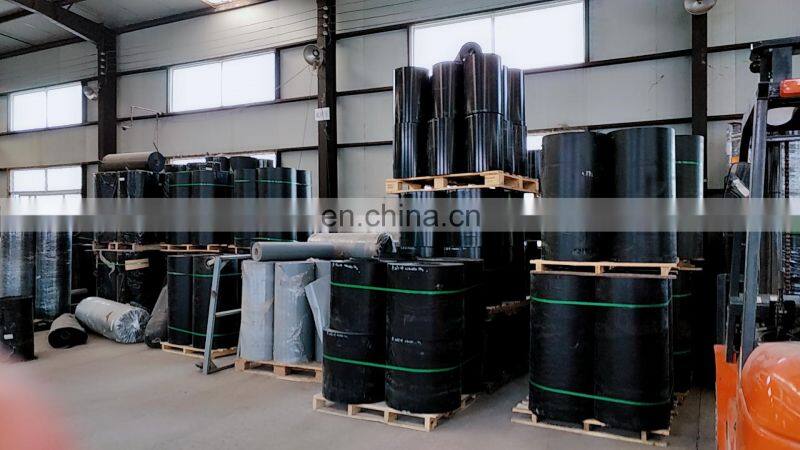

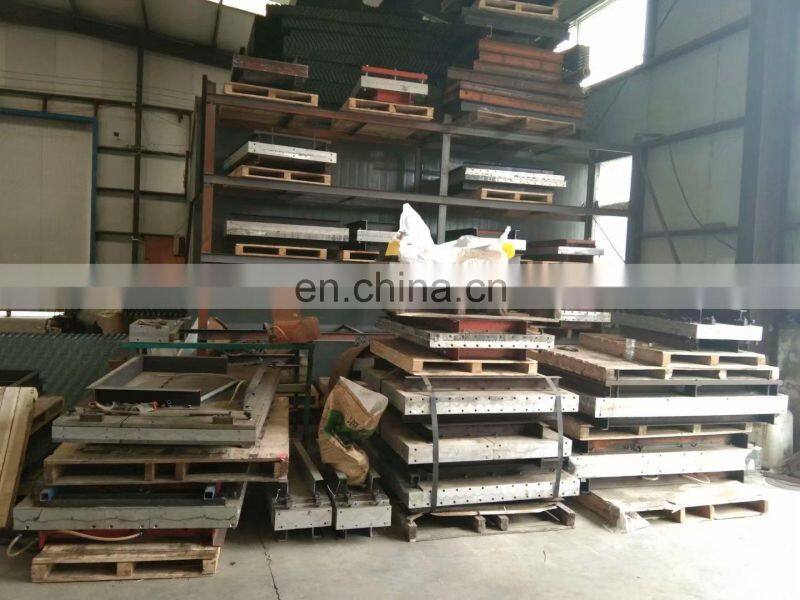

Our mold and new materials details
We have many molds for cooling tower fills, and we are professional manufacturer ,we can produce the cooling tower fills as your required. we accepy costomized. welcome to contact us. we will give you the best quality fills and best service

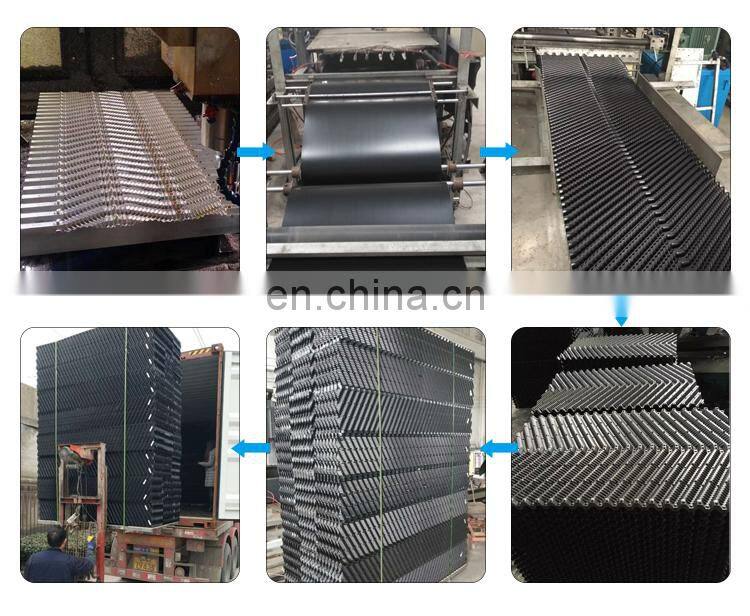

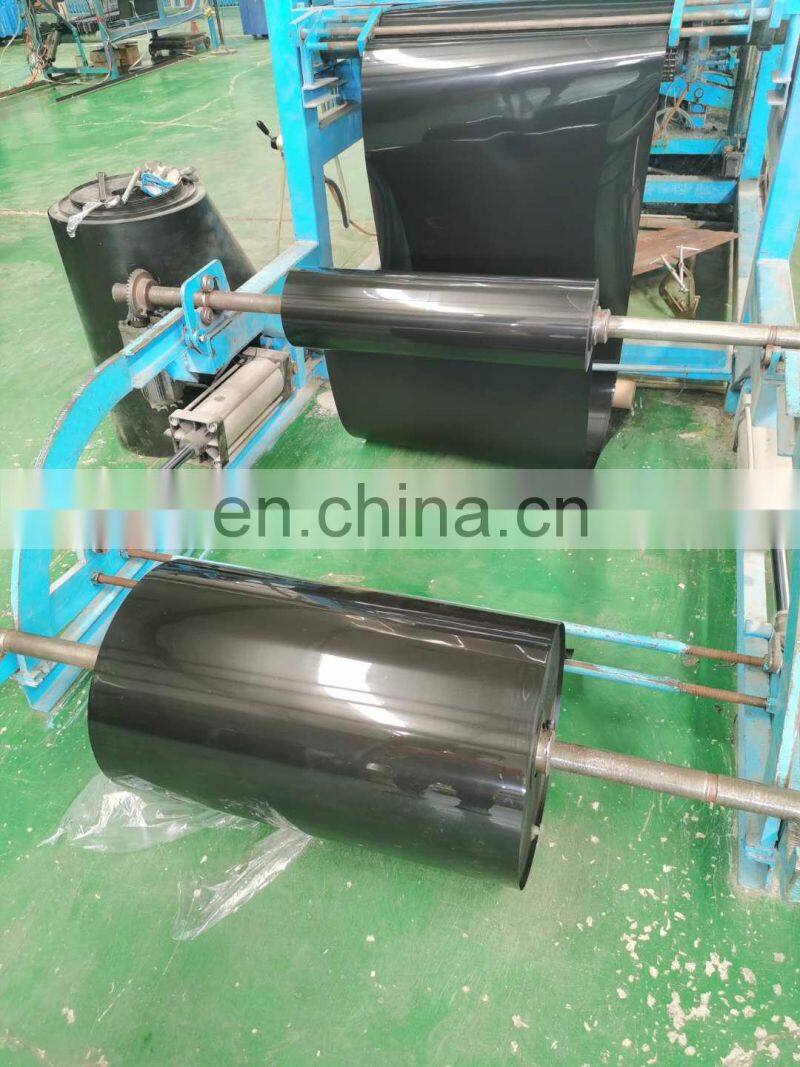

Product production process

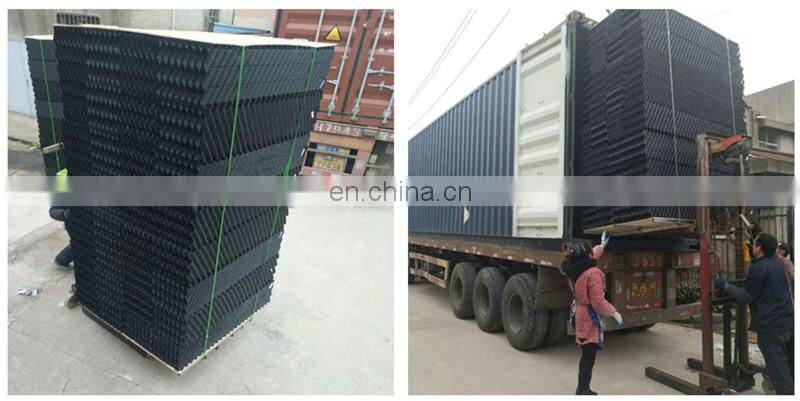

Product packaging
CF1900 plastic PP/PVC fillers cooling tower media honeycomb fill
Packing normally by film and pallet, or we can do the packing as your required

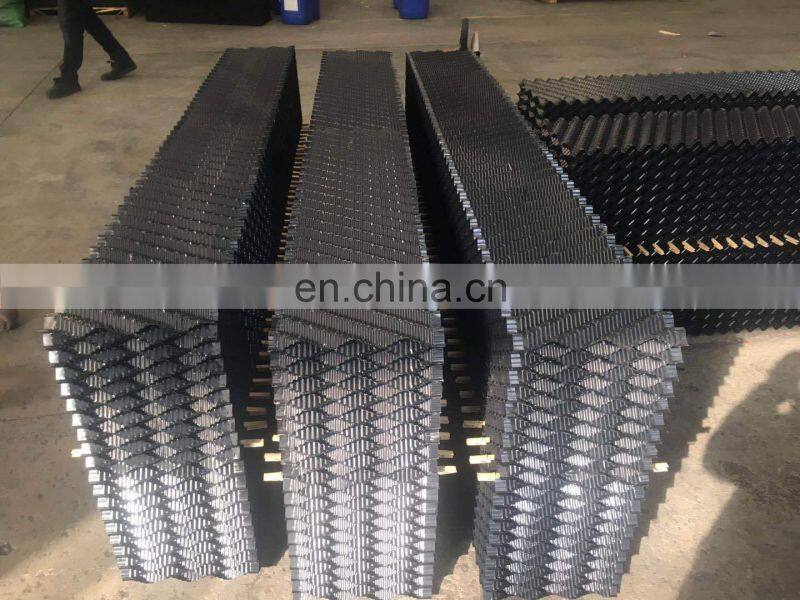

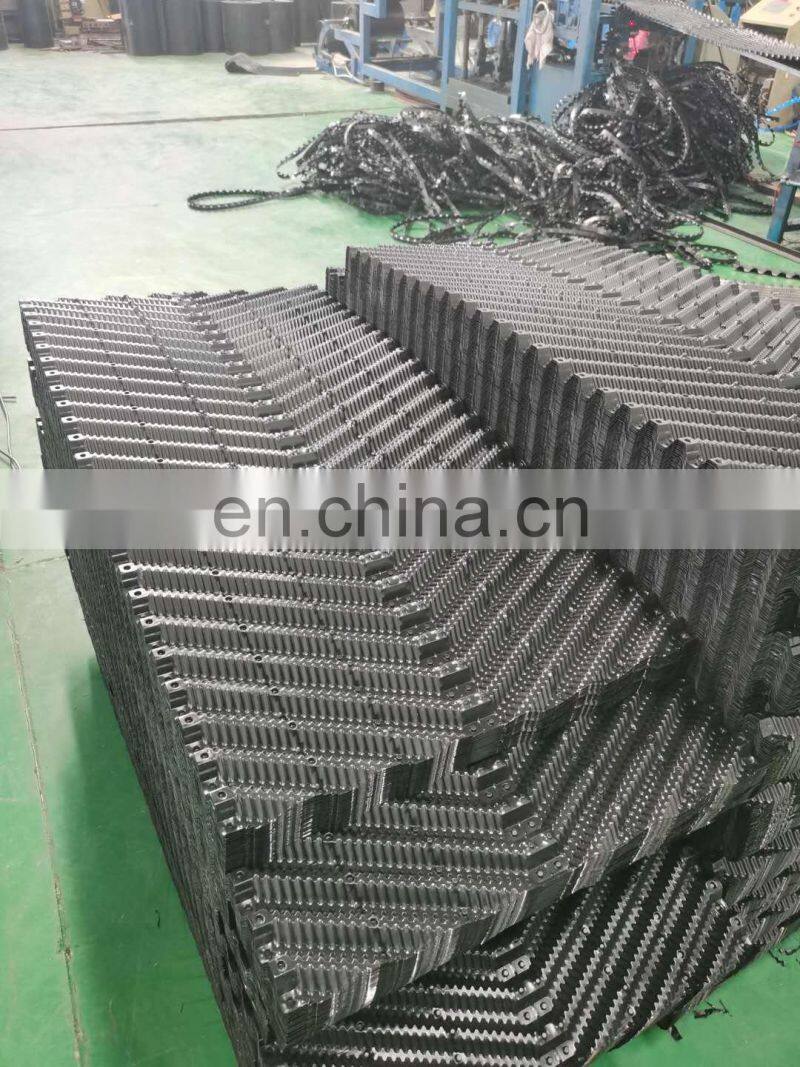

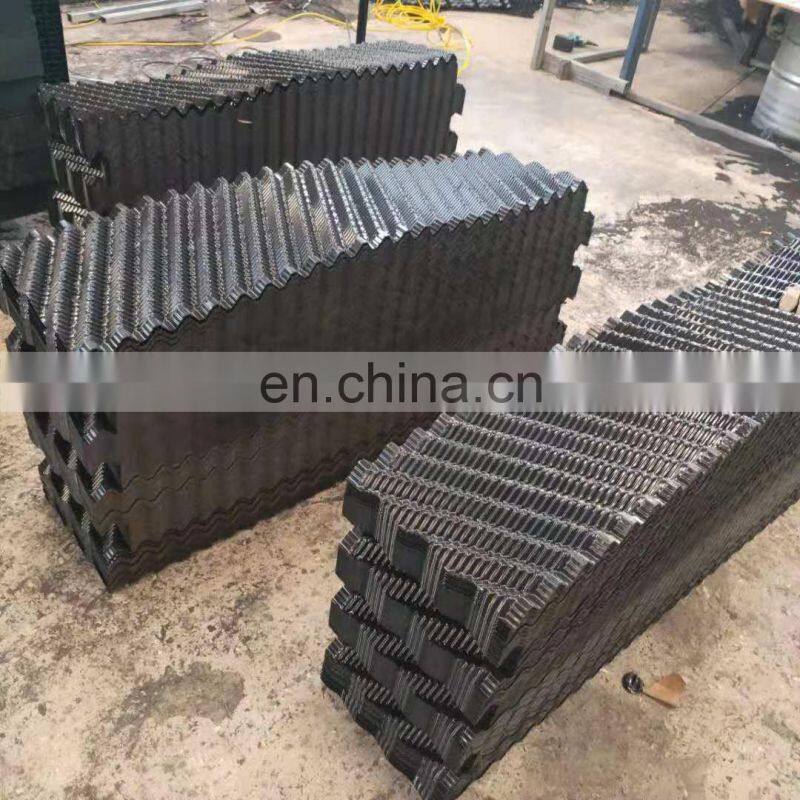

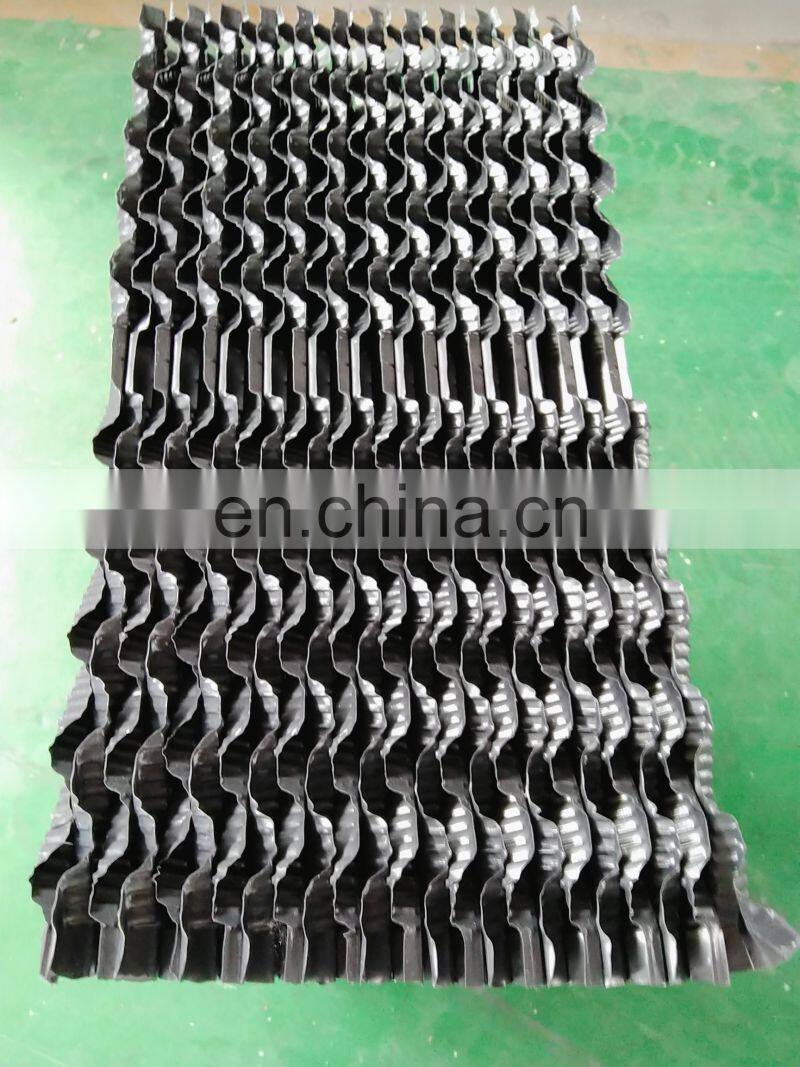

Other fills
Why Choose Us
Q 1: Your company is a factory or trading company?
A: Hebei Lanyu is a factory, we have own factory. our company have exported the cooling tower fills for 9 years. we have 3 subsidiary companies.
A: Hebei Lanyu is a factory, we have own factory. our company have exported the cooling tower fills for 9 years. we have 3 subsidiary companies.
1. We can glue the cooling tower fill pieces in block and load in container, which requires more space and cost more freight.
2. Send the pieces without gluing together, which will save much more freight. And the video of how to glue the pieces will be
sent too.
2. Send the pieces without gluing together, which will save much more freight. And the video of how to glue the pieces will be
sent too.
