Home > Products > Cooling Tower Filler > Cross Flow Marley Hanging Fill MX75 Cooling Tower Fill

Cross Flow Marley Hanging Fill MX75 Cooling Tower Fill

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Cross Flow Marley MX75 Cooling Tower Fill

MX Fill is available in MX75 configuration and higher-performing MX625 configuration. MX is a hanging film type cooling tower fill which spreads the water into a thin film, flowing over large vertical surfaces, promoting maximum exposure to air flow. This type of fill provides much more water surface exposure per cubic foot than splash type fill.
MX fill incorporates highly efficient cellular drift eliminators, integrally molded within the fill sheets. Compared with previous designs, these eliminators reduce drift emissions from the tower by a factor of ten or more! Less drift means tower owners save water bills and water treatment chemical expenses.
This fill virtually eliminates the nuisance caused by drift spotting on adjacent buildings and property. For additional savings, the drift eliminators discharge air directly toward the fan. Discharge air, traveling in the right direction when it leaves the eliminators, translates to lower fan horsepower.
Louvers are also integrally molded within the fill sheets preventing water from escaping and assuring precise air distribution throughout wide variations in airflow. Unlike towers equipped with separate external louvers, this fill operates virtually ice-free even in extremely cold weather.
MX fill is thermoformed from PVC with a flame spread rating less than 25 per ASTM E-84 and is considered selfextinguishing. Therefore, the risk of fire damage is minimal.
We have many years for exported Cooling towers filling, we are professional for installation and production.

Specification

Cross Flow Marley MX75 Cooling Tower Fill specification

Material: Thermal Formed PVC
Water temperature: -35~70℃
Tensile Strength-6,300 psi(at room temperature)
Tensile Modulus-325,000 psi
Specific Gravity-1.50
Maximum Continuous Hot Water Temperature-52℃
PVC Sheet Thickness-0.25mm, 0.40mm
Sheet Spacing-19mm

Type	1220mm ML Hanging Fill Cross flow drift eliminator cooling tower fill PVC material
Material	PVC
Color	Black ,grey,blue ,green
Pitch	19mm
Thickness	0.3-0.6mm
length	any
Tensile strength	Longitudinal direction 47.0 MPA, landscape proentation:42.0 MPA
width	920mm 1020mm, 1220mm 1520mm
Application tempereture	-15℃~65℃
Used for tower	Crossflow cooling tower

Product application

Cross Flow Marley MX75 Cooling Tower Fill Cross flow cooling tower fill make the water meet th air crossly, when cooling tower air entry the tower from two sides , the hot water come into the tower from top, this meeting between hot water and cooling air was named cross flow, the result is the water become the lower temperature and flow away from the tower bottom, and the hot air is uprising in the tower top

Product details

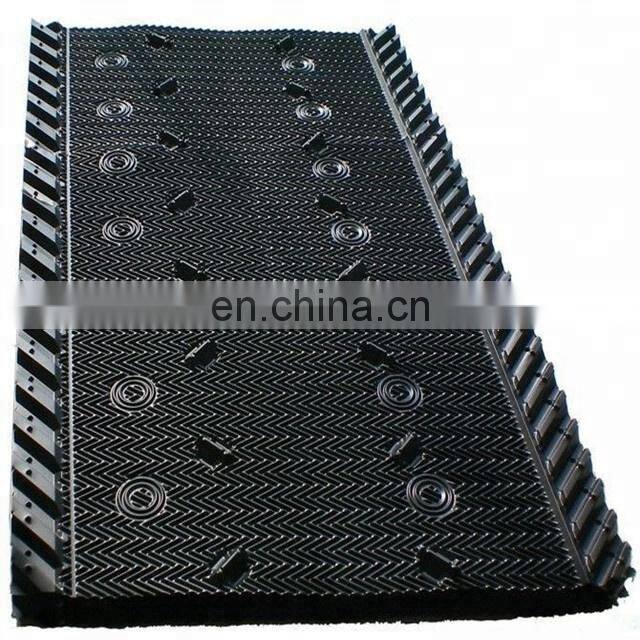

Cross Flow Marley MX75 Cooling Tower Fill picture details

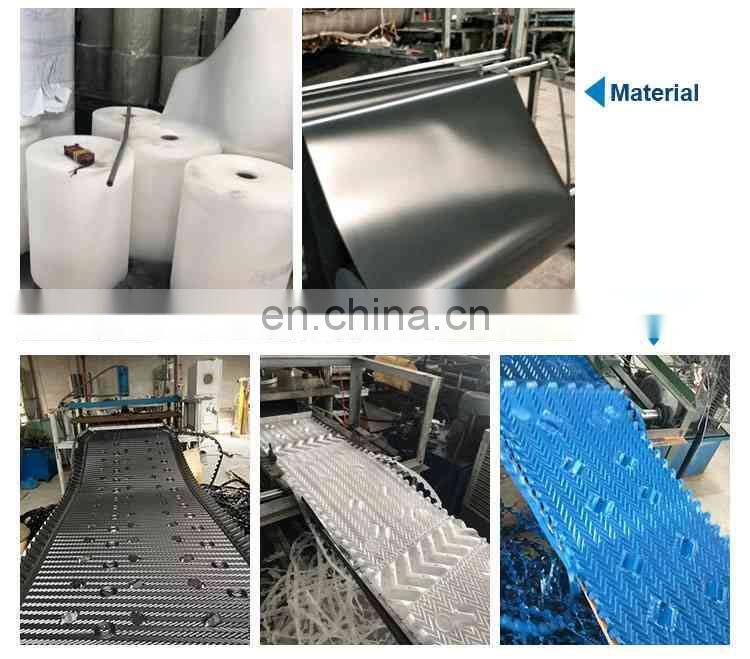

Packing & Delivery

1220mm ML Hanging Fill Cross flow drift eliminator cooling tower fill PVC material packing
