Marley Cooling tower Cross flow PVC fill pack sheets Cooling Tower Media Filler

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

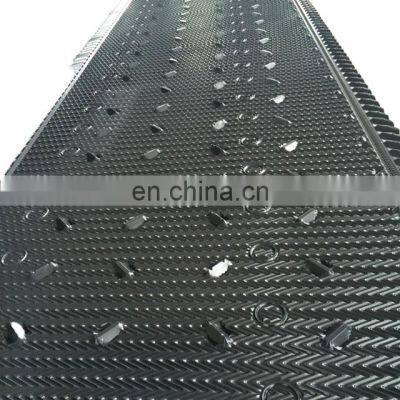

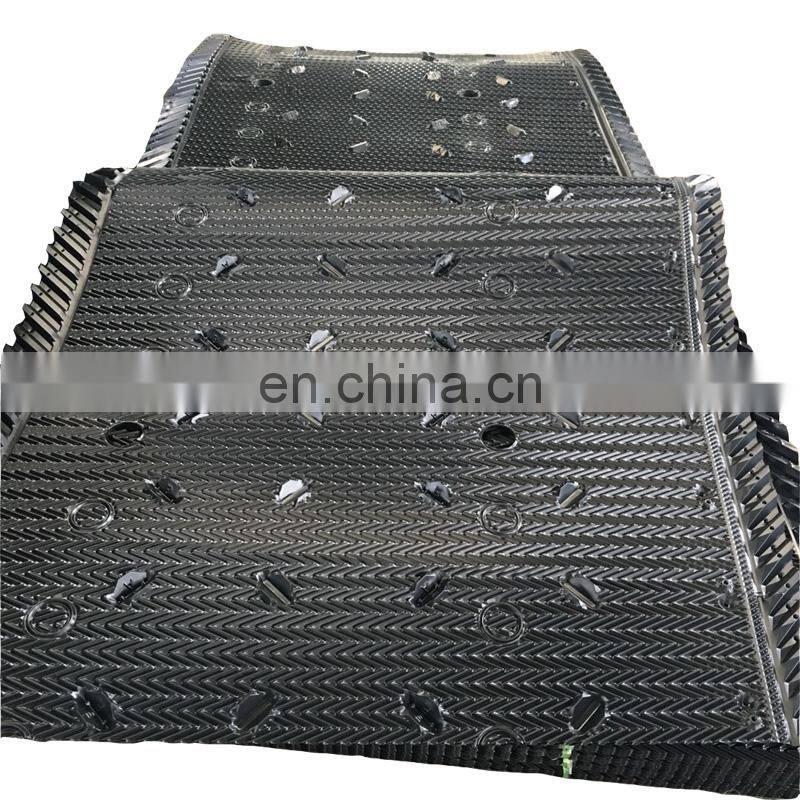

Marley cooling tower fill

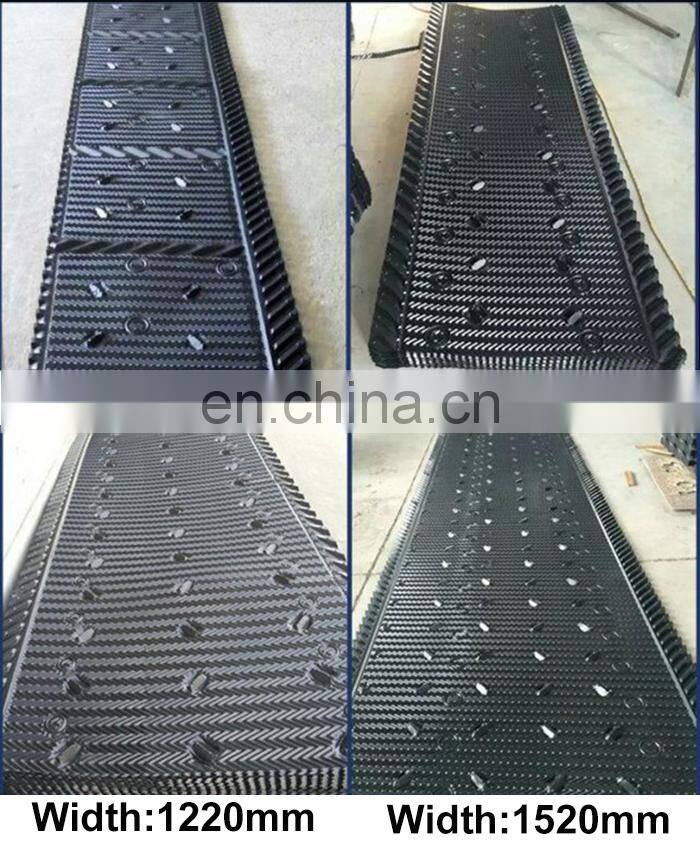

Normal size: width 915mm,1220mm,1520mm length:any

Color:black

Thickness:0.38-0.6mm

BAC cooling tower filler

Normal size 1330*2450mm,1330mm *2850mm

Color: Black or customized

Thickness:0.38-0.6mm

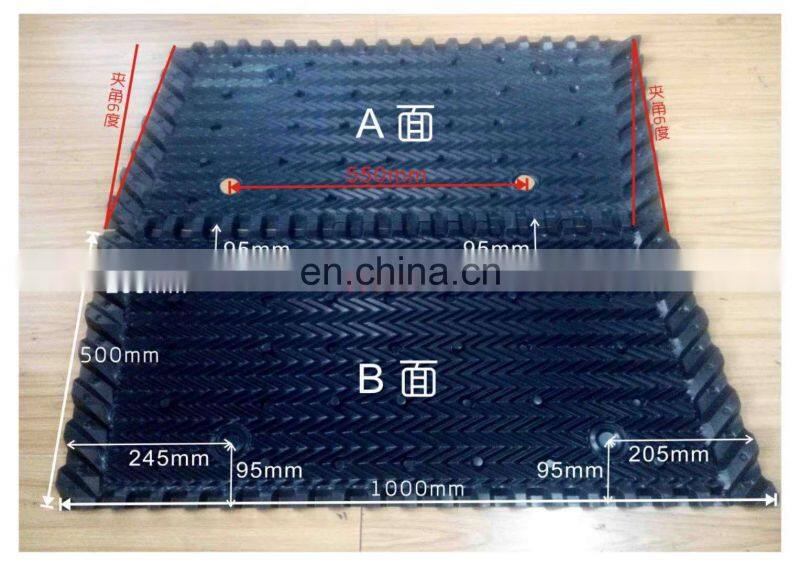

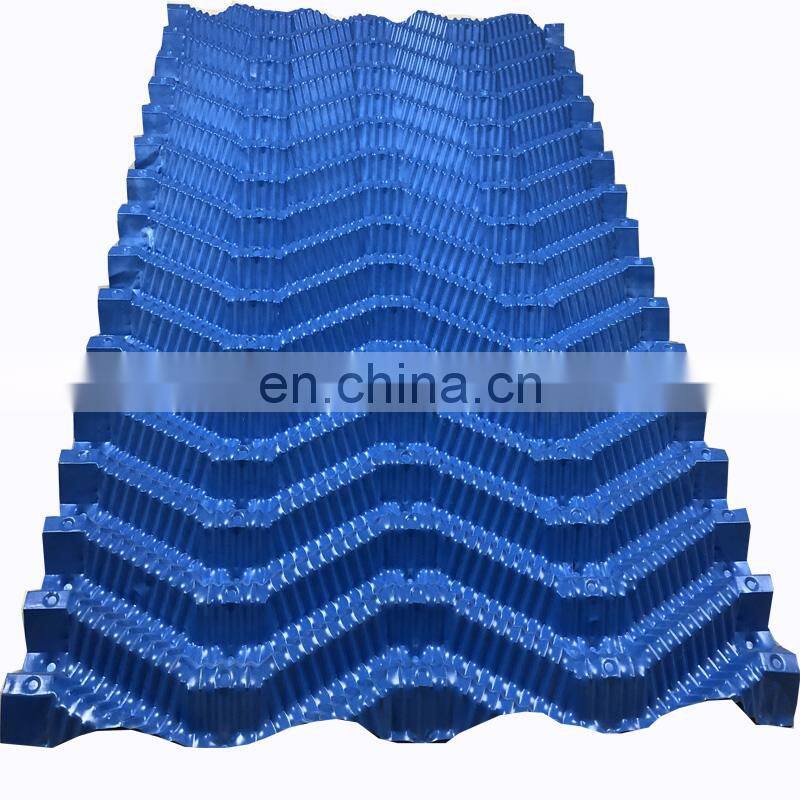

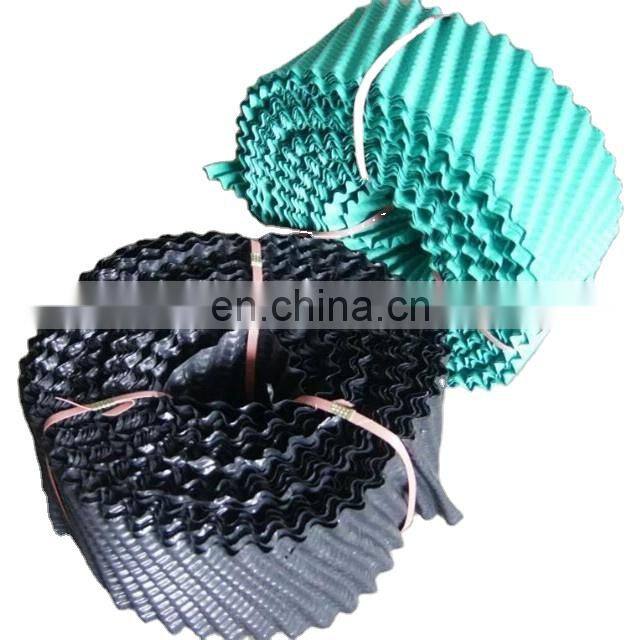

S wave fill

normal size:500mm*1000mm

Color:black,blue,green, gray atc.

Thickness:0.3-0.6mm

Oblique wave cooling tower filler

Normal size:1200*300mm

Color: Black or as your required

Thickness:0.25-0.6mm

Round type cooling tower fill

Normal size: height 250mm 300mm

Color: green,blue,black, or as your required

Thickness:0.25-0.6mm

Liangchi cooling tower fill

Normal size:750mm*1600mm ;750*800mm

Color:black , gray or as your required

Thickness:0.3-0.6mm

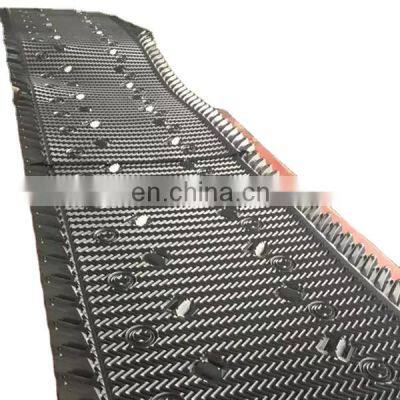

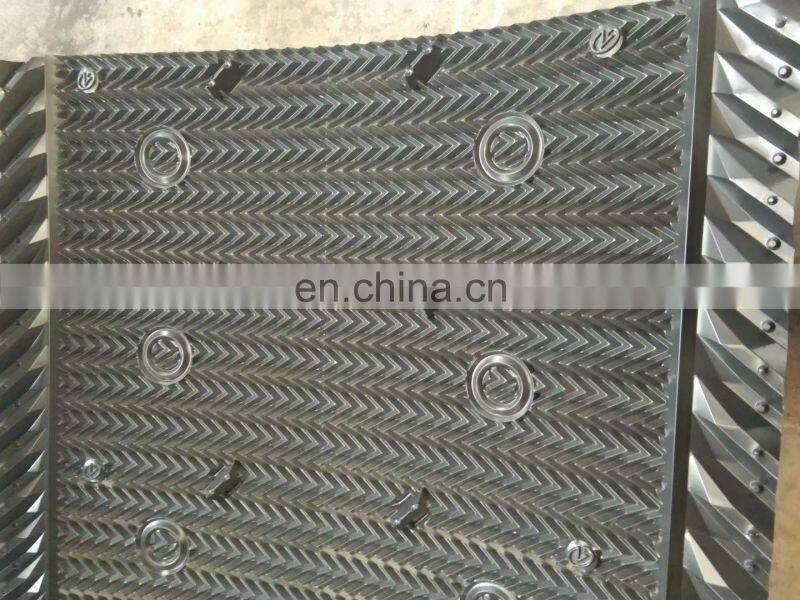

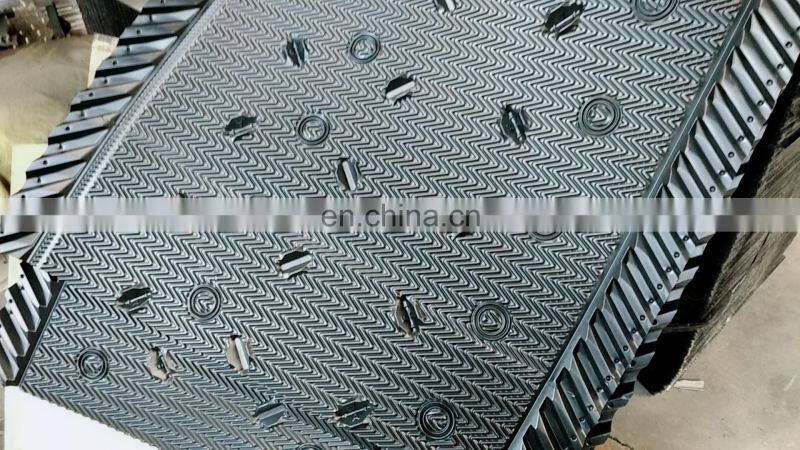

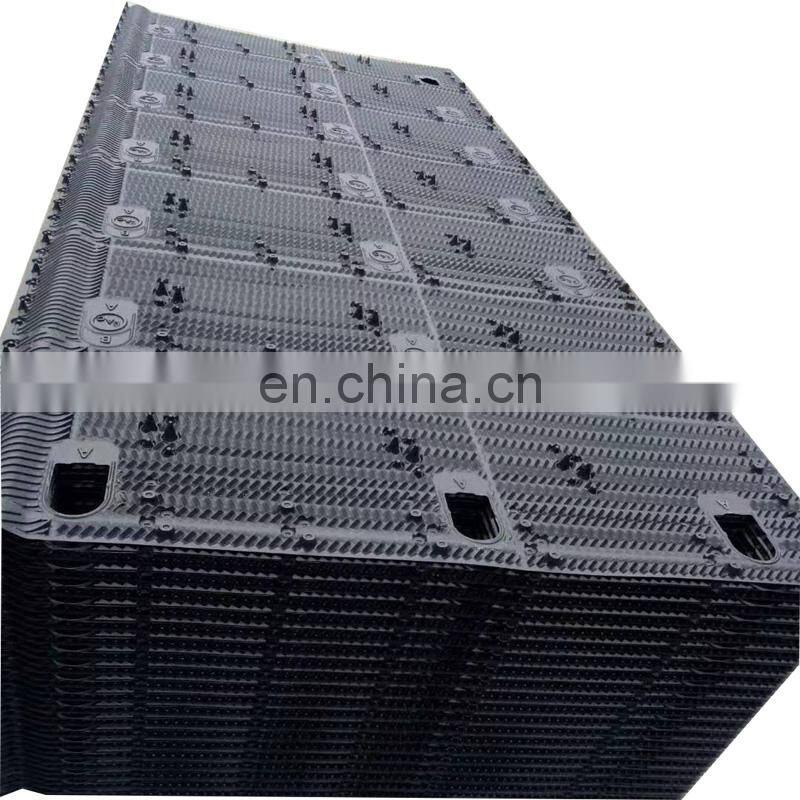

Hanging Type Cooling Tower Fill new material Cooling Tower PVC Filler

Type	Hanging Type Cooling Tower Fill new material Cooling Tower PVC Filler
Material	PVC
Color	Black ,grey,blue ,green
Pitch	19mm
Thickness	0.28mm-0.38mm, other thickness can be customized
length	any
Tensile strength	Longitudinal direction 47.0 MPA, landscape proentation:42.0 MPA
width	915mm,1220mm,1520mm
Application tempereture	-15℃~65℃
Used for tower	Crossflow cooling tower

The cooling tower filler with rough surface and smoother surface has good hydrophilicity, and the water absorption rate is less than 0.015%, so that more water flows into a film without splashing, so that the water and air are more fully contacted and the surface is disturbed when the water and air are flowing. Big. After the packing is assembled, the air inlet surface is a honeycomb-shaped deflector, which has a good uniform air distribution effect, and improves and stabilizes the heat exchange intensity of water and air.

The inlet end is inclined at an angle of 30°, which effectively reduces the loss of drifting water. A water collector designed according to the impact separation method is installed at the end of the packing to effectively control the floating water loss within five hundred thousandths.

Easy to install, easy to clean, easy to transport The heat dissipation filler adopts a non-adhesive suspension type, which is easy to install and easy to clean, and successfully solves the problem of deformation of the adhesive filler due to dust absorption and dirt accumulation and self-weight, and the problem of more serious dirt accumulation after deformation and difficult to clean. The filler has good flame-retardant performance. After testing: the flame-retardant oxygen index is greater than 28

The large "honeycomb" structure is designed with a diversion function, has a good uniform air distribution effect, improves and stabilizes the heat exchange intensity of water and air, and the air inlet is inclined at an angle of 30 degrees to reduce water drift loss. The combination of positioning and equal spacing facilitates the formation of a large-area flowing water film perpendicular to the surface of the water flow, and promotes the contact surface of the large airflow. The self-contained louver is formed on the filler to make the air-water ratio distribution in the filler even and reasonable. The dewatering device is integrated with the filler molding, which effectively removes the water droplets in the hot and humid air and returns to the tower, greatly reducing the loss of floating water. The floating water loss rate is less than 0.001%.

Product application

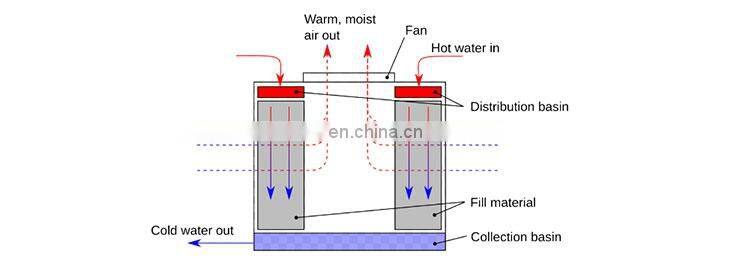

High quality Anti UV Non-defrmation MX75 cooling tower fill Marley infill Cross flow cooling tower fill make the water meet th air crossly, when cooling tower air entry the tower from two sides , the hot water come into the tower from top, this meeting between hot water and cooling air was named cross flow, the result is the water become the lower temperature and flow away from the tower bottom, and the hot air is uprising in the tower top

Product details

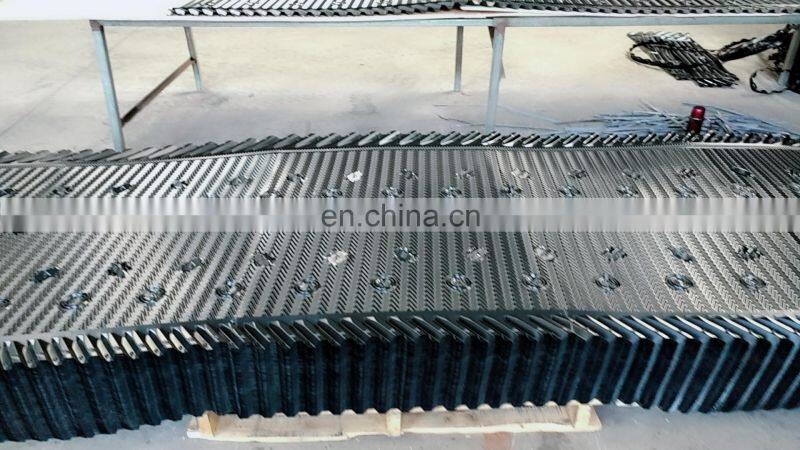

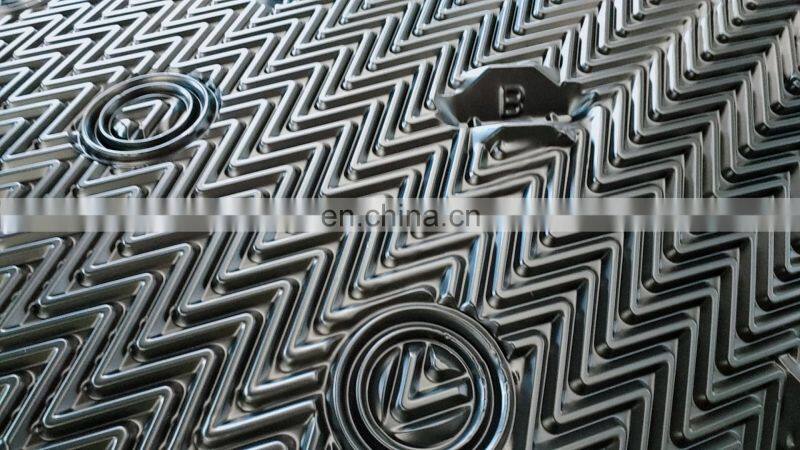

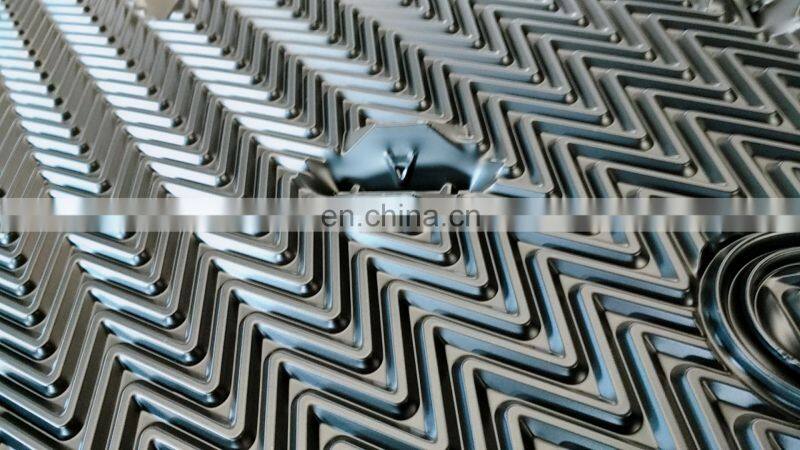

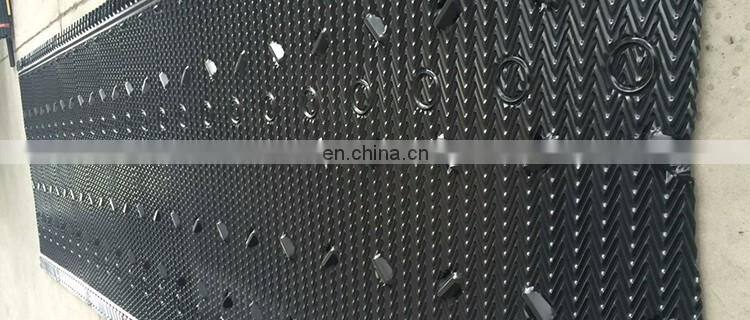

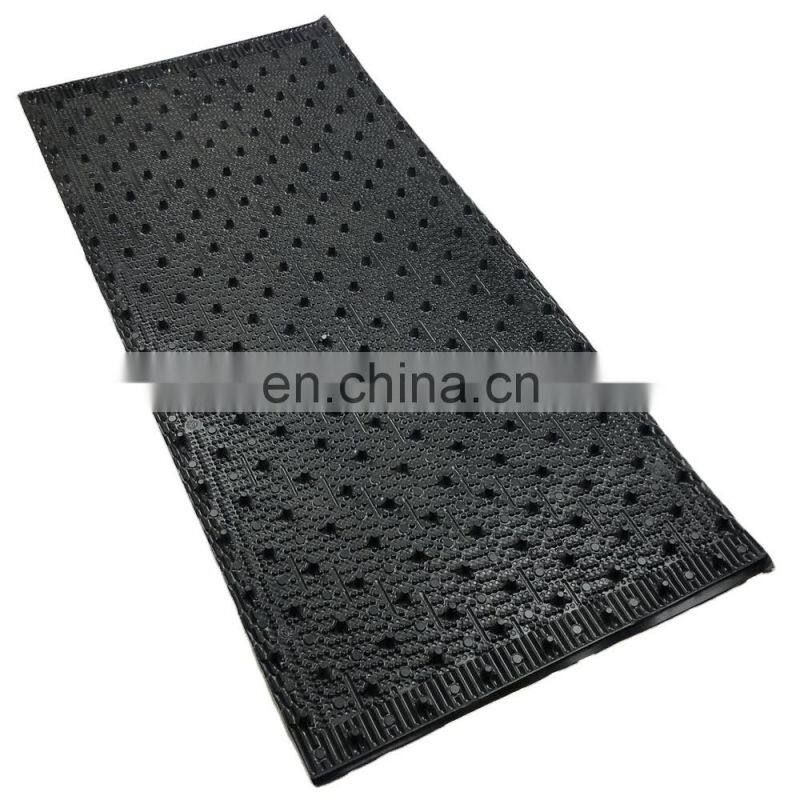

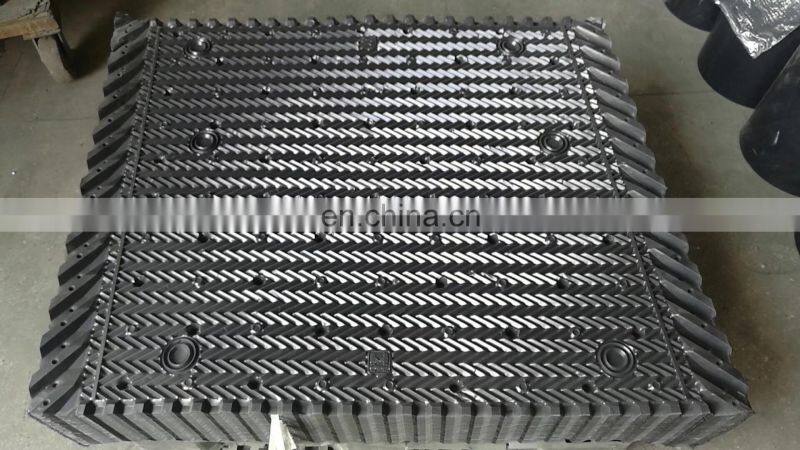

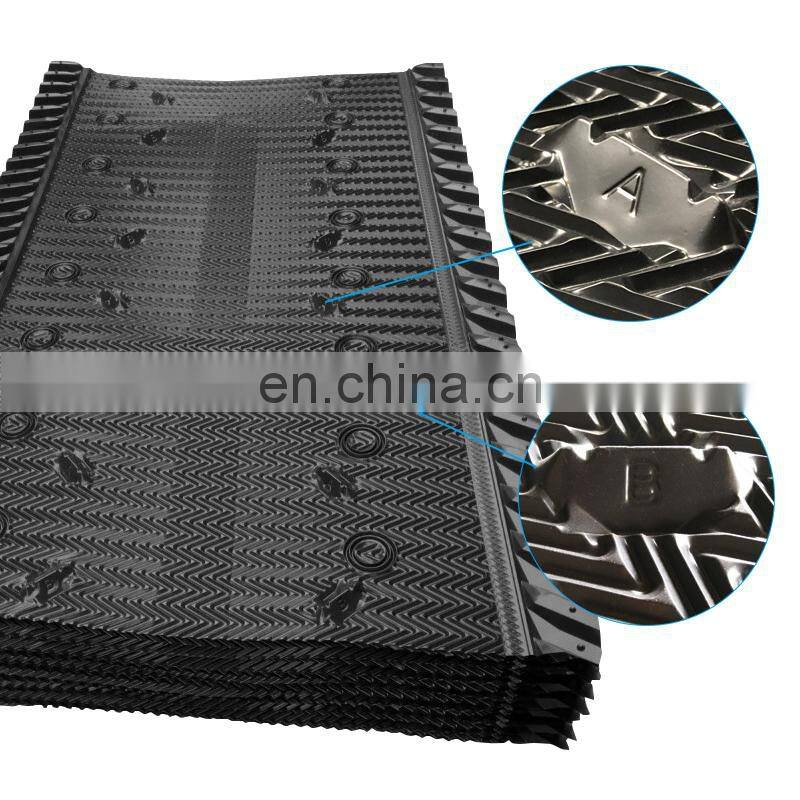

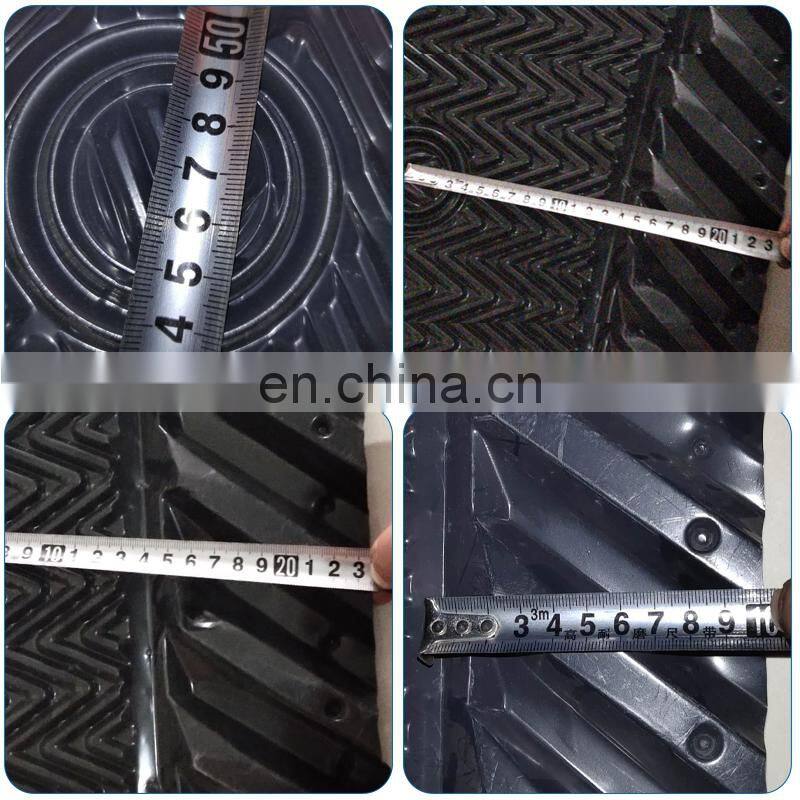

High quality Anti UV Non-defrmation MX75 cooling tower fill Marley infill details

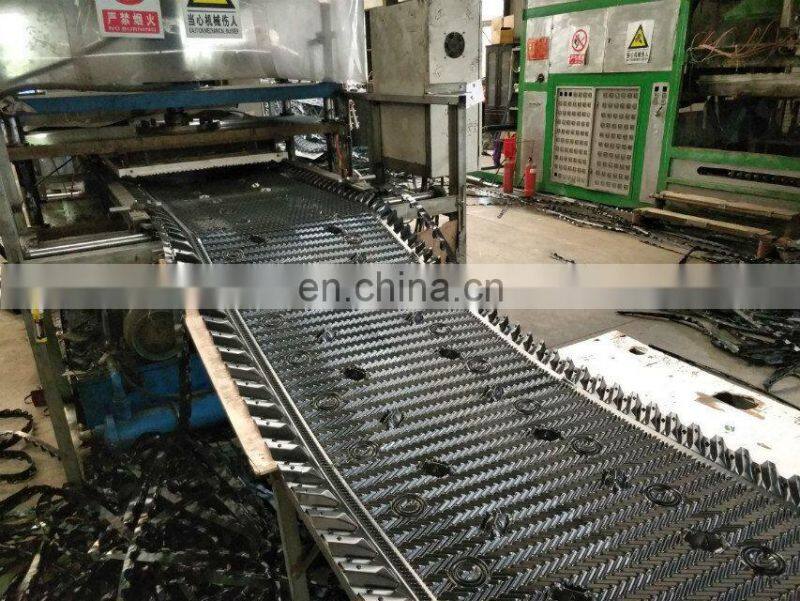

Product production process

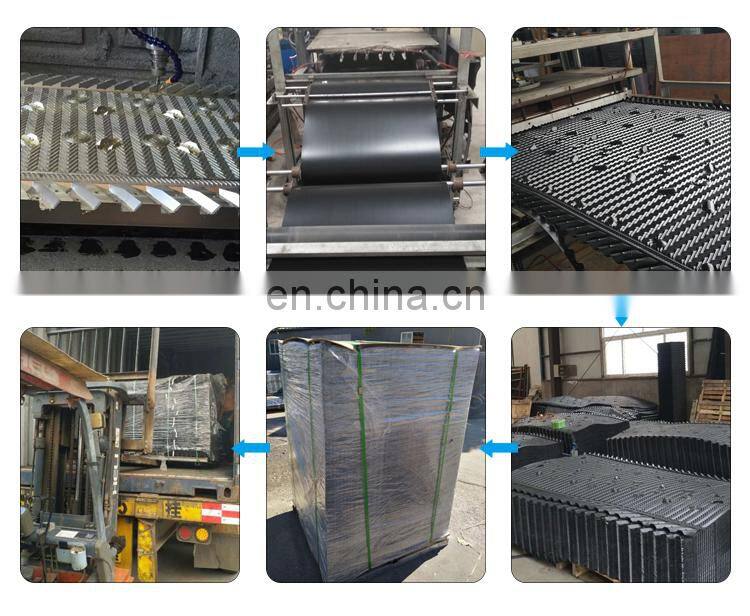

High quality Anti UV Non-defrmation MX75 cooling tower fill Marley infill process

Packing & Delivery

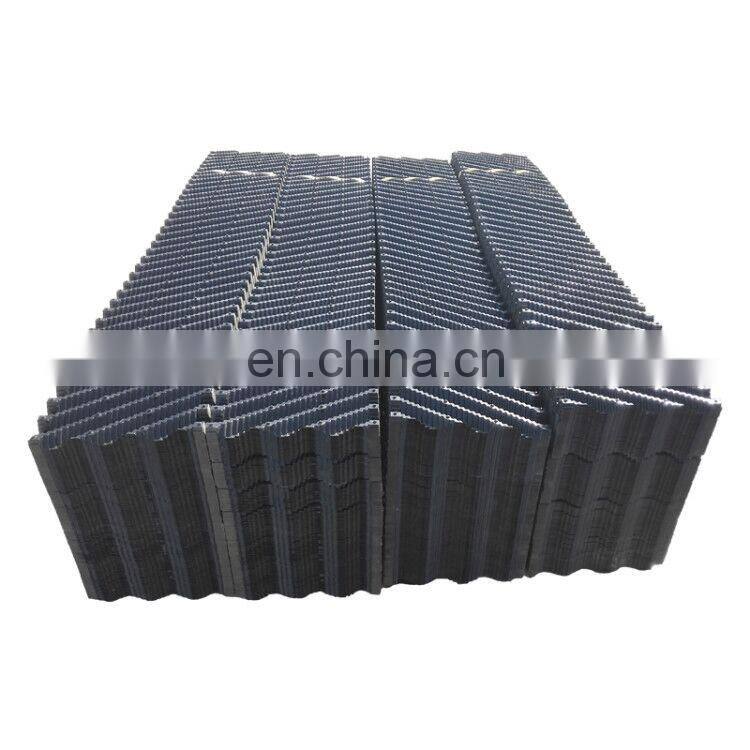

High quality Anti UV Non-defrmation MX75 cooling tower fill Marley infill packing
