Product Description
Fiber reinforced plastic grating manufactures fiberglass frp floor grating
Fiber reinforced plastic grating manufactures fiberglass frp floor grating is used in variety of applications including docks, piers, boat lifts and decks in 4’ x 12’ panel sizes
(3/4” square mesh opening on top surface). It is also used in and around pools, marinas, waterparks and other public recreationalareas. Micro-Mesh has maximum UV resistance, has a comfortable surface for bare feet and is durable, with a high strength to weight ratio. Depth options include 1/2”, 1” and 1-1/2”. Micro-Mesh panels are the right choice to minimize vibration from rolling cart or wheelchair traffic. The panels with a 1/2" open area between bearing bars are ADA compliant and meet the "15 mm ball test." Micro-Mesh FRP access flooring system is designed as a low cost alternative where subfloor access and unobstructed air flow is required. Lightweight 2'x 2' Micro-Mesh panels are easily removed, providing ready access to electrical conduits, air supply plenums, and service lines.
(3/4” square mesh opening on top surface). It is also used in and around pools, marinas, waterparks and other public recreationalareas. Micro-Mesh has maximum UV resistance, has a comfortable surface for bare feet and is durable, with a high strength to weight ratio. Depth options include 1/2”, 1” and 1-1/2”. Micro-Mesh panels are the right choice to minimize vibration from rolling cart or wheelchair traffic. The panels with a 1/2" open area between bearing bars are ADA compliant and meet the "15 mm ball test." Micro-Mesh FRP access flooring system is designed as a low cost alternative where subfloor access and unobstructed air flow is required. Lightweight 2'x 2' Micro-Mesh panels are easily removed, providing ready access to electrical conduits, air supply plenums, and service lines.
We can produce many colorsFiber reinforced plastic grating manufactures fiberglass frp floor grating, such as yellow, green, Blue, Red ,Gray, black, white and so on, we also accpet customized color according the RAL color card number.
Fiber reinforced plastic grating manufactures fiberglass frp floor grating is composed of alternating directional layers of continuous glass fiber for strength, with resin to
consolidate the fibers and provide the shape and corrosion-resistance. Molded grating has very high impact tolerance, as well as
the highest chemical resistance of any fiberglass grating. It can be made slip-resistant by adding grit to the surface.
consolidate the fibers and provide the shape and corrosion-resistance. Molded grating has very high impact tolerance, as well as
the highest chemical resistance of any fiberglass grating. It can be made slip-resistant by adding grit to the surface.
Specifications(mm) |
a*b(mm) |
weight(kg) |
38*38*25 |
1220*3660 |
54 |
38*38*30 |
1220*3660 |
70 |
38*38*38 |
1220*3660
1000*4007
|
88
81
|
50*50*50 |
1220*3660 |
98 |
19*19*38*38*30 |
1075*3626 |
72 |
38*38*65 |
1030*4040 |
141 |
40*40*40 |
1010*4040 |
81 |
19*19*38*38*38 |
1220*3660 |
92 |
25*25*50*50*50 |
1220*3660 |
62 |
Product Features
Fiber reinforced plastic grating manufactures fiberglass frp floor grating
Corrosion resistant
Has very excellent acid-proof, alkali resistance, resistance to organic solvents and salt, and many other gas and liquid medium corrosion performance, has the incomparable superiority in the field of anti-corrosion.According to the requirements of the actual use, it is economical to choose the base material for the use of phthalic, polystyrene, and vinyl resin.
Comparing with other floor materials, FRP moulded grating provides a series of benefits, unmatched impact resistance, while the strength-weight-ratio is only one-fourth of that of steel grating. It is easy to cut and install. FRP moulded grating is made of continuous fiberglass fully soaked in unsaturated polyester resin giving a uniform structure and perfect bi-directional mechanical properties.
1) Corrosion and chemical resistant
2) High strength ,light weight and good bearing capacity
3) Fire retardant
The flame propagation rate of ordinary flame-retardant grille (ASTM E-84) does not exceed 25; the flame propagation rate of advanced flame-retardant vinyl grille does not exceed 10. The oxygen index is not less than 28 (GB 8924).
4) Slip-resistant and Anti-aging the life time about more than 20 years.
7) Easy maintenance

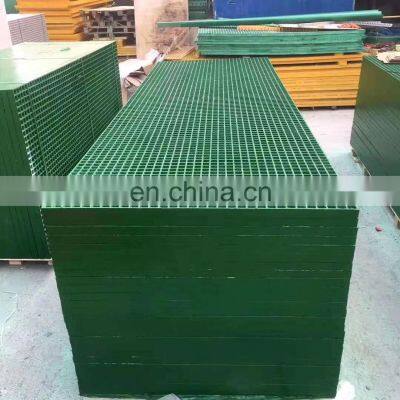

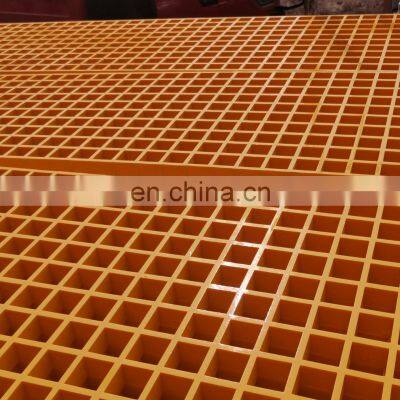

product displays
Product production process
Product application
Mini mesh Plastic flooring fiberglass reinforced FRP sheets grating is a glass fiber reinforced material, unsaturated polyester resin matrix, through a special processing composite with a lot of space, FRP grating can be used as structure Materials, corrosive environment for the floor, trench cover, platform, ship deck, stairs, plank road and so on.
Construction |
Guardrails, stairs, ladders, wall gratings, platforms, etc. |
Drainage treatment |
Drainage ditch, drain grating, platform, structure, etc. |
Civil Engineering |
Floors, sidewalks, bridges, tree protection, car washes, parking lots, Protect grating, etc. |
Chemical Industry |
Work platform etc. |
Food processing and aquaculture |
The platform, engineering guardrail, etc. |
Ocean industry |
Platforms, fencing, sidewalks, etc. |

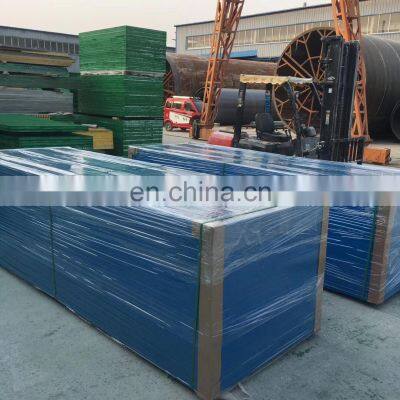

Process &Packing
Packing Details : Packing, pallet,wooden box,or as the order....
Delivery Details : 15-30 days after deposit for frp grating
