High Strength Surface Drainage FRP Pultrusion Grating Fiberglass Grating for Heavy Duty
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
high strength composite fiberglass frp decking solid pultruded frp grating for flooring panels
-
Molded FRP GRP fiberglass plastic flooring walkway grating frp walkway Anti-slip grating
-
Light weight FRP molded walkway grating for solar power rooftop floor grating walkway plastic frp grate
-
Rectangle type frp grating fiberglass slip resistant frp plastic floor grating
-
wholesale Thickness 25mm standard GRP frp walkway grating for rooftop solar project
-
High quality fiberglass floor grating plastic walkway grid grating panel
Product Description
Product Description
High Strength Surface Drainage FRP Pultrusion Grating Fiberglass Grating for Heavy Duty
During the pultrusion process, the raw material are pulled through a heated steel forming die using a continuous pulling device. when the reinforcements are saturated with the resin mixture in the resin bath and the wetted reinforcement package is wrapped in a surfacing veil. the completed package then goes into premolding stage that roughly forms the package into the appropriate shape to enter the heated trimming die for curing. the trimming die is the exact shape of the final part desired. upon exiting the trimming die, the part is over 90% processing and solid. Cutting in accordance with requirements of the length, the entire process is completed.
FRP Grating advantages
1. Corrosion resistant
2. High strength & light weight
3. Long service life
4. Fire retardant
5. Impact resistant
6. Nonconductive and thermal insulation
7. Non-magnetic electromagnetic transparency
8. Dimensional stability, Bright color
9. Low-maintenance
FRP Grating advantages
1. Corrosion resistant
2. High strength & light weight
3. Long service life
4. Fire retardant
5. Impact resistant
6. Nonconductive and thermal insulation
7. Non-magnetic electromagnetic transparency
8. Dimensional stability, Bright color
9. Low-maintenance
Parameters | ||
Name | Fiberglass grating manufacturer FRP/GRP composite pultruded and molded gratings | |
Material | E-fiberglass+resin(ORTHO, ISO, VE) | |
Color | Yellow, red, green, grey,blue and so on, accept cusmized. | |
Surface | smooth surface, griited surface, gritted top cover, anti-slip concave surface | |
Advantage | ||
High Strength | The fiberglass pultruded grating has high loading capacity to withstand the heavy duty applications, | |
Light weight | It is much lighter structure than the steel grating and frp molded grating | |
Corrosion resistance | the fiberglass pultruded grating has excellent chemical and physical corrosion resistance , it will be never corrode during its long service life | |
Flame retardant | Same t he frp mold grating, the pultruded grating have a flme spread rating of 25 or less, and meets the self-extinguishing requirements of ASTMD-635 | |
Mantenance free | The fiberglass pultruded grating has excellent self-cleaning performance. it needs little maintenance during using period. | |
Anti-slip performance | Grit,convex,corrugsted surface supply excellent slip resistance | |
Type | Height(mm) | Top edge width (mm) | Space between (mm) | Clearance width(mm) | Open area(%) | Estimated weight kg/m2 |
I-4010 | 25 | 15 | 25 | 10 | 40 | 17.8 |
I-5010 | 25 | 15 | 30 | 15 | 50 | 15.1 |
I-6010A | 25 | 15 | 38 | 23 | 60 | 12.2 |
I-6010B | 25 | 8 | 19.8 | 11.8 | 60 | 13.7 |
I-4015 | 38 | 15 | 25 | 10 | 40 | 22 |
I-5015 | 38 | 15 | 30 | 15 | 50 | 19.1 |
I-6015 | 38 | 15 | 38 | 23 | 60 | 16.2 |
I-4012 | 30 | 15 | 25 | 10 | 40 | 19.1 |
I-5012 | 30 | 15 | 30 | 15 | 50 | 16.1 |
I-6012 | 30 | 15 | 38 | 23 | 60 | 13.1 |
I-40125 | 32 | 15 | 25 | 10 | 40 | 28.5 |
I-50125 | 32 | 15 | 30 | 15 | 50 | 24.2 |
I-60125 | 32 | 15 | 38 | 23 | 60 | 20.1 |
I-4020 | 50 | 15 | 25 | 10 | 40 | 28.5 |
I-5020 | 50 | 15 | 30 | 15 | 50 | 24.2 |
I-6020 | 50 | 15 | 38 | 23 | 60 | 20.1 |

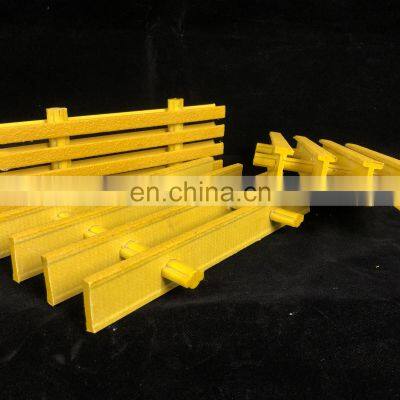

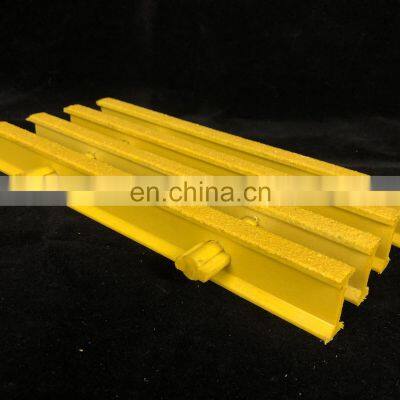

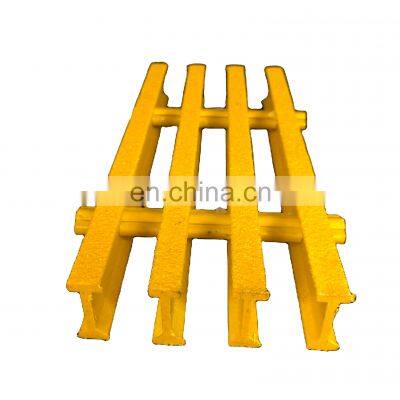

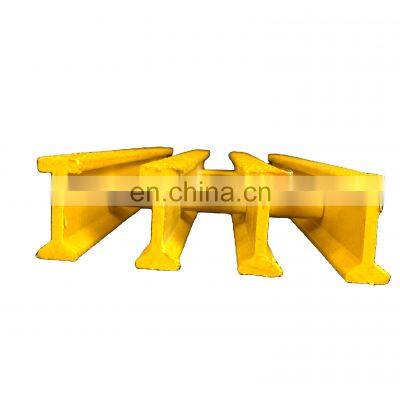

Details Images
High Strength Surface Drainage FRP Pultrusion Grating Fiberglass Grating for Heavy Duty
HIgh Quality Resin frp pultrusion profiles materials grating Fire Resistant frp grilling Pultrusion walkway grating FEATURES:
Corrosion Resistance
Whether the grating is exposed to continuous submersion,splash,spills,fumes or gases, the high resion content of FRP Resists corrosion to a wide range of chemicals.
Fire Resistance
Flame spread rating of class1,25 or less, in accordance with the American society for teshing and materials ASTM E-84 tunnel test method.
Light Weight
FRP Grating panels are ligh in weight, they can easily handled without means of mechanical hoists or lifts.
Corrosion Resistance
Whether the grating is exposed to continuous submersion,splash,spills,fumes or gases, the high resion content of FRP Resists corrosion to a wide range of chemicals.
Fire Resistance
Flame spread rating of class1,25 or less, in accordance with the American society for teshing and materials ASTM E-84 tunnel test method.
Light Weight
FRP Grating panels are ligh in weight, they can easily handled without means of mechanical hoists or lifts.
Cost performanc
FRP Grating has a long service life with low installation costs.
High strength
FRP Grating offers load bearing capacity in both directions.
Non-Sparking
Ideally suited for installations where combustible gases may be present, FRP Grating will not cause sparking when impacked be metallic objects.
FRP Grating has a long service life with low installation costs.
High strength
FRP Grating offers load bearing capacity in both directions.
Non-Sparking
Ideally suited for installations where combustible gases may be present, FRP Grating will not cause sparking when impacked be metallic objects.
After-sales service
1.Provide install video if necessary and other install documents
2.Quality guarantee is 1 year.
3.If it was proved due to the quality problem,we will bear all cost for replace during quality guarantee time.
2.Quality guarantee is 1 year.
3.If it was proved due to the quality problem,we will bear all cost for replace during quality guarantee time.
Packing&Shipping
