Solar Walkway FRP Moded Grating Fiberglass Rooftop Walkway for Solar Panel
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2000
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PP Plastic Grid 4s Shop Car Wash Station Non-slip Grille Floor Mat Water -proof Floor GrillNegotiableMOQ: 1 -
Factory Direct UV Resistant Fiberglass FRP Grating Walkway for Solar Roof Floor Grating Walkway Plastic Frp GrateNegotiableMOQ: 1
-
HIgh Quality Resin Frp Pultrusion Profiles Materials Grating Fire Resistant Frp Grilling Pultrusion Walkway GratingNegotiableMOQ: 1
-
Cheap Price Non Slip Fiberglass Frp Grating Fiber Glass Sheet Frp GrillNegotiableMOQ: 1
-
Fiberglass Reinforced Plastic Composite Anti Slip FRP/GRP Molded GratingNegotiableMOQ: 1
Product Description
Solar Walkway FRP Moded Grating Fiberglass Rooftop Walkway for Solar Panel

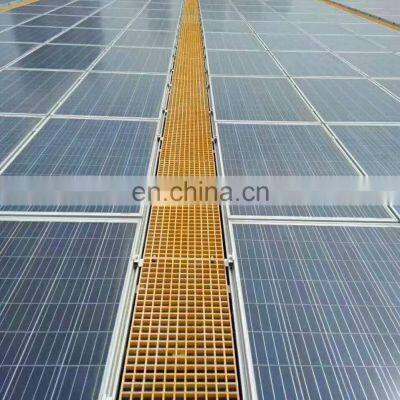

FRP solar walkways grating are acid-base corrosion resistant, insulating and easy to install. it is specially designed to ensure the safety of the solar rooftop, walkway area. It not only effectively extends the service life of commercial and industrial rooftop. but also provides a safe pathway for the equipment installed on the roof.
FRP walkway grating system include gratings and connection fittings, they are used in power plants, chemical plants, water treatment and oil platforms and other corrosion environment.

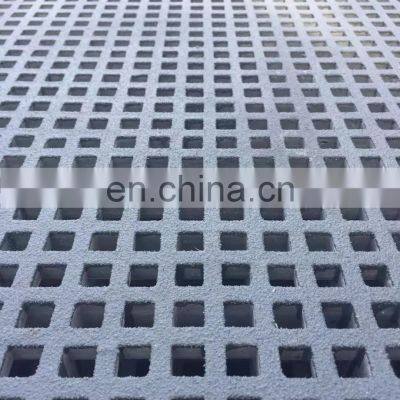

FRP Walkway grating Surface
Concave surface
Anti slip gritted surface
Flat surface
Material: FRP,Tough unsaturated polyeter resin 196
Our size as below
The size we accept customized, about the panel size we can cut it as your required. or can be cut by yourself.
Mesh size *thickness (mm) |
panel size a*b(mm) |
weight(kg)/m2 |
38*38*25 |
1220*3660 |
54 |
38*38*30 |
1220*3660 |
70 |
38*38*38 |
1220*3660
1000*4007
|
88
81
|
40*40*40 |
1010*4040 |
81 |
Grating Clips Application
C' Clips: are used to join two grating panels together. One clip should be affixed every 500mm - place the clip over the two load bars of both panels, and then manoeuvre down so the clip is horizontal and slotted into place. Then push the screw through the clip holes and screw into the washer and bolt.
M' Clips & L' Clips: are used for drilling down your grating into place. M' Clips are used for when your grating has closed mesh edges, L' Clips are used for when your grating has open mesh edges. Set out where you will be positioning your grating clips.
These should be in every corner of the grating panel, and then every 500mm inwards around the rest of the grating. Push the clips into the open mesh squares so that the clip sits neatly on the load bar, and the base of the clip is sitting close to the bottom of the grating panel.
Fixing down directly onto a substrate - if you are fixing directly into the existing surface, pilot drill through the hole in the
clip and into the substrate then fix using the appropriate screw and plug.
Fixing down onto a support frame- if you are fixing into a support frame you will need to drill through the frame and then putthrough bolt fitting and tighten the washer and nut underneath the frame.
C' Clips: are used to join two grating panels together. One clip should be affixed every 500mm - place the clip over the two load bars of both panels, and then manoeuvre down so the clip is horizontal and slotted into place. Then push the screw through the clip holes and screw into the washer and bolt.
M' Clips & L' Clips: are used for drilling down your grating into place. M' Clips are used for when your grating has closed mesh edges, L' Clips are used for when your grating has open mesh edges. Set out where you will be positioning your grating clips.
These should be in every corner of the grating panel, and then every 500mm inwards around the rest of the grating. Push the clips into the open mesh squares so that the clip sits neatly on the load bar, and the base of the clip is sitting close to the bottom of the grating panel.
Fixing down directly onto a substrate - if you are fixing directly into the existing surface, pilot drill through the hole in the
clip and into the substrate then fix using the appropriate screw and plug.
Fixing down onto a support frame- if you are fixing into a support frame you will need to drill through the frame and then putthrough bolt fitting and tighten the washer and nut underneath the frame.

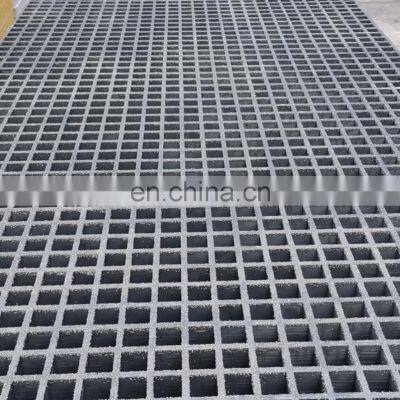

product displays
Product Features
Fire retardant fiberglass GRP walkway molded grating Fiberglass floor grate Feature
High strength security Anti- Aging
It contains strong stress resistance , Lightweight ,high strength.
Excellent electrical insulation
UV protection agent and polyester surface veil mat are added in the formula
Good mechanical property inflaming Retarding
Resin content is 35%; fiberglass content is 65% ;which increase the rate between strength and weight.
The fire retardant effect is of 1 to 25. or oxygen index is above 26. Oxygen index can reach above 26.(per the requirement of project)
FRP MOLDED GRATING COLOR
we can produce many colors, such as
red, Green, Yellow,Blue, Gray,White,Black, and so on
We also accept customized color, if you want other colors, please tell me the RAL color card number, we will produce the color as the color card
Production process
Fire retardant fiberglass GRP walkway molded grating Fiberglass floor grate grating process
Product application
Grp floor grating walkway plastic frp grate sheets is high-strength, safe (non-slip), low-maintenance and very versatile in use. This type of FRP (GRP) grating is often used for landings, floors, walkways, stair cases and platforms. FRP grating is highly corrosion-resistant and therefore extremely suitable for use in the most chemically hazardous environments. For example:
* sewage treatment plants
* the petrochemical industry
* civil engineering / rail infrastructure
* power stations
* the chemical industry
* process-water and drinking-water companies
* the food, drink and tobacco industry
* waste processing companies
* incineration plants
* shipping and offshore industry
* agricultural sector
* marinas
* the petrochemical industry
* civil engineering / rail infrastructure
* power stations
* the chemical industry
* process-water and drinking-water companies
* the food, drink and tobacco industry
* waste processing companies
* incineration plants
* shipping and offshore industry
* agricultural sector
* marinas

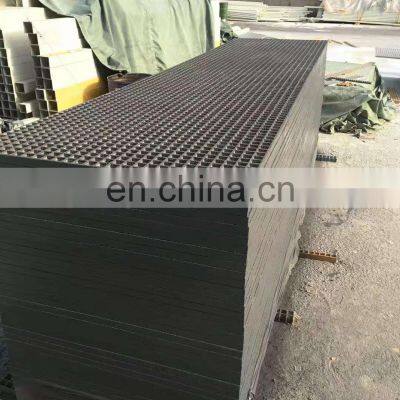

Process &Packing
FRP grating packing by film and pallet
