Help CenterCarbon Steel Pipe Fitting Threaded Union A105 MSS SP83
Related Products
-
Class 6000 Socket Welding Forged Half Stainless Steel Coupling A182 F304L 316LNegotiableMOQ: 5 Pieces -
Class 3000 Forged Steel Pipe Fitting 90 Degree Elbow A182 F316L ASME B16.11NegotiableMOQ: 5 Pieces
-
Socket Weld 45 Degree Elbow Forged Pipeline Fitting Stainless Steel A182 F304 F316NegotiableMOQ: 5 Pieces
-
ASTM A105N Carbon Steel Butt Wled Branch Outlet Fittings Reinforced Forged MSS SP97NegotiableMOQ: 5 Pieces
-
Stainless Steel SS301/SS304 Rotary Joint Siphon Elbow For Paper Mill DryerNegotiableMOQ: 5 Pieces
| Product Name: | UNION | Standard: | MSS SP83 |
|---|---|---|---|
| Pressure Rating: | 3000LB | Material: | A105 |
| Connection Type: | Threaded | Size: | 1/8"-4"3 |
| Surface Treatment: | H.D.G Or Black | Package: | Carton |
| High Light: | Carbon Steel Threaded Union, Carbon Steel Pipe Union A105, Carbon Steel Pipe Fittings Union | ||

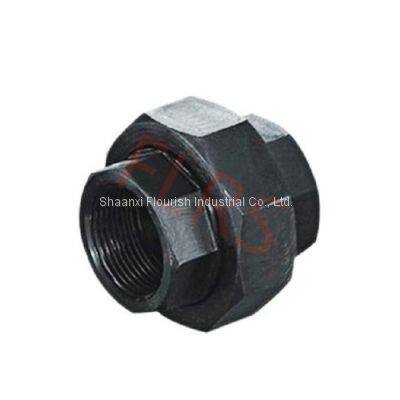

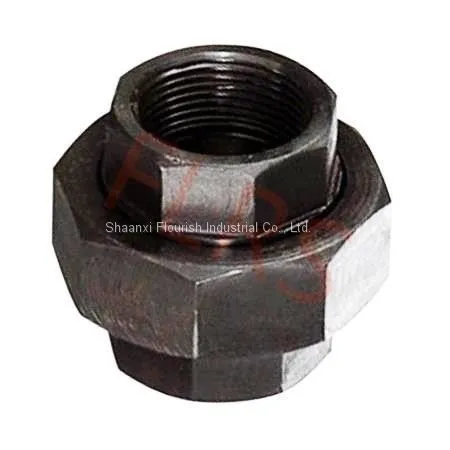

Threaded Carbon Steel Pipe Union A105 as Per MSS SP83
| PIPE FITTINGS | |
Product Name |
Union |
| Size Range | 1/8"-3" |
| Technology | Forged, CNC Machined |
| Connection Type | Socket-Weld, Threaded |
| Standard | MSS SP83 |
| Certificate | EN10204-3.1 |
| Pressure Range | 2000LB-9000LB |
A pipe union is a kind of fitting where two pipes are united so that they can be detached. The goal is to not cause deformation in the pipes when connecting or disconnecting. The pipe union causes a positive seal, which keeps the pipes together and prevents leaking. These are commonly used to connect pipes that may have different calibers. Pipe Union is a type of fitting equipment designed in such a way to unite two pipes which can be detached without causing any deformation to the pipes.The pipe unions make the connection of the pipeline simpler and easier to disassemble and replace,which greatly saves the cost of the pipeline connection. MSS SP-83 Threaded Union are common used in small diameter pipes and pressure is tacitly 3000lb for general purpose industry applications. However, Class 6000 Union is common for high pressure applications. It can be provided in all standard metals or combination of metals.
| Dimensions | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Size | 1/8″~4″ (DN6~DN100) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT |
| Form | 90 Deg Threaded Elbow, Threaded Elbow, Threaded Pipe elbow |
| Value Added Services: | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Production Grades: | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
