Home > Products > pipe fittings > MF General Pipe Repair Clamp / SS304 EPDM Long Type Pipe Leak Repair Clamp

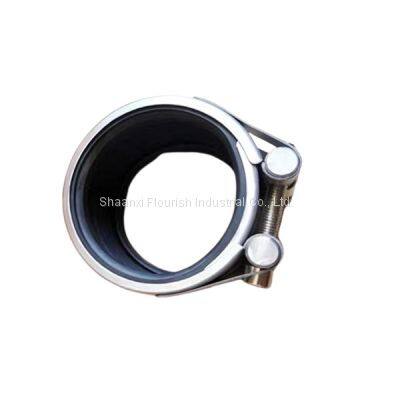

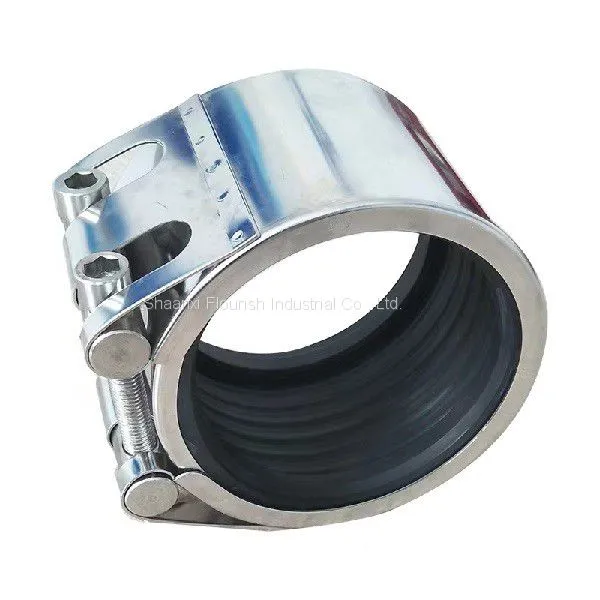

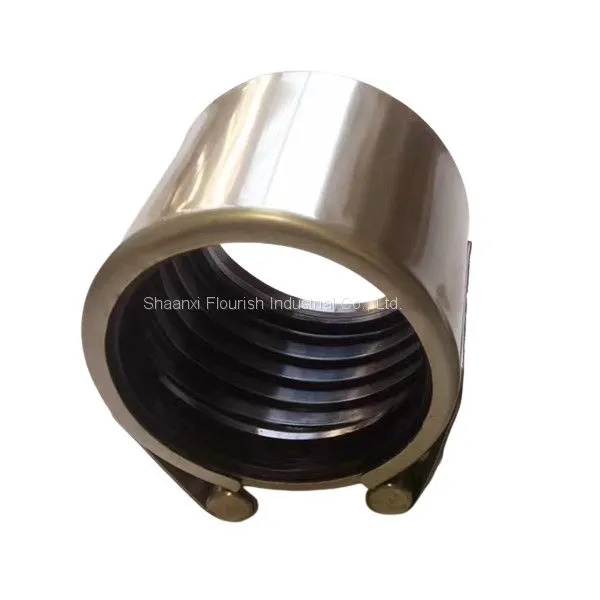

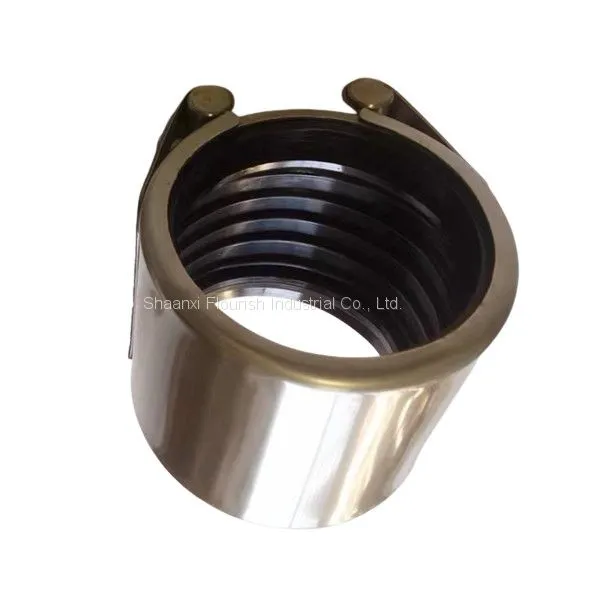

MF General Pipe Repair Clamp / SS304 EPDM Long Type Pipe Leak Repair Clamp
- 100 Ton / Tons per Month
- Xingang or Shanghai port
- T/T L/C PayPal
-
Flex Type DN15 Pipe Leak Repair Clamp SS304 Grip Pipe Coupling
-
ASME B16.11 Forged Socket Welding Fittings Class 3000 90 Degree Elbow A182 F316L
-
ASME B16.11 Threaded Steel Pipe Fittings Forged 90 Degree Elbow Class 3000
-
Carbon Steel A105 Forged Steel Thread Npt Hex Bushing
-
MNPT BSPT Material Threaded Hexagon Head Plug A182 F316 ASME B16.11
-
Brass LPG Self Closing Valve for Refilling LPG Gas Cylinder
Product Details
Brand Name: | FLRS | Place of Origin: | China | Model Number: | FLRS-T020 |
Material: | Stainless Steel | Type: | Other, Clamp | Shape: | Equal |
Technics: | Casting | Connection: | Female | Head Code: | Other, Round |
Product Description
Name: | Repair Clamp | Material: | SS 304 |
Pressure: | 0.8-2.5 Mpa | Liner: | EPDM /NBR |
Type: | MF-L | Size: | DN32-DN500 |
High Light: | MF general Pipe Repair Clamp | ||
SS304 Long Pipe Leak Repair Clamp | |||
EPDM Pipe Repair Clamp |
MF General Pipe Repair Clamp / SS304+EPDM Long Type Pipe Leak Repair Clamp
The pipeline repair clamp is mainly used for the rapid repair of pipeline leakage. It can quickly repair the aging and corroded pipeline trachoma and fracture without stopping the pressure and replacing the pipeline. It is easy to install and has high construction efficiency.
Size | OD (mm) | Pipe OD (mm) | Length-L (mm) | W/Pressure |
DN32 | 42 | 41-44 | 100 | 2.5Mpa |
DN40 | 48.6 | 47-49 | 100 | 2.5Mpa |
DN50 | 60 | 59-62 | 139 | 2.5Mpa |
DN65 | 76 | 74-79 | 139 | 2.5Mpa |
DN80 | 89 | 87-92 | 203 | 1.6Mpa |
DN100 | 114 | 106-110 | 203 | 1.6Mpa |
DN125 | 140 | 137-143 | 203 | 1.6Mpa |
DN150 | 168 | 166-170 | 203 | 1.6Mpa |
DN200 | 219 | 217-221 | 255 | 1.2Mpa |
DN250 | 273 | 271-275 | 255 | 1.2Mpa |
DN300 | 325 | 323-327 | 255 | 1Mpa |
DN350 | 377 | 375-381 | 255 | 1Mpa |
DN400 | 426 | 424-428 | 255 | 0.8Mpa |
DN450 | 480 | 476-484 | 255 | 0.8Mpa |
DN500 | 530 | 526-534 | 255 | 0.8Mpa |
The pipe clamp has a strong general newness, it can be applied to all kinds of metal pipes It can be used for quick connection of various metal pipes or metal pipes with no special requirements on wall thickness and end face. The product can replace flanges or welding and other cumbersome connection methods, and can solve different pipe diameter, axial displacement, angular deviation and interconnection of different pipes without the need for special tools. No special tools are required for the construction and operation.
