Category 6A Ethernet Cable





           U/FTP Cat 6A Copper Cables for Indoor Applications

                         U/FTP CAT6A 4*2*23AWG PVC



Product Application

Suitable for structured premises cabling . For transmission of digital and analogue voice and data signals. Especially suitable for all Class EA applications.



ISDN,Ethernet 10 Base-T,Fast Ethernet 100 Base-T,Gigabit Ethernet 1000Base-T ,10G Base-T.(IEEE 802.3)



Token Ring4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s,ATM 155Mbit/s.(IEEE 802.5 )





Standards

IEC/ISO 61156-5



ANSI/TIA568C.2



ISO/IEC 11801

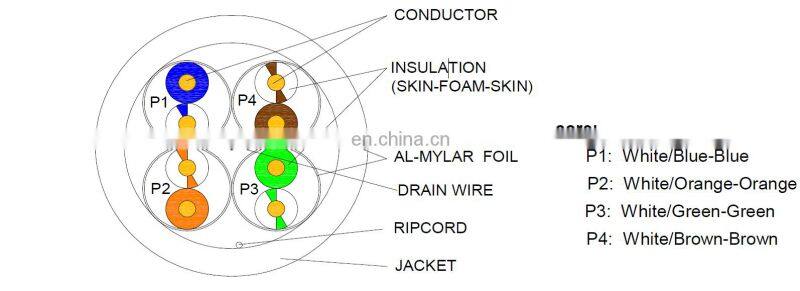

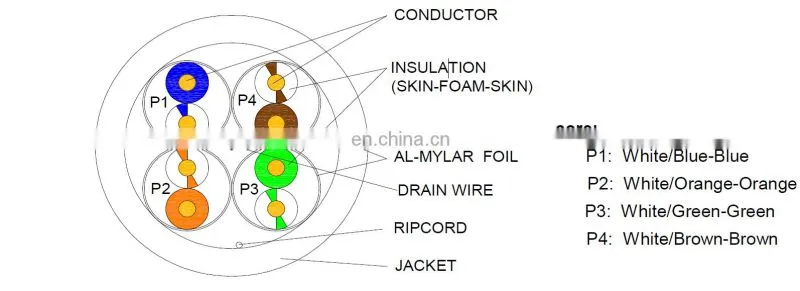

Cable Construction



Inner conductors	0.56±0.1mm BC
Insulation	1.56±0.05mm PE (Skin-Foam-Skin) (thickness 0.4±0.05mm)
Assembly	4 Pairs ( " S " direction )
Shielding	Al foil screened ( each pair screened )
Drain Wire	0.4mm TC
Jacket	7.4±0.3mm PVC , average thickness 0.6mm, flame rate Eca

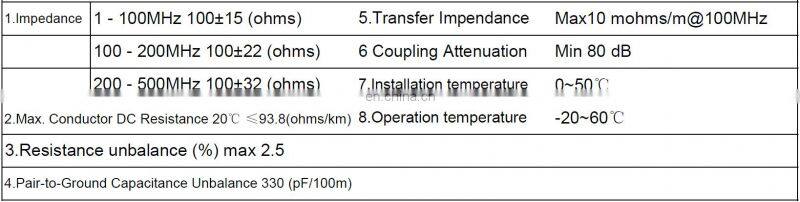

 Electrical characteristics

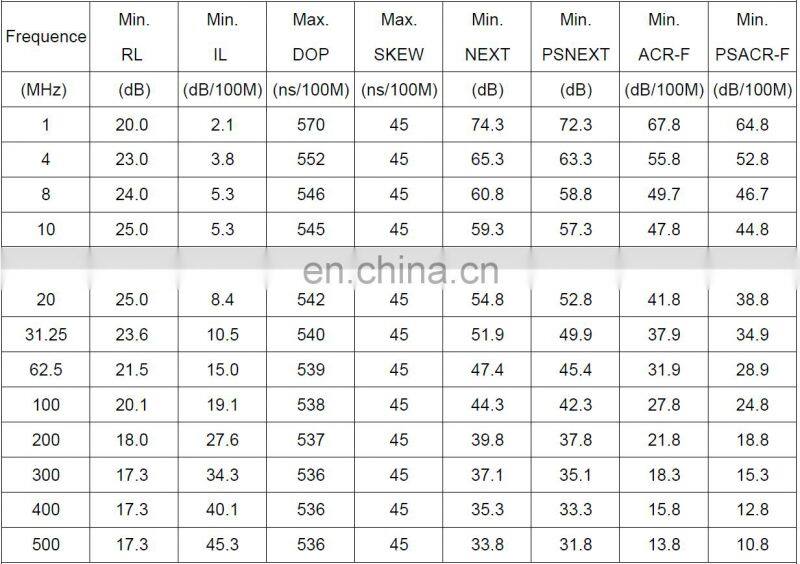

Nominal Transmission Characteristics
