UTP CAT5E UTP CAT6 U/FTP CAT6A F/FTP CAT7 LAN Cables
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2006
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Produce UTP Cat5 Cat5e Cat6 Cat7 Cat8 Rj45 Network Patch Cord Lan Ethernet Extension Jumper CableNegotiableMOQ: 1 -
14 / 16 / 18 AWG 2C 4C 99.9% Oxygen Free Copper CL3 CL3R PVC LSZH In Wall Grade Audio Speaker Cable WireNegotiableMOQ: 1
-
Audio Speaker Cable 2 Cores 4 Cores OFC Oxygen Free Hifi Rohs High End Indoor 10 / 12 / 14 / 16 / 18 AWGNegotiableMOQ: 1
-
Ethernet Cable UTP CAT6NegotiableMOQ: 1
-
Category 5E Ethernet CableNegotiableMOQ: 1

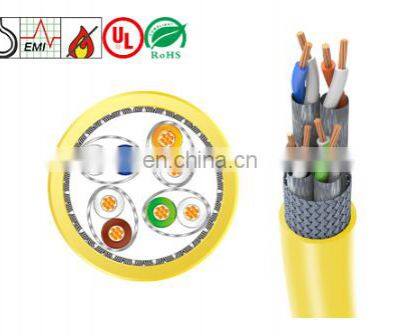

S/FTP Cat 7 Copper Cables for Indoor Applications
S/FTP CAT7 4*2*23AWG PVC
Product Application
Suitable for structured premises cabling . For transmission of digital and analogue voice and data signals. Especially suitable for all Class F applications.ISDN,Ethernet 10 Base-T,Fast Ethernet 100 Base-T,Gigabit Ethernet 1000Base-T ,10G Base-T.(IEEE 802.3)
Token Ring4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s,ATM 155Mbit/s.(IEEE 802.5 )
Standards
IEC/ISO 61156-5
ISO/IEC 11801

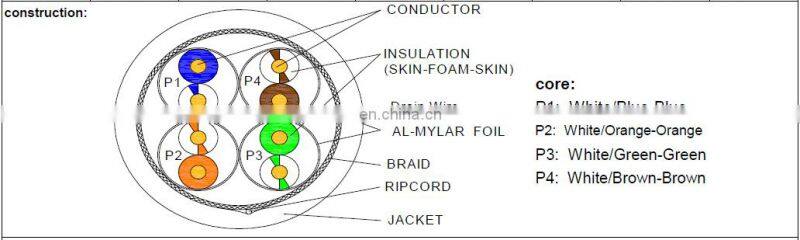

Cable Construction
| Inner conductors | 0.56±0.1mm BC |
| Insulation | 1.36±0.05mm PE(Skin-Foam-Skin) |
| Assembly | 4 Pairs ( S direction ) |
| Shielding | Al-Foil Screneed ( each pair foiled ) |
| Drain Wire | 0.4mm Tinned Copper drain wire |
| Braiding | ALM braid ( coverage ≥40% ) |
| Jacket | 7.6+/-0.3mm PVC , average thickness 0.55mm, flame rate Eca or CM rate PVC |

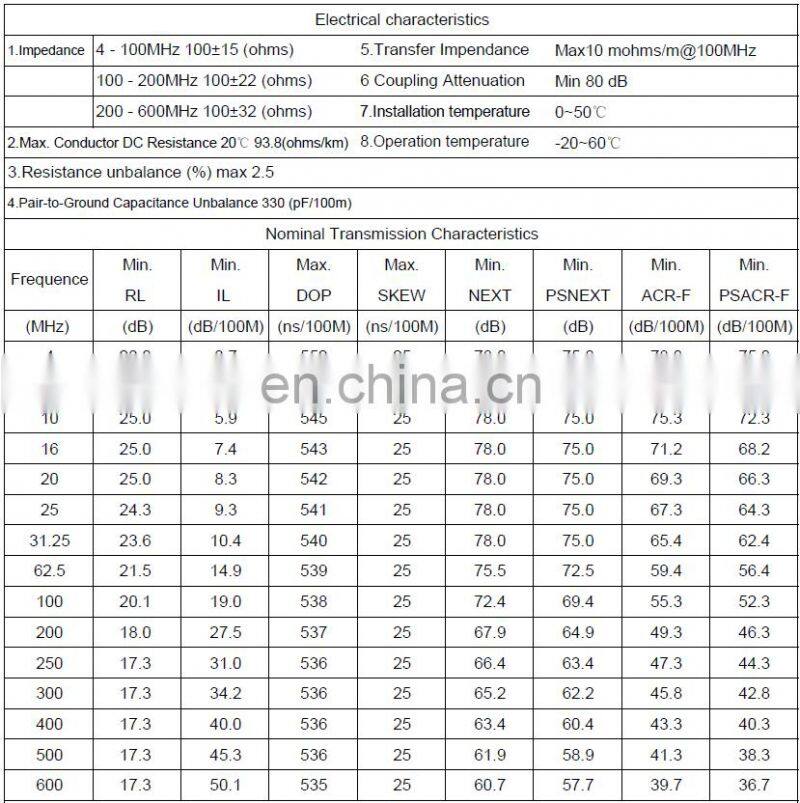

Nominal Transmission Characteristics
* Are you a manufacture or a trading company?
Sanyuan cable Company is a professional cable manufacturer with 23 years production experience.
* Whether these products quality assures?
Most of cables are certificated. Also, we have strict QC,all products are 100% tested before delivery.Quality is assured.
* When I want customized products,how to do?
We have Equipped with professional equipment,technicians & skilled employees, OEM & Customized service is welcome.Drawing/Samples are required.
* Can you send a sample for us to test?
1, If we have inventory and total amount is small,it's free.
2, If we don't have inventory,sample and freight cost have to be paid by your esteemed company.But we will return the sample cost to you when we receiving your initial order.
* If I want to purchase,how to pay?
Generally we do T/T in 30% deposit before production,70% balance against copy of B/L.Also payment terms are negotiable depending on customer's request.
* After I pay,what about the lead time and shipping method?
Goods can be delivered by air,by express or by sea;International Express as FedEx,UPS,DHL,TNT;You can choose the best the best way as you wish.As for the Lead time,10~20 days.
