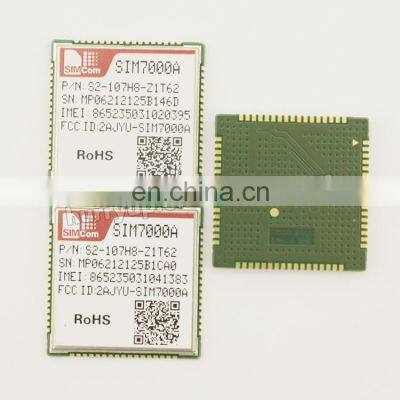

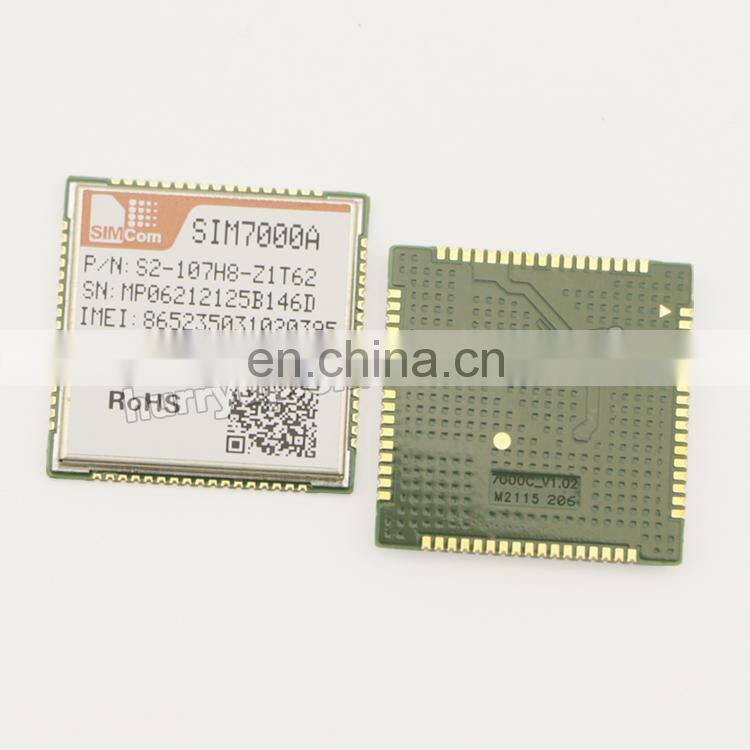

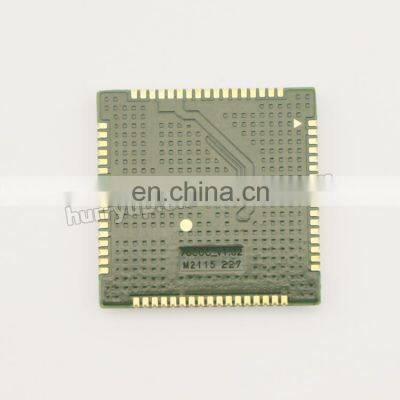

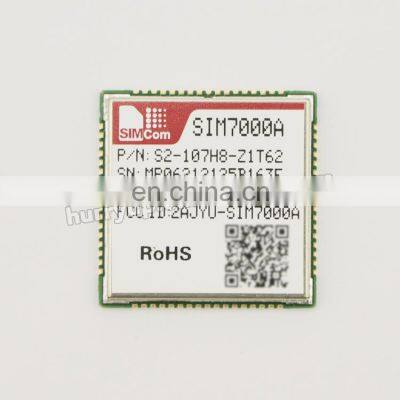

SIMCom SIM7000A LPWA Module, Cat-M/NB-IoT Module SIM7000

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Description

SIM7000X Cat-M/NB-IoT/GSM

The SIM7000 series has powerful expansibility with abundant interfaces including UART, GPIO, PCM, I2C etc. The SIM7000 series is designed for applications that need low latency, low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring, E-health etc.

Product Advantages ● With Power Saving Mode(PSM) and Extended Discontinuous Reception(eDRX), the SIM7000 series can extend battery life to 10 years; ● SIM7000 series provides deeper coverage enhancement compared to GSM; ● The form factor and AT commands of the SIM7000 series are compatible with SIM900 and SIM800F

Product			SIM7000G	SIM7000E	SIM7000A	SIM7000JC	SIM7000C
Form factor			LCC, 68PIN	LCC, 68PIN	LCC, 68PIN	LCC, 68PIN	LCC, 68PIN
Dimensions(mm)			24242.6	24242.6	24242.6	24242.6	24242.6
Frequency Bands	Cat-M	B1/B2/B3/B4/B5/B8/B12/B13/B17/ B18/B19/B20/B25/B26/B28/B39	B3/B5/B8/B20/B28	B2/B4/B12/B13	B1/B3/B5/B8/B18/B19/B26	B1/B3/B5/B8
		Cat-NB	B1/B2/B3/B4/B5/B8/B12/B13/B17/ B18/B19/B20/B25/B26/B28	B3/B5/B8/B20/B28	B2/B4/B12/B13	B1/B3/B5/B8/B18/B19/B26	B1/B3/B5/B8
		GSM	850/900/1800/1900MHz	900/1800MHz			900/1800MHz
Temperature GNSS			-40℃ ~ +85℃ optional	-40℃ ~ +85℃ optional	-40℃ ~ +85℃ optional	-40℃ ~ +85℃ optional	-40℃ ~ +85℃ optional
Electrical Features
Supply Voltage Range(V)			3.0~ 4.3	3.0~ 4.3	3.0~ 4.3	RoHSREACHJATETelec DocomoKDDI	3.0~ 4.3
Power Consumption	Power Off(uA)	7	7	7	7	7
		PSM(uA)	9	9	9	9	9
		Sleep(mA)	1	1	1	1	1
		Idle(mA)	11	11	11	11	11
Data Transfer
Cat-M(Kbps)			300(DL)/375(UL)	300(DL)/375(UL)	300(DL)/375(UL)	300(DL)/375(UL)	300(DL)/375(UL)
Cat-NB(Kbps)			34(DL)/66(UL)	34(DL)/66(UL)	34(DL)/66(UL)	34(DL)/66(UL)	34(DL)/66(UL)
EGPRS(Kbps)			85.6(DL)/85.6(UL)	85.6(DL)/85.6(UL)			85.6(DL)/85.6(UL)
Software Features
Protocol			TCP/UDP/LWM2M/COAP/MQTT/ FTP/HTTP/TLS/DTLS/NTP	TCP/UDP/LWM2M/COAP/MQTT/ FTP/HTTP/TLS/DTLS/NTP	TCP/UDP/LWM2M/COAP/MQTT/ FTP/HTTP/TLS/DTLS/NTP	TCP/UDP/LWM2M/ COAP/MQTT/FTP/ HTTP/TLS/DTLS/NTP	TCP/UDP/LWM2M/ COAP/MQTT/FTP/ HTTP/TLS/ DTLS/NTP
FOTA			●	●	●	●	●
Embedded AT			●	●	●	●	●
Firmware Upgrade			USB/FOTA	USB/FOTA	USB/FOTA	USB/FOTA	USB/FOTA
Interfaces
SIM Card			1.8V/3.0V	1.8V/3.0V	1.8V/3.0V	1.8V/3.0V	1.8V/3.0V
UART			●	●	●	●	●
USB			●	●	●	●	●
PCM			●	●	●	●	●
ADC			●	●	●	●	●
I2C			●	●	●	●	●
Certification
Regulatory			RoHSREACHCCCCE(RED)GCFDeutsche TelekomFCCICOCD(Anatel)	RoHSREACHIMDARCMTelstraSparkCE(RED)GCFDeutsche TelekomVodafoneRCM	RoHSREACHGCFFCCPTCRBAT&TVerizonIC	RoHSREACHJATETelec DocomoKDDI	RoHSREACHCCCCTASRRCMobileUnicomTelecom
Carrier			Deutsche Telekom /ORANGE*/ PTCRB	TELSTRA/VDF/ORANGE/TIM*/ GCF/Deutsche Telekom	AT&T/VERIZON/ROGERS*/PTCRB/GCF	KDDI/DoCoMo*	CMCC/CUCC/CT
