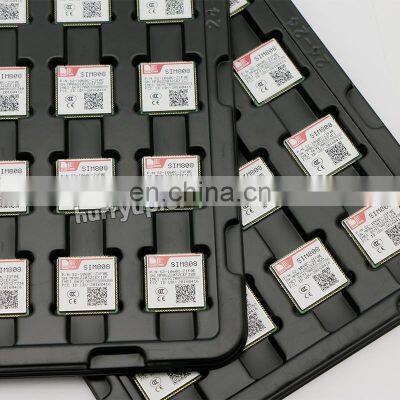

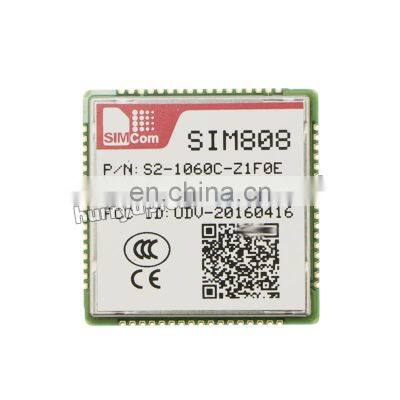

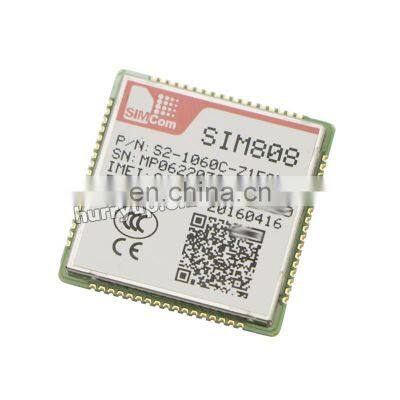

SIMCom SIM808 GPRS GSM GPS Module
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
300Mbps/50Mbps 4G LTE Cat6 Module LTE-A EM060K-GL EM060KNegotiableMOQ: 1 -
LTE-A EM060K-GL LTE Cat 6 Module M.2 Package Key-B EM060KNegotiableMOQ: 1
-
600Mbps/150Mbps LTE-A LTE Cat12 Module M2 Key-B Form Factor EM121R-GL EM121RNegotiableMOQ: 1
-
LTE-A EM121R-GL LTE Cat12 Module 600Mbps/150Mbps EM121R LTE GNSS Module EM121RNegotiableMOQ: 1
-
150Mbps/50Mbps EM05 LTE Cat4 Module M.2 (NGFF) Form Factor EM05-CE EM05-CML EM05-ENegotiableMOQ: 1
Description
SIM808 GSM/GPRS+GPS Module
● SIM808 module is a complete Quad-Band GSM/GPRS module which combines GPS technology for satellite navigation. The compact design which integrated GPRS and GPS in a LCC package will significantly save both time and costs for customers to develop GPS enabled applications.
● Featuring an industry-standard interface and GPS function, it allows variable assets to be tracked seamlessly at any location and anytime with signal coverage.
General features |
Software features |
•Quad-band 850/900/1800/1900MHz •GPRS multi-slot class 12/10 •GPRS mobile station class B •Compliant to GSM phase 2/2+ – Class 4 (2 W @ 850/900MHz) – Class 1 (1 W @ 1800/1900MHz) •Dimensions: 24*24*2.6mm •Weight: 3.3g •Control via AT commands (3GPP TS 27.007,27.005 and SIMCOM enhanced AT Commands) •Supply voltage range 3.4 ~ 4.4V •Low power consumption •Operation temperature:-40℃ ~85℃ |
•0710 MUX protocol •Embedded TCP/UDP protocol •FTP/HTTP •MMS •POP3/SMTP •DTMF •Jamming Detection •Audio Record •SSL •Bluetooth 3.0 (optional) •TTS CN(optional) •Embedded AT (optional) |
Specifications for GPRS Data |
Specification for GPS |
•GPRS class 12: max. 85.6 kbps (downlink/uplink) •PBCCH support •Coding schemes CS 1, 2, 3, 4 •PPP-stack •USSD |
•Receiver type -22 tracking /66 acquisition -channel -GPS L1 C/A code •Sensitivity -Tracking: -165 dBm -Cold starts : -148 dBm •Time-To-First-Fix -Cold starts: 32s (typ.) -Hot starts: <1s -Warm starts: 3s •Accuracy -Horizontal position : <2.5m CEP |
Interfaces |
Compatibility |

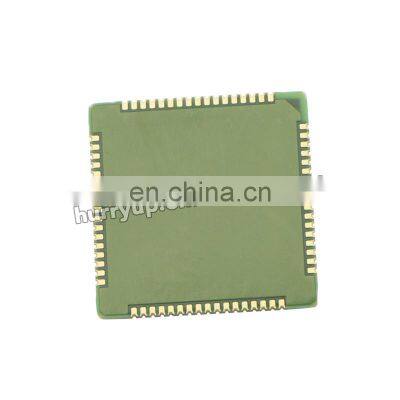

•68 SMT pads including •Analog audio interface •PCM interface(optional) •SPI interface (optional) •RTC backup •Serial interface •USB interface •Interface to external SIM 3V/1.8V •Keypad interface •GPIO •ADC •GSM Antenna pad •Bluetooth Antenna pad •GPS Antenna pad |
•AT cellular command interface |
Certifications |
|
• RoHSREACHCCCRCMCE(RED)ICASAFCC |
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
