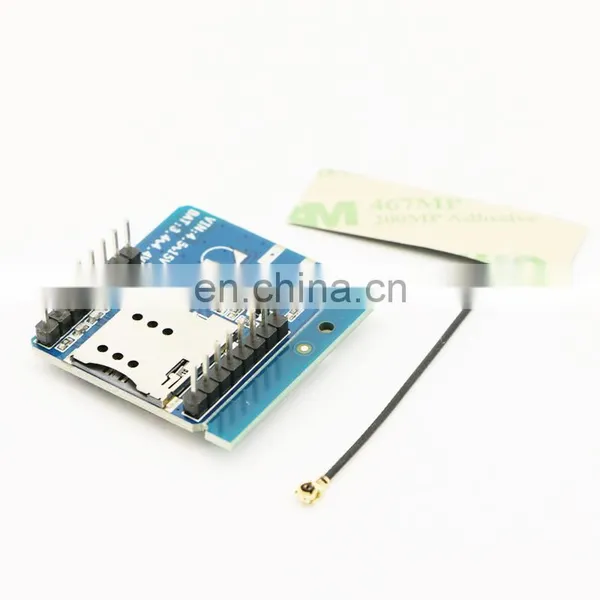

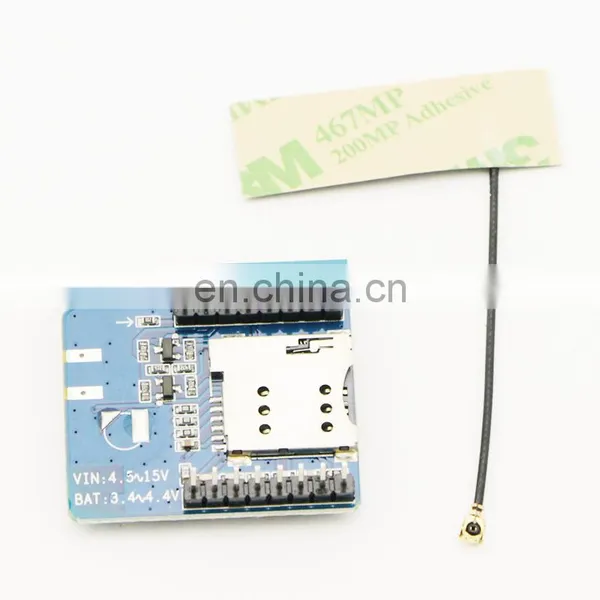

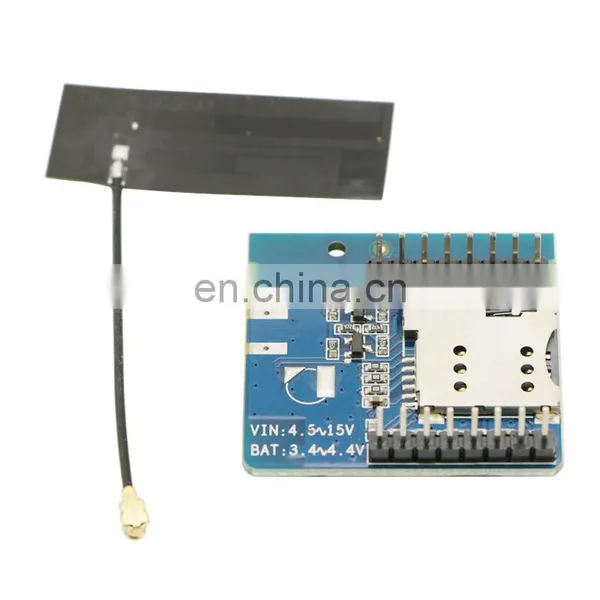

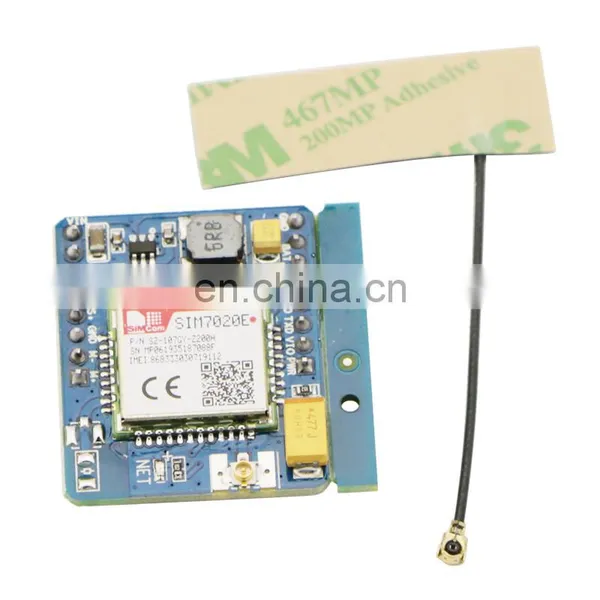

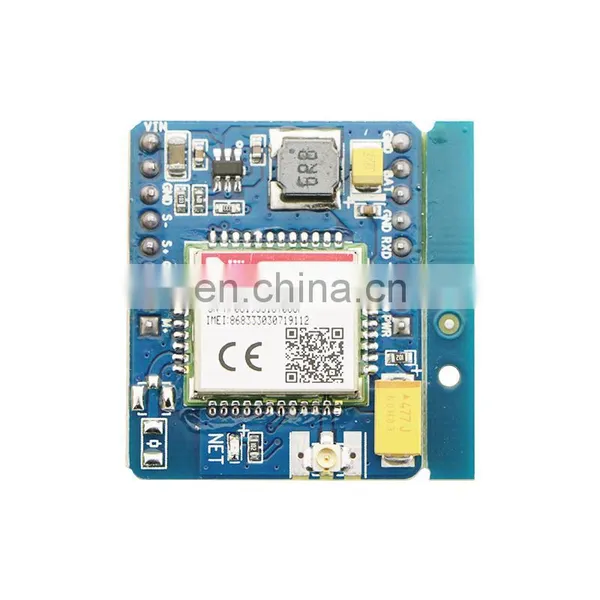

SIMCOM SIM7020 SIM7020E LTE Development Board NB IoT Module
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- Mini PCIe EVB Kit for EC20 EC25 EG25 Mini PCIe Module, MiNiPCIe EVB for UC15 UC20 BG95 Mini PCIe
- LPWA Module SIM7020E LTE Development Board, NB-IoT Cat-NB CoarBoard SIM7020 Low-power 4G Communication Module
- SIMCom SIM7000A LPWA Module, Cat-M/NB-IoT Module SIM7000
- EM12-G LTE-A Module M.2 Form Factor 600Mbps/150Mbps LTE Cat12 Module EM12G EM12
- SIMCom A7670E A7670 LGA 4G Module, LTE Cat1 10Mbps/5Mbps 4G GPRS EDGE Module
- Sierra Wireless Communication WP7608 IoT Module, 1.3GHz Core 150Mbps/50Mbps 4G LTE Cat4 Module Sierra WP7608
Product Description
Description
NB-IoT Module
The SIM7020 series has powerful expansibility with abundant interfaces including UART, GPIO, I2C etc. The SIM7020 series is designed for applications that need low latency, low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring, E-health etc.
Product Advantages
● With Power Saving Mode(PSM) and Extended Discontinuous Reception(eDRX), the SIM7020 series can extend battery life up to 10 years
● The SIM7020 series provides deeper coverage enhancement compared to GSM
● The form factor and AT commands of the SIM7020 series are compatible with SIM800C
Product | SIM7020E | SIM7020G | ||||||
Form Factor | LCC, 42PIN | LCC+LGA, 77PIN | ||||||
Dimensions(mm) | 17.6*15.7*2.3 | 17.6*15.7*2.3 | ||||||
Frequency Bands | Cat-NB | B1/B3/B5/B8/B20/B28 | B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/ B20/B25/B26/B28/B66/B70/B71/B85 | |||||
Temperature | -40℃ ~ +85℃ | -40℃ ~ +85℃ | ||||||
Electrical Features | ||||||||
Supply Voltage Range(V) | 2.1~ 3.6 | 2.1~ 3.6 | ||||||
Power Consumption | @PSM(uA) | 3.4 | 3.4 | |||||
@Sleep(mA) | 0.4 | 0.4 | ||||||
@Idle(mA) | 5.6 | 5.6 | ||||||
@eDRX=655.36s(uA) | 30 | 30 | ||||||
Data Transfer | ||||||||
NB-IoT(kbps) | 26.15(DL)/62.5(UL) | 126(DL)/150(UL) | ||||||
Software Features | ||||||||
Protocol | TCP/UDP/HTTP/HTTPS/TLS/DTLS/DNS/NTP/PING/LWM2M/COAP/MQTT/MQTTS | TCP/UDP/HTTP/HTTPS/TLS/DTLS/DNS/ NTP/PING/LWM2M/COAP/MQTT/MQTTS | ||||||
FOTA | ● | ● | ||||||
Embedded AT | ● | ● | ||||||
Firmware Upgrade | UART/FOTA | UART/FOTA | ||||||
Interfaces | ||||||||
SIM Card | 1.8V/3.0V | 1.8V/3.0V | ||||||
UART | ● | ● | ||||||
USB | ● | ● | ||||||
ADC | ● | ● | ||||||
Embedded SIM | o | o | ||||||
Certification | ||||||||
Regulatory | CE/NCC/IMDA/ATEX/RoHS/REACH | CE/FCC/GCF/PTCRB/ATEX/RoHS/REACH | ||||||
Carrier | Deutsche Telekom | Telstra*/Vodafone/Deutsche Telekom |
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
