Description

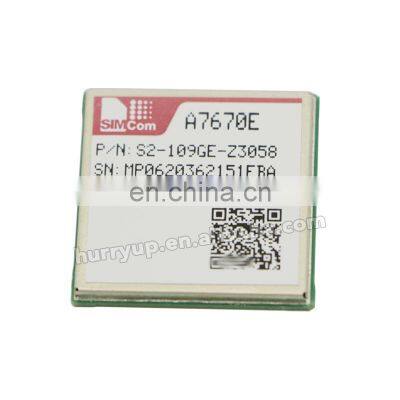

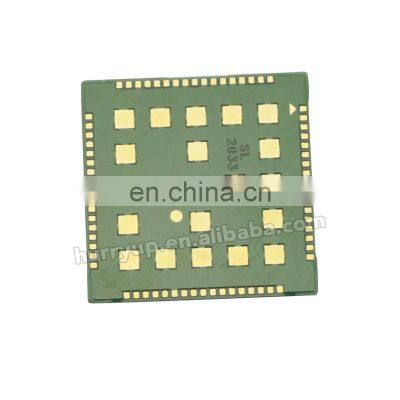

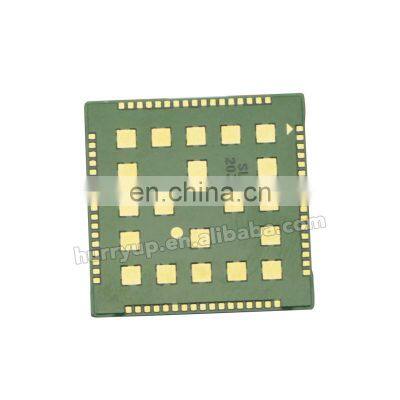

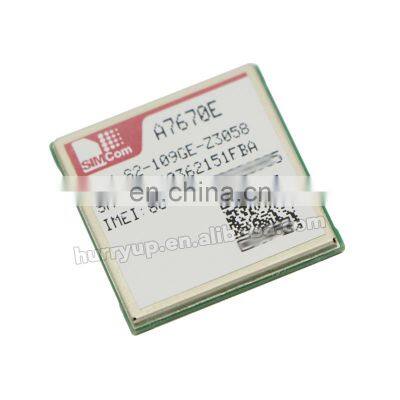

SIMCom A7670X

The A7670 series is the LTE Cat 1 module which supportswireless communication modes of LTE-TDD/LTE-FDD/GSM/GPRS/EDGE. It supports maximum 10Mbps downlinkrate and 5Mbps uplink rate. The A7670 series adopts LGA form factor and iscompatible with SIM7000/SIM7070 series(NB/Cat Mmodules), and SIM800A/SIM800F(2G modules), whichenables smooth migration from 2G/NB/Cat M products toLTE Cat 1 products, and greatly facilitates morecompatible product design for the customer needs. The A7670 series supports multiple built-in networkprotocols, supports drivers for main operation systems(USB driver for Windows, Linux and Android etc.) andsoftware function, AT commands are compatible withSIM7500/SIM7600 series modules. Meanwhile the A7670series integrates main industrial standard interfaces, withpowerful expansibility, including abundant interfaces suchas UART, USB, I2C, GPIO, which is suitable for main IOTapplications such as telematics, surveillance devices, POS,industrial routers, and remote diagnostics etc.

Product Advantages - Small size LTE Cat 1 module - LGA form factor with abundant interfaces - Suitable for LTE and GSM networks - Abundant software functions: FOTA, LBS, SSL - The form factor of A7670 series are compatible with the SIM7000/SIM7070 series
Product
A7670C
A7670E
A7670SA
Form factor
LGA
LGA
LGA
Dimensions(mm)
24.0*24.0*2.3
24.0*24.0*2.3
24.0*24.0*2.3
Frequency Bands
LTE-FDD
B1/B3/B5/B8
B1/B3/B5/B7/B8/B20
B1/B2/B3/B4/B5/B7/B8/B28/B66
LTE-TDD
B34/B38/B39/B40/B41
GSM
900/1800MHz
900/1800MHz
850/900/1800/1900MHz
Temperature GNSS
-40℃ ~ +85℃
-40℃ ~ +85℃
-40℃ ~ +85℃
Electrical Features
Supply Voltage Range(V)
3.4~ 4.2
3.4~ 4.2
3.4~ 4.2
Power Consumption (mA)
LTE
3.8
3.8
3.8
GSM,BS_PA_
MFRMS=2
3.5
3.5
3.5
Data Transfer
LTE(Mbps)
10(DL)/5(UL)
10(DL)/5(UL)
10(DL)/5(UL)
GPRS/EDGE(Kbps)
236.8(DL)/236.8(UL)
236.8(DL)/236.8(UL)
236.8(DL)/236.8(UL)
Software Features
Protocol
TCP/IP/IPV4/IPV6/Multi-PDP/FTP/ FTPS /HTTP/HTTPS/DNS
TCP/IP/IPV4/IPV6/Multi-PDP/FTP/ FTPS /HTTP/HTTPS/DNS
TCP/IP/IPV4/IPV6/Multi-PDP/FTP/ FTPS /HTTP/HTTPS/DNS
TLS
●
●
●
File System
●
●
●
Audio Record/Play
o
o
o
TTS
o
o
o
LBS
●
●
●
FOTA
●
●
●
Android RIL
Android 5.0/6.0/7.0/8.0/9.0
Android 5.0/6.0/7.0/8.0/9.0
Android 5.0/6.0/7.0/8.0/9.0
USB Driver
Microsoft Windows 7/8/10 Linux/Android
Microsoft Windows 7/8/10 Linux/Android
Microsoft Windows 7/8/10 Linux/Android
WWAN (RNDIS)
●
●
●
ECM
●
●
●
Embedded AT
o
o
o
Firmware Upgrade
USB/FOTA
USB/FOTA
USB/FOTA
Interfaces
SIM Card
1.8V/3.0V
1.8V/3.0V
1.8V/3.0V
UART
●
●
●
USB
●
●
●
PCM
o
o
o
ADC
●
●
●
GPIO
●
●
●
I2C
●
●
●
Certification
Certification
RoHSREACHCCCCTASRRCMobileUnicomTelecom
RoHSREACHCE(RED)
RoHSREACHRCMCE(RED)OCD(Anatel)FCC
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products? A1. Minimum order quantity starts from ONE piece. Q2. What's the quality of your products? A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products. Q3. Is this product free of shipping or free samples? A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
