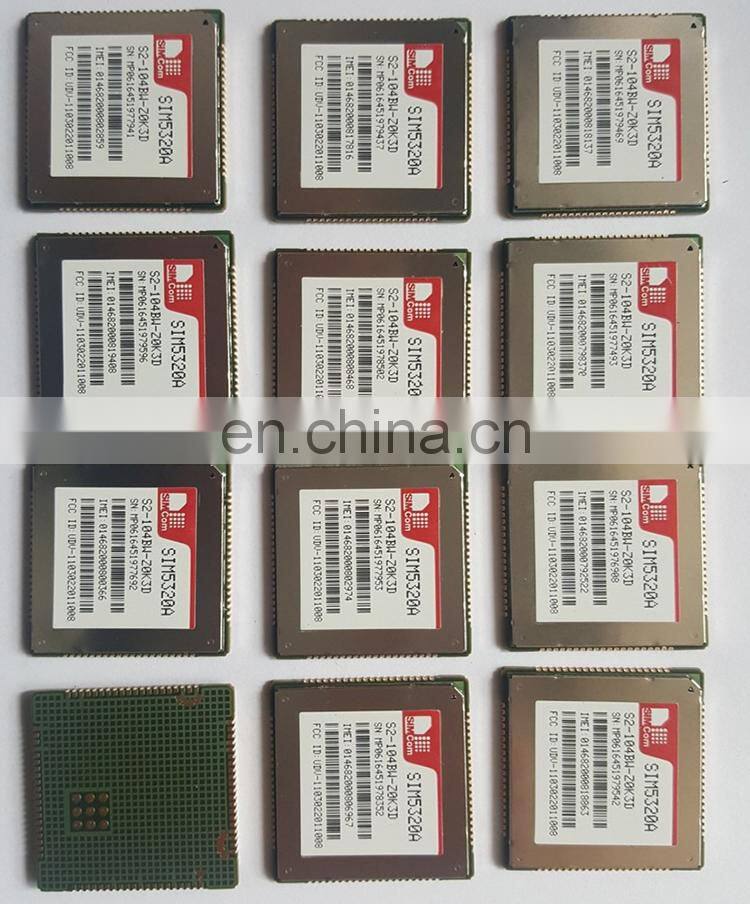

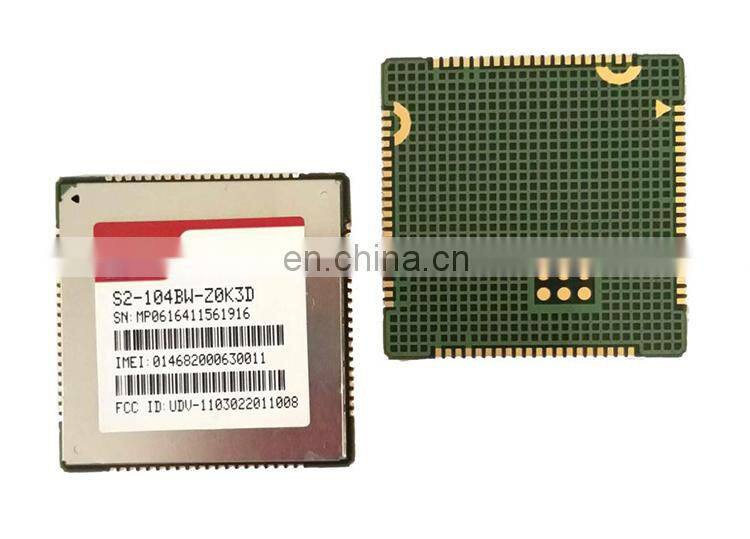

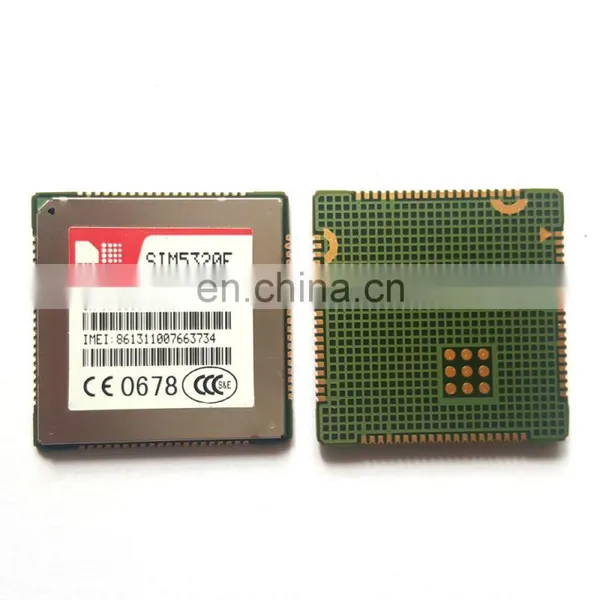

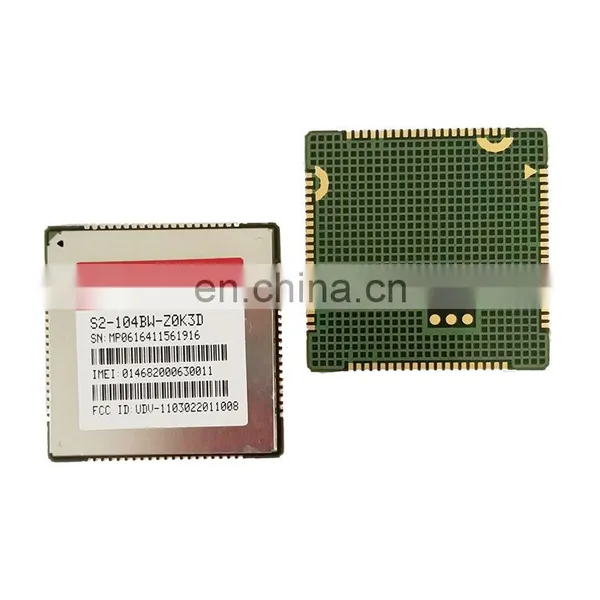

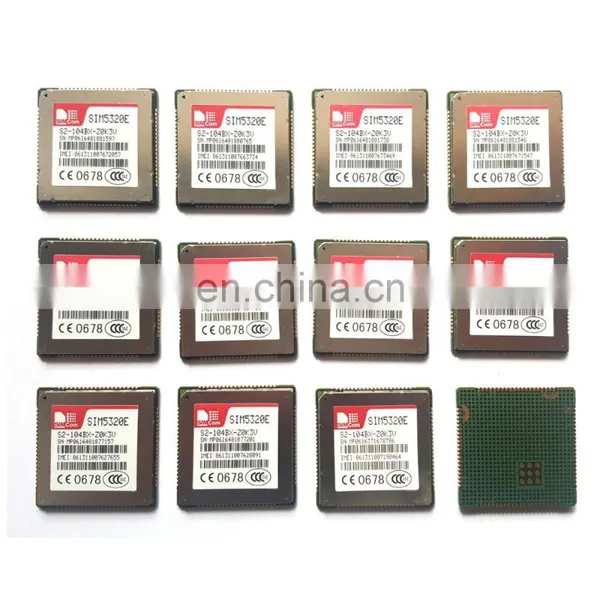

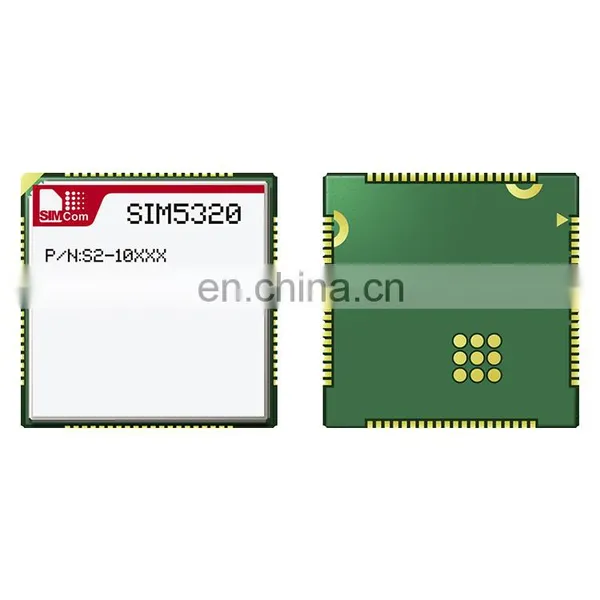

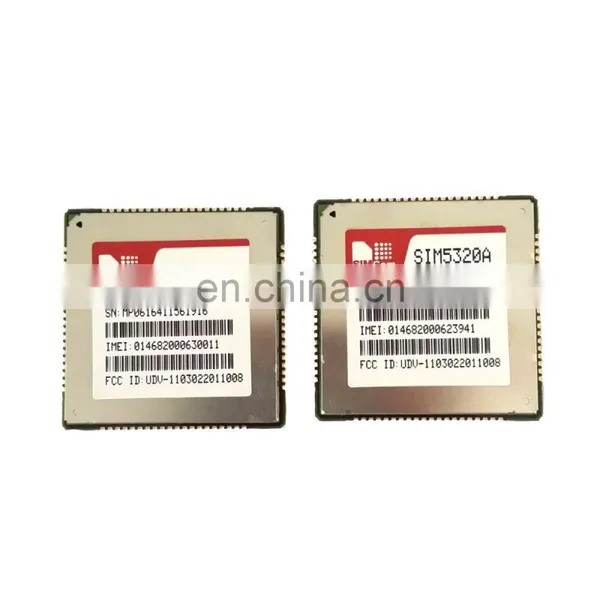

SIMCOM SIM5320 3G/GSM/GPRS Module SIM5320A SIM5320E SIM5320J
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HURRYUP Low Price Dual-Band GSM GPRS Module Simcom 3g Gsm Module SIM5300E Electronic Components WholesaleNegotiableMOQ: 1 -
SIMCOM A7600E Multi-Band LTE/GSM/GPRS/EDGE Module, A7600 4G LTE IoT ModuleNegotiableMOQ: 1
-
SIMCOM A7670 A7670C Multi-Band LTE-FDD/LTE-TDD/GSM/ GPRS/EDGE Module, A7670SA 4G LTE ModuleNegotiableMOQ: 1
-
Simcom Sim5218 3g Module Sim5218a Sim5218cNegotiableMOQ: 1
-
Sim5216E Multi-Band HSDPA/WCDMA/GSM/GPRS/EDGE 3G ModuleNegotiableMOQ: 1
Description
SIMCOM WCDMA/HSDPA/GSM/GPRS Module SIM5320
General features
• SIM5320A：
Dual-Band UMTS/HSDPA 850/1900MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• SIM5320(J)E：
Dual-Band UMTS/HSDPA 900/2100MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• SIM5320J：
Dual-Band UMTS/HSDPA 850(800)/2100MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• GPRS multi-slot class 12
• EDGE multi-slot class 12
• Output power
- UMTS 850/1900: 0.25W
- UMTS 900/2100: 0.25W
- GSM850/GSM900: 2W
- DCS1800/PCS1900: 1W
• Control Via AT Commands
• Supply voltage range: 3.4~ 4.2V
• Operation temperature: -30℃ to +80℃
• Extended operation temperature: -40℃ to +85℃
• Dimension: 30 * 30 * 2.9 mm
• Weight: 5.6g
Specifications for Data transfer
• HSDPA
- Max. 3.6Mbps(DL)
•WCDMA
- Max.384Kbps(DL), Max.384Kbps(UL)
• EDGE
- Max. 236.8Kbps(DL),Max.118Kbps(UL)
• GPRS
- Max. 85.6Kbps(DL), Max.42.8Kbps(UL)
• CSD
- GSM data rate 14.4Kbps
- WCDMA data rate 57.6Kbps
- WCDMA 64kbps CSD for Video call
• Multi-PDP connect application
Other features
• USB Driver for Microsoft Windows2000/XP/Vista/7/8/10
• USB Driver for Windows CE/Mobile
• USB Driver for Linux /Android
• Firmware update via USB
• MMS
• TCP/IP
• MUX protocol over UART
• FTP/FTPS/HTTP/HTTPS/SMTP/DNS
• FOTA
Interfaces
• USB2.0
• UART
• SIM card
• SPI
• I2C
• Keypad
• Constant current sink
• GPIO
• RTC
• ADC
• Mic/Receiver **
• PCM **
Specifications for SMS
• Point to point MO and MT
• Text and PDU mode
Support embedded Script Language
• LUA Script Language
• Embedded AT *
Specifications for GPS/Location
• CELL assistant Location (No GPS)
• A-GPS: MS-Based, MS-Assisted
• Stand-alone GPS
• QUALCOMM XTRA GPS mode
Certifications
SIM5320A
• FCC
• PTCRB
• IC
• ROHS,
• REACH
SIM5320E
• CE
• GCF
• ROHS
• REACH
• NCC
• CCC
• CTA
SIM5320J(E)
• Telec
• JATE
Carrier Approvals
SIM5320A
• AT&T, Rogers
SIM5320E
• TIM, Orange, Vodafone
SIM5320J
• Docomo
SIM5320JE
• SoftBank
• SIM5320A：
Dual-Band UMTS/HSDPA 850/1900MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• SIM5320(J)E：
Dual-Band UMTS/HSDPA 900/2100MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• SIM5320J：
Dual-Band UMTS/HSDPA 850(800)/2100MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• GPRS multi-slot class 12
• EDGE multi-slot class 12
• Output power
- UMTS 850/1900: 0.25W
- UMTS 900/2100: 0.25W
- GSM850/GSM900: 2W
- DCS1800/PCS1900: 1W
• Control Via AT Commands
• Supply voltage range: 3.4~ 4.2V
• Operation temperature: -30℃ to +80℃
• Extended operation temperature: -40℃ to +85℃
• Dimension: 30 * 30 * 2.9 mm
• Weight: 5.6g
Specifications for Data transfer
• HSDPA
- Max. 3.6Mbps(DL)
•WCDMA
- Max.384Kbps(DL), Max.384Kbps(UL)
• EDGE
- Max. 236.8Kbps(DL),Max.118Kbps(UL)
• GPRS
- Max. 85.6Kbps(DL), Max.42.8Kbps(UL)
• CSD
- GSM data rate 14.4Kbps
- WCDMA data rate 57.6Kbps
- WCDMA 64kbps CSD for Video call
• Multi-PDP connect application
Other features
• USB Driver for Microsoft Windows2000/XP/Vista/7/8/10
• USB Driver for Windows CE/Mobile
• USB Driver for Linux /Android
• Firmware update via USB
• MMS
• TCP/IP
• MUX protocol over UART
• FTP/FTPS/HTTP/HTTPS/SMTP/DNS
• FOTA
Interfaces
• USB2.0
• UART
• SIM card
• SPI
• I2C
• Keypad
• Constant current sink
• GPIO
• RTC
• ADC
• Mic/Receiver **
• PCM **
Specifications for SMS
• Point to point MO and MT
• Text and PDU mode
Support embedded Script Language
• LUA Script Language
• Embedded AT *
Specifications for GPS/Location
• CELL assistant Location (No GPS)
• A-GPS: MS-Based, MS-Assisted
• Stand-alone GPS
• QUALCOMM XTRA GPS mode
Certifications
SIM5320A
• FCC
• PTCRB
• IC
• ROHS,
• REACH
SIM5320E
• CE
• GCF
• ROHS
• REACH
• NCC
• CCC
• CTA
SIM5320J(E)
• Telec
• JATE
Carrier Approvals
SIM5320A
• AT&T, Rogers
SIM5320E
• TIM, Orange, Vodafone
SIM5320J
• Docomo
SIM5320JE
• SoftBank
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
