Description

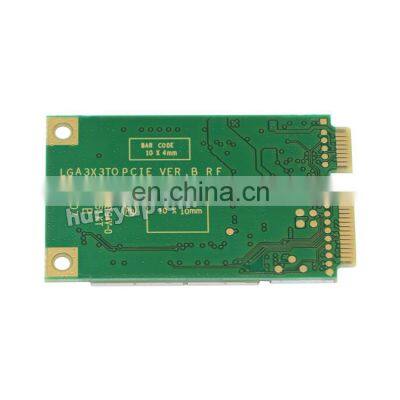

ME909s-120 Mini PCIe module
• ME909s-120 Mini PCIe module is the first LTE cat4 module based on Hisilicon chipset. With high quality designed small size and standard Mini PCIe form factor, ME909s-120 is especially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs.• With pin-to-pin form factor, it is easy to migrate from MU609, MU709 or ME909u family to ME909s-120. ME909s-120 supports 150Mbps downlink data rate, including enhanced features like FOTA, USSD and enhanced AT commands. ME909s-120 PCIe has a sister model ME909s-120 LGA Module.
Technical Specifications:
• Form factor: Mini-PCIe
• 4G LTE (FDD): B1,B2,B3,B4,B5,B7,B8,B20
• DC-HSPA+/HSPA+/HSPA/UMTS : B1,B2,B5,B8
• EDGE/GPRS/GSM: 850/900/1800/1900 MHz
• LTE FDD: Downlink:150 Mbps, Uplink: 50 Mbps @Bandwidth 20M (CAT4)
• DC-HSPA+ :Downlink:42 Mbps, Uplink: 5.76 Mbps
• Power Supply: 3.2 V to 4.2 V ( 3.8 V recommended)
• Temp Range: -40℃ to 85℃
• Voice: PCM Voice and DTMF
Special Features
- CDC-ECM
- FOTA
- Firmware Update via USB
- Embedded UDP/TCP/FTP(s)/HTTP(s) stack
- High-speed UART
- CMUX
- Sleep mode
Operating System: Linux, Android, WinCE, Windows 8/10
