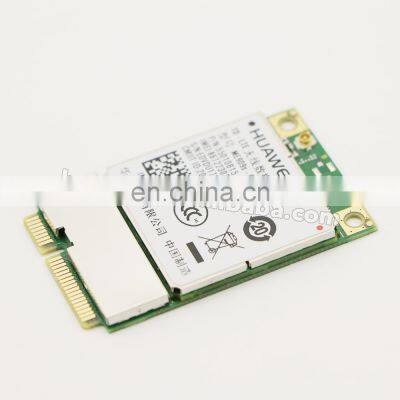

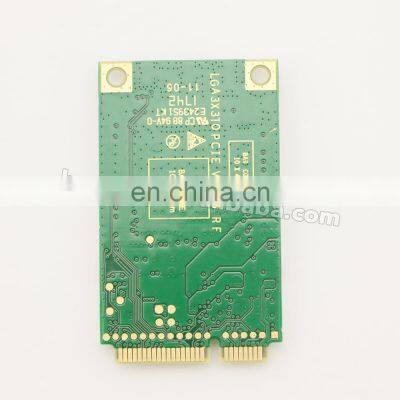

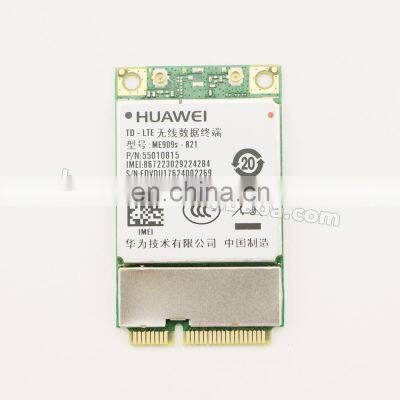

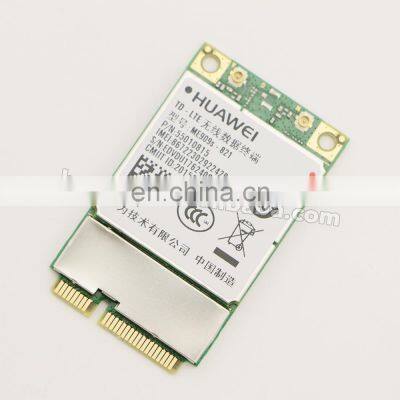

LTE B2B Module ME909s-821 PCIE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Description
LTE Module ME909s-821 PCIe
General Features
* LTE(FDD): B1,B3,B8; LTE(TDD): B39,B40,B41(38), all bands with diversity
* DC-HSPA+: B1,B9,B5,B8; TDS: B34, B39, all bands with diversity
* GSM: 1800/900MHz
* MIMO
LTE: DL 2*2 MIMO
HSPA+/DC-HSPA+: DL 2*2 MIMO
* Output Power
LTE: +23dBm (3GPP TS 36.101 R8 Class 3)
WCDMA/HSPA+: +24dBm (Power Class 3)
EDGE 1800MHz: +26dBm (Power Class E2)
EDGE 900MHz: +27dBm (Power Class E2)
GSM/GPRS 1800MHz: +30dBm (Power Class 1)
GSM/GPRS 900MHz: +33dBm (Power Class 4)
* USIM (Class B and Class C)
* Power supply
3.2 V to 4.2V (typical: 3.8V)
* Temperature range
Operational: -30°C to 75°C
Extended: -40°C to 85°C *
* Dimensions: 30 mm x 30 mm x 2.57 mm
* Weight: approx. 5g
* AT commands
3GPP TS 27.007 and 27.005
extended AT command
* OS: Linux, Android, WinCE, Windows 8/10
* DC-HSPA+: B1,B9,B5,B8; TDS: B34, B39, all bands with diversity
* GSM: 1800/900MHz
* MIMO
LTE: DL 2*2 MIMO
HSPA+/DC-HSPA+: DL 2*2 MIMO
* Output Power
LTE: +23dBm (3GPP TS 36.101 R8 Class 3)
WCDMA/HSPA+: +24dBm (Power Class 3)
EDGE 1800MHz: +26dBm (Power Class E2)
EDGE 900MHz: +27dBm (Power Class E2)
GSM/GPRS 1800MHz: +30dBm (Power Class 1)
GSM/GPRS 900MHz: +33dBm (Power Class 4)
* USIM (Class B and Class C)
* Power supply
3.2 V to 4.2V (typical: 3.8V)
* Temperature range
Operational: -30°C to 75°C
Extended: -40°C to 85°C *
* Dimensions: 30 mm x 30 mm x 2.57 mm
* Weight: approx. 5g
* AT commands
3GPP TS 27.007 and 27.005
extended AT command
* OS: Linux, Android, WinCE, Windows 8/10
Voice Features
* DTMF * PCM voice
Supplementary Service
* Call forwarding / hold / waiting
* USSD
Data Features
* GPRS: DL 85.6 kbps/UL 85.6 kbps
* EDGE: DL 236.8 kbps/UL 236.8 kbps
* WCDMA CS: DL 64 kbps/UL 64 kbps
* WCDMA PS: DL 384 kbps/UL 384 kbps
* HSPA+: DL 21.6 Mbps/UL 5.76 Mbps
* DC-HSPA+: DL 43.2 Mbps/UL 5.76 Mbps
* LTE FDD Cat4: DL 150 Mbps/UL 50 Mbps
* LTE TDD Cat 4: DL 112Mbps / UL 10Mbps
SMS Features
* GPRS: DL 85.6 kbps/UL 85.6 kbps
* EDGE: DL 236.8 kbps/UL 236.8 kbps
* WCDMA CS: DL 64 kbps/UL 64 kbps
* WCDMA PS: DL 384 kbps/UL 384 kbps
* HSPA+: DL 21.6 Mbps/UL 5.76 Mbps
* DC-HSPA+: DL 43.2 Mbps/UL 5.76 Mbps
* LTE FDD Cat4: DL 150 Mbps/UL 50 Mbps
* LTE TDD Cat 4: DL 112Mbps / UL 10Mbps
SMS Features
* MO / MT Text and PDU mode
Additional Features
* CDC-ECM
* CDC-ECM
* FOTA
* Firmware Update via USB
* Embedded UDP/TCP/FTP(s)/HTTP(s) stack
* High-speed UART
* CMUX
* Sleep mode
* Firmware Update via USB
* Embedded UDP/TCP/FTP(s)/HTTP(s) stack
* High-speed UART
* CMUX
* Sleep mode
Interfaces
* 145 pins LGA interface
* Antenna interface
* UART
* USB 2.0 High speed
* PCM Voice
* SIM Card
* LED
* Multiple GPIOs
* JTAG
* Power supply
* Power-on/off
* Reset
* Antenna interface
* UART
* USB 2.0 High speed
* PCM Voice
* SIM Card
* LED
* Multiple GPIOs
* JTAG
* Power supply
* Power-on/off
* Reset
Approvals & Certifications
* CCC
* RoHS & WEEE Compliant
* RoHS & WEEE Compliant
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
