Product Description

Description

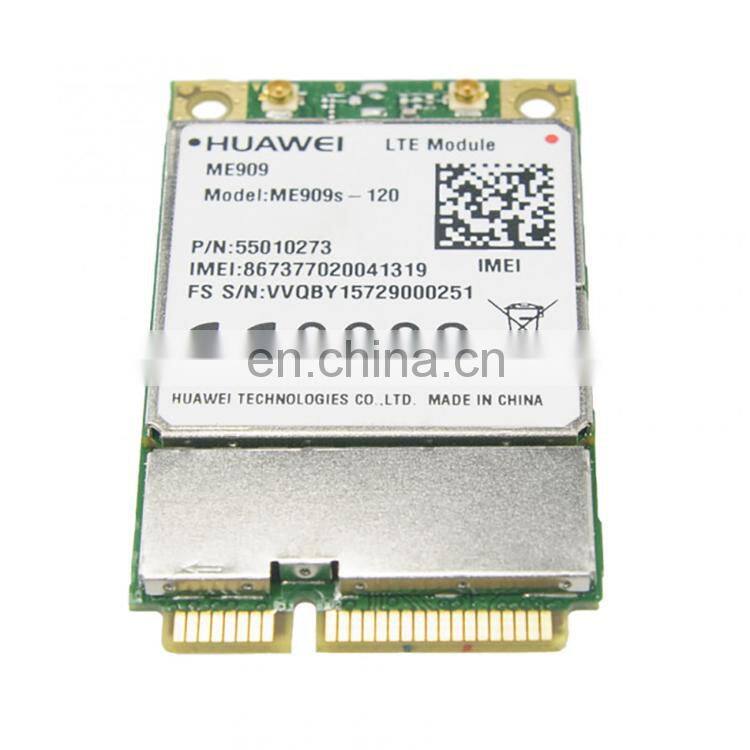

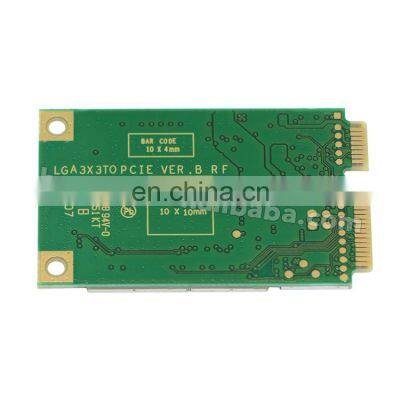

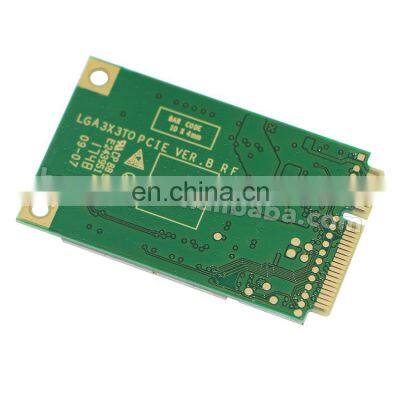

ME909s-120 Mini PCIe module

• ME909s-120 Mini PCIe module is the first LTE cat4 module based on Hisilicon chipset. With high quality designed small size and standard Mini PCIe form factor, ME909s-120 is especially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs.

• With pin-to-pin form factor, it is easy to migrate from MU609, MU709 or ME909u family to ME909s-120. ME909s-120 supports 150Mbps downlink data rate, including enhanced features like FOTA, USSD and enhanced AT commands. ME909s-120 PCIe has a sister model ME909s-120 LGA Module.

Technical Specifications:
• Form factor: Mini-PCIe
• 4G LTE (FDD): B1,B2,B3,B4,B5,B7,B8,B20
• DC-HSPA+/HSPA+/HSPA/UMTS : B1,B2,B5,B8
• EDGE/GPRS/GSM: 850/900/1800/1900 MHz
• LTE FDD: Downlink:150 Mbps, Uplink: 50 Mbps @Bandwidth 20M (CAT4)
• DC-HSPA+ :Downlink:42 Mbps, Uplink: 5.76 Mbps
• Power Supply: 3.2 V to 4.2 V ( 3.8 V recommended)
• Temp Range: -40℃ to 85℃
• Voice: PCM Voice and DTMF

Special Features
- CDC-ECM
- FOTA
- Firmware Update via USB
- Embedded UDP/TCP/FTP(s)/HTTP(s) stack
- High-speed UART
- CMUX
- Sleep mode

Operating System: Linux, Android, WinCE, Windows 8/10

Why Choose Us

FAQ

Q1. What is the minimum order quantity for your products? A1. Minimum order quantity starts from ONE piece. Q2. What's the quality of your products? A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products. Q3. Is this product free of shipping or free samples? A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
