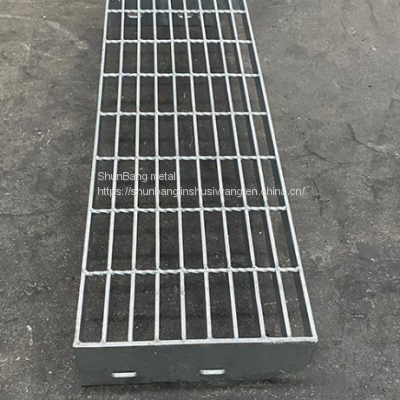

Help CenterDirect Selling Galvanized Steel Grating Anti-skid Stainless Steel Platform Steel Grating Toothed Step Plate Heavy Steel Grating
Related Products
-
Drainage Ditch Cover Plate, Tree Grate, Steel Grating, Welded Step Plate, Steel GratingNegotiableMOQ: 1 Square Foot -
Galvanized Steel Grating, Serrated Steel Grating, Drainage Ditch Cover, National Standard Quality, Processing and CustomizationNegotiableMOQ: 1 Square Foot
-
Toothed Grating Plate Stainless Steel Rain Grate Galvanized Steel Grating Cover Plate Composite Steel GratingNegotiableMOQ: 1 Square Foot
-
Toothed Grating Plate Stainless Steel Rain Grate Galvanized Steel Grating Cover Plate Composite Steel GratingNegotiableMOQ: 1 Square Foot
-
Drainage Ditch Cover Plate, Tree Grate, Steel Grating, Welded Step Plate, Steel GratingNegotiableMOQ: 1 Square Foot
Features of toothed step plate:
(1) It is welded by serrated flat steel on one side. In addition to the characteristics and uses of ordinary steel grating, it also has strong anti-skid ability, especially suitable for wet and slippery places, offshore oil production platforms, etc;
(2) Hot dip galvanizing surface treatment is adopted, which has strong rust resistance and is free of maintenance and replacement for 30 years. The toothed step plate can be used as a hinge connection between the ditch cover and the frame, which is anti-theft, safe and easy to open;
(3) The use of high-strength carbon steel makes the steel grating have high strength: the strength and toughness are much higher than that of cast iron, which can be used in wharf, airport and other large-span and heavy-duty environments;
(4) Large mesh with good drainage: the leakage area reaches 83.3, which is a good choice for outdoor stairs;
(5) Beautiful appearance: simple lines, silver appearance, modern ideas, material saving and investment saving: the price is lower than that of cast iron for large spans and heavy loads;
The toothed stepping board is widely used in power plants, water plants and other factories, platforms and walkways in municipal engineering, environmental sanitation engineering and other fields, and ground platforms in large places such as cinemas, visiting platforms and parking lots.
The toothed step board can be divided into four types according to the presence or absence of the front guard board and the connection mode with the ladder beam, T1, T2, T3 and T4
T1 toothed step board, the pedal is made of ordinary flat steel, the edge is wrapped with ordinary flat steel, the pattern guard plate and anti-skid strip are not spot welded, and the side plate is added. Its structure is simple. Spot welding on the steel beam during installation is simple, economical and practical. This kind of step board is widely used in many projects. The cost of this type of toothed step board is about 20% lower than that of replacing it.

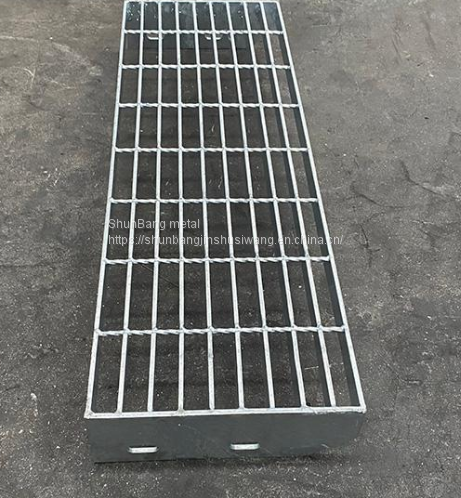

T2 toothed step plate is made of ordinary flat steel by spot welding. The end plate is installed at both ends of the pedal by spot welding. There is a round hole and a long round hole with a diameter of 14mm on the end plate. The corner of the end plate with long round holes is chamfered to facilitate installation. After fabrication, holes shall be drilled on the steel beam for installation with bolts. This kind is also widely used, with the characteristics of being detachable and reusable
T3 toothed tread plate, this type of metal tread plate is widely used in tread plate varieties. The front end is spot welded with pattern plate corner protector, which is beautiful, anti-skid and wear-resistant. Spot welding is adopted for installation, which is simple and time-saving. This kind of pedal covers the sharp edges and corners with a pattern plate to avoid serious injury caused by sliding and bumping.

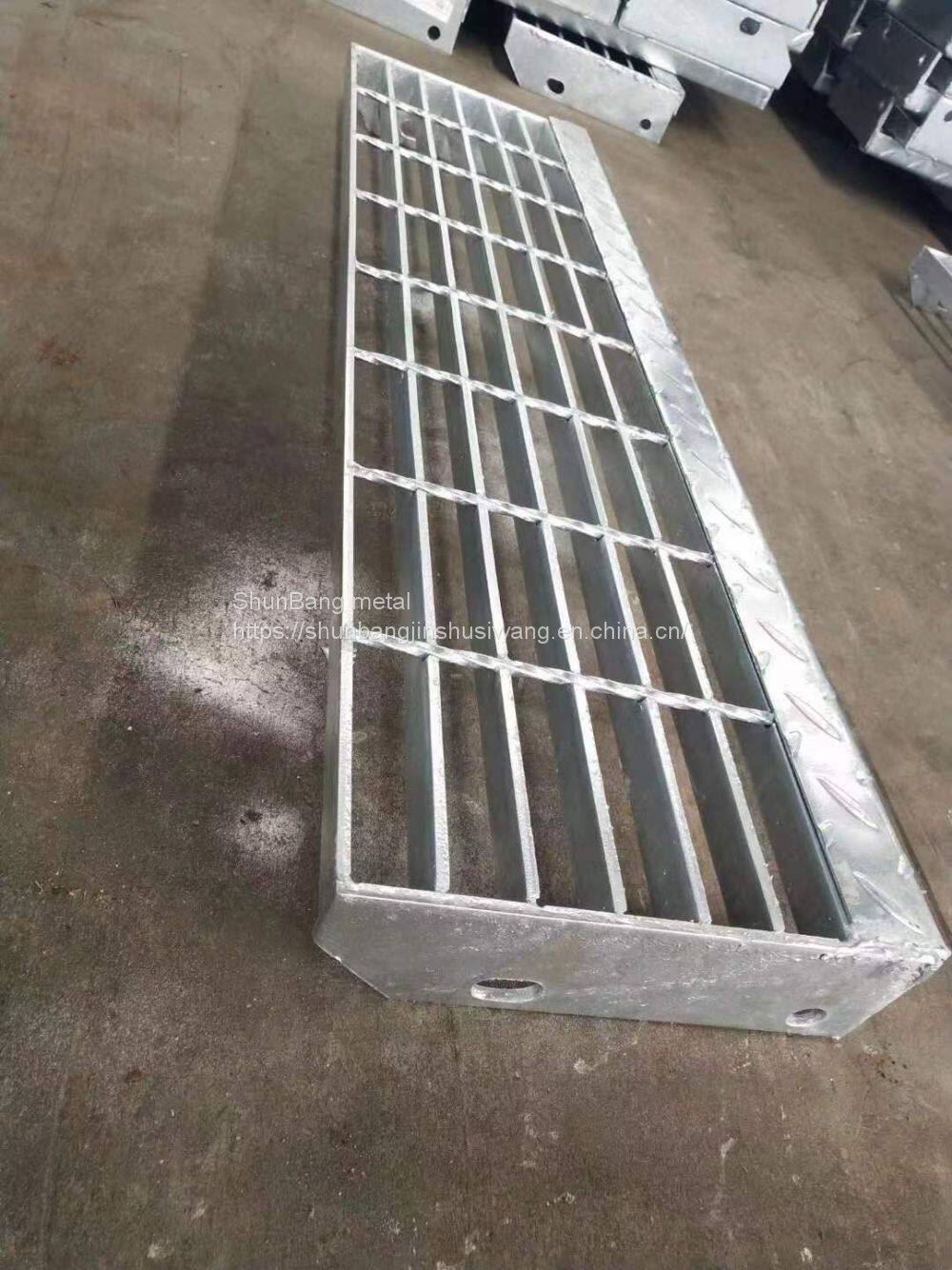

T4 toothed tread plate, T4 toothed tread plate combines the advantages of bolt installation of T2 toothed tread plate and the advantages of beautiful and safe T3 toothed tread plate. It can be installed with bolts for easy disassembly and assembly; We also spot weld the angle protection of pattern plate, which is beautiful and safe. High reuse rate, which combines the advantages of the above, and the product price is also high in this series.
