Wet Or Corrosive Environment Use Heavy Duty SS304 Caster 100/125/150/200mm Stainless Steel Castors Wheels

Wet Or Corrosive Environment Use Heavy Duty SS304 Caster 100/125/150/200mm Stainless Steel Castors Wheels thumbnail-1
Wet Or Corrosive Environment Use Heavy Duty SS304 Caster 100/125/150/200mm Stainless Steel Castors Wheels thumbnail-2
Wet Or Corrosive Environment Use Heavy Duty SS304 Caster 100/125/150/200mm Stainless Steel Castors Wheels thumbnail-3
Wet Or Corrosive Environment Use Heavy Duty SS304 Caster 100/125/150/200mm Stainless Steel Castors Wheels thumbnail-4
Wet Or Corrosive Environment Use Heavy Duty SS304 Caster 100/125/150/200mm Stainless Steel Castors Wheels photo-1
Wet Or Corrosive Environment Use Heavy Duty SS304 Caster 100/125/150/200mm Stainless Steel Castors Wheels photo-2
Wet Or Corrosive Environment Use Heavy Duty SS304 Caster 100/125/150/200mm Stainless Steel Castors Wheels photo-3
Wet Or Corrosive Environment Use Heavy Duty SS304 Caster 100/125/150/200mm Stainless Steel Castors Wheels photo-4
US$ 19 - 25 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Brand Name:
Heavy duty stainless steel caster wheels
Place of Origin:
China
Model Number:
4-5U01R-401V
Contact Supplier Request Quote Chat Now
Dongguan Carsun Caster Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Heavy duty stainless steel caster wheels
Place of Origin China
Model Number 4-5U01R-401V
4-5U01S-401V  5-inch 304 stainless steel swivel polyurethane caster wheel
   stainless steel Heavy Industrial Castor red PU swivel caster wheels for without brake
Customizable 4inch, 6inch, 8inch casters
   Can customize stainless steel TPR casters, nylon casters, heat-resistant casters

Note: due to the shooting light and angle, the product picture may have color difference from the physical product. Please refer to the received physical product. Thank you!
FEATURES AT A GLANCE
  We are a professional manufacturer of industrial caster wheels. We can produce different types of casters according to your
requirements.

please send the inquiry if interested.
 Click the picture on the right


Support Description: The thickness of top plate is 6mm. The top plate and rotary table are steel castings. Plane supporting structure is adopted, which is durable, replaceable and convenient for maintenance.
Right elevation
Left elevation
Front elevation
00:02
00:28
PRODUCT SPECIFICATIONS
Wheel Diameter
(mm)
Tread width
(mm)
Capacity per caster
(kg)
Wheel
Bearing
Model number
Load Height
(mm)
SwiVel Radius
(mm)
SwiVel
Rigid
125
51
180
Performa Rubbcr
SS Double Ball
4-5U01S-301X
4-5UO1R-301X
165
108
Delrin+SS Tubing
4-5U01S-301V
4-5U01R-301V
340
Polyurethane
SS Double Ball
4-5U01S-401X
4-5UO1R-401X
Delrin+SS Tubing
4-5U01S-401V
4-5UO1R-401V
375
Modified Nylon
SS Double Ball
4-5U01S-202X
4-5UO1R-202X
Delrin+SSTubing
4-5U01S-202V
4-5U01R-202V
White Nylon
SS Double Ball
4-5U01S-201X
4-5U01R-201X
Delrin+SS Tubing
4-5U01S-201V
4-5U01R-201V
294
Polyolefin
SS Double Ball
4-5U01S-101X
4-5U01R-101X
Delrin+SS Tubing
4-5U01S-101V
4-5U01R-101V
450
Thermo
SS Double Ball
4-5U01S-551X
4-5UO1R-551X
Delrin+SS Tubing
4-5U01S-551V
4-5UO1R-551V

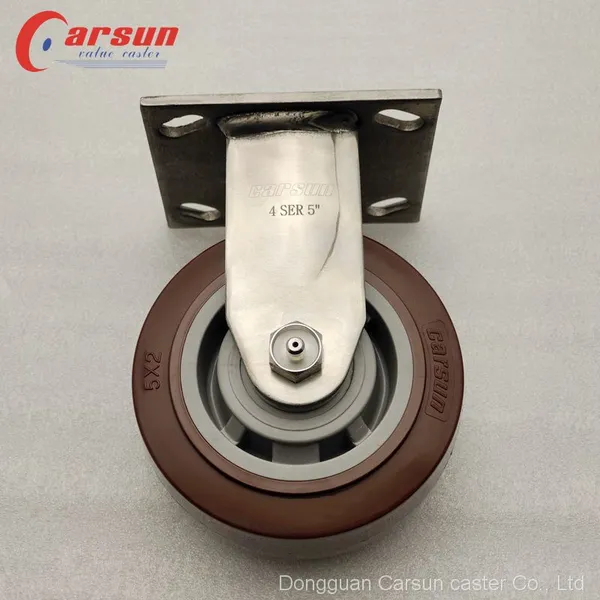

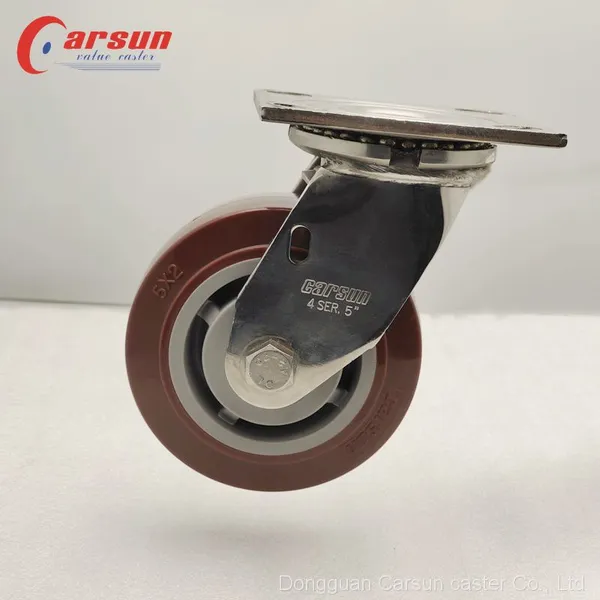

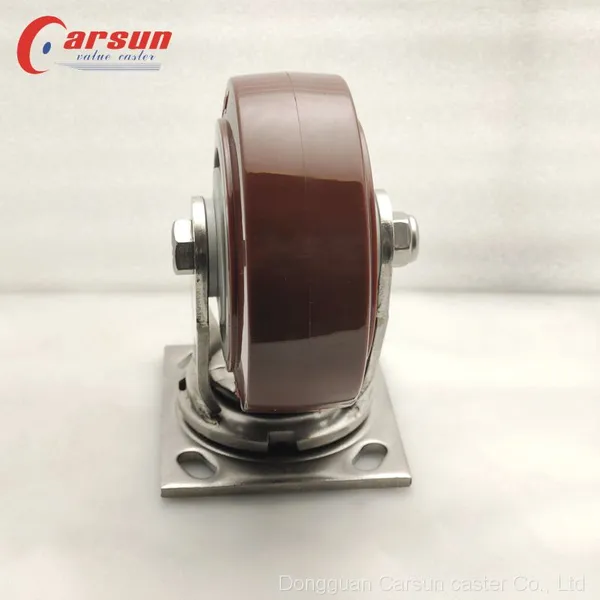

PRODUCT CONFIGURATION
6mm thickened top plate and Stainless steel bracket
  Built in stainless steel sleeve + Delrin bearing
5 inch red polyurethane wheel
Successful Project
2.5 inch red polyurethane stainless steel caster with stainless steel brake
3 inch White Nylon stainless steel caster with stainless steel brake
4-inch black nylon stainless steel caster heat resistant caster without brake
SIMILAR PRODUCTS
Recommended by seller
Stainless steel castor 4/5/6/8 inch swivel caster trolley wheel with brake anti rust and wear resistance caster wheel$11.52 - $34.49 / piece100.0 pieces
4 Inch Stainless Steel SS304 castors Active High Temperature thermo 250centigrade Caster wheels$4.20 - $4.50 / piece300 pieces
2.5/3/4/5/6inch Top plate stainless steel caster industrial 3 inch White swivel Nylon Castor wheel$7.90 - $8.50 / piece100 pieces
SS304 castors stainless steel industrial caster with brake 2.5inch red Pu swivel caster wheel$7.00 - $7.50 / piece200 pieces
High quality stainless steel industrial caster Medium duty castor White Nylon without brake small SS caster wheel$5.20 - $5.80 / piece200 pieces
casters and wheels 5 inch Medium Duty Rigid Caster with Conductive Wheel$6.60 - $6.90 / piece100 pieces
Excellent Quality Medium Duty Rollers Caster Wheel Fixed For Stainless Steel Trolley$2.40 - $7.51 / piece20.0 pieces
5/6/8 inch Heavy Duty Industrial Application Cast Iron Core PU Polyurethane heavy duty trolley Swivel Caster Castor Wheels$6.24 - $6.59 / piece20 pieces
Plate Mounted PU Wheels Heavy Duty Swivel Casters$5.94 - $26.86 / piece10.0 pieces
High Quality factory price 3/4/5 inch hospital equipment medical Caster Wheel$4.04 - $4.39 / piece20 pieces
High Strength Light Duty Caster wheel Load Rating 26KG 2 inch fixed rigid TPR Wheels$0.57 - $0.92 / piece20 pieces
75 100 125 Mm Caster Wheels Shopping Trolley Wheels Shopping Cart Wheels$2.40 - $7.51 / piece20.0 pieces
Company Profile
FAQ
Q1.Are you a factory or a trader?
A: we are a powerful factory established in Dongguan, Guangdong, China, with a factory area of about 8000 square meters. It has 8 injection molding machines, 10 stamping machines, 2 oil presses, 1 double station welding machine, 2 single station welding machines, 2 automatic rivet machines, 6 caster assembly lines and other automatic equipment.

Q2. Can I get free caster wheel samples from Stardrawing ?
A: We would be honor to offer you free caster samples, and we believe that you would be willing to pay for the freight fee
forsuchgood products. Please provide your DHL/FedEx or other freight collect number and advise which express type should be chosen,international express type(2~3days) or economic type (4~5days).

Q3. What is your payment terms of caster ?
A: It is undisputable and crystal clear that 30% advanced payment, 70% before shipment, hope we have reached agreement for thisregular payment manner.

Q4. What about your lead time ?
A: Usually, caster sample needs 5-7 days, mass production time needs 30 days. It is up to the quantity and stocking.

Q5. Is it OK to print my logo on casters ?
A: Sure.
Option 1 - Build the molds and fixtures upon your sample or technical drawings
Option 2 - Add your logo on fork or wheel
Option 3 - Pack the casters in your branded carton

Q6. How can I trust the quality of your casters ?
A: We tell you that we have variety of international quality certificates, we have a very strict quality control system, we do
aseries of caster tests before shipping. Right, you still have no idea about our quality. Therefore, no hesitate! Just place
atrial order from Stardrawing. You will not only trust the quality of casters, but also trust the character of Stardrawing people since then.

Q7. What express can we choose?
A: FedEx,UPS,DHL,TNT etc.

Q8. What is you MOQ?
A: Small order can be accepted if we have stock. MOQ for different styles is different.

Q9. If you product is environmental protection and anti-rust?
A: Of course,all our products are ECO-friendly.
