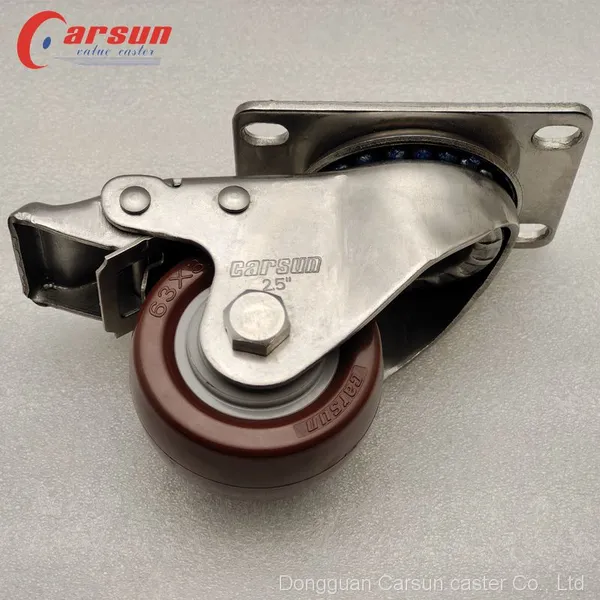

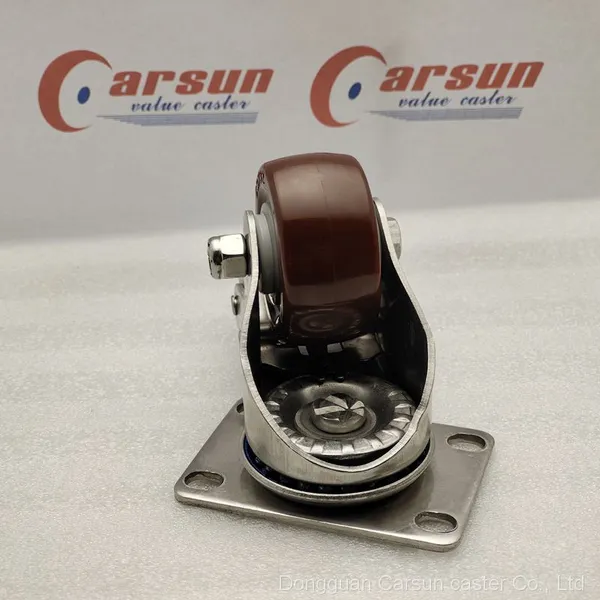

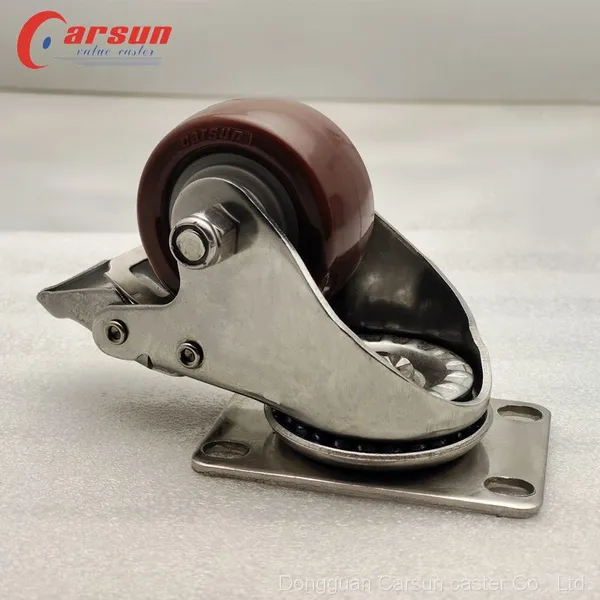

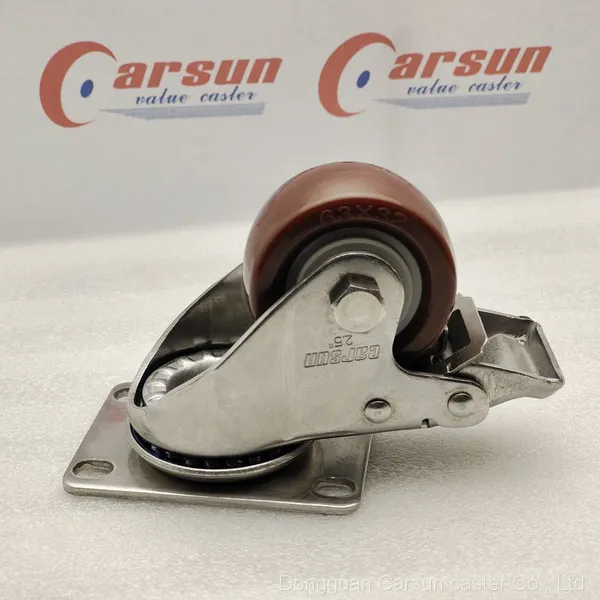

Medium duty stainless steel casters SS304 stainless steel 2.5/3/3.5/4/5/6 inch PU/PA/TPR/PP industrial caster wheels

Name: Medium duty stainless steel casters SS304 stainless steel 2.5/3/3.5/4/5/6 inch PU/PA/TPR/PP industrial caster wheels
Brand: Medium duty stainless steel caster wheels
Price: $7 - 9 / Piece

FOB Price

7 - 9 / Piece

300 Pieces(Min.Order)

Supply Ability 10100000 Piece / Pieces per Month
Port shenzhen
Payment Terms:T/T L/C
Delivery Detail:20 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

Medium duty stainless steel caster wheels

Place of Origin:

China

Model Number:

2-2.5U01R-401V

Product Description

CARSUN 2 series stainless steel medium duty Caster wheel

stainless steel medium duty Industrial Castor rigid caster wheels
Customizable 2.5inch,3inch, 3.5inch, 4inch,5inch,6inch casters

Can customize stainless steel TPR casters,stainless steel nylon casters, stainless steel heat-resistant casters,Stainless steel polyolefin casters.

We are a professional manufacturer of industrial caster wheels. We can produce different types of casters according to your
requirements.

please send the inquiry if interested.
(Click the picture on the right to contact us.)

Support Description: The thickness of top plate is 4mm. The top plate and rotary table are stainless steel castings. Plane
supporting structure is adopted, which is durable, replaceable and convenient for maintenance.

PRODUCT SPECIFICATIONS

Wheel Diameter (mm）	Tread Width (mm)	Capacity Per CaSter (kg)	Wheel	Bearing	Model number		Load Height (mm)	Swivel Radius (mm)
					Swivel	Rigid
65	32	90	Polyurethane	Delrin+SS Tubing	2-25U01S-401V	2-25UO1R-401V	91	56
		100	White Nylon		2-25UO1S-201V	2-25UO1R-201V
75	32	100	TPR	Delrin+SS Tubing	2-3U01S-301V	2-3U01R-301V	105	75
				SS Single Ball	2-3U01S-301Y-1	2-3U01R-301Y-1
			Polyurethane	Delrin-SS Tubing	2-3U01S-401V	2-3U01R-401V
				SS Single Ball	2-3U01S-401Y-1	2-3U01R-401Y-1
		110	White Nylon	Delrin+SS Tubing	2-3U01S-201V	2-3U01R-201V
				SS Single Ball	2-3U01S-201Y-1	2-3U01R-201Y-1
		90	Polyolefin	Delrin+SS Tubing	2-3U01S-101V	2-3U01R-101V
				SS Single Ball	2-3U01S-101Y-1	2-3U01R-101Y-1
		136	Thermo	SS Tubing	2-3U01S-551W	2-3U01R-551W
90	32	110	TPR	Delrin+SS Tubing	2-35U01S-301V	2-35UO1R-301V	119	78
				SS Single Ball	2-35U01S-301Y-1	2-35UO1R-301Y-1
			Polyurethane	Dellrin+SS Tubing	2-35UO1S-401V	2-35UO1R-401V
				SS Single Ball	2-35U01S-401Y-1	2-35UO1R-401Y-1
		114	White Nylon	Delrin+SS Tubing	2-35UO1S-201V	2-35UO1R-201V
				SS Single Ball	2-35U01S-201Y-1	2-35U01R-201Y-1
		91	Polyolefin	Delrin+SS Tubing	2-35UO1S-101V	2-35UO1R-101V
				SS Single Ball	2-35U01S-101Y-1	2-35UO1R-101Y-1
		136	Thermo	SS Tubing	2-35U01S-551W	2-35UO1R-551w
100	32	136	TPR	Delrin+SS Tubing	2-4001S-301V	2-4U01R-301V	130	84
				SS Single Ball	2-4U01S-301Y-1	2-4U01R-301Y-1
			Polyurethane	Delrin+SS Tubing	2-4U01S-401V	2-4U01R-401V
				SS Single Ball	2-4U01S-401Y-1	2-4U01R-401Y-1
			White Nylon	Delrin+SS Tubing	2-4U01S-201V	2-4U01R-201V
				SS Single Ball	2-4U01S-201Y-1	2-4U01R-201Y-1
		114	Polyolefin	Delrin-SS Tubing	2-4U01S-101V	2-4U01R-101V
				SS Single Ball	24U01S-101Y-1	2-4U01R-101Y-1
		136	Thermo	SS Tubing	2-4U01S-551W	2-4U01R-551W
			QS-TPR	SS Single Ball	2-4001S-305Y-1	2-4U01R-305Y-1
125	32	125	TPR	Delrin+SSTubing	2-5U01S-301V	2-5U01R-301V	157	103
				SS Single Ball	2-5U01S-301Y-1	2-5U01R-301Y-1
			Polyurethane	Delrin+SS Tubing	2-5U01S-401V	2-5U01R-401V
				SS Single Ball	2-5U01S-401Y-1	2-5U01R-401Y-1
			White Nylon	Delrin+SS Tubing	2-5U01S-201V	2-5U01R-201V
				SS Single Ball	2-5U01S-201Y-1	2-5U01R-201-1
			Polyolefin	Delrin+SS Tubing	2-5U01S-101V	2-5U01R-101V
				SS Single Ball	2-5U01S-101Y-1	2-5UD1R-101Y-1
			Thermo	SS Tubing	2-5U01S-551W	2-5U01R-551W
150	32	146	QS-TPR	SS Single Ball	2-5U01S-305Y-1	2-5U01R-305Y-1	185	118
			Pure Nylon	Dolrin+SS Tubing	2-6U01S-203V	2-6U01R-203V
			Polyolefin		2-6U01S-101V	2-6U01R-101V
			Thermo	SS Tubing	2-6U01S-551W	2-6U01R-551W

The prices of different models are different. Please contact us for quotation, thank you.

Successful Project

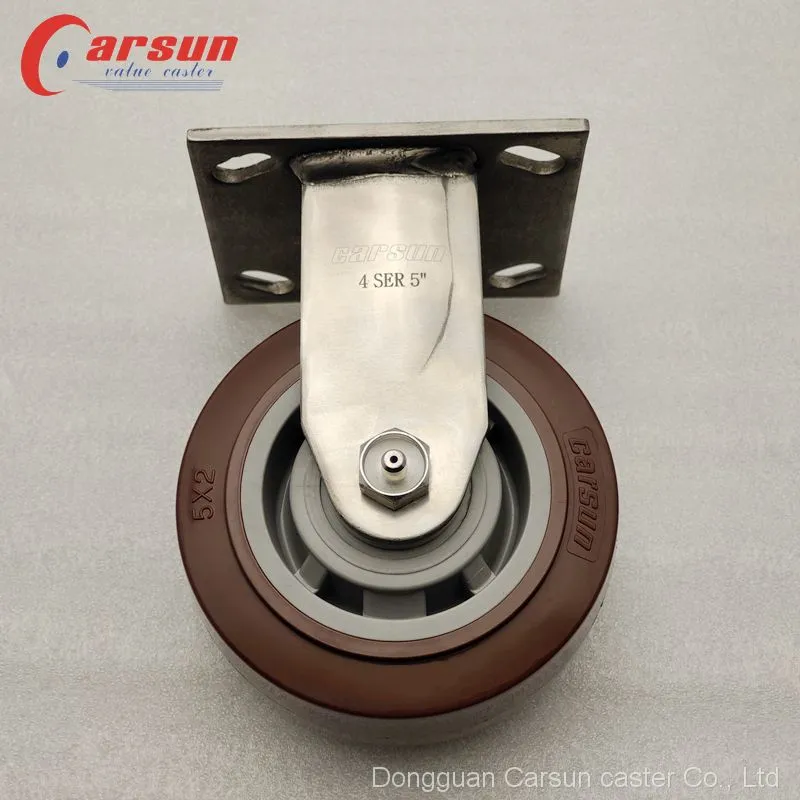

Heavy duty 5-inch stainless steel casters fixed PU caster wheel

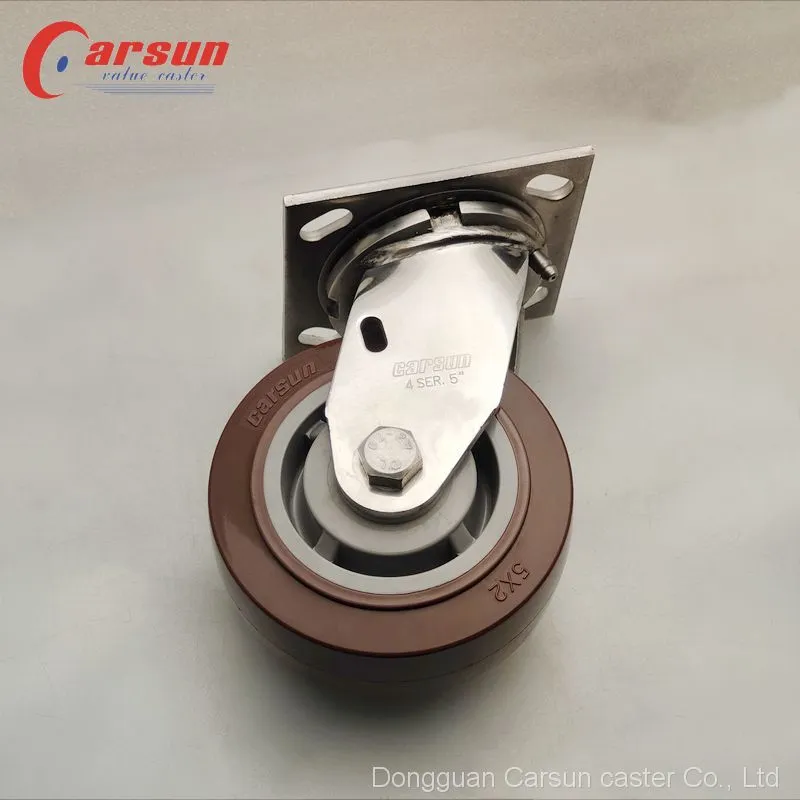

Heavy duty 5-inch stainless steel casters swivel PU caster wheel

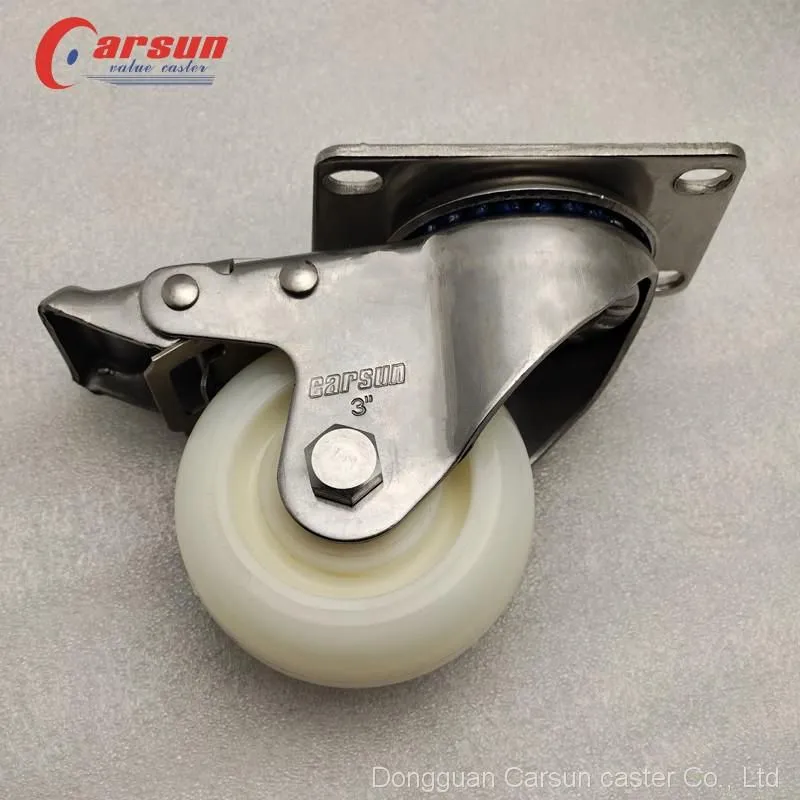

Medium 3-inch stainless steel casters swivel nylon caster wheel

Company Profile

FAQ

Q1.Are you a factory or a trader? A: we are a powerful factory established in Dongguan, Guangdong, China, with a factory area of about 8000 square meters. It has 8 injection molding machines, 10 stamping machines, 2 oil presses, 1 double station welding machine, 2 single station welding machines, 2 automatic rivet machines, 6 caster assembly lines and other automatic equipment.

Q2. Can I get free caster wheel samples from Stardrawing ?
A: We would be honor to offer you free caster samples, and we believe that you would be willing to pay for the freight fee
forsuchgood products. Please provide your DHL/FedEx or other freight collect number and advise which express type should be chosen,international express type(2~3days) or economic type (4~5days).

Q3. What is your payment terms of caster ?
A: It is undisputable and crystal clear that 30% advanced payment, 70% before shipment, hope we have reached agreement for thisregular payment manner.

Q4. What about your lead time ?
A: Usually, caster sample needs 5-7 days, mass production time needs 30 days. It is up to the quantity and stocking.

Q5. Is it OK to print my logo on casters ?
A: Sure.
Option 1 - Build the molds and fixtures upon your sample or technical drawings
Option 2 - Add your logo on fork or wheel
Option 3 - Pack the casters in your branded carton

Q6. How can I trust the quality of your casters ?
A: We tell you that we have variety of international quality certificates, we have a very strict quality control system, we do
aseries of caster tests before shipping. Right, you still have no idea about our quality. Therefore, no hesitate! Just place
atrial order from Stardrawing. You will not only trust the quality of casters, but also trust the character of Stardrawing people since then.

Q7. What express can we choose?
A: FedEx,UPS,DHL,TNT etc.

Q8. What is you MOQ?
A: Small order can be accepted if we have stock. MOQ for different styles is different.

Q9. If you product is environmental protection and anti-rust?
A: Of course,all our products are ECO-friendly.
