4 Inch Stainless Steel SS304 Castors Active High Temperature Thermo 250℃ Caster Wheels

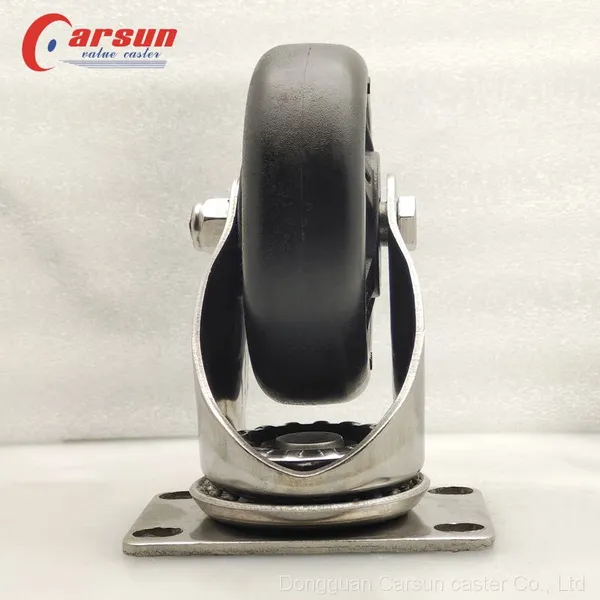

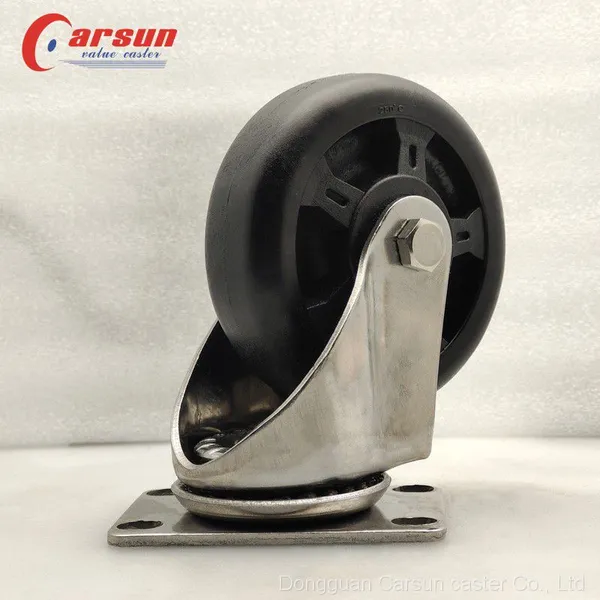

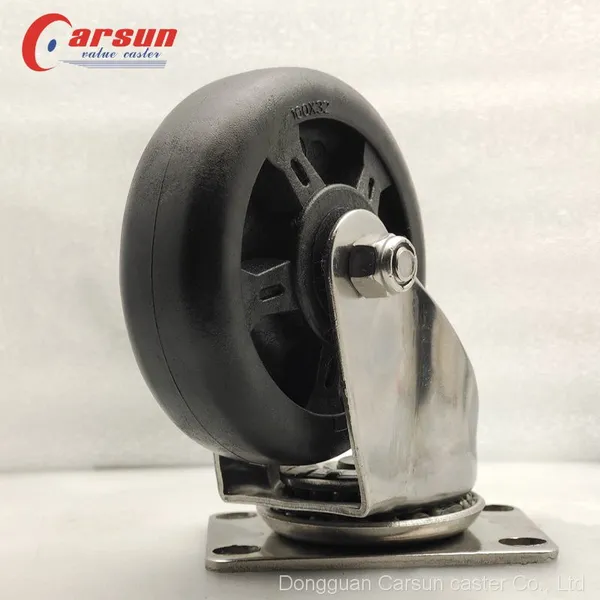

4 Inch Stainless Steel SS304 Castors Active High Temperature Thermo 250℃ Caster Wheels photo-1
4 Inch Stainless Steel SS304 Castors Active High Temperature Thermo 250℃ Caster Wheels photo-2
4 Inch Stainless Steel SS304 Castors Active High Temperature Thermo 250℃ Caster Wheels photo-3
4 Inch Stainless Steel SS304 Castors Active High Temperature Thermo 250℃ Caster Wheels photo-4
4 Inch Stainless Steel SS304 Castors Active High Temperature Thermo 250℃ Caster Wheels photo-5
US$ 4.2 - 5.5 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Brand Name:
medium duty heat resistant casters high temperature caster wheels
Place of Origin:
China
Model Number:
2-4U01S-551W
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
20 days
Brand Name medium duty heat resistant casters high temperature caster wheels
Place of Origin China
Model Number 2-4U01S-551W
2-35T01S-551G
   2 series 3.5 inch movable high temperature 250℃ caster (double ball bearing)Industrial Caster wheel
   Customizable 3inch, 4inch, 5inch and 6 inch casters

Support Description:Surface galvanized.The thickness of the top plate is 4mm. The top plate and rotary table are steel castings. They are of plane bearing structure, durable, replaceable and easy to repair.

Description of wheel piece: Specially developed formula made of high temperature resistant materials. High temperature resistance 250, 280, 300 can be customized.
which is used to protect the ground and is super wear-resistant, high load-bearing and high durability.

PRODUCT SPECIFICATIONS
Wheel Diameter
Tread Width
Capacity Per Caster
Wheel
Bearing
Model number
Load Height
Swivel Radius
(mm)
(mm)
(kg)
Swivel
Rigid
(mm)
(mm)
75
32
136
Thermo
Semi-steel Plain
2-3T01S-551A
2-3T01R-551A
105
75
Double ball
2-3T01S-551G
2-3T01R-551G
90
32
136
Thermo
Semi-steel Plain
2-35T01S-551A
2-35T01R-551A
119
78
Double ball
2-35T01S-551G
2-35T01R-551G
100
32
136
Thermo
Semi-steel Plain
2-4T01S-551A
2-4T01R-551A
130
84
Double ball
2-4T01S-551G
2-4T01R-551G
125
32
136
Thermo
Semi-steel Plain
2-5T01S-551A
2-5T01R-551A
157
103
Double ball
2-5T01S-551G
2-5T01R-551G
150
32
146
Thermo
Semi-steel Plain
2-6T01S-551A
2-6T01R-551A
185
118
Double ball
2-6T01S-551G
2-6T01R-551G
The prices of different models are different. Please contact us for quotation, thank you.
Company Profile
FAQ
Q1.Are you a factory or a trader?
A: we are a powerful factory established in Dongguan, Guangdong, China, with a factory area of about 8000 square meters. It has 8 injection molding machines, 10 stamping machines, 2 oil presses, 1 double station welding machine, 2 single station welding machines, 2 automatic rivet machines, 6 caster assembly lines and other automatic equipment.

Q2. Can I get free caster wheel samples from Stardrawing ?
A: We would be honor to offer you free caster samples, and we believe that you would be willing to pay for the freight fee
forsuchgood products. Please provide your DHL/FedEx or other freight collect number and advise which express type should be chosen,international express type(2~3days) or economic type (4~5days).

Q3. What is your payment terms of caster ?
A: It is undisputable and crystal clear that 30% advanced payment, 70% before shipment, hope we have reached agreement for thisregular payment manner.

Q4. What about your lead time ?
A: Usually, caster sample needs 5-7 days, mass production time needs 30 days. It is up to the quantity and stocking.

Q5. Is it OK to print my logo on casters ?
A: Sure.
Option 1 - Build the molds and fixtures upon your sample or technical drawings
Option 2 - Add your logo on fork or wheel
Option 3 - Pack the casters in your branded carton

Q6. How can I trust the quality of your casters ?
A: We tell you that we have variety of international quality certificates, we have a very strict quality control system, we do
aseries of caster tests before shipping. Right, you still have no idea about our quality. Therefore, no hesitate! Just place
atrial order from Stardrawing. You will not only trust the quality of casters, but also trust the character of Stardrawing people since then.

Q7. What express can we choose?
A: FedEx,UPS,DHL,TNT etc.

Q8. What is you MOQ?
A: Small order can be accepted if we have stock. MOQ for different styles is different.

Q9. If you product is environmental protection and anti-rust?
A: Of course,all our products are ECO-friendly.
Product Tags: Thermo caster , heat resistant casters , high temperature caster , Medium Duty Caster , Caster , swivel caster , caster wheels , 4 inch caster , castor
