Product Overview

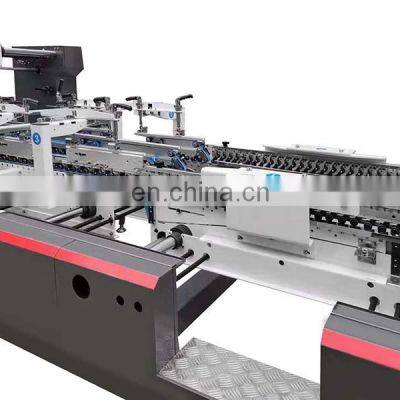

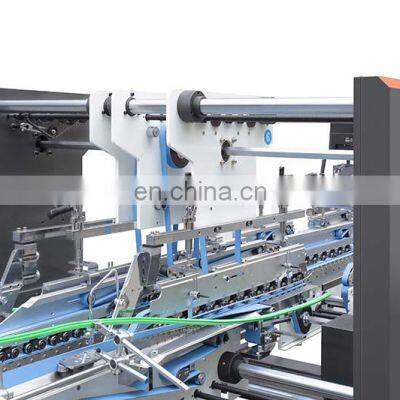

XS-1250/1450 Automatic Folder Gluer Machine

1.This machine adopts a color touch screen human-machine control system. The belts on both sides of the fold adopt servo motors to follow the lower belt to increase and decrease, synchronous tracking parameter setting system, and the transmission speed of the main machine and the press conveying section automatically increases and decreases. Synchronous tracking parameter setting system.

2. Each section of the machine is moved and adjusted by electric movement, which is simple and convenient, fast and efficient for single person to operate.

3. High-power stepless speed-regulating frequency conversion and high-efficiency powerful motor. The maximum speed can reach 400m/min, and the power transmission adopts multi-ribbed belt, which has low noise, high efficiency, easy maintenance, and is in line
with economic and high efficiency.

4. All functional components of this machine are modularized, which is convenient and quick to combine, and it saves time for changing the box-making products and debugging. Beginners are easy to master the technology, easy to understand and learn.

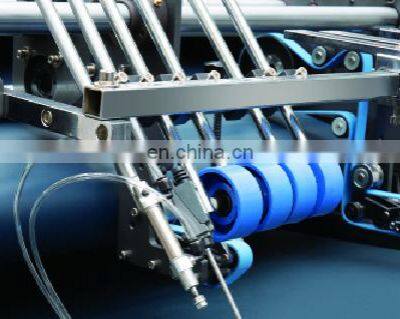

5. The left and right bottom glue cylinders and glue spraying system are matched with the unique design of the bottom locking product.

6. Using photoelectric counting, total or quantitative counting is possible, and it is equipped with kick board mark and waterv spray mark to distinguish the quantity
FEATURES AT A GLANCE

•Easy to operate
•Modular design, easy to change box type
•Human interface, PLC control system
•Remote Diagnostic Maintenance System
•Adjustable speed automatically or manually
•Independent motor drive
•Electronic kick paper counting module
PRODUCT SPECIFICATIONS
No
Item
Data
1
Model
XS-1250
XS-1450
XS-1650
2
Material
200-800 gms cardboard and N、E、F&B flute corrugated board
3
Max speed
0-400 m/min
4
Inching Speed
30m/min
5
Max blank width
1250mm
1450mm
1650mm
6
Weight
9000kgs
10000kgs
11000kgs
7
Size
15200*1250*2200mm
15200*1450*2400mm
15700*1650*2600mm
8
Mechanical power
23kw
23kw
23kw
PRODUCT CONFIGURATION
Feeder
Alignment
Lock bottom
Lower Gluing tanks
Folding section
Transfer section
PACKING & DELIVERY
COMPANY PROFILE


Why Choose Us?

1. With 11 years' Experience
2. Having ISO 9001-Certified Factory
3. Strong R&D capability
4. High Quality Guaranteed
5. First Class Service And Best Prices

New Star Machinery international Limited And glory packing material produce kinds of laminating machine and uv coating machine and BOPP Thermal film metallizde PET And 3D , Soft touch film . With the development and innovation of post-press equipments, our company has carried on deep research and development to post-press equipments combining the features of printing & packing industry home and abroad. The products occupy sizable market at home and also have been expanded to all over the world.
Laminating Machine
Coating Machine
Vertical Laminating Machine
Folder Gluer
Die Cutting Machine
Hot Stamping Machine
Flute Laminating Machine
Rigid Box Machine
Paper Tube Machine
FAQ
Q1: What it is advantage of your products?
A1: Easily operation and simply maintenance. Also coat effective in market.
Q2: How long for the guarantee?
A2: 12 month free warranty.
Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.
Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.
Q5: What is the brands for the electrical system?
A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.
Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.
Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.
Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
