Product Description
PRODUCT OVERVIEW
TC-850A Full Automatic High Speed Window Patching Machine
Suitable for automatic window filming of window cartons such as tissue boxes, cosmetic boxes, gift boxes, clothing boxes, toy boxes, etc. Corrugated paper is also suitable, and special-shaped cartons are also easy to operate.
FEATURES AT A GLANCE
1.Hob cutting film + Single group film applicator
2.Servo motor paper feeding & film feeding
3.Servo motor film feeding
4.Paper receiving stepper with batch counting
5. Paper vacuum adsorption transport
6.Double sheet / empty sheet gluing rising automatically
7.Paper length L < 400mm double sheet mode
2.Servo motor paper feeding & film feeding
3.Servo motor film feeding
4.Paper receiving stepper with batch counting
5. Paper vacuum adsorption transport
6.Double sheet / empty sheet gluing rising automatically
7.Paper length L < 400mm double sheet mode
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Model | TC-850A |
2 | Max paper size | 580*850mm |
3 | Min paper size | 100*100mm |
Paper weight | Kraft paper: 150-1200g/m2 | |
4 | Paper weight | White Cardboard: 230-1200g/m2 |
5 | Laminating speed | Corrugated Paper: ≤3mm |
5 | Max Film | L320*W350mm |
6 | Min Film | L50*W20mm |
7 | Max Diameter Film Unwinding | 400mm |
8 | Work Speed | 13000 pcs/h |
9 | Quantity of Servo Motor | 2 sets (1 set of paper feeding part; 1 set of film feeding part) |
10 | Quantity of Stepping Motor | 2 sets (1 set of automatic paper delivery, 1 set of knife holder left and right) |
11 | Machine Size | 4600*1500*1600mm |
12 | Power | 380/415V 50/60Hz 5.5KW |
13 | Weight | 1680kg |
PRODUCT CONFIGURATION

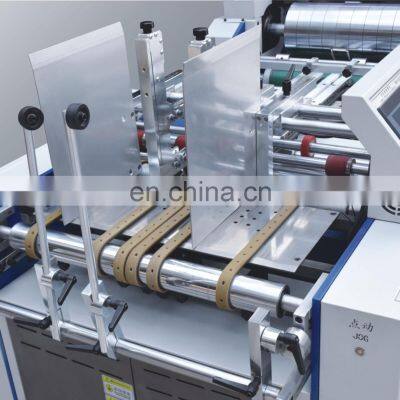

Paper feeding section
Operating interface
The paper conveying belt adopts the Japanese Nita brand and durable beef tendon belts, which can be selected according to product needs. If there are many UV products, you can choose Japanese Nita belts to solve the problem of uneven paper conveying. The bottom belt vacuum absorbs the paper and is driven by a servo motor, which can switch multiple paper feeding modes.
All the parameters and functions of the switch are operated in the touch screen, and the operation panel is equipped with a "Inch, start, stop, speed adjust" quick operation button.

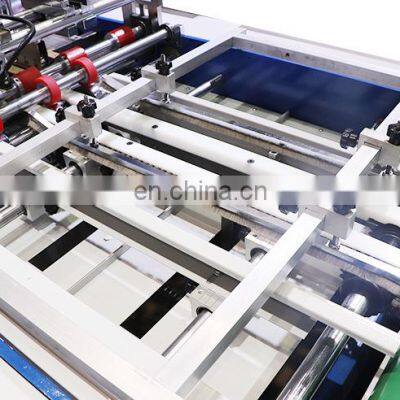

Positioning Department
Glue department
Chain guides are made of imported polymer materials, wear-resistant and mute, and paper positioning is made of square pushers to increase the stability of paper in high-speed operation.
The special mechanical structure design applies the glue to the product surface quickly and evenly through the sponge gluing method, with good scraping effect.

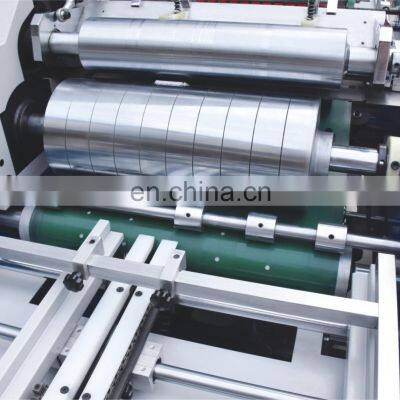

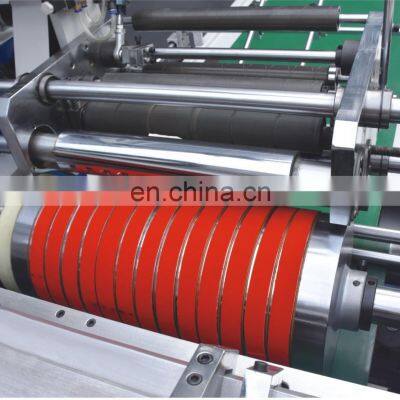

Film section
Delivery station
The film feeding adopts servo motor transmission and roller adsorption for continuous pasting. Compared with the traditional intermittent pasting, it has the advantages of fast bonding speed, high precision, and low requirements on the film.
The delivery table uses a separate stepping motor to control the belt operation, the stacking distance can be adjusted as a whole or in sections, and it runs at multiple speeds. It can be continuous, paused, and points can be used flexibly.
PACKING & DELIVERY
COMPANY PROFILE
Why Choose Us?
Strong Manufacturer in post-press equipment for over 12 years
Primary strengths of R&D's professional team of 25 engineers
Complete solution ready for whole production line
Competitive prices help develop the market faster
Best-in-class response speed in 24 hours
Whenzhou Feihua Printing Machinery Co., Ltd produces kinds of laminating machine, uv coating machine, folder gluer machine, die cutting & hot stamping machine, paper tube paper box forming machine and BOPP Thermal film, PET metallized film , Soft touch film, etc . With the development and innovation of post-press equipments, our company has carried on deep research and development to post-press equipments combining the features of printing & packing industry home and abroad. The products occupy sizable market at home and also have been expanded to all over the world.
Laminating Machine
Coating Machine
Vertical Laminating Machine
Folder Gluer
Die Cutting Machine
Hot Stamping Machine
Flute Laminating Machine
Rigid Box Machine
Paper Tube Machine
FAQ
Q1: What it is advantage of your products?
A1: Easily operation and simply maintenance. Also coat effective in market.
Q2: How long for the guarantee?
A2: 12 month free warranty.
Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.
Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.
Q5: What is the brands for the electrical system?
A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.
Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.
Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.
Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
A1: Easily operation and simply maintenance. Also coat effective in market.
Q2: How long for the guarantee?
A2: 12 month free warranty.
Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.
Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.
Q5: What is the brands for the electrical system?
A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.
Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.
Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.
Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
