Automatic Paper Label Film Unwind Rewind Machine

rewinder ,

this one it is an customized rewinder for our customer

Technical Data as below :

model	max feeding width (mm)	main engineer power (kw)	speed (m/min)	size (mm)
DP -650	650	3	30--80	1400*1200*1300mm
	Feeding diameter (mm)	Rewinding diameter (mm)	presicion (mm)	Voltage (v)
	76-1000mm	25.4-1000mm	±0.1	1 phase 220V 50HZ
Machine Size	Net  weight	Gross weight	Main Motor Power	Total power
1250*1150*1250mm	150KG	200KG	1.1KW	2KW

configuration list as below

include
1 air shaft 3"  ( unwinding part )

1 air shaft 1 "    ( rewinding shaft )

with one pneumatic for the support of rewinder shaft

2 Nip Roller

Pneumatic cylinder for Nip roller gap adjustment

Steel  plate for cutting part

1 Frequency Controller
1 DC motor control panel
1 DC motor gear reducer
1 clockwise or counter switch
1 speed controller

Meter counter

Tension controller

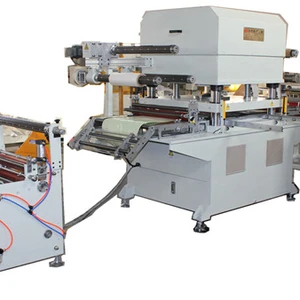

This machine is the supporting equipment for die cutting machine and sheet cutter.
used for unwind and rewind roll materials.
Feeding Width: 650mm

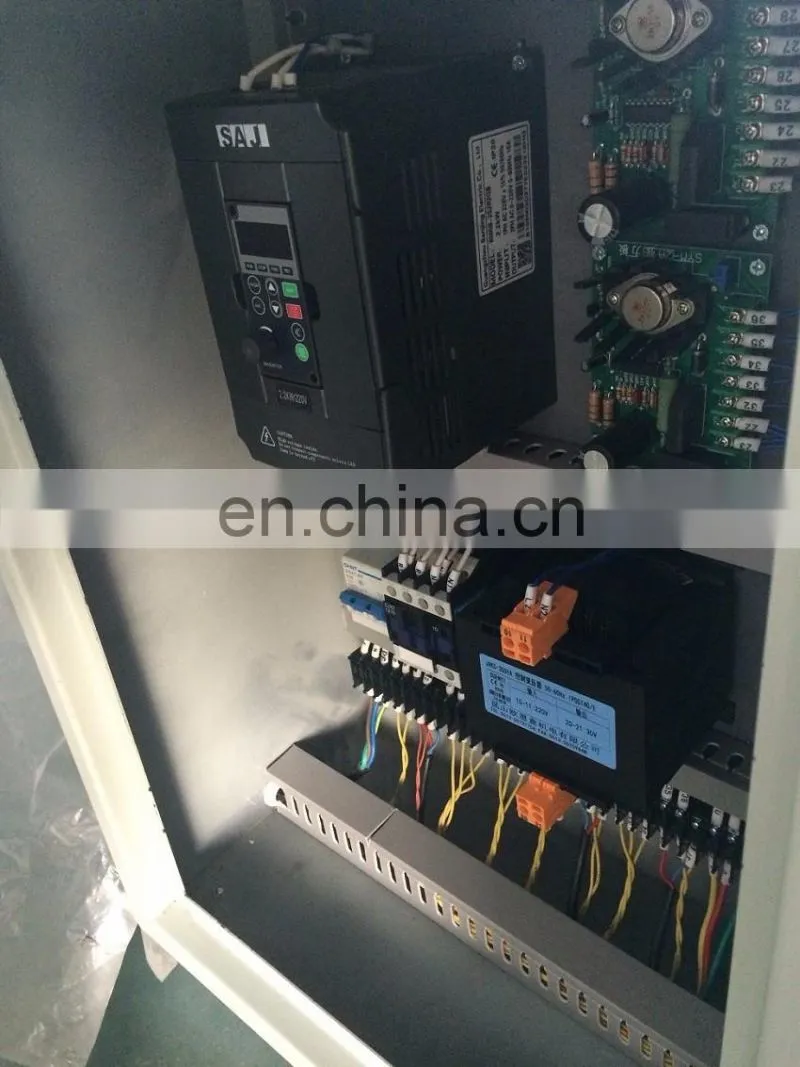

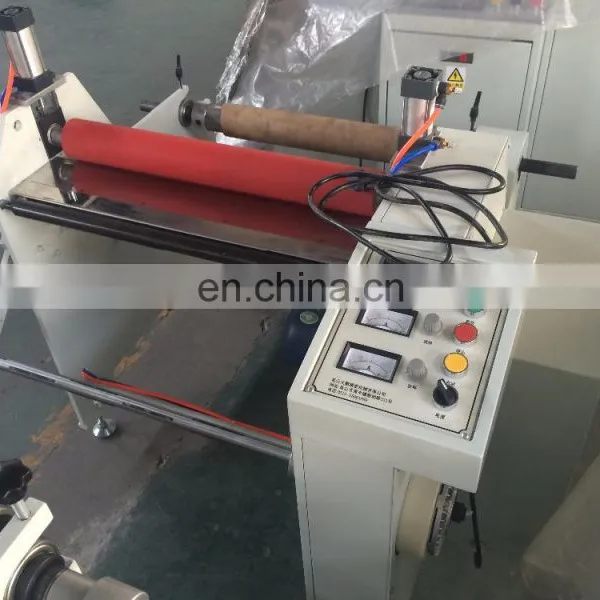

650 rewinder electric box

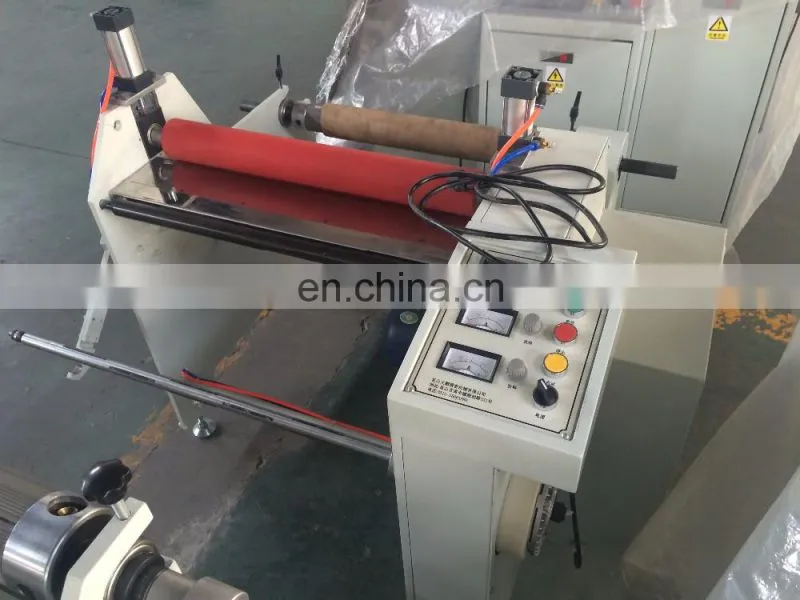

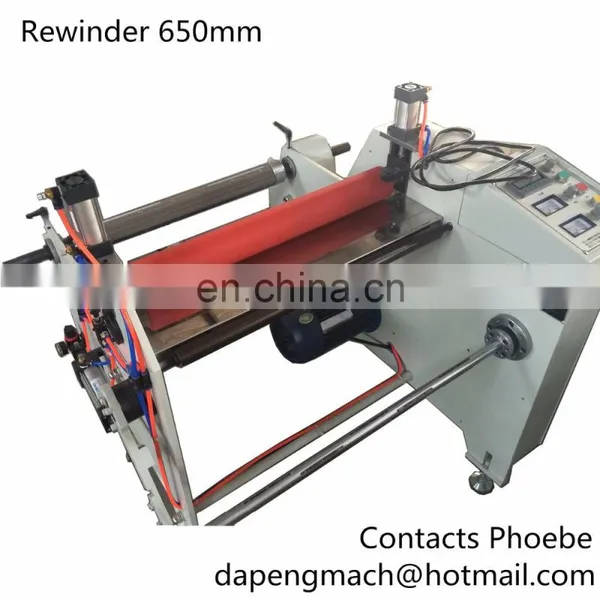

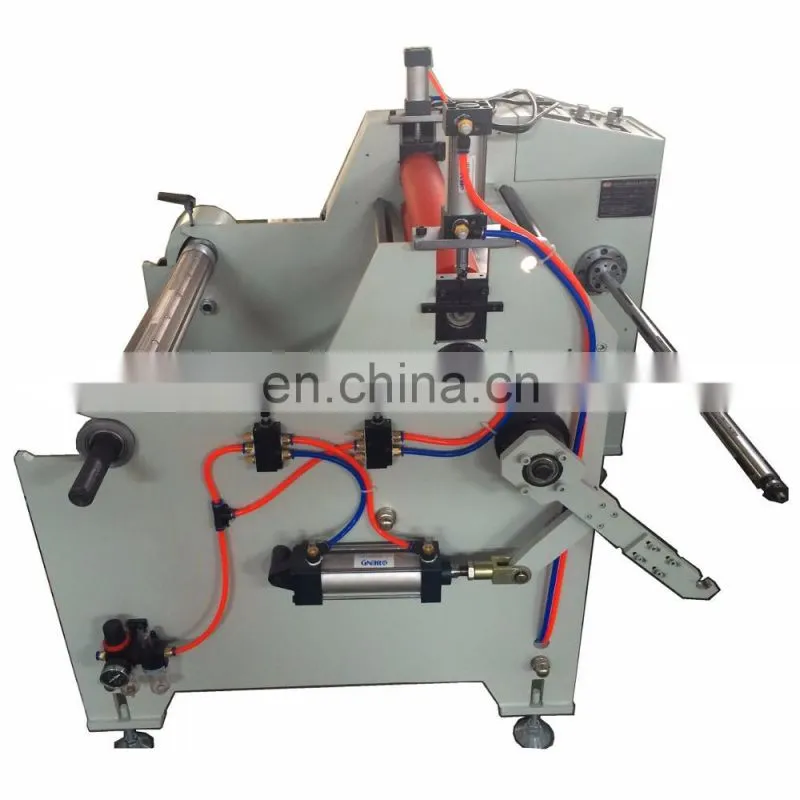

650 rewinder

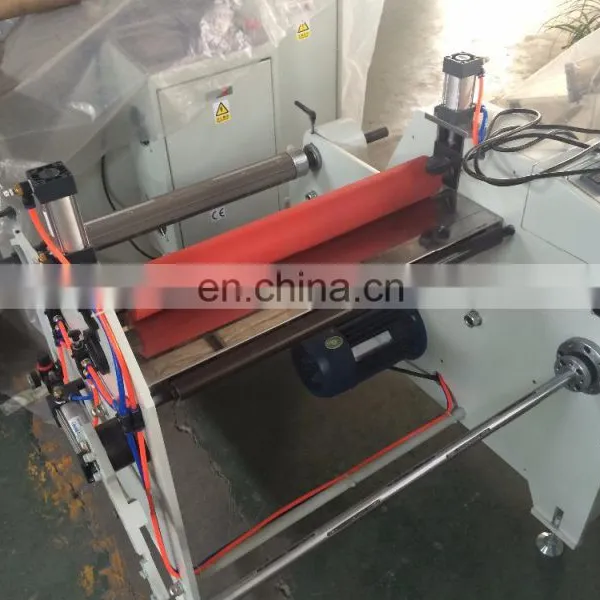

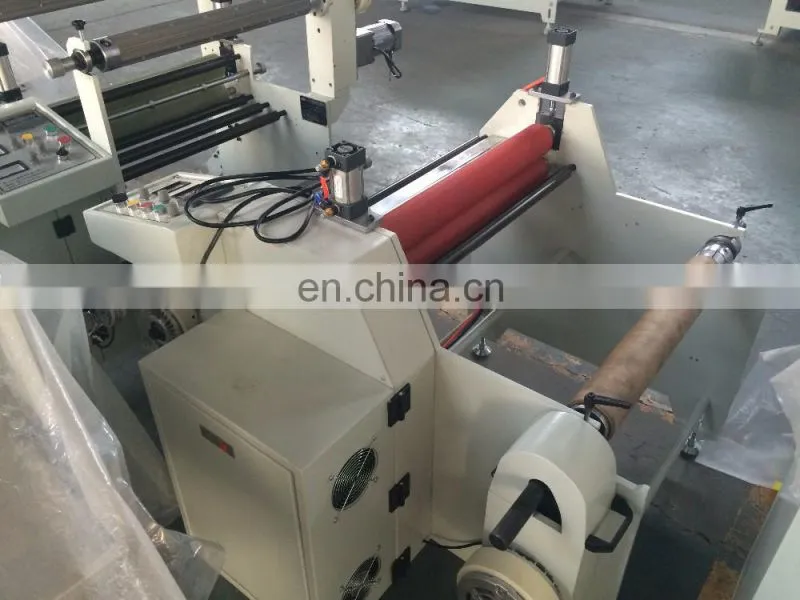

650 rewinder

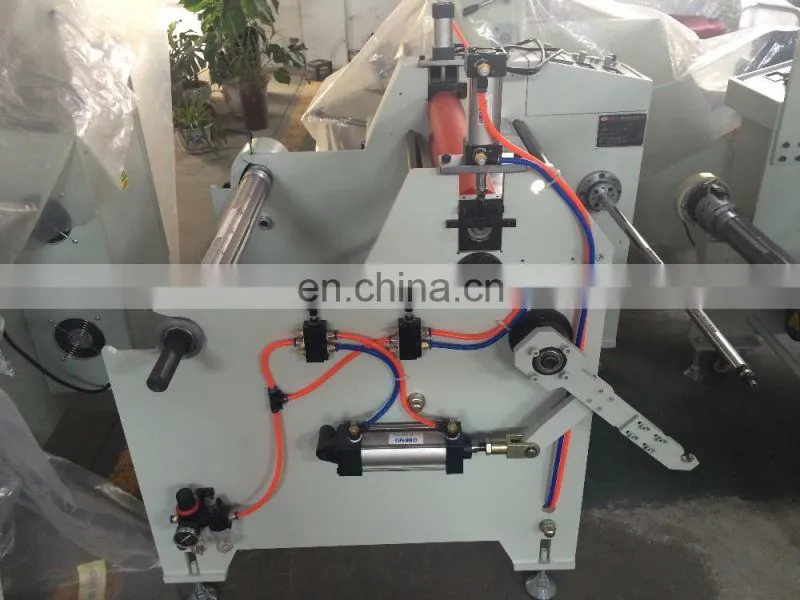

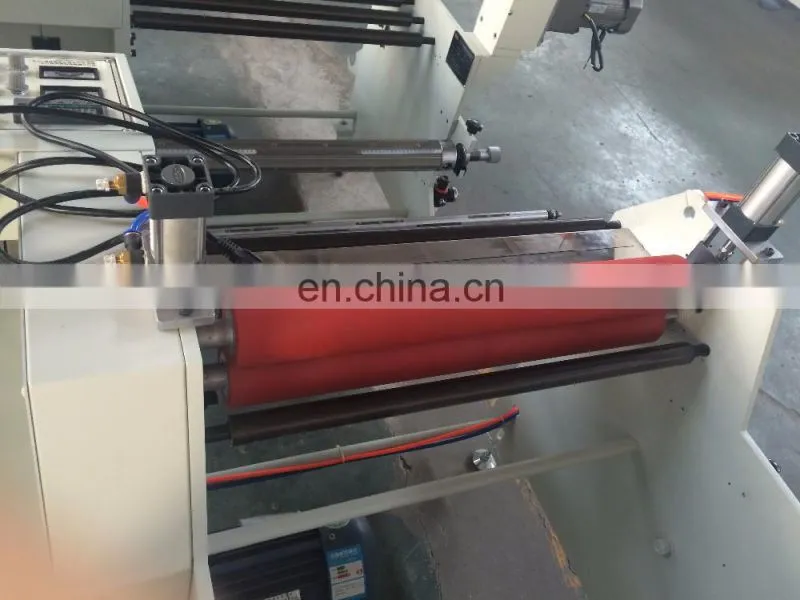

NIP ROLLER AND Pneumatic

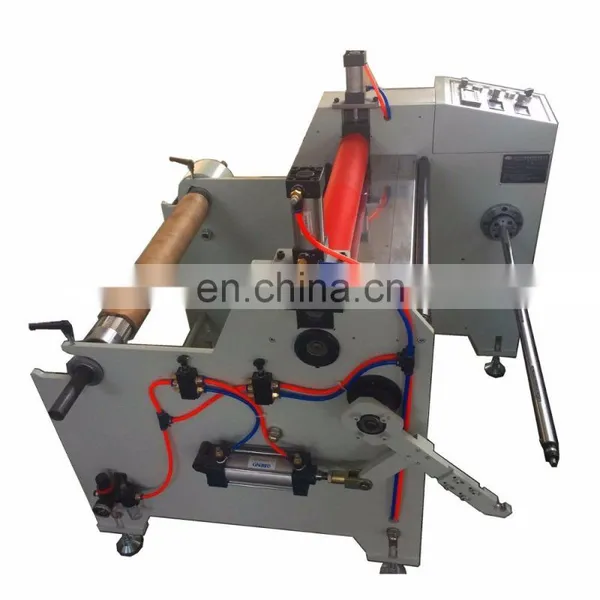

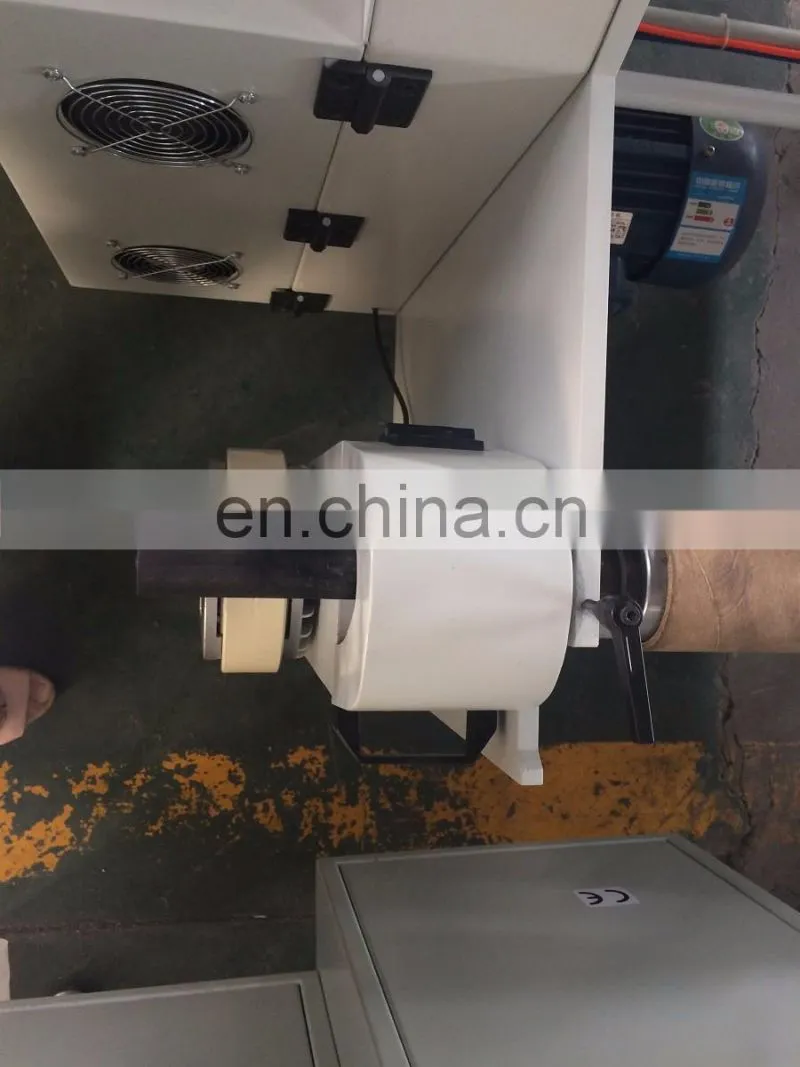

unwinding part side

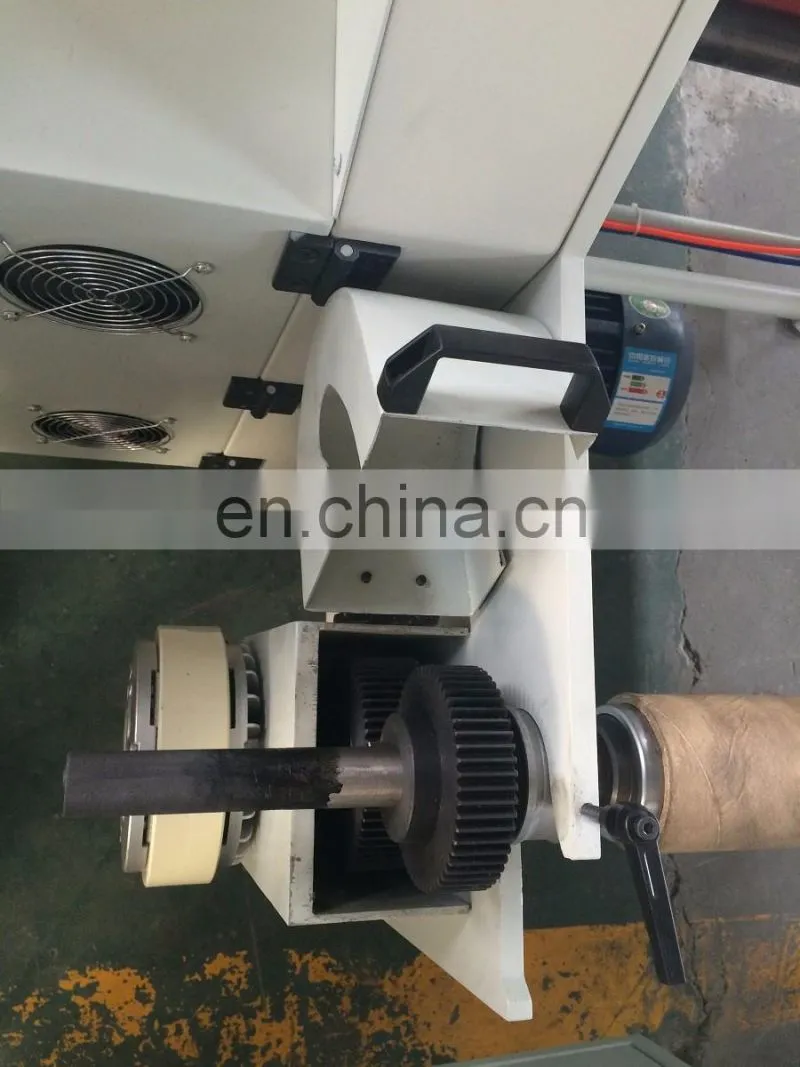

Rewinding part side

And about machine
The rewinder is abel to handle materials up to 650mm width , the speed and rotation
direction are all adjustable , it allows to rewind the material face in or face out ,
the tension arm adjusts the speed rotation : when it is down , the rewinder turns at full speed ,
whereas when the tension arm is up . the rewinder is idle and blocks the motor's ratation when the die cutting
machine stops
Working Method: positive direction, opposite direction, auto-sensing
Max Speed :  70m per minute
