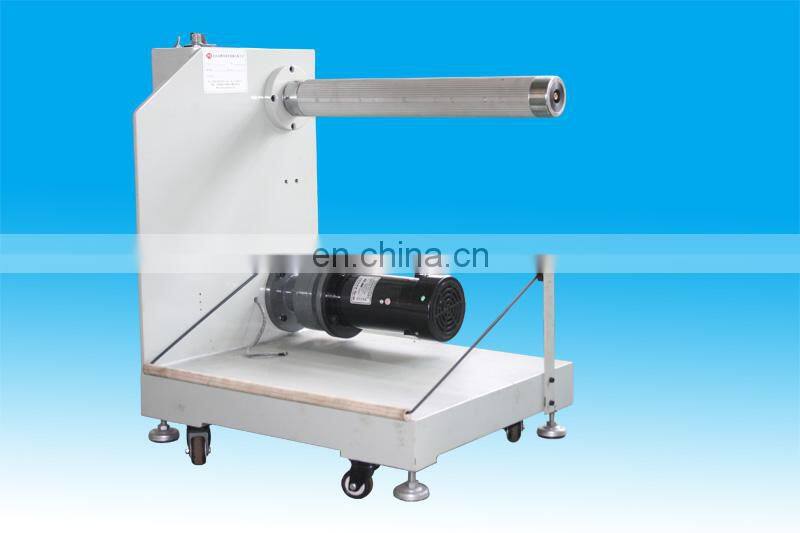

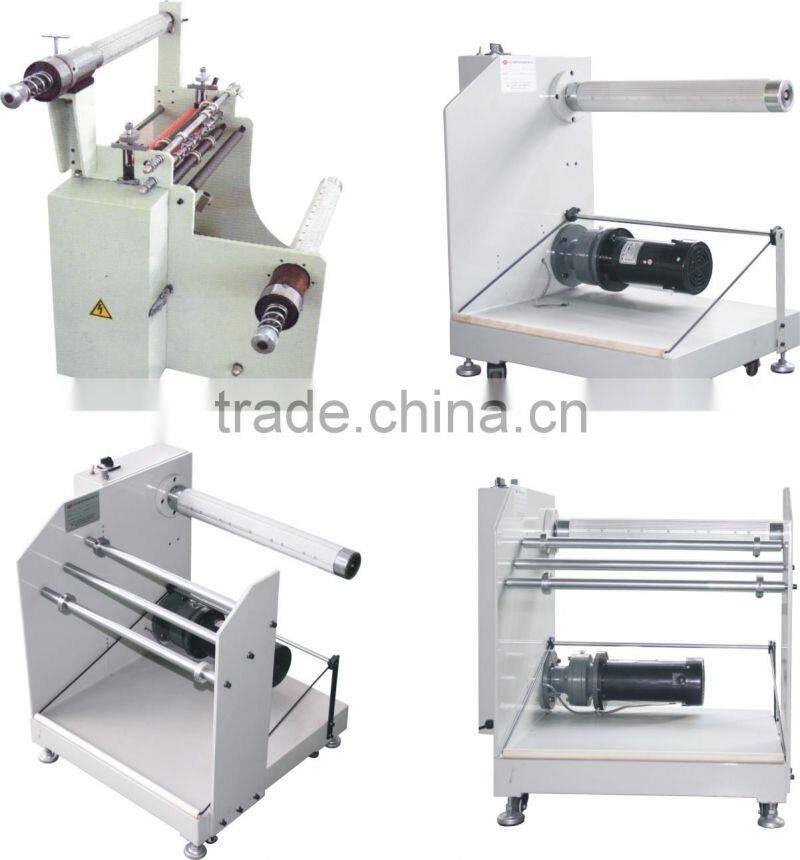

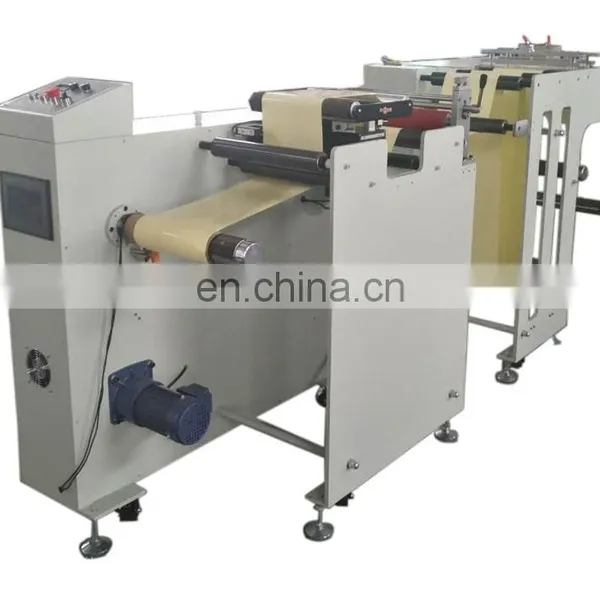

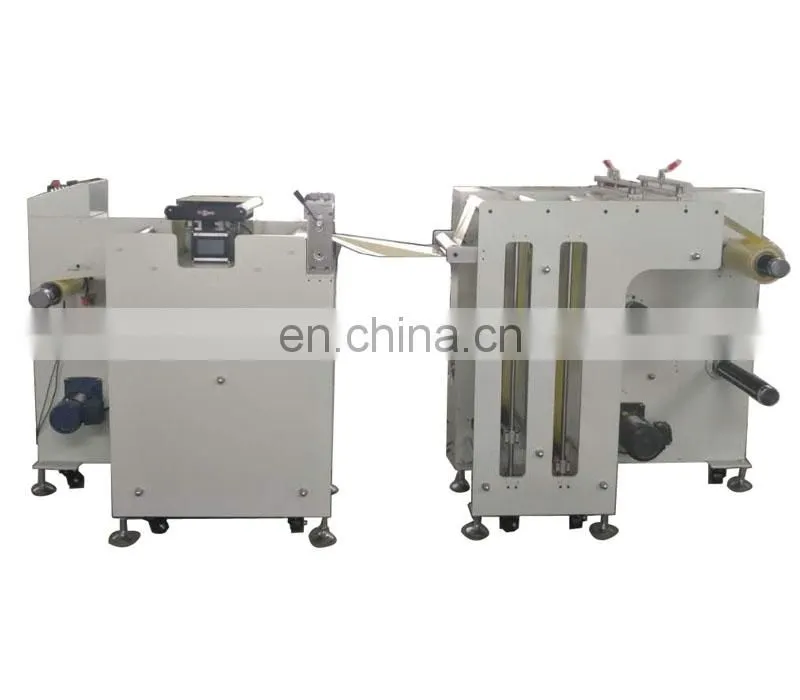

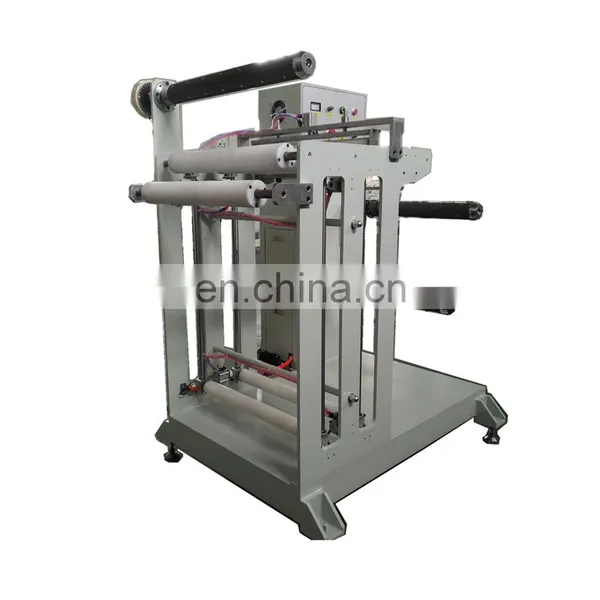

Rewinding and Unwinding Machine
Technical Data:
| DP-350UC | DP-350RC |
| Unwinder 1.Max unwind width:350mm 2.Maximum unwind diameter:350mm 3.Unwind core diameter:3" 4.Top and bottom rewind shaft diameter:3" 5.Max rewind width for top and bottom roller:350mm 6.Max rewind diameter for top and bottom roller:350mm 7.Max rewind roll weight for top and bottom roller:30kg 8.With unwind&rewind mandrel inflatable 9.Max unwind roll weight:30kg 10.Tension can be adjustable,controled by torque motor |
Rewinder 1.Rewinder width:350mm 2.Maximum rewind diameter:350mm 3.Rewind core diameter:3" 4.With rewind mandrel inflatable 5.Max rewind roll weight:30kg 6.With rectification. 7.With servo motor meter length count. 8.With magnetic powder control tension. 9.Precision of the rectification:±0.2mm |
Configuration list:
| DP-350UC | DP-350RC |
| 1.CHNT circuit breaker. 2.CHNT contactor. 3.MEAN WELL switching power supply. 4.OMRON intermediate relay. | 1.DELTA B2 servo motor. 2.MITSUBISHI FX3S PLC. 3.KUNLUNTONGTAI Touch Screen. 4.CHNT 32A circuit breaker and CHNT 1210/1810 contactor. 5.MEAN WELL switching power supply. |
These kind we all are can customize for customer
Size:580mm*600mm*700mm
Running Speed:30-170T/M ( Speed Adjustable )
Roll Size:550mm-560mm
Customized available
