Home > Manufacturing & Processing Machinery > Paper Machinery > Paper Making Machine > Copper Clad Unwind and Rewind Machine for Wet Process Etching Machine

Copper Clad Unwind and Rewind Machine for Wet Process Etching Machine

Kunshan Dapeng Precision Machinery Co., Ltd.

Copper Clad Unwind and Rewind Machine for Wet Process Etching Machine thumbnail-1

Copper Clad Unwind and Rewind Machine for Wet Process Etching Machine thumbnail-2

Copper Clad Unwind and Rewind Machine for Wet Process Etching Machine thumbnail-3

Copper Clad Unwind and Rewind Machine for Wet Process Etching Machine photo-1

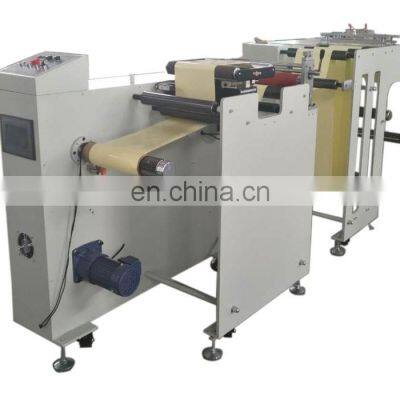

Copper Clad Unwind and Rewind Machine for Wet Process Etching Machine photo-2

Copper Clad Unwind and Rewind Machine for Wet Process Etching Machine photo-3

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Association

Year Established:

2000

Annual Export Value:

US$1.5 Million - US$2.5 Million

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Copper clad unwind and rewind machine for wet process etching machine

Technical Data:

DP-350UC

DP-350RC

Unwinder 1.Max unwind width:350mm 2.Maximum unwind diameter:350mm 3.Unwind core diameter:3" 4.Top and bottom rewind shaft diameter:3" 5.Max rewind width for top and bottom roller:350mm 6.Max rewind diameter for top and bottom roller:350mm 7.Max rewind roll weight for top and bottom roller:30kg 8.With unwind&rewind mandrel inflatable 9.Max unwind roll weight:30kg 10.Tension can be adjustable,controled by torque motor

Rewinder 1.Rewinder width:350mm 2.Maximum rewind diameter:350mm 3.Rewind core diameter:3" 4.With rewind mandrel inflatable

5.Max rewind roll weight:30kg 6.With rectification. 7.With servo motor meter length count. 8.With magnetic powder control tension. 9.Precision of the rectification:±0.2mm

Configuration list:

DP-350UC	DP-350RC
1.CHNT circuit breaker. 2.CHNT contactor. 3.MEAN WELL switching power supply. 4.OMRON intermediate relay.	1.DELTA B2 servo motor. 2.MITSUBISHI FX3S PLC. 3.KUNLUNTONGTAI Touch Screen. 4.CHNT 32A circuit breaker and CHNT 1210/1810 contactor. 5.MEAN WELL switching power supply.
