Unwind and Rewind Machine

DP-320 Rewinder
include
1 air shaft 3"
1 DC motor control panel
1 DC motor gear reducer
1 clockwise or counter switch
1 speed controller
This machine is the supporting equipment for die cutting machine and sheet cutter.
used for unwind and rewind roll materials.

lead time 25 working days

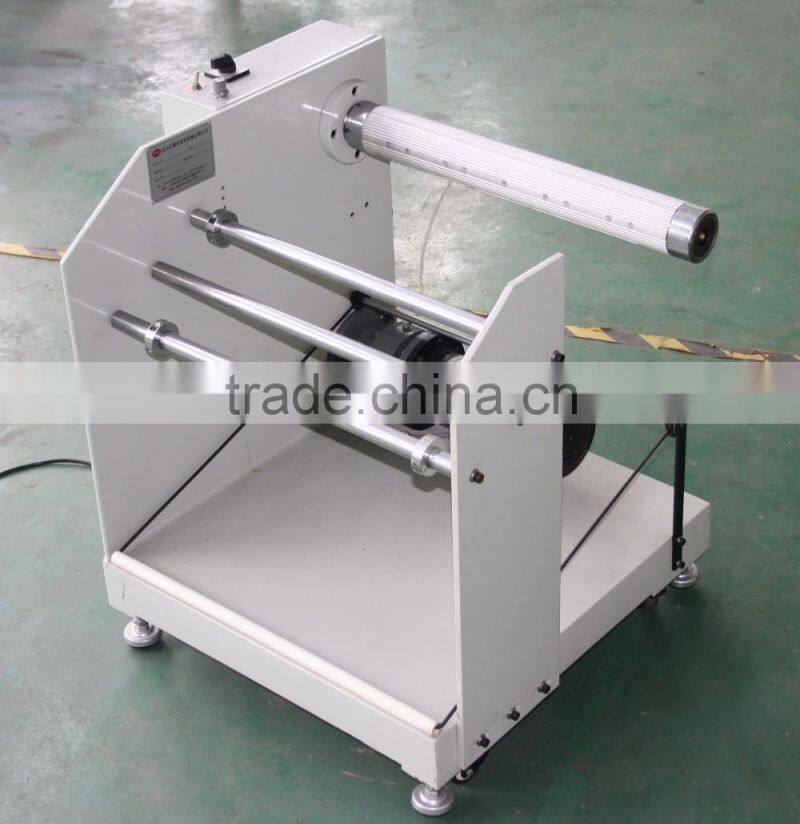

unwinding machine picture

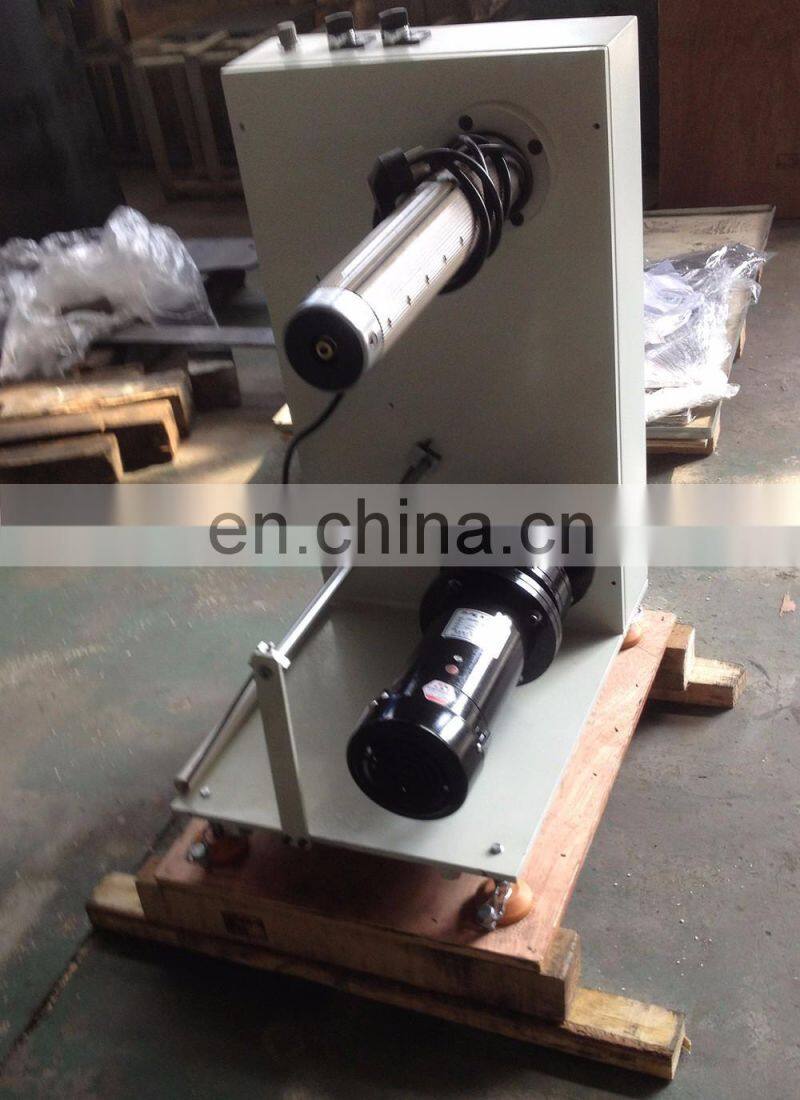

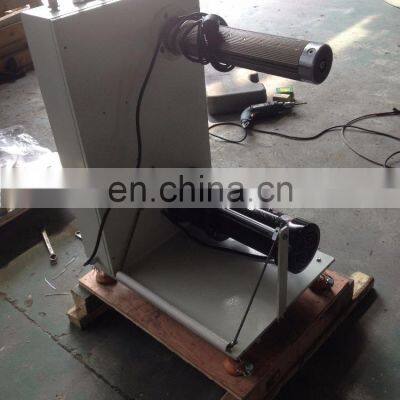

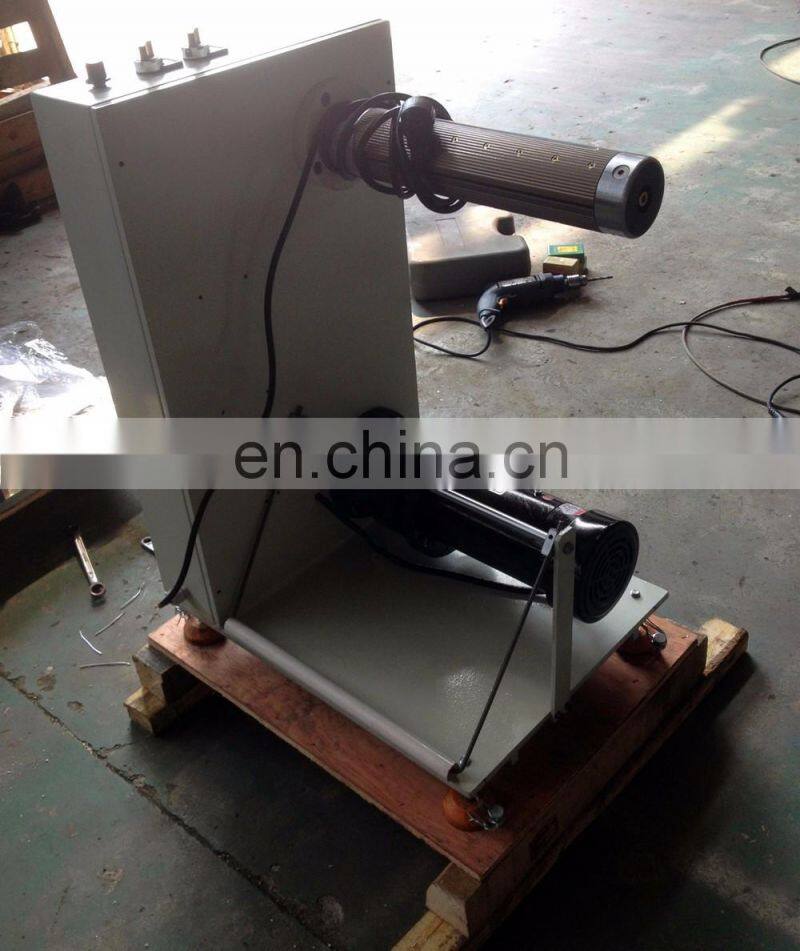

Rewinder Pictures

And about machine
The rewinder is abel to handle materials up to 320mm width , the speed and rotation
direction are all adjustable , it allows to rewind the material face in or face out ,
the tension arm adjusts the speed rotation : when it is down , the rewinder turns at full speed ,
whereas when the tension arm is up . the rewinder is idle and blocks the motor's ratation when the die cutting
machine stops
Working Method: positive direction, opposite direction, auto-sensing
Max Speed : 12 inch/s (300mm/s)
