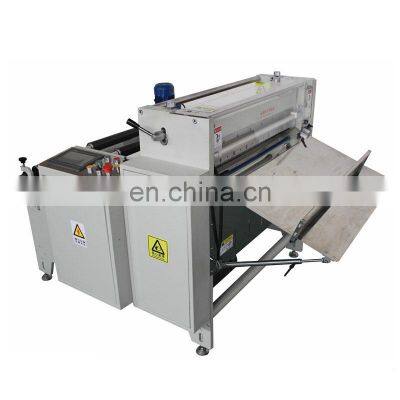

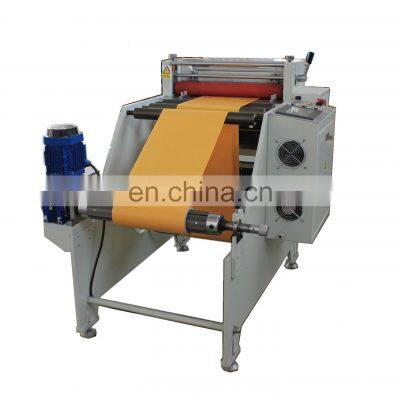

Paper Roll to Sheet Cutting Machine
Functional Characteristics:
1.DELTA servo motor pull the material,high precision.
2.MITSUBISHI PLC with touch screen to set any length,quantity,speed.
3.3 inch inflatable shaft for unwinding.
4.14mm thickness steel wall make machine run stable.
5.Pulling roller coat thick PU rubber and won't scratch the material.
6.Polished and anodized aluminum guiding roller,very smooth and never harm the material.
7.Long service life of the SKD11 cutting blade and cut the sheet edge smoothly.
8.Electrical static eliminator to remove static electricity.
9.Other standard machine:360mm,600mm,800mm,1000mm,1400mm.
Purpose:
This machine can cut flexible materials from roll to sheet,such as plastic,paper,label,film,foam,aluminum foil etc.
Technical Data:
|
Model |
DP-500 |
|
Max Feeding Width ( mm ) |
500 |
|
Max unwind roll diameter(mm ) |
600 |
| Max unwind roll weight(kg) | 40 |
| Unwind shaft diameter | 3 inch |
| Cut 320mm speed ( times/minute ) | About 70 |
| PLC | MITSUBISHI |
| Servo Motor Servo Driver | DELTA |
| Precision ( mm ) | ±0.10 |
|
Power |
380V 50HZ |
Electrical listing:
|
Touch Screen |
KUNLUNTONGTAI |
Made in China |
|
Programmable Controller |
MITSUBISHI |
Made in Japan |
|
Servo Driver |
Delta |
Made in Taiwan |
|
Servo Motor |
Delta |
Made in Taiwan |
|
Motor of cutting knife |
SHENLI |
Made in China |
|
AC Contactor |
CHNT |
Made in China |
|
Solid State Relay 20A |
GOLD ELECTRICAL CONTROL |
Made in China |
