Product Description

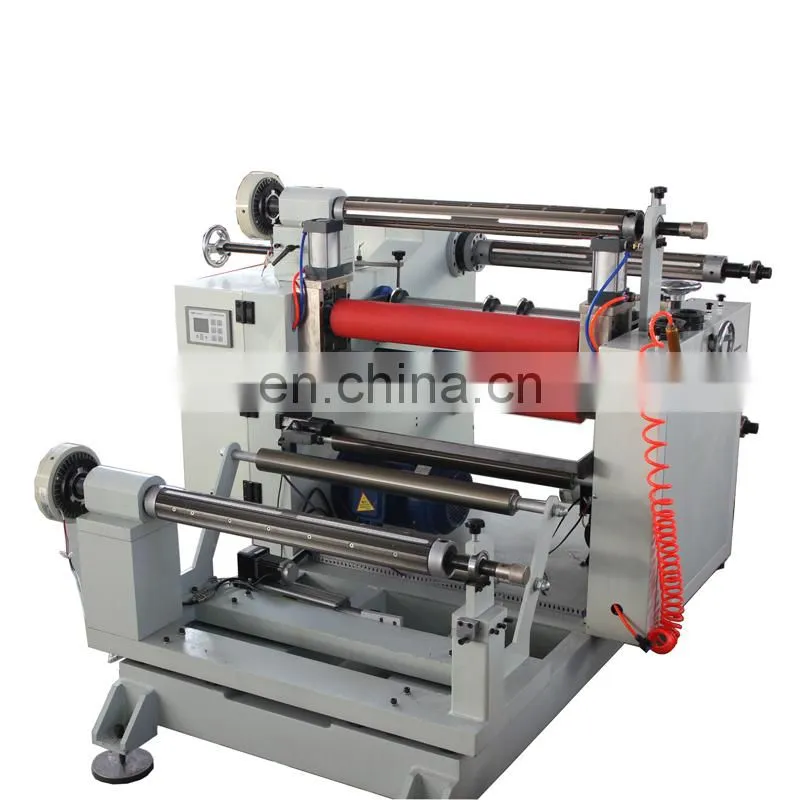

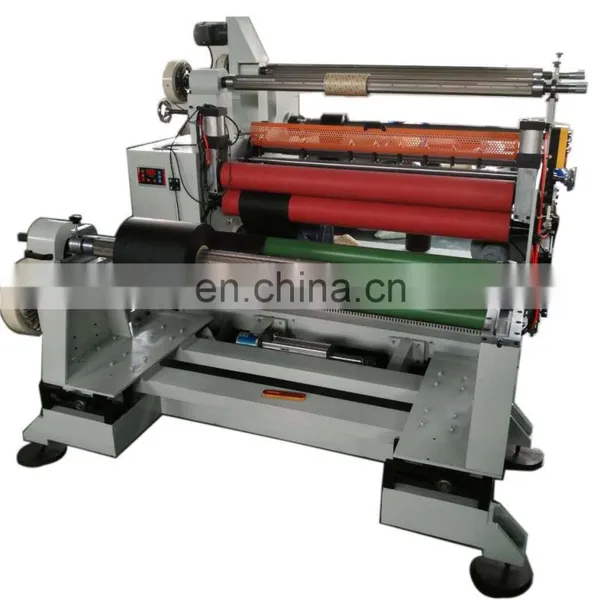

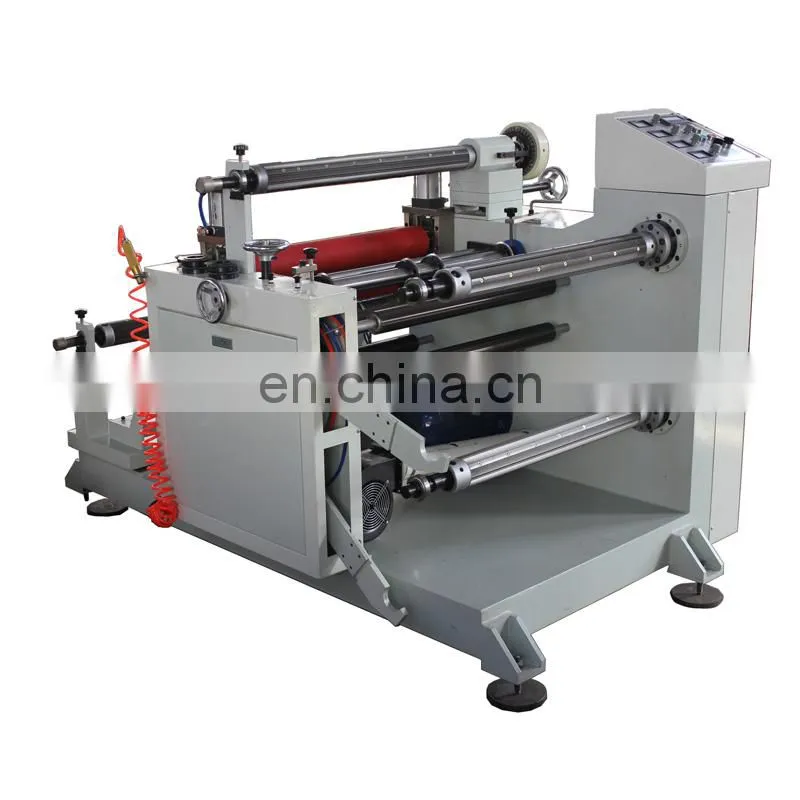

PVC film adhesive tape paper slitting and rewinding machine
Functional characteristics:
1.High precision and high sensitivity slitting,With 3 inch unwind and rewind air shaft.
2.Tension is controlled by magnetic powder clutch.
3.Frequency motor control speed.
4.The rubber roller is lifted up and down by air cylinder,It has the laminating and pulling material function.

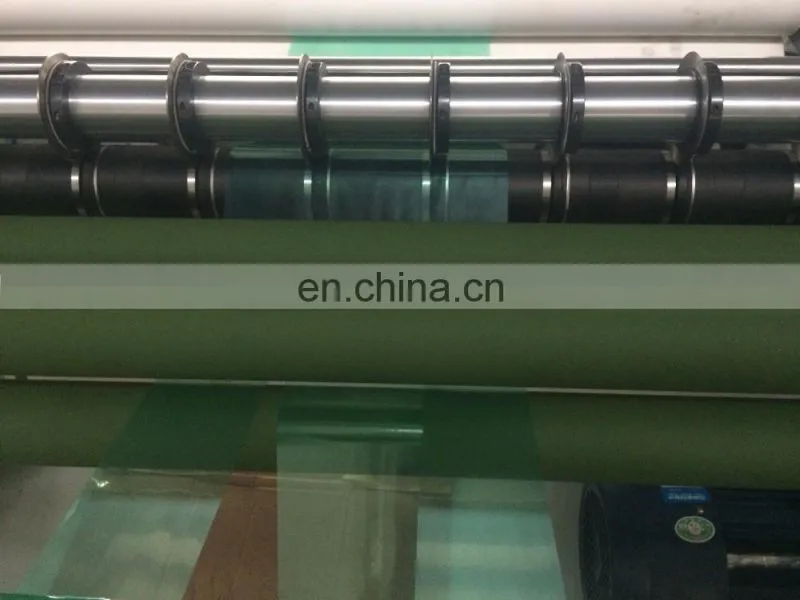

5.With standard 8 rotary slitting blade,the slitting width can be adjustable,and the minimum slitting width is 25mm.
6.Automatic photoelectric rectification and meter count.
7.2 rewind shaft are controlled by magnetic powder tension independently,It can rewind at the same time and rewind separately.
8.With air blower for trimming material.
9.If your material with adhesive,the aluminum guiding roller will make as the teflon roller.
Purpose:

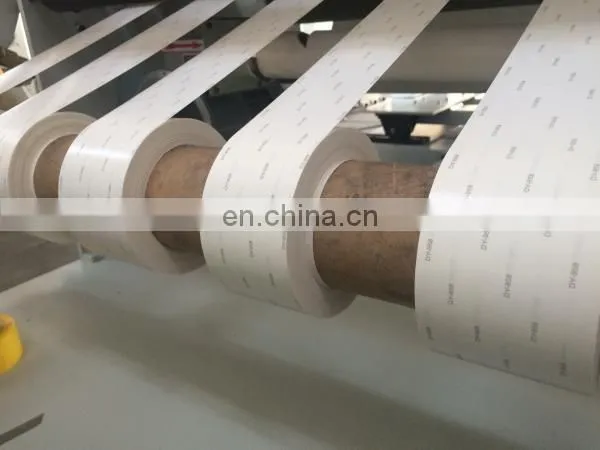

It is applicable for slitting industrial adhesive tape,electronic material,protective film,OPP,PE,PVC,etc.This machine is widely used in the industries such as printing,packing,electronics,leather,clothes making,plastic,etc.
Main Technical Parameters:
| Model | DP-650 | DP-1300 | DP-1600 |
| Max Feeding Width | 650mm | 1300mm | 1600mm |
| Minimum slitting width | 25mm | 25mm | 25mm |
| Rewinding Diameter | 600mm | 450mm | 450mm |
| Unwinding Diameter | 450mm | 600mm | 600mm |
| Precision | ± 0.1mm | ± 0.1mm | ± 0.1mm |
| Voltage | 220V 50HZ | 380V 50HZ | 380V 50HZ |
