Adhesive Tape Rolls Slitting Rewinding Machine Slitting Rewinder Round Knife Cutting +/-0.10mm 80m/min 600mm 450mm 650mm

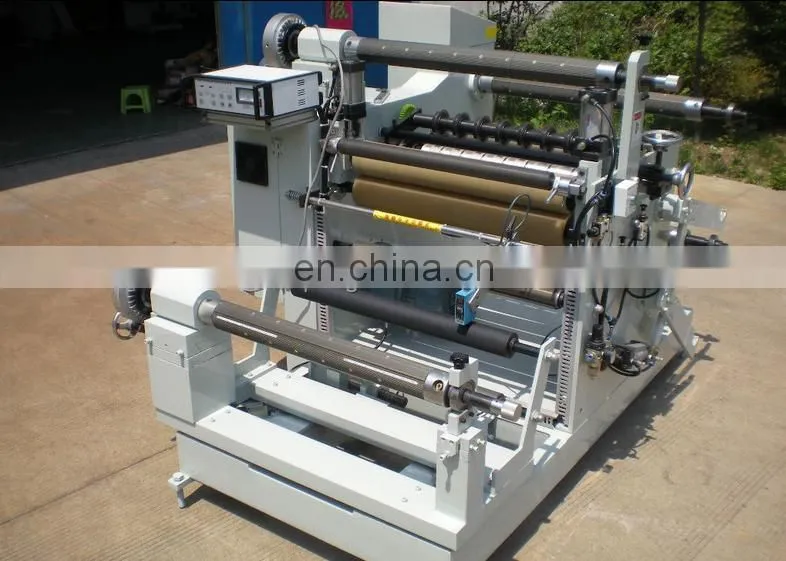

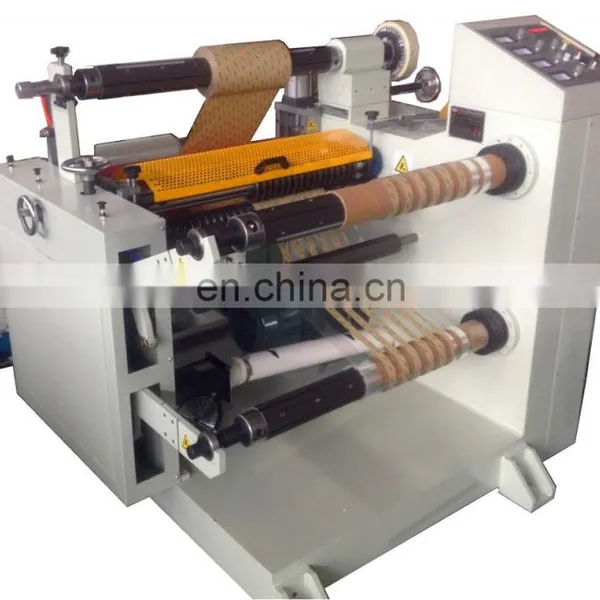

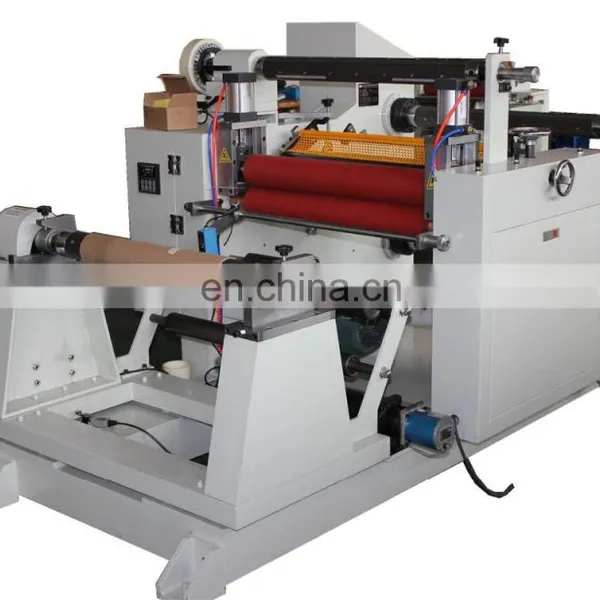

Adhesive Tape Rolls Slitting Rewinding Machine (DP-650)

1. Tehnical Data

Auto Speed : 80m/min

Material roll max length : 650mm

Feeding material diameter : 600 mm

Put film diameter :350mm

Winding diameter : 450mm

Precision cutting : ±0.1mm

Voltage:220V 50HZ

Main Motor Power: 2.2kw

Total Power : 3kw

Raw material max hole diameter : 3″

Compressed air :(0.4-0.6)Mpa(customer prepare by themselves .)

Standard Slitting finished products Min width: 25mm

Machine size : 2400*1700*1300mm

Weight : 1.5T

2. Feeding Device

Feeding air expansion shaft(3″Pad shaft)         2 sets

magnetic powder brake 25N                           1 set

   Release of membrane magnetic powder brake 25N         1 set

Feeding tension control system                        2 Sets

Correction system (photoelectric correction)         1 set

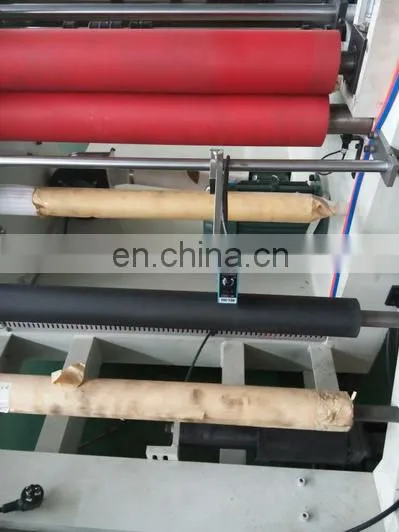

3. Renewal material of laminating

Upper Laminating roller Dia.80(PU)                   1 Set

Underneath laminating roller Dia.80(PU)               1 Set

Al. guide roller (Hard Oxgen oxygenization surface treatment)    1set

Pneumatic type upper and lower system adjustable calender roll   1set

electronic counter                                               1Set

Release of membrane tension adjustment system                             1Set

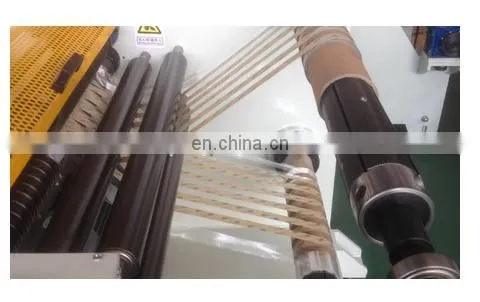

4. Slitting system

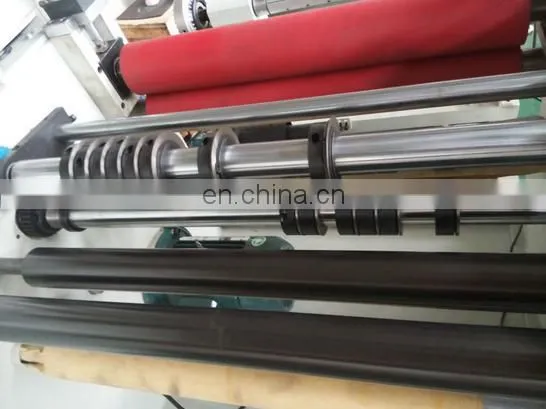

Upper circular cutter shaft Dia.65                          1Set

Underneath circular cutter shaft Dia.65                     1Set

Manual fine-tuning lock device

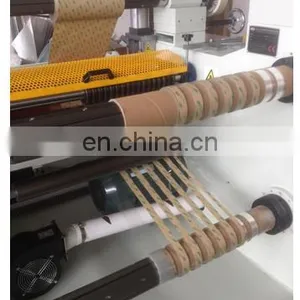

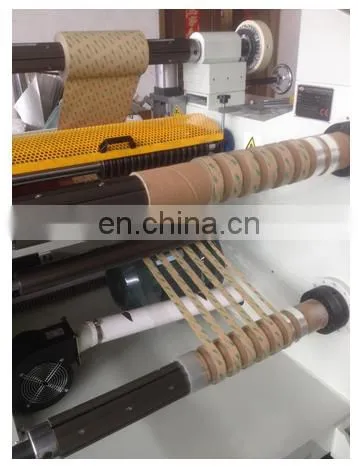

5. Reeling end

rewinding air expansion shaft(3″Pad shaft)              2 Sets

magnetic powder brake 25N                               2 Sets

The rewinding tension control system                     2 Sets

Main Power                                               1 Set

Main Power transducer                                      1 Set

Rewinding shaft air drive upper and underneath device (increase,descend,hold) 1set

6. switchboard control box                               1 set

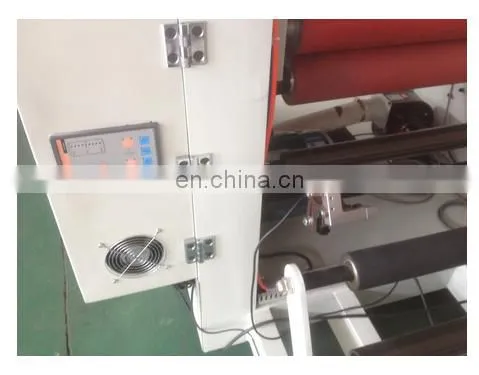

7.Electric control panel                                 1set

slitting Knife:

material tracing :
