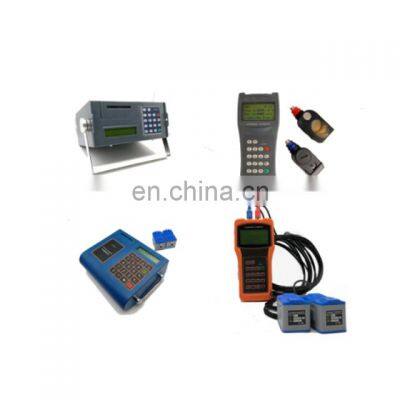

Portable Ultrasonic Clamp On Flow Meter, Flow Meter Portable Transit Time Ultrasonic Clamp-On Flow Transmitter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Diesel Flow Transmitter Hand-Hold Ultrasonic Flow Meter Fuel FlowmetersNegotiableMOQ: 1 -
Hand-Hold Ultrasonic Flowmeters Ultrasonic Water Meter Flow Meter Ultrasonic Water Flow TransducerNegotiableMOQ: 1
-
Taijia MD120 Best Wall Scanner and Electronic Stud FinderNegotiableMOQ: 1
-
Taijia CM Series Positector 6000 Film Coating Thickness Gauge Conveyor Belt Thickness Measurement InstrumentsNegotiableMOQ: 1
-
Taijia CM Series Cladding/Galvanized Coating Thickness Gauge Cladding Thickness GaugeNegotiableMOQ: 1
Product Description

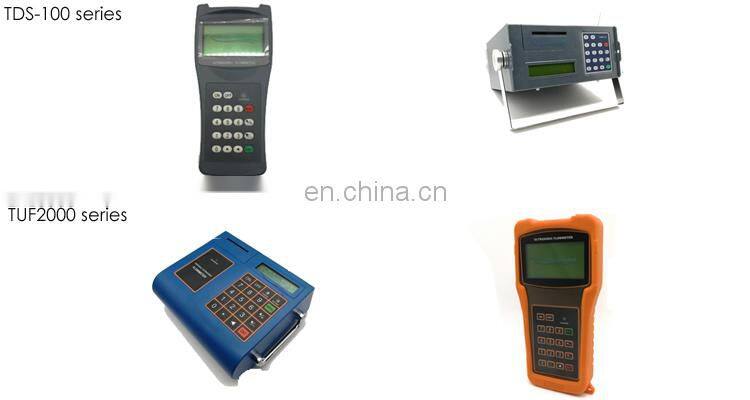

Features of TDS-100H Hand Held Ultrasonic Flow Meter
1.0.5% of linearity
2.0.2% of repeatability
3.Bilingual interface in chinese and English
4.4 flow totalizers
5.Patent balanced lower-voltage multi-pulse ultrasonic igniting
6.Work properly near transverters
7.100Pico-second resolution of time measurement
8.built-in date totalizers
9.built-in data-logger
10.0.5 second totalizing period
Features of TDS-100P is a Portable Ultrasonic Flow Meter
1. Better than 1% accuracy
2. 0.2% of repeatability
3.2x10 English letters LCD display
4.Operate with clamp on transducers
5.Pipe diameters from 15mm to 6000mm
6.RS485 interface
7.Built-in thermal printer
8.Ni-MH battery operation of over 24 h
9. 220VAC or 110VAC power supply
2. 0.2% of repeatability
3.2x10 English letters LCD display
4.Operate with clamp on transducers
5.Pipe diameters from 15mm to 6000mm
6.RS485 interface
7.Built-in thermal printer
8.Ni-MH battery operation of over 24 h
9. 220VAC or 110VAC power supply
clamp-on transit time ultrasonic flow meter
Features of TUF2000P Portable Ultrasonic Flow meter
1.Up to +/-1% High accutacy
2.Non-contacting measuring
3.Non-intrusive, clamp-on transducer
4.DN 15mm to DN6000mm Wide measuring range
5.English menu English display
6.Built-in rechargeable Ni-MH rechargeable battery
7.Built in thermal printer
Features of TUF2000H Hand Held Ultrasonic Flow Meter
1.0.2% of repeatability
2. Internal data logger
3. 90~230VAC power supply
4. Better than 1% accuracy
5.4x6 English letters LCD display
6. Operate with clamp on transducers
7.Ni-MH battery operation of over 12 h
8.Pipe diameters from 15mm to 6000mm
9.RS 232 interface or 1-channel isolated OCT output
2. Internal data logger
3. 90~230VAC power supply
4. Better than 1% accuracy
5.4x6 English letters LCD display
6. Operate with clamp on transducers
7.Ni-MH battery operation of over 12 h
8.Pipe diameters from 15mm to 6000mm
9.RS 232 interface or 1-channel isolated OCT output
Specification
Model Number |
TDS-100H |
TDS-100P |
TUF2000H |
TUF2000P |
Heat Meter |
No |
No |
No |
Can added PT100 temperature sensor and used as Ultrasonic heat meter |
Printer & SD card option |
No(can be added data logger) |
Choose either Printer or Sd card |
No(can be added data logger) |
Can be added printer & SD card the same time |
Display |
LCD with backlight. 2x20 letters. |
LCD with backlight. 2x20 letters.4x4+2 keyboard |
4*16 English letters |
2x20 character LCD with backlight, support the language of Chinese, English and Italian |
Power |
90~230VAC Ni-MH battery operation of over 12 h |
220VAC (standard) the battery can working for more than 20 hours |
90~230VAC Ni-MH battery operation of over 12 h |
220VAC (standard) the battery can working for more than 20 hours |
Output |
RS232C |
RS485 |
RS 232 |
RS485 |
Environment Humidity |
85% RH |
85% RH |
85%RH |
85%RH |
Accuracy |
Better than ±1.0 % |
Better than ±1.0 % |
Better than ±1.0 % |
Better than ±1.0 % |
Pipe Size |
DN15mm~6000mm |
DN15mm～6000mm |
DN 20mm-6000mm |
DN 15-6000mm |
Measurement Principle |
Transit-time measurement principle |
Transit-time measurement principle |
Transit-time ultrasonic flow meter |
Transit-time ultrasonic flow meter |
Pipe Material |
Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum |
Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum |
Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum |
Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum |
Power Consumption |
Less than 1.5W |
2W |
- |
1.5 W |
Environment Temperature |
0-70℃
If request high temperature sensor (0-160℃)welcome to consult us
|
0-70℃
If request high temperature sensor (0-160℃)welcome to consult us
|
0-70℃
If request high temperature sensor (0-160℃)welcome to consult us
|
0-70℃
If request high temperature sensor (0-160℃)welcome to consult us
|
Repeatability |
0.20% |
0.20% |
0.20% |
0.20% |
Protection Class |
IP65 |
IP65 |
IP65 |
IP65 |
Transducer Options
Sensor Type |
Pipe size (mm) |
Pipe size (inch) |
Temperature |
Protection class |
TS-2-type |
DN15~100 |
( 1/2~4" ) |
32F~320F ( 0℃~160℃ )
|
IP65
|
TM-1-type |
DN50~700 |
(2~28" ) |
||
TL-1-type |
DN300~6000 |
( 12~240" ) |
||
HS-type |
DN15~100 |
( 1/2~4" ) |
||
HM-type |
DN50~700 |
( 2~28" ) |
